9.3 - Tests on Bitumen
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Penetration Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing the Penetration Test, which helps us determine the hardness or softness of bitumen. Who can tell me what the test measures?
It measures how deep a needle goes into the bitumen!
Exactly! The test conditions require a 100 gram load for 5 seconds at 25°C. Why do you think these conditions are important?
To ensure the results are standardized and reliable!
Correct! The results are expressed in tenths of a millimeter, where a higher value indicates softer bitumen. This helps in classification such as 80/100 or 60/70. Can anyone explain why it's important to classify bitumen?
It's important for knowing which grade to use for different pavement conditions!
Great! So, to summarize, the Penetration Test is crucial for classifying the hardness of bitumen, influencing its use in pavement design.
Softening Point Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let's delve into the Softening Point Test. Can anyone describe its purpose?
It determines the temperature at which bitumen softens!
Exactly! We use a Ring and Ball apparatus for this. What do you all think is the significance of knowing the softening point?
It indicates how bitumen will behave in high temperatures!
Right! This test provides insights into temperature susceptibility, helping us understand how bitumen will function under service conditions. Remember, understanding softening helps prevent failures in the pavement!
Ductility Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's learn about the Ductility Test. Why do you think ductility is important for bitumen?
It's important for allowing movements without cracking!
Exactly! This test measures the elongation of bitumen before breaking, indicating its ability to resist cracking. The testing machine stretches the molded briquette at a rate of 5 cm/min at 27°C. What could happen if the ductility is too low?
The pavement could crack easily in temperature changes!
Great insight! Higher ductility means better crack resistance. So in summary, ductility is critical for pavement flexibility and durability.
Viscosity Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's move on to viscosity tests. Who can summarize why viscosity is crucial for bitumen?
It's important for the mixing, compaction, and laying processes!
Exactly! We have two main types: Saybolt Furol for cutbacks and Rotational Viscometer for paving grades. What determines which viscosity test we choose?
It depends on the type of bitumen we're working with!
Correct! Understanding viscosity helps control flow characteristics, ensuring appropriate handling during application. To sum it up, viscosity tests are vital in determining the optimal conditions for mixing and laying bitumen.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section elaborates on several laboratory tests performed on bitumen, including the Penetration Test, Softening Point Test, and Ductility Test, among others. It highlights the significance of these tests in determining the suitability of bitumen for various climatic and loading conditions.
Detailed
Tests on Bitumen

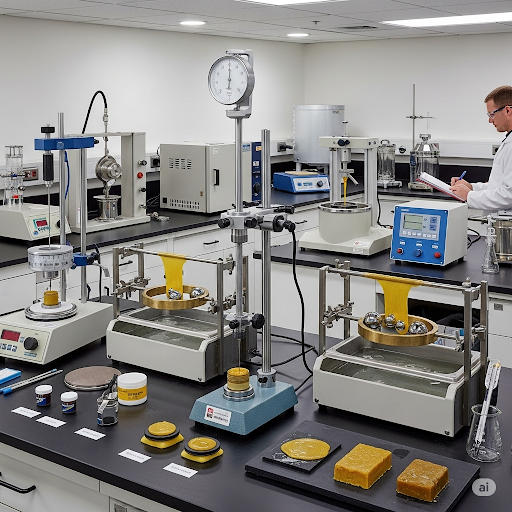

Bitumen, a key material in road construction, undergoes various standardized laboratory tests to evaluate its properties. This section details the tests that assess different characteristics of bitumen, which are pivotal for ensuring its performance and durability in flexible pavement applications.
Main Tests Covered:
- Penetration Test (IS: 1203): Measures hardness to classify bitumen grades.
- Softening Point Test (Ring and Ball Method, IS: 1205): Determines the softening temperature of bitumen.
- Ductility Test (IS: 1208): Measures elongation before breaking, indicating crack resistance.
- Viscosity Tests: Includes Saybolt Furol and Rotational Viscosity tests to ensure appropriate mixing and application temperatures.
- Flash and Fire Point Test (IS: 1209): Determines ignition risks during heating.
- Specific Gravity Test (IS: 1202): Assesses density for mix calculations.
- Water Content Test (IS: 1211): Evaluates moisture, influencing heating quality.
- Loss on Heating Test (IS: 1212): Measures volatility and aging resistance.
- Solubility Test (IS: 1216): Assesses purity by measuring dissolved content in solvents.
- Elastic Recovery Test: Evaluates ability to return to original shape after deformation.
These tests help ensure that bitumen meets the requirements for specific climatic conditions and loading scenarios, thus guaranteeing the integrity and longevity of pavements.

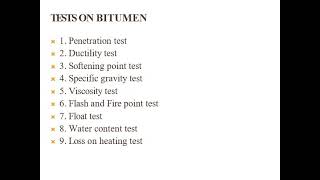

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Tests on Bitumen
Chapter 1 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Various standardized laboratory tests are conducted to evaluate the properties of bitumen. These tests help ensure that the material is suitable for specific climatic and loading conditions.
Detailed Explanation
In this section, we learn about the importance of conducting tests on bitumen. To ensure that bitumen can withstand the conditions it will face, standardized tests are performed. These tests assess its properties and help engineers determine if the bitumen is suitable for different climates and loads that roadways experience.
Examples & Analogies
Think of a quality test for food before it gets sold at a supermarket. Just like a food safety test ensures that the food is safe for consumption, these tests ensure that the bitumen is fit for use in constructing roads.
Penetration Test (IS: 1203)
Chapter 2 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Measures the hardness or softness of bitumen by determining the depth a standard needle penetrates into it under specified conditions.
Apparatus:
• Penetrometer
• Needle
• Water bath
• Timer
Test Conditions:
• Load: 100 g
• Time: 5 seconds
• Temperature: 25°C
Result Interpretation:
• Expressed in tenths of a millimeter.
• Higher value → Softer bitumen
Significance:
• Helps classify bitumen grade (e.g., 80/100, 60/70, etc.)
Detailed Explanation
The penetration test is crucial for understanding how soft or hard bitumen is. By inserting a needle into a sample of bitumen under controlled conditions, we can measure how far it penetrates. The deeper the penetration, the softer the bitumen. This information allows us to classify bitumen according to its hardness, which is important for specific applications in road construction.
Examples & Analogies
Imagine testing the ripeness of a fruit like a peach by pressing into it to see how deep your finger goes. A softer peach gives way more easily. In a similar way, a softer bitumen has a higher penetration value.
Softening Point Test (Ring and Ball Method) (IS: 1205)
Chapter 3 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Determines the temperature at which bitumen softens under specific conditions.
Apparatus:
• Ring and Ball apparatus
• Heating bath
• Thermometer
Test Method:
• Bitumen is heated and placed in brass rings.
• Steel balls are placed on top.
• Temperature is recorded when balls touch the base plate.
Significance:
• Indicates temperature susceptibility.
• Used to assess behavior at high service temperatures.
Detailed Explanation
The softening point test helps us know the temperature at which bitumen transforms from a solid state to a softer state. By using a ring and ball apparatus, we heat the bitumen until the steel balls begin to sink, which indicates that the bitumen has softened sufficiently. This information is crucial because it tells us how the bitumen will perform in warmer conditions.
Examples & Analogies
Think about how butter melts on a warm piece of toast. Just like we need to know when butter is about to melt, we need to know when bitumen softens, so we can ensure it performs well in hot weather.
Ductility Test (IS: 1208)
Chapter 4 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Measures the elongation of bitumen before it breaks.
Apparatus:
• Ductility testing machine
• Briquette mold
Procedure:
• A molded briquette of bitumen is stretched at 5 cm/min at 27°C.
• Distance stretched before breaking is recorded.
Significance:
• Higher ductility → Better crack resistance.
Detailed Explanation
The ductility test assesses how much a bitumen sample can stretch before it breaks. A specimen is formed into a briquette shape and pulled apart at a controlled speed. The distance it can stretch is crucial: the longer it stretches without breaking, the more ductile it is and the better it can resist cracks when used in pavements.
Examples & Analogies
Imagine a rubber band. If you pull it slowly, it stretches far before snapping. However, if it's too tight or old, it might snap quickly. Bitumen needs to have good ductility, similar to a flexible rubber band, to handle movement without cracking.
Viscosity Test
Chapter 5 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Viscosity is crucial for mixing, compaction, and laying processes.
Types of Viscosity Tests:
• Saybolt Furol Viscosity (IS: 1206 Part I) – for cutbacks
• Rotational Viscometer (IS: 1206 Part II) – for paving-grade bitumen
Significance:
• Controls the flow characteristics.
• Important for selection during mixing and laying temperatures.
Detailed Explanation
Viscosity tests measure how easily bitumen flows, which is critical for processes such as mixing and laying on roads. There are different methods for testing viscosity depending on whether the bitumen is a cutback or paving grade. Understanding viscosity helps engineers choose the right type of bitumen for the current conditions.
Examples & Analogies
Consider pouring syrup versus water. Syrup is thick and flows slowly (high viscosity), while water flows quickly (low viscosity). Similarly, bitumen's viscosity determines how easily it can be spread and combined with aggregates.
Flash and Fire Point Test (IS: 1209)
Chapter 6 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Determines the temperature at which bitumen vapors ignite (flash point) and sustain burning (fire point).
Apparatus: Pensky-Martens Apparatus
Significance:
• Important for safety during heating and handling of bitumen.
Detailed Explanation
The flash and fire point test is used to assess the safety of bitumen when heated. It identifies the temperature at which vapors might ignite (flash point) and the temperature at which they will keep burning (fire point). Knowing these temperatures is essential for safe handling and application of bitumen, particularly during road construction.
Examples & Analogies
Think about cooking oil. When you heat it too much, it begins to smoke (flash point), and if it gets hot enough, it can catch fire (fire point). Just like with cooking oil, knowing the flash and fire points of bitumen ensures workers can handle it safely.
Specific Gravity Test (IS: 1202)
Chapter 7 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Measures the density of bitumen relative to water.
Significance:
• Used for weight-volume conversions.
• Affects bituminous mix calculations.
Detailed Explanation
The specific gravity test determines how dense bitumen is compared to water. This measurement is essential for engineers as it helps in calculating weight-volume conversions and is crucial for designing the right bituminous mixes needed for road projects.
Examples & Analogies
Imagine comparing the weight of a balloon filled with air to one filled with water. The density comparison helps us understand how heavy or light these materials are. Similarly, understanding the specific gravity of bitumen aids in proper construction material selection.
Water Content Test (IS: 1211)
Chapter 8 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Measures the moisture content present in bitumen.
Significance:
• High water content can lead to foaming during heating.
• Indicates storage and handling quality.
Detailed Explanation
The water content test measures how much moisture is present in bitumen. Too much moisture can cause problems, such as foaming when heated, which affects the quality of the bitumen and can lead to issues during construction. This test helps assess whether the bitumen has been stored and handled correctly.
Examples & Analogies
Think about what happens when you heat wet wood. It can crackle and create steam. Similarly, if bitumen has high water content, it can cause foaming and issues when heated. Therefore, it's crucial to know its moisture levels.
Loss on Heating Test (IS: 1212)
Chapter 9 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Evaluates the volatility of bitumen by measuring weight loss on heating.
Procedure:
• Bitumen sample is heated at 163°C for 5 hours.
• Weight loss is recorded.
Significance:
• High weight loss indicates excessive volatile content.
• Useful for evaluating aging resistance.
Detailed Explanation
The loss on heating test evaluates how much weight bitumen loses when heated, which indicates its volatile content. If too much weight is lost, it means there are excessive volatiles present that can negatively affect the performance of bitumen over time. This test also gives insight into the aging resistance of the material.
Examples & Analogies
Consider a sponge left in the sun. As it heats up, it loses water weight. Similarly, heating bitumen and measuring weight loss helps determine how stable it is over time. High weight loss isn't good, just like a dried-up sponge isn't useful.
Solubility Test (IS: 1216)
Chapter 10 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Determines the percentage of pure bitumen in the sample by dissolving it in a solvent like carbon tetrachloride or trichloroethylene.
Significance:
• Assesses bitumen purity.
• Impurities like inert materials reduce solubility.
Detailed Explanation
The solubility test determines how much pure bitumen is in a sample by dissolving it in a solvent. This is important for assessing the purity of bitumen. If materials dissolve well, the bitumen is mostly pure; if there are many impurities, the solubility decreases.
Examples & Analogies
Think of making lemonade. If you put too much sugar in, it won't fully dissolve, leaving a gritty texture. Similarly, if there are impurities in bitumen, it won't dissolve well in the solvent, indicating reduced quality.
Elastic Recovery Test
Chapter 11 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Purpose: Measures the ability of bitumen to regain its original shape after deformation.
Method:
• Typically used for polymer-modified bitumen.
• The stretched sample is cut and allowed to recover; recovery is recorded as a percentage.
Significance:
• Indicates resistance to permanent deformation.
Detailed Explanation
The elastic recovery test evaluates how well bitumen can return to its original shape after being stretched or deformed. This property is crucial, especially for polymer-modified bitumen, which is used to enhance performance. A high recovery percentage indicates that the bitumen can withstand deformations without permanent damage.
Examples & Analogies
Think about an elastic band. When you stretch it out and let it go, if it snaps back into its original shape, that means it's good quality. The elastic recovery test assesses whether bitumen can do the same under strain, ensuring it stays effective in its applications.
Key Concepts
-
Penetration Test: Measures hardness/softness to classify bitumen.
-
Softening Point Test: Determines temperature where bitumen softens, indicating its suitability.
-
Ductility Test: Assesses flexibility by measuring elongation before breaking.
-
Viscosity: Essential for appropriate mixing and application of bitumen.
Examples & Applications
Using the Penetration Test results to classify bitumen as 80/100 for soft pavements.
Ductility Test results indicate that a bitumen sample with a higher stretching distance before breaking can be preferred for colder climates.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Soft or hard, how will you flow? Test it with a needle, let the results show!
Stories
Imagine a world where bitumen is confused about its temperature behavior. The Softening Point Test is a wise guide that reveals its softening secrets, allowing engineers to choose the right material.
Memory Tools
Kite Soars Vividly During Very Fierce Winds: K - Knowledge (Penetration), S - Softening Point, V - Viscosity, D - Ductility.
Acronyms
PVDS for remembering Penetration, Viscosity, Ductility, Softening for key concept tests.
Flash Cards
Glossary
- Penetration Test
A test that measures the hardness or softness of bitumen based on needle penetration.
- Softening Point Test
A test that determines the temperature at which bitumen softens.
- Ductility Test
A test that measures the elongation of bitumen before it breaks to assess its flexibility.
- Viscosity
A measure of a fluid's resistance to flow, crucial for mixing and application of bitumen.
