Purpose and Importance of the Penetration Test
Unlock Audio Lesson
Today we will discuss the Penetration Test, which is fundamental in evaluating bitumen's hardness or softness. Can anyone tell me why it’s essential to know the hardness of bitumen?
I think it affects how the bitumen will behave in different weather conditions.
Exactly! Knowing the hardness helps us classify bitumen grades crucial for different applications. The depth of penetration indicates whether the bitumen is too hard or too soft.
How exactly do we measure that?
We use a penetrometer to apply a specific load and measure how deep a needle penetrates the bitumen. Higher penetration means softer bitumen, while lower penetration indicates hardness.
What are some grades we might see?
Great question! Common grades include 80/100 and 60/70. The first number indicates the minimum penetration, and the second the maximum.
To summarize, the Penetration Test determines bitumen consistency impacting road durability and performance. Any questions before we move on?
Test Conditions and Apparatus
Unlock Audio Lesson
Let’s dive deeper into the apparatus used for the Penetration Test. What tools do you think we need?
I believe we need a weighted needle and a timer?
Correct! We also need a penetrometer and a water bath. Each tool has a specific role. For instance, the water bath maintains the test temperature at 25°C.
And what about the test conditions? Why are they important?
Excellent point! Consistent testing conditions ensure that results are reliable and comparable. We use a load of 100 grams and a timing of 5 seconds to achieve this.
To summarize, the Penetration Test uses specific equipment under controlled conditions to measure bitumen hardness – an essential component in pavement design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Penetration Test is a standardized method to evaluate the consistency of bitumen, highlighting its importance in determining bitumen grade classification. This test involves measuring how deep a needle sinks into a sample under specific conditions, linking the result to the material's softness and suitability for various applications in pavement construction.
Detailed
Penetration Test (IS: 1203)
The Penetration Test is a critical laboratory assessment used to determine the hardness or softness of bitumen by measuring how deep a standard needle penetrates into the bitumen sample under controlled conditions. This test provides essential information regarding the grade of bitumen, which influences its performance and suitability in road construction.
Key Points:
- Purpose: To measure the hardness/softness of bitumen, determining its grade classification.
- Apparatus: Penetrometer, needle, water bath, and timer.
- Test Conditions: A fixed load of 100 grams is applied with a timing of 5 seconds at a standardized temperature of 25°C.
- Result Interpretation: Results are expressed in tenths of a millimeter, where higher values indicate a softer bitumen.
- Significance: The outcome is vital for classifying bitumen grades (e.g., 80/100, 60/70, etc.) and ensuring that the material meets the requirements for specific climatic and loading conditions.

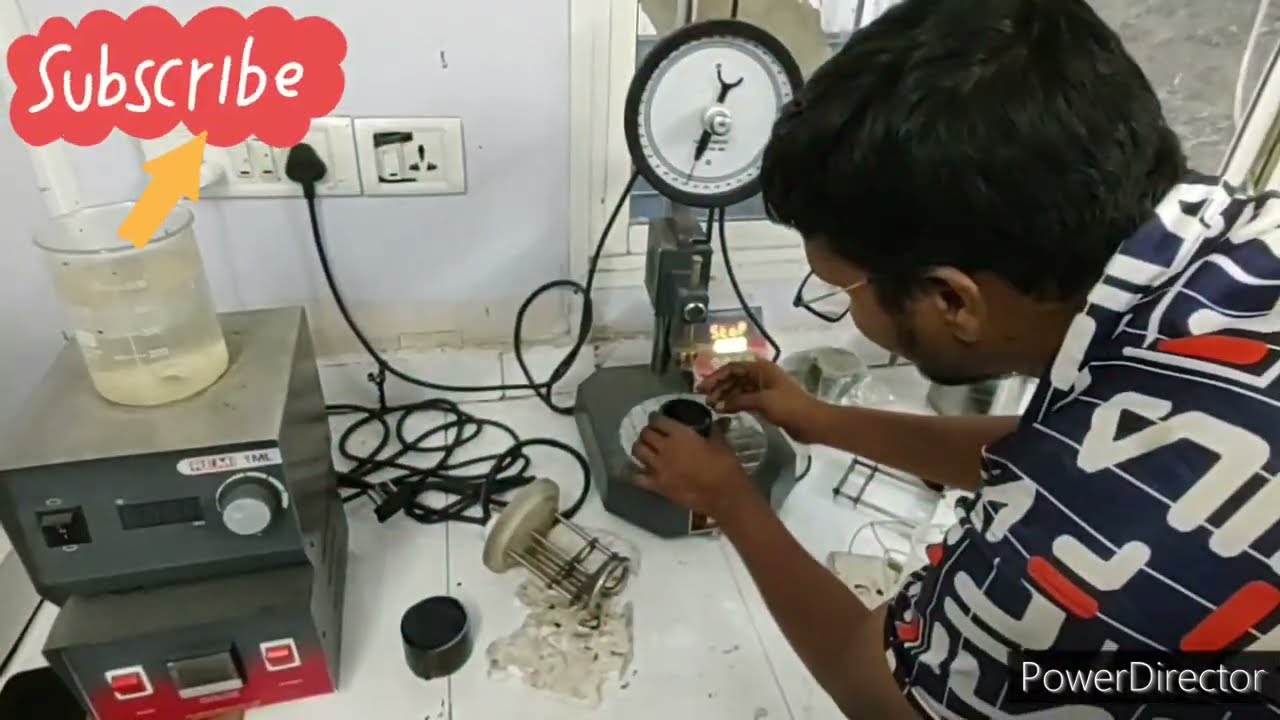

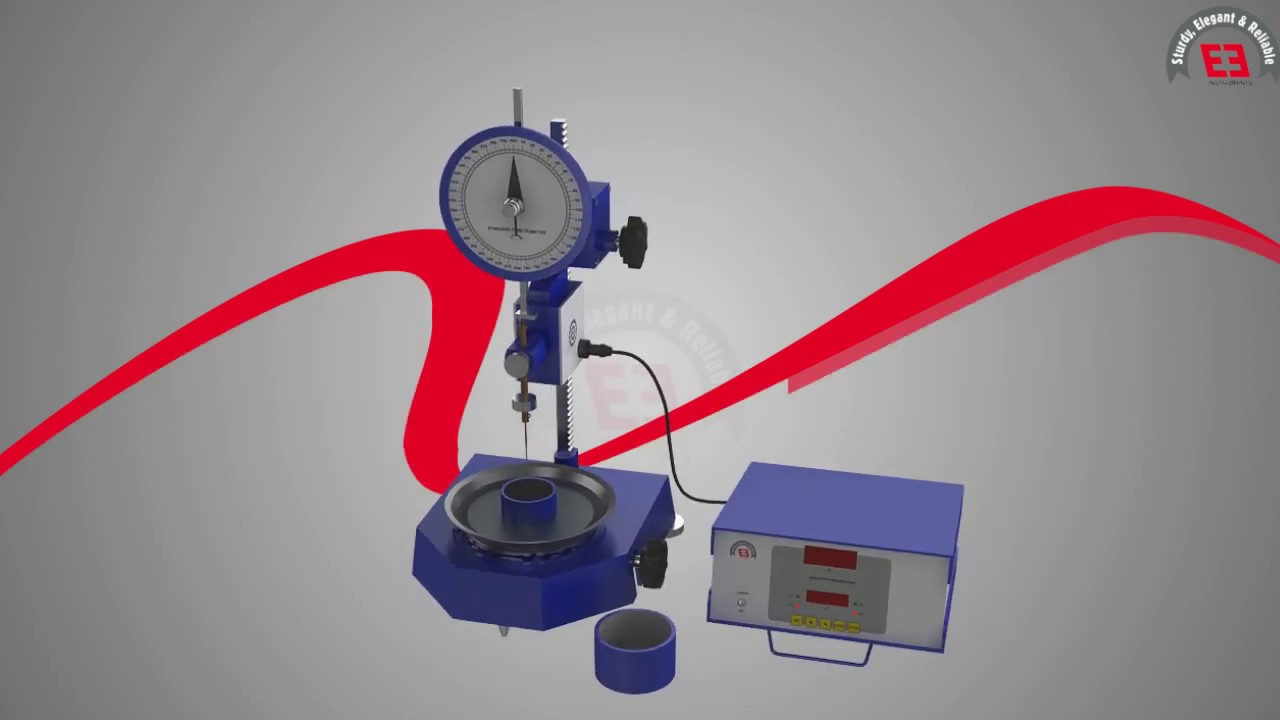

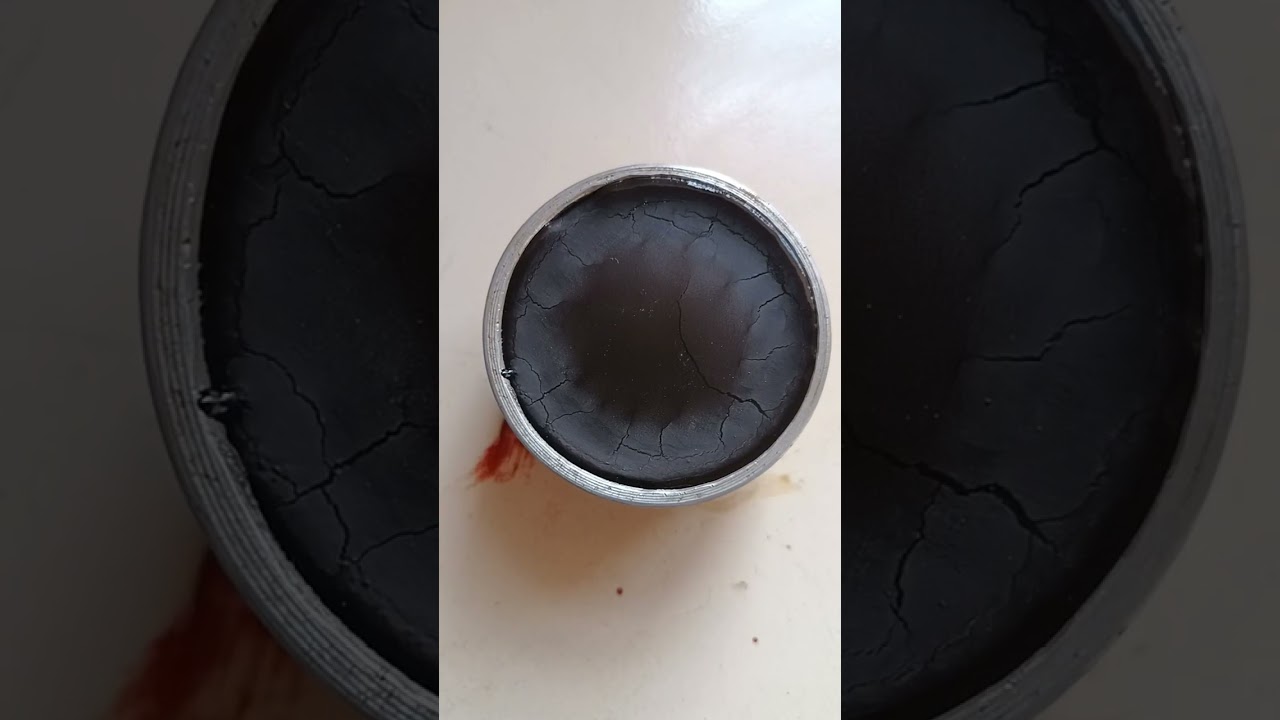

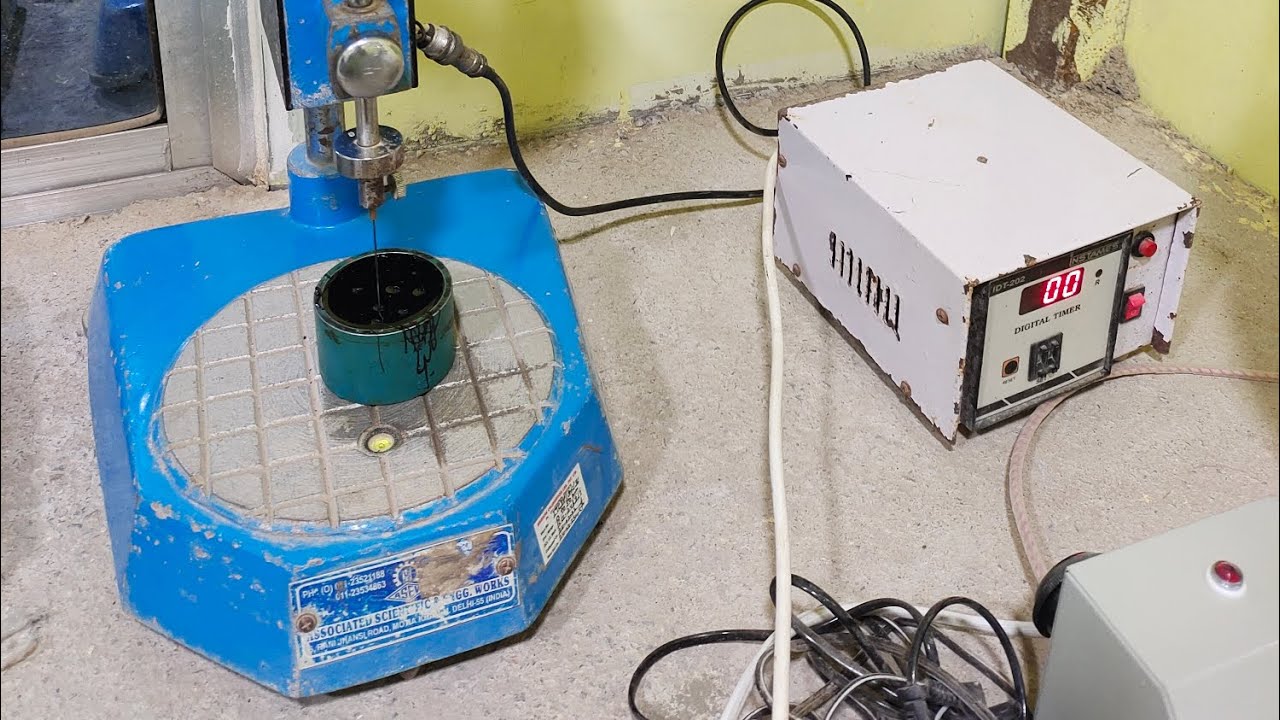

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of the Penetration Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Purpose: Measures the hardness or softness of bitumen by determining the depth a standard needle penetrates into it under specified conditions.
Detailed Explanation
The penetration test is designed to evaluate the consistency or hardness of bitumen. When testing, a standard-sized needle is pressed into the bitumen under specific conditions (including a set load and temperature), and the depth of penetration is measured in tenths of millimeters. A shallower penetration indicates a harder bitumen, while deeper penetration indicates a softer bitumen.
Examples & Analogies
Imagine trying to push a needle into a soft piece of cake versus a hard piece of chocolate. The needle goes deeper into the cake, just as it would in soft bitumen, indicating that the cake (soft bitumen) is easier to penetrate than the chocolate (hard bitumen).
Apparatus Needed for the Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Apparatus:
• Penetrometer
• Needle
• Water bath
• Timer
Detailed Explanation
To conduct the penetration test, several pieces of equipment are required. The penetrometer is an instrument that holds the needle and applies the test load. The needle is carefully designed and standardized for these measurements. A water bath helps maintain the bitumen at the required temperature of 25°C, while a timer ensures the penetration occurs for the correct amount of time, specifically 5 seconds.
Examples & Analogies
Think of the penetrometer like a measuring tool in a cooking class. Just as a kitchen tool helps you consistently measure ingredients, the penetrometer ensures that the bitumen is consistently evaluated under controlled conditions.
Test Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Test Conditions:
• Load: 100 g
• Time: 5 seconds
• Temperature: 25°C
Detailed Explanation
The test conditions are crucial to ensuring accurate results. A load of 100 grams is applied to the needle during penetration. The test is timed, with penetration lasting precisely 5 seconds. Maintaining a consistent temperature of 25°C is vital since the physical properties of bitumen can change with temperature. Any deviation could affect the test outcome.
Examples & Analogies
It's similar to baking cookies; if you change the oven temperature or baking time, the cookies won't turn out the same. Consistent conditions ensure that the bitumen testing is reliable.
Result Interpretation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Result Interpretation:
• Expressed in tenths of a millimeter.
• Higher value → Softer bitumen
Detailed Explanation
The results of the penetration test are quantified in tenths of a millimeter. This means if the needle penetrates 30 tenths of a millimeter, that result is indicated as 30. A higher penetration value implies that the bitumen is softer, while a lower value indicates a harder material. This information is pivotal for classifying the grade of bitumen for different pavement applications.
Examples & Analogies
Consider testing a sponge versus a rubber band with a pencil point. The pencil point will sink deeper into the sponge (soft), while it barely penetrates the rubber band (hard). This gives you a practical understanding of how softness is measured.
Significance of the Test Results
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Significance:
• Helps classify bitumen grade (e.g., 80/100, 60/70, etc.)
Detailed Explanation
The outcomes of the penetration test are critical for grading bitumen, indicative of its suitability for different environmental and load-bearing conditions. Grades like 80/100 and 60/70 detail the minimum and maximum penetration depths the bitumen should fall within. This classification aids engineers in selecting the right type of bitumen for road construction to ensure durability and performance.
Examples & Analogies
It's akin to choosing the right pair of shoes for different activities. Just as you would want running shoes for a jog and dress shoes for a formal occasion, the correct grade of bitumen is chosen based on the specific needs of the road or pavement project.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Penetration Test: A method to measure bitumen hardness or softness based on needle penetration.
-
Bitumen Hardness: Influences pavement durability and performance.
-
Standard Conditions: Essential for reliable test results.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a bitumen sample has a penetration of 70 tenths of a millimeter, it is classified as a softer type of bitumen, suitable for areas requiring flexibility.
-
A penetration of 40 tenths of a millimeter indicates harder bitumen, often used for high-load traffic areas.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For soft bitumen, let it flow, Penetration high, and it will show.
📖 Fascinating Stories
-
Imagine a middle school science class where students are tasked with measuring the depth of a needle in clay. The softer the clay, the deeper the needle goes. This is just like how the Penetration Test works with bitumen!
🧠 Other Memory Gems
-
PEN - Penetration Evaluates Need. Remember, a deeper penetration means softer need!
🎯 Super Acronyms
TEST
- Test for Evaluating Softness/Thickness.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Penetration Test
Definition:
A method that measures the hardness or softness of bitumen based on how deeply a needle penetrates into its surface.
-
Term: Penetrometer
Definition:
An instrument used to measure the penetration depth under a specific load.
-
Term: Bitumen Grade
Definition:
A classification indicating the hardness or softness of bitumen, often represented by a number pair (e.g., 80/100).
