14.5.1.2 - Cracking
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Cracking
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into a critical topic: cracking in bituminous materials. Can anyone tell me why cracking might occur?
I think it has something to do with temperature changes?
That's correct! Fluctuations in temperature can lead to thermal stresses. Specifically, during cold weather, the material can stiffen and become more prone to cracking. Remember, we often refer to this as 'thermal cracking'.
What about the impact of traffic? Does that cause cracks too?
Absolutely! Repeated loading from traffic induces fatigue in the material, which contributes to crack formation over time. Let's not forget oxidation, which can also increase brittleness.
Mechanisms of Cracking
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we've covered the basics, let's look into the mechanisms of cracking. What do you think oxidation does to bituminous materials?
It makes them hard? Like, more stiff?
Exactly! Oxidation causes the bitumen to harden, reducing its elasticity and ductility. This makes it more susceptible to cracking. We can remember this with the acronym 'HARD'—High Aging Resistance Deteriorates flexibility.
Are there specific types of cracks we should know about?
Yes! We have several types such as surface cracking, block cracking, and alligator cracking. Each indicates different issues with the pavement's health.
Effects of Cracking
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
How do you think cracks affect the overall performance of the pavement?
They probably let water in, right?
Yes! Water infiltration can lead to further deterioration, creating a vicious cycle. This is a significant concern, as discussed in the 'Moisture-Induced Damage' section earlier.
So, if we can prevent cracks, we can also enhance durability?
Precisely! Preventing cracks through proper mix design and maintenance can significantly extend the lifespan of a pavement.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we explore the phenomenon of cracking in bituminous materials, discussing the specific causes linked to thermal stresses, oxidation, and fatigue. We also highlight how different environmental conditions contribute to the severity of cracking and its overall effect on pavement performance.
Detailed
Cracking in Bituminous Materials
Cracking is a significant issue that affects the longevity and performance of bituminous pavements. It arises primarily from thermal stresses, the oxidation of materials, and fatigue resulting from repetitive loading. As temperatures fluctuate, bitumen becomes stiff, leading to brittle behavior and, consequently, the formation of cracks. The progression of cracks can compromise the integrity of the pavement, allowing water infiltration, which exacerbates further damage. Given these factors, understanding cracking's mechanisms is crucial for developing strategies to enhance durability and maintain flexible pavement systems.

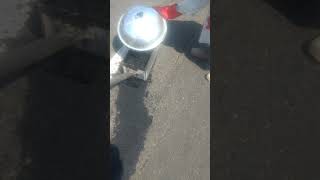

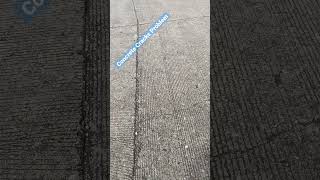

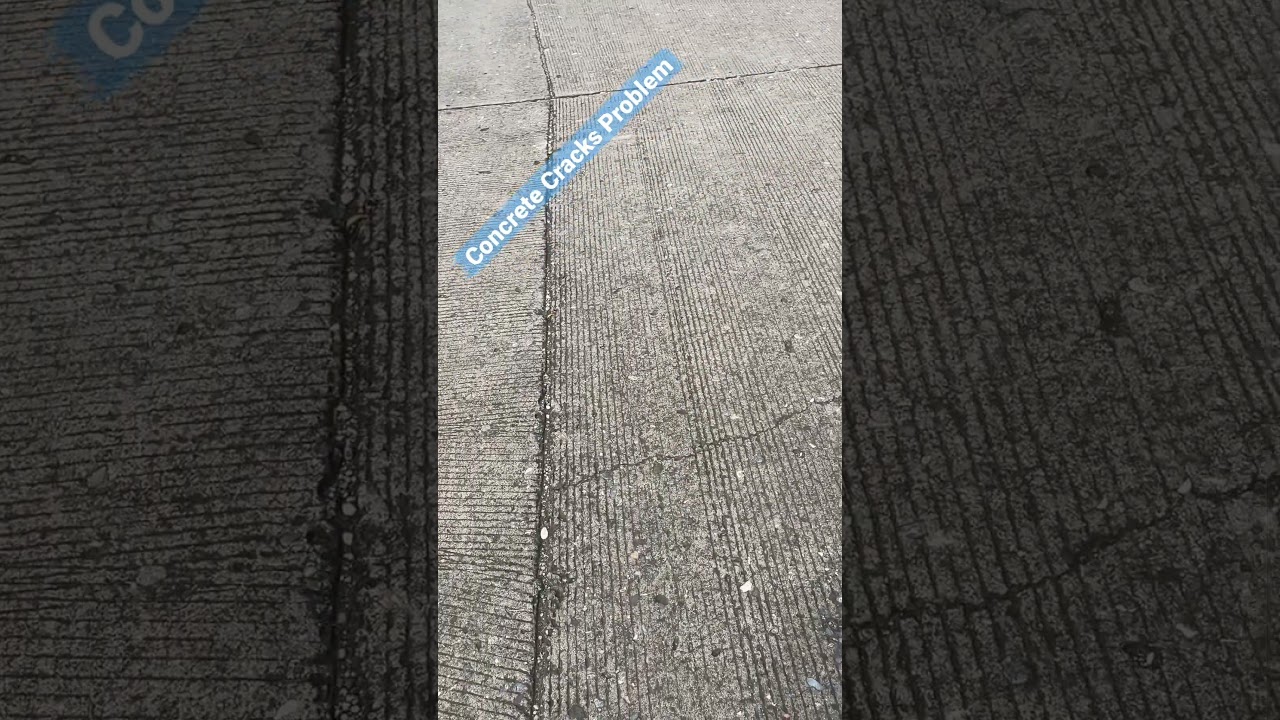

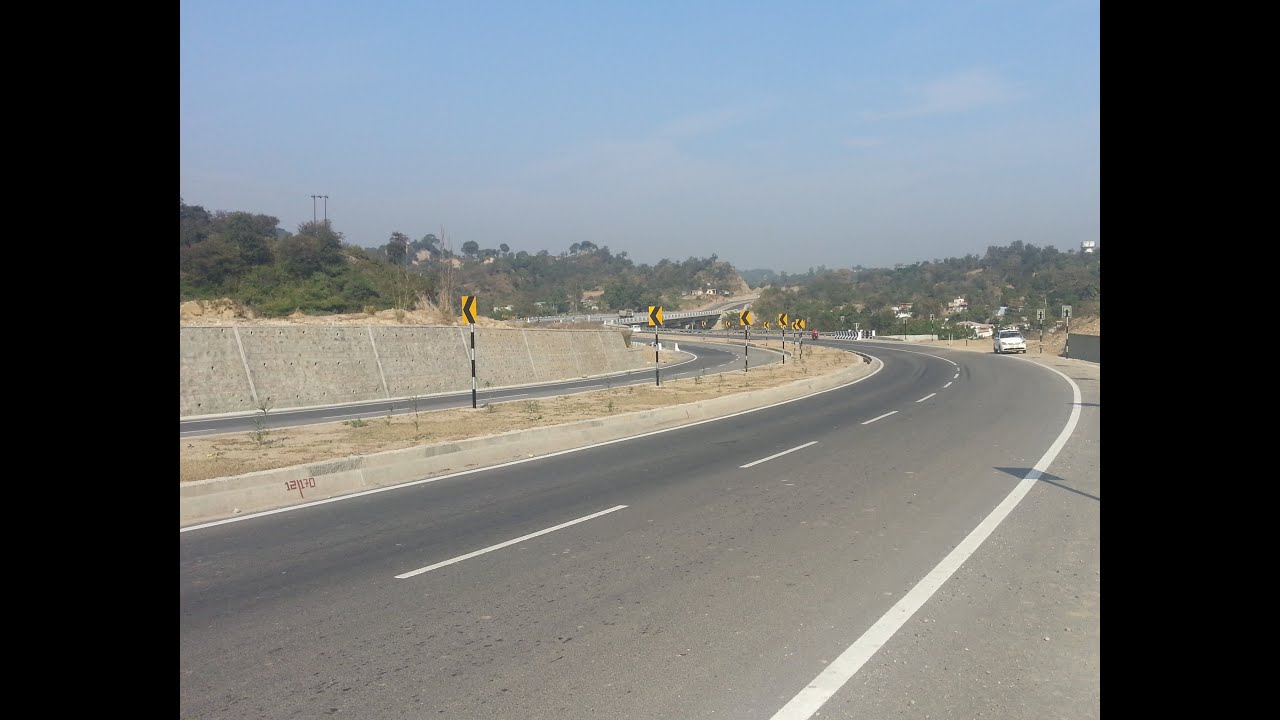

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Cracking
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Cracking: Due to thermal stresses, oxidation, or fatigue.
Detailed Explanation
Cracking occurs in pavements mainly due to three factors: thermal stresses, oxidation, and fatigue. Thermal stresses arise from temperature changes, causing the pavement to expand and contract. Oxidation refers to the chemical process where the pavement material breaks down when exposed to oxygen in the air, leading to brittleness and cracks. Fatigue is the wear and tear that happens over time due to repeated loads from traffic, leading to cracks in the material.
Examples & Analogies
Think of a rubber band that has been stretched too many times; eventually, it will not go back to its original shape and may crack. Similarly, pavements experience stresses from temperature changes and heavy traffic, which can cause them to crack over time.
Causes of Cracking
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Causes include thermal stresses, oxidation, and fatigue.
Detailed Explanation
The primary causes of cracking can be outlined as follows: Thermal stresses cause the pavement to expand during heat and contract in cold, leading to fractures if these changes are too extreme. Oxidation makes the bituminous materials stiffer, reducing their ability to flex, and making them more prone to cracking. Fatigue is the result of repeated stress from traffic over time, which weakens the material and leads to cracks.
Examples & Analogies
Imagine baking a cake and taking it out of the oven. If you cool it too quickly, it might crack. Similarly, pavements, if subjected to rapid temperature changes, may end up with cracks due to thermal stresses.
Impact of Cracking on Pavement Performance
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Cracking leads to reduced structural integrity and increased maintenance costs.
Detailed Explanation
Cracking in pavements significantly affects their performance. It reduces the overall structural integrity of the pavement, making it less able to withstand traffic loads. Also, cracks can allow water to penetrate, leading to further deterioration through processes like freeze-thaw cycles. This ultimately results in increased maintenance costs as repairs become necessary more frequently.
Examples & Analogies
Consider the cracks in your home’s foundation. They might start small, but if left untreated, they can grow and lead to major structural issues that require costly repairs. Similarly, small cracks in pavements can escalate into serious issues that lead to significant maintenance expenses.
Key Concepts
-
Cracking: The breaking of pavement surfaces due to stresses.
-
Thermal Cracking: Occurs with temperature fluctuations.
-
Oxidation: A chemical process that makes bitumen harder and less flexible.
-
Fatigue: Stress caused by repeated loading, leading to cracks.
Examples & Applications
Example of thermal cracking seen in colder climates causing visible fissures on asphalt.
Example of alligator cracking under heavy truck loads indicating severe distress in a pavement structure.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For cracking in the road, remember this code: Excess heat or strain, causes cracks in the lane.
Stories
Once in a city where weather was extreme, pavements cracked like an age-old dream. The sun would bake, and rains would tease, leaving roads to suffer, bringing drivers to their knees.
Memory Tools
Remember FAT—Fatigue, Aging, Temperature—these are key to cracking in our pavements.
Acronyms
C.R.A.C.K. - Cracking Represents Aging in Climate Knocks.
Flash Cards
Glossary
- Cracking
The formation of breaks or fractures in the surface of bituminous materials due to thermal stress, oxidation, or fatigue.
- Thermal Cracking
Cracking that occurs due to temperature fluctuations causing materials to stiffen and become brittle.
- Fatigue Cracking
Cracking that results from the repeated loading and unloading cycles of traffic on pavement.
- Oxidation
A chemical reaction involving oxygen that can cause bituminous materials to harden and lose flexibility.
