Introduction to TBMs
Unlock Audio Lesson
Welcome everyone! Today, we will explore Tunnel Boring Machines, or TBMs. Can anyone tell me what a TBM does?
It excavates tunnels, right?
Exactly! TBMs are complex machines designed for that purpose—excavating circular tunnels through various types of soil and rock. They make the tunneling process safer and more efficient.
What are the main components of a TBM?
Great question! Key components include the cutter head, conveyor system, hydraulic jacks, guidance systems, and segment erectors. Each part plays a vital role in its operation.
How do these components work together?
The cutter head breaks the soil, the conveyor system removes the debris, hydraulic jacks propel the TBM forward, while the guidance systems ensure precision. Together, they allow for efficient excavation.
So, it's like a well-coordinated team?
Precisely! Each component must work in tandem to maximize effectiveness and safety. Remember the acronym CCGHS for 'Cutter head, Conveyor, Guidance, Hydraulic jacks, and Segment erectors.'
In summary, TBMs are essential in modern underground construction due to their ability to safely and efficiently excavate tunnels. Let's move on to discuss types of TBMs.
Types of TBMs
Unlock Audio Lesson
Now that we know what a TBM does and its components, let’s discuss the types of TBMs available. What types do you think exist?
Maybe there's one for hard rock and another for soft ground?
That's correct! We have four main types: Earth Pressure Balance TBM, Slurry Shield TBM, Hard Rock TBM, and Open-face TBM. Each is tailored for specific geological conditions.
What about the Earth Pressure Balance TBM? Why is it important?
Excellent point! EPB TBMs are critical because they maintain pressure on the ground, preventing collapse, especially in soft soil. This ensures stability during excavation.
How does the Slurry Shield TBM work?
The Slurry Shield utilizes a mixture of bentonite slurry to stabilize the tunnel face and remove excavated material, making it ideal for urban settings and soft ground.
What about Hard Rock TBMs?
Hard Rock TBMs are designed specifically for high-tensile strength rock, equipped with robust cutting tools. They are pivotal for projects in mountainous areas.
So, remember this acronym: SEHO for 'Slurry, Earth Pressure Balance, Hard Rock, and Open-face' to recall the types effectively. Any questions before we dive into automation?
Automation in TBMs
Unlock Audio Lesson
Let’s talk about automation in TBMs. How do you think automation impacts TUIs?
I guess it makes them quicker and reduces human labor.
Exactly right! Automation fundamentally enhances operational efficiency. TBMs are equipped with auto-guidance systems that utilize laser and inertial navigation.
What does real-time monitoring involve?
Real-time monitoring keeps track of essential parameters such as pressure, cutter wear, and torque, which helps make adjustments on the fly. This ensures smoother operations.
What about data logging?
Data logging collects operational data for remote analysis and control, making it easier to ensure safety and efficiency. So, safety is combined with productivity.
Why is this automation so important?
Automation reduces human exposure to dangerous environments, enhances precision, and lowers project costs. Remember the key phrase 'Efficiency, Safety, Precision.'
To summarize, automation in TBMs is integral to enhancing safety and efficiency, making tunneling faster and safer than ever before.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
TBMs are sophisticated machines designed to excavate circular tunnels through different geological conditions. They consist of several key components such as cutter heads, hydraulic jacks, and navigation systems, and their automation features improve operational efficiency, safety, and accuracy during tunneling projects.
Detailed
Tunnel Boring Machines (TBMs): Semi-Robotic Systems
Tunnel Boring Machines (TBMs) are sophisticated engineering marvels specifically built to create circular tunnels through diverse geological formations. These systems integrate various technologies to function efficiently in challenging environments, thereby significantly transforming tunneling practices.
Definition and Functionality
TBMs serve the primary purpose of excavating intricate tunnel paths needed for transporting utilities, sewage, mining, and other vital infrastructure. They can operate in different geological conditions, facilitating the construction of safe, durable tunnels.
Components of TBMs
A TBM comprises several critical components:

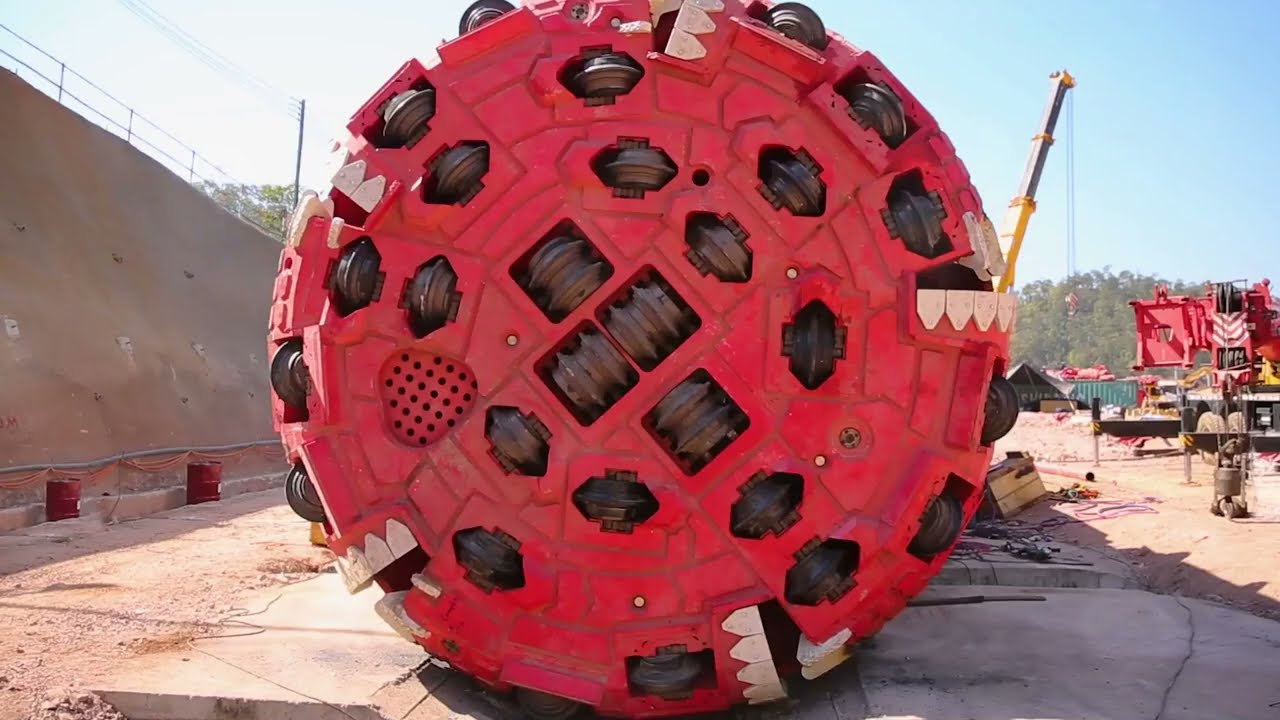

1. Cutter Head: Utilizes advanced milling technology to break through various materials.
2. Conveyor System: Efficiently removes excavated materials from the tunnel.
3. Hydraulic Jacks for Propulsion: Propels the TBM forward as excavation occurs.
4. Guidance and Navigation System: Ensures accurate tunneling alignment.
5. Segment Erectors: Automates the installation of tunnel linings as excavation progresses.
Types of TBMs
TBMs can be categorized based on their operational methods:
- Earth Pressure Balance TBM (EPB): Effective in soft ground, maintaining pressure to prevent collapse.
- Slurry Shield TBM: Uses a mixture of bentonite to aid excavation and stabilize the tunnel face.
- Hard Rock TBM: Designed for high-tensile strength rock, utilizing hard cutting tools.
- Open-face TBM: Common in soft soil where a support structure isn't necessary.
Automation in TBMs
The integration of automation enhances TBM performance:
- Auto-Guidance Systems: Utilize laser and inertial navigation for real-time adjustments.
- Real-Time Monitoring: Tracks pressure, cutter wear, and torque for optimal operation.
- Data Logging: Allows for remote control and monitoring through digital interfaces.
In summary, TBMs represent a pivotal advancement in tunneling technology, merging robust mechanical design with sophisticated automation and data management systems to improve efficiency, safety, and precision in underground construction.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition and Functionality
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
TBMs are large, complex machines designed to excavate circular cross-section tunnels through various soil and rock strata.
Detailed Explanation
Tunnel Boring Machines (TBMs) are specialized construction devices utilized for digging tunnels beneath the earth's surface. These machines are engineered to create tunnels that are circular in shape, allowing them to navigate through different types of soil and rock materials. The primary purpose of TBMs is to streamline the excavation process, making it safer and more efficient compared to traditional digging methods.
Examples & Analogies
Imagine a giant underground drill, like a highly sophisticated corkscrew, that bores a precise tunnel through various terrains. Just as a corkscrew helps you efficiently remove a cork from a bottle, TBMs facilitate the smooth excavation of tunnels, allowing for the construction of subways, utility lines, and more.
Components of TBMs
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
TBMs consist of several key components including:
- Cutter head
- Conveyor system
- Hydraulic jacks for propulsion
- Guidance and navigation system
- Segment erectors
Detailed Explanation
Each TBM is made up of critical components that work together to ensure effective tunneling. The cutter head is the front part that cuts through the earth. Following this is the conveyor system that transports the excavated material away from the cutter head. Hydraulic jacks are used for the propulsion of the TBM, allowing it to move forward. A guidance and navigation system ensures that the TBM stays on the correct course during its tunneling. Lastly, segment erectors help assemble and secure the tunnel lining behind the TBM as it progresses.
Examples & Analogies
Think of a TBM as a multi-part machine resembling a small factory that operates underground. The cutter head is like a chef chopping vegetables, the conveyor system is akin to a conveyor belt in a kitchen that delivers the chopped items, and the hydraulic jacks act like a team of workers pushing the entire setup forward, ensuring everything runs smoothly and efficiently in making a perfectly structured tunnel.
Types of TBMs
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There are several types of TBMs including:
- Earth Pressure Balance TBM (EPB)
- Slurry Shield TBM
- Hard Rock TBM
- Open-face TBM
Detailed Explanation
TBMs are categorized based on the environment in which they operate, and each type is designed for specific geological conditions. Earth Pressure Balance TBMs (EPB) are useful in soft ground, maintaining the pressure to prevent collapses. Slurry Shield TBMs are employed in similar conditions but use a liquid to stabilize the earth they are boring through. Hard Rock TBMs are designed for tougher rock conditions, utilizing powerful cutting tools. Open-face TBMs, without a front shield, are used mainly in soft soils or when there is little water.
Examples & Analogies
Choosing the right type of TBM is like selecting the right tool for fixing something at home. Just as you would use a hammer for nails but a wrench for bolts, different TBMs are suited for various soil types. For instance, a slushy mix in a soft ground would need a Slurry Shield TBM, while tough rocks would require the strong, durable Hard Rock TBM.
Automation in TBMs
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
TBMs include automation features such as:
- Auto-guidance systems using laser and inertial navigation
- Real-time monitoring of pressure, cutter wear, and torque
- Data logging and remote control interface
Detailed Explanation
Modern TBMs incorporate advanced automation technologies to enhance efficiency and safety. Auto-guidance systems, employing lasers and inertial navigation, allow the TBMs to precisely maintain their alignment as they bore through the earth. Real-time monitoring keeps track of vital parameters such as pressure and wear on cutting tools, which helps in making adjustments on-the-fly. Additionally, data logging capabilities facilitate the collection of information during operations, enabling engineers to analyze performance and issues remotely.
Examples & Analogies
Think of an automated TBM as a self-driving car for tunneling. Just as a self-driving car uses sensors and GPS to navigate while constantly monitoring its environment to operate safely, a TBM uses lasers and data monitoring systems to ensure it digs accurately and efficiently, adjusting instantly to any changes in the environment.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
TBM Functionality: TBMs excavate circular tunnels effectively.
-
Components of TBMs: Essential parts including cutter head, conveyor system, navigational aids.
-
Types of TBMs: Various types tailored for specific geological conditions.
-
Automation Benefits: Enhances efficiency and safety in tunneling.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The Gotthard Base Tunnel utilizes Hard Rock TBMs for efficient excavation.
-
Open-face TBMs are commonly used in soft-soil urban areas.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
TBMs dig deep, smooth not steep, through rock and clay, they pave the way.
📖 Fascinating Stories
-
Once a mighty TBM faced the hard rock of a mountain. With its cutter head, it danced through the soil, while the conveyor helped gather the debris—a perfect team in the underground world.
🧠 Other Memory Gems
-
Remember T.C.G.H.S: Cutter Head, Conveyor, Guidance system, Hydraulic jacks, and Segment erectors.
🎯 Super Acronyms
For TBM types, think SEHO
- Slurry Shield
- Earth Pressure Balance
- Hard Rock
- Open-face.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Tunnel Boring Machine (TBM)
Definition:
A large, powerful machine used to excavate circular cross-section tunnels through various geological materials.
-
Term: Cutter Head
Definition:
The rotating part of the TBM that breaks through the soil and rock.
-
Term: Earth Pressure Balance TBM (EPB)
Definition:
A type of TBM designed to maintain the earth pressure at the cutting face to prevent ground collapse.
-
Term: Slurry Shield TBM
Definition:
A TBM that uses a mixture of bentonite slurry for soil stabilization and material removal.
-
Term: Hard Rock TBM
Definition:
A TBM specifically designed for tunneling through hard rock conditions.
-
Term: Openface TBM
Definition:
A TBM suitable for soft soil requiring no support structure.
-
Term: AutoGuidance System
Definition:
Technological systems utilizing lasers and sensors to automatically navigate the TBM.
-
Term: RealTime Monitoring
Definition:
Continuous tracking of operational metrics of the TBM to ensure safe and efficient excavation.
