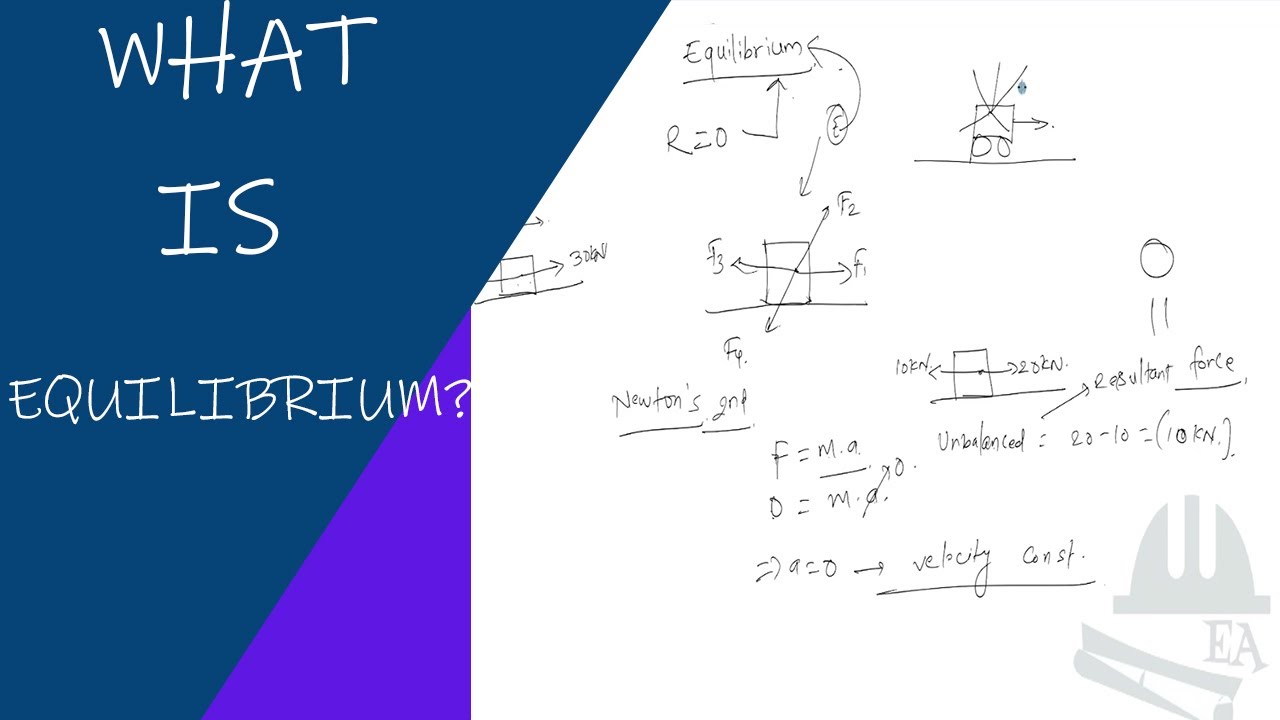

4.2.1.2. Equilibrium Equations

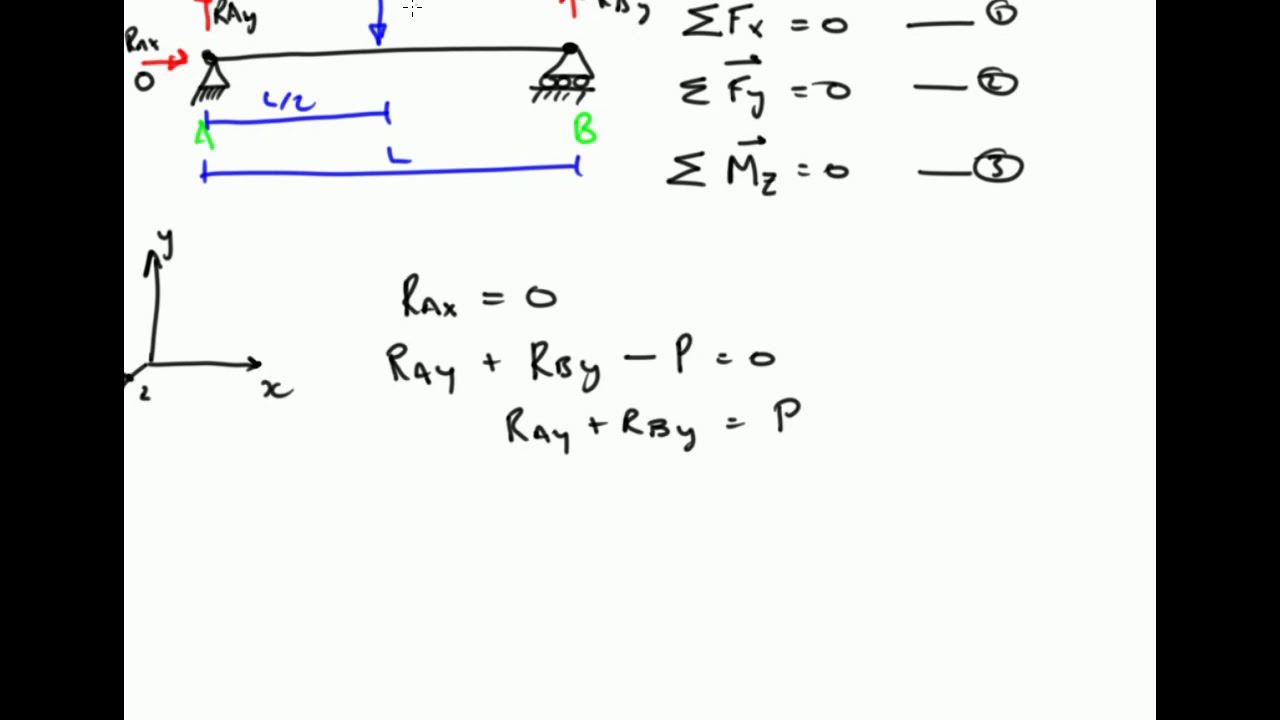

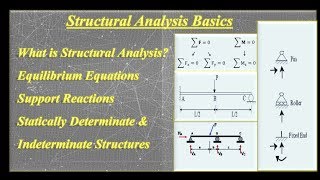

For 2D trusses, the external equations of equilibrium which can be used to determine the reactions are $\sum F_x = 0$, $\sum F_y = 0$, and $\sum M = 0$.

In the analysis of two-dimensional trusses, we use specific equations to maintain balance, known as equilibrium equations. The first equation, '$\sum F_x = 0$', means that all horizontal forces acting on the truss should balance out to zero. The second equation, '$\sum F_y = 0$', ensures that all vertical forces also sum to zero. Lastly, '$\sum M = 0$' requires that the total moments around any point should also equal zero. This set of equations ensures that the truss does not move or rotate under the applied loads.

Imagine you are setting up a seesaw. You need to ensure that the weights on either side are balanced so that it stays level. The equilibrium equations are like the rules for balancing the seesaw; if one side is heavier or there is a force pushing down on one side, the seesaw will tip over. Similarly, a truss must have balanced forces and moments to maintain stability.

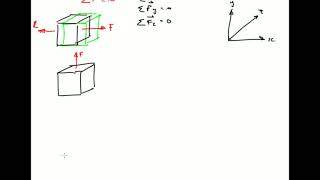

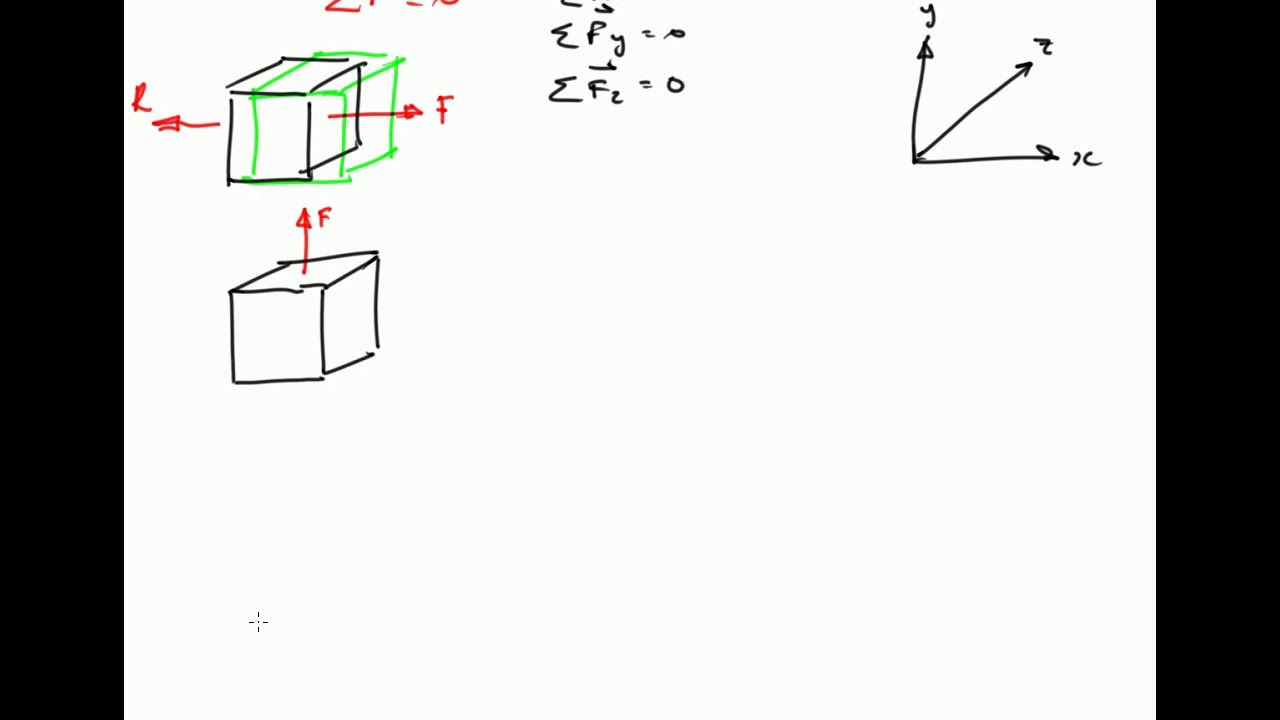

For 3D trusses, the available equations are $\sum F_x = 0$, $\sum F_y = 0$, $\sum F_z = 0$ and $\sum M_{X} = 0$, $\sum M_{Y} = 0$, $\sum M_{Z} = 0$.

When working with three-dimensional trusses, we need to consider forces acting in three different directions (x, y, and z). Therefore, we expand our equilibrium equations. The first three equations, '$\sum F_x = 0$', '$\sum F_y = 0$', and '$\sum F_z = 0$', assert that the total forces in each of the three dimensions must be balanced. Additionally, we have three moment equations: '$\sum M_{X} = 0$', '$\sum M_{Y} = 0$', and '$\sum M_{Z} = 0$', which states that the moments around each of the three axes also need to be balanced to prevent rotation.

Think of a 3D model of a building supported by beams. For the structure to remain stable, it must not only balance forces pressing down (like weight) but also prevent any twisting or turning. The equilibrium equations act like the building codes that ensure safety by dictating how forces and moments need to be balanced for stability.

In truss analysis, there is no sign convention. A member is assumed to be under tension (or compression). If after analysis, the force is found to be negative, then this would imply that the wrong assumption was made, and that the member should have been under compression (or tension).

In structural analysis, especially for trusses, we often need to assume that a member is either in tension or compression to begin our calculations. 'Tension' means the member is being pulled, while 'compression' indicates it is being pushed together. However, after performing the analysis, if the calculated force comes out negative, it signals that our initial assumption was incorrect. For example, if we initially presumed a member was in tension but found a negative value, it indicates that we should have treated that member as being in compression instead.

Imagine pulling on a rubber band, assuming it is always going to stretch (tension). However, if you accidentally twist it with a strong force and it snaps back, you've effectively compressed it instead. Similarly, truss members must be carefully analyzed to understand how they actually behave once forces are applied, leading to valuable learning in assumptions.

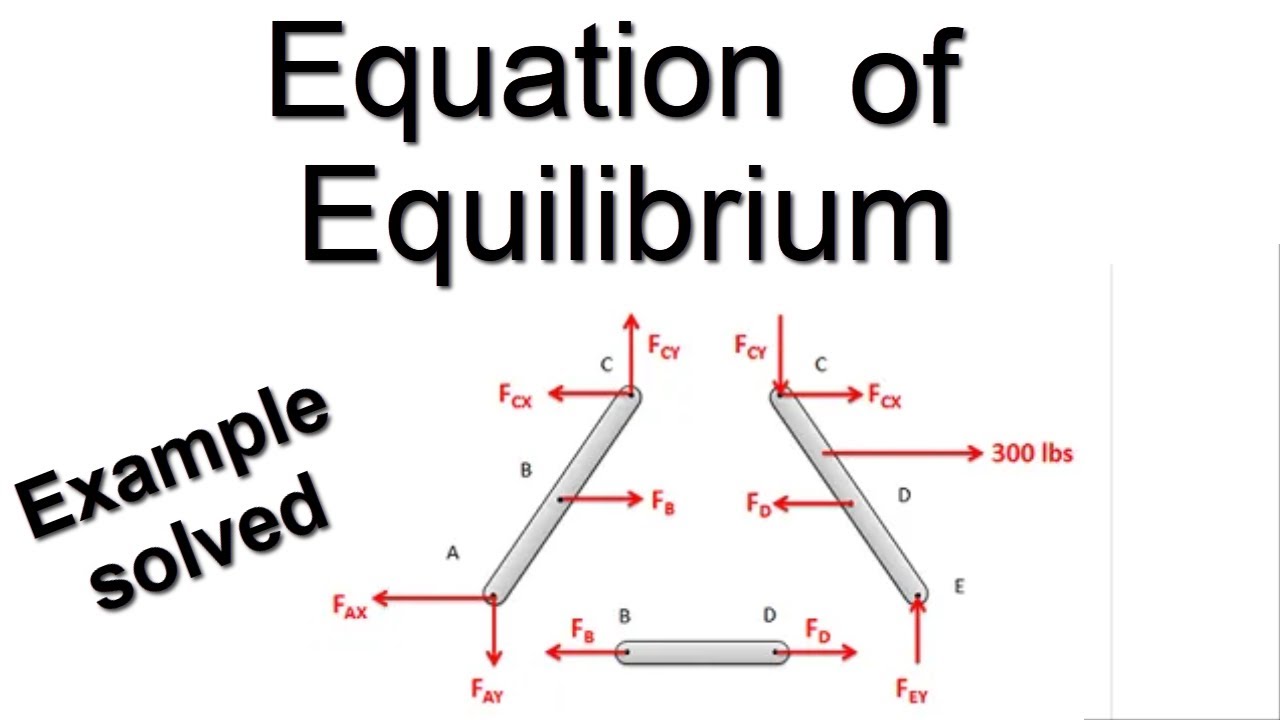

On a free body diagram, the internal forces are represented by arrows acting on the joints and not as end forces on the element itself.

In the study of trusses, we use a tool called a free body diagram (FBD) to visualize the forces acting on each joint, rather than treating them strictly as forces at the ends of the truss members. In an FBD, arrows indicate the direction of forces, with arrows pointing away from a joint signifying tension and arrows pointing towards a joint indicating compression. This representation helps in understanding how the force is distributed throughout the structure’s connections and members.

Consider a game of tug-of-war. The forces exerted by each side are felt at the point of connection – the rope. Imagine drawing a diagram showing where each team pulls. Instead of showing forces acting on the ends of the rope, it’s as if we’re illustrating how much each person at the joint is pulling or pushing. This kind of visualization clarifies how forces interact in the game, much like in a truss analysis.

--
