Understanding Statically Determinate Trusses
Unlock Audio Lesson
Today, we’re going to discuss static determinacy in trusses. Can anyone tell me what it means?
Does it mean that the forces can be determined from the equations of statics?
Exactly! If we can find all the bar forces using only static equations, the truss is statically determinate. Remember: Determinate = definite! Now, why is this important?
Is it because statically determinate systems are easier to analyze?
Correct! They simplify calculations. If we have too many unknowns, we enter an indeterminate scenario. Can anyone think of a situation where this matters?
Maybe if you’re designing a bridge?
Absolutely! Ensuring a design can be analyzed easily affects both safety and economy. So, always check if m + R equals 2j for a 2D truss! Let’s wrap up: What is static determinacy again?
It’s when all forces can be calculated using statics!
Conditions for Stability
Unlock Audio Lesson
Now let’s discuss stability. Why might a truss be considered unstable?
If it has too few members, right? Like if m + R is less than 2j in 2D?
Spot on! An unstable truss will not maintain its shape when detached from supports. What happens in a real-world scenario if a truss is unstable?
It could collapse or fail under load!
Exactly! Hence, ensuring stability is crucial. For 3D structures, the concepts are similar, but we check m + R against 3j. Can someone summarize that for me?
In 3D, too few members mean it's unstable if m + R is less than 3j!
Real-World Applications
Unlock Audio Lesson
How do the concepts we’ve learned apply to real-world structures?
Like bridges and buildings? They have to be stable!
Right! Engineers consider these factors carefully to ensure safety. Can anyone give an example of a truss system they’ve seen?
I saw a bridge with an awesome lattice design!
Great observation! Those designs are often chosen for their stability and ease of calculation. Let’s remember that real-life applications require us to analyze static determinacy for effective design!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explains the criteria for a truss to be considered statically determinate or indeterminate based on the relationship between joints, reactions, and members. It also elucidates the conditions under which a truss is stable or unstable, highlighted in tables for 2D and 3D systems.
Detailed
Static Determinacy and Stability of Trusses
Trusses are defined as statically determinate when all internal forces can be calculated using just the equations of statics. Conversely, a truss is statically indeterminate if additional information or methods are required beyond basic static equations. A key factor in analyzing a truss's determinacy is the relationship between the number of joints (j), the number of reactions (R), and the number of members (m).
Key Formulas:
- For 2D Trusses: If m + R > 2j, the truss is internally indeterminate; If m + R < 2j, the truss is unstable; If m + R = 2j, the truss is stable and internally determinate.
- For 3D Trusses: If m + R > 3j, the truss is internally indeterminate; If m + R < 3j, the truss is unstable; If m + R = 3j, the truss is stable and internally determinate.
Therefore, to ensure the structural integrity of a truss system, understanding these relationships is essential, as improper configurations can lead to instabilities and inefficiencies in structural performance.

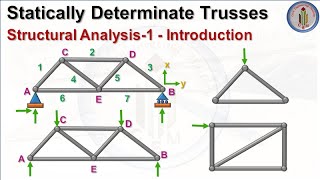

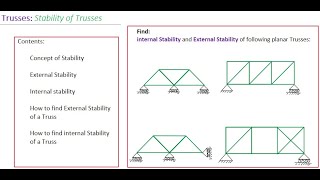

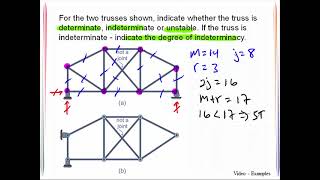

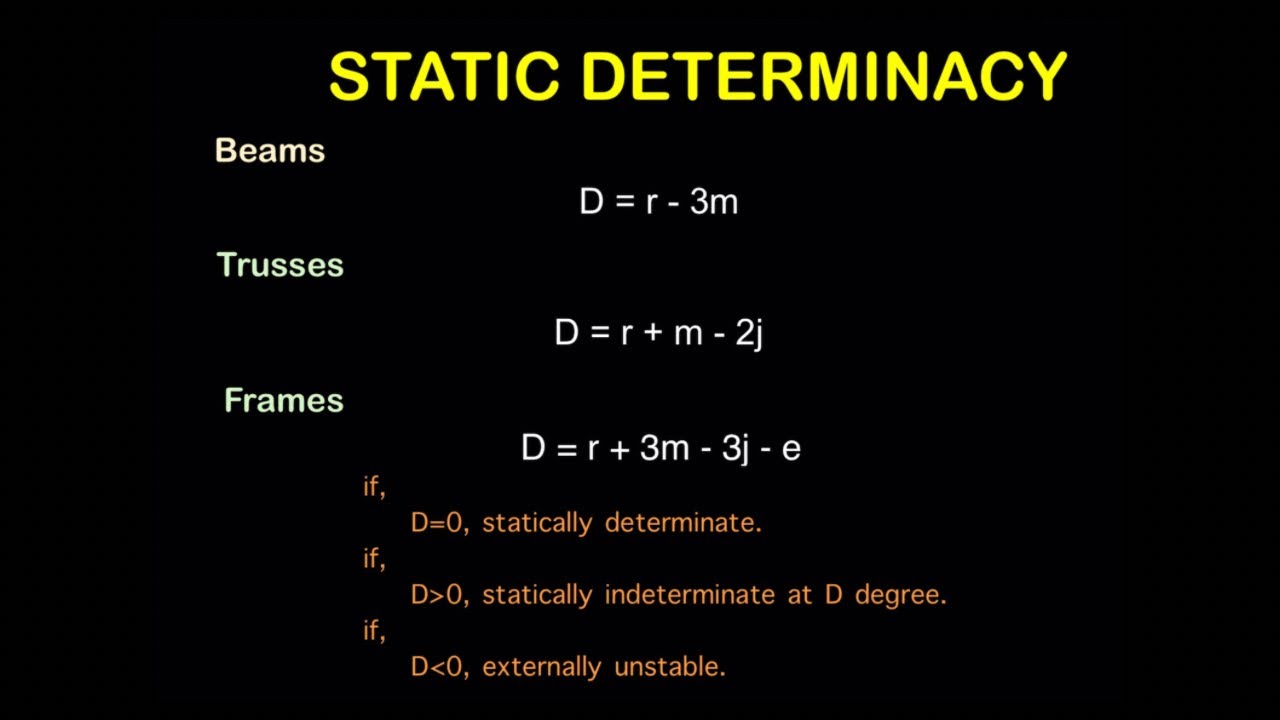

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Static Determinacy
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Trusses are statically determinate when all the bar forces can be determined from the equations of statics alone. Otherwise, the truss is statically indeterminate.
Detailed Explanation
Static determinacy refers to whether a truss can be analyzed using only the equations of static equilibrium. If every internal force can be calculated solely based on the static conditions (i.e., balance of forces and moments), the truss is termed statically determinate. If there are relationships in the truss that cannot be resolved using these static equations, then it is statically indeterminate. This means we may need more advanced analysis techniques to determine the internal forces.
Examples & Analogies
Imagine a bridge made of trusses. If you can calculate all the forces in the bridge's members simply by measuring the weights and applying basic physics principles, the bridge is statically determinate. But if the bridge is so complex that you need special calculations or simulations to find out the forces, it's statically indeterminate, like a puzzle with pieces that can fit together in various ways.
External and Internal Determinacy
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A truss may be statically/externally determinate or indeterminate with respect to the reactions (more than 3 or 6 reactions in 2D or 3D problems respectively). A truss may be internally determinate or indeterminate.
Detailed Explanation
A truss can be classified in two major ways concerning its reactions and internal members. Externally, a truss is determinate if the number of reactions at the supports is sufficient (3 in 2D, 6 in 3D) to maintain equilibrium. If there are too many reactions, it is over-constrained and unstable. Internally, the truss's members are considered determinate if the total number of members and reactions (m + R) allows for a complete solution with the statics equations available (2j for 2D, 3j for 3D). If the count exceeds what is required, it becomes internally indeterminate.
Examples & Analogies
Think of a game of Jenga. If the base is sturdy enough to support the blocks (like having the right number of reactions), you can take blocks off without causing the tower to collapse (being externally determinate). However, if you add too many blocks or remove others without balancing properly, the tower may fall (externally indeterminate). The same applies to the members: if you have too many members without proper support, it becomes unstable.
Equations of Statics and Stability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If we refer to j as the number of joints, R the number of reactions and m the number of members, then we would have a total of m+R unknowns and 2j (or 3j) equations of statics (2D or 3D at each joint). If we do not have enough equations of statics then the problem is indeterminate; if we have too many equations then the truss is unstable.
Detailed Explanation
In analyzing a truss, you take into account the number of joints (j), reactions (R), and members (m). The unknowns become m + R. Each joint contributes equations based on equilibrium rules, giving 2 equations in 2D or 3 in 3D per joint. If the equations available do not match the unknown forces (too few), then the truss cannot be fully solved (indeterminate). Contrarily, if the equations exceed the unknowns available, it indicates that there is not enough flexibility in the structure, deeming it unstable.
Examples & Analogies
Imagine trying to find out how to balance a scale with weights. Each weight represents the unknown forces in our truss structure. If you only have the scale with two balances (two equations), but you are trying to balance three weights (unknowns), it's impossible to solve because you lack enough tools (equations). On the flip side, if you try to balance excessive weights but your scale can only handle a limited number of positions, it will topple over, similar to an unstable truss.
Conditions for Internal Stability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If m < 2j (in 2D) the truss is not internally stable and it will not remain a rigid body when it is detached from its supports. However, when attached to the supports, the truss will be rigid.
Detailed Explanation
An important condition for internal stability is the relationship between the number of members and joints. If the number of members (m) is less than double the number of joints (2j) in a 2D truss, the structure lacks enough members to maintain rigidity when disconnected from its support. This means that while attached, it may appear stable, but once free, it can collapse or deform significantly.
Examples & Analogies
Consider a spider web. If the web has too few threads connecting the points, it may look okay when hanging, but any small disturbance can rip it apart once one part is detached from its support point. However, when the web is complete with sufficient threads, it maintains its shape and strength in place.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Static Determinacy: The ability to determine internal forces using only static equations.
-
Static Indeterminacy: The situation requiring additional analysis beyond basic static equations.
-
Conditions for Stability: Criteria involving members and reactions that determine if a truss can maintain its shape.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An example of a statically determinate truss is a simple triangular framework where m + R = 2j.
-
For a 3D truss, if a structure has eight members and six reactions connected through five joints, then it is an example of internal indeterminacy.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
If members are few, stability won't flow; check your joints and reactions, let the stability grow!
📖 Fascinating Stories
-
Imagine a bridge made of spaghetti. If it has too few strands (members), it collapses, but with enough, it stands tall!
🎯 Super Acronyms
SIR (Stability, Indeterminacy, Reactions) can help remember the factors influencing truss design.
🧠 Other Memory Gems
-
To determine stability: J + R = 2M helps recall how to check for stability.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Statically Determinate
Definition:
A condition where all bar forces in a truss can be determined using only the equations of statics.
-
Term: Statically Indeterminate
Definition:
A condition where additional information is required to determine all bar forces in a truss.
-
Term: Equations of Statics
Definition:
Mathematical relationships used to analyze forces in static systems.
-
Term: Joint
Definition:
A point where two or more members of a truss are connected.
-
Term: Members
Definition:
The structural elements that make up a truss.
-
Term: Reactions
Definition:
The forces exerted at supports to maintain equilibrium in a structure.
-
Term: Internally Indeterminate
Definition:
A condition where the number of members plus reactions exceeds the required equations to analyze the truss.
-
Term: Unstable Truss
Definition:
A truss that lacks sufficient members to maintain its structure under load.
