9.2.1. Image Formation by Spherical Mirrors
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Today, we are going to learn about spherical mirrors, specifically concave and convex mirrors. Do you know where we see these mirrors in real life?
I see concave mirrors in shaving kits and convex mirrors in car side mirrors.
What exactly is the difference between these two types of mirrors?
Great question! A concave mirror curves inward and can focus light to form real images, while a convex mirror bulges outward and always forms virtual images. A mnemonic to remember this is 'C for Concave = Converging light' and 'V for Convex = Virtual image always!' Let's move on to how we actually form images using these mirrors.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Can anyone tell me how the position of an object relative to a concave mirror affects the image it forms?
I think it changes the size and type of the image.
And maybe its distance from the mirror too?
Exactly! By placing the object at different distances from the mirror, we can see images that are real or virtual, enlarged or diminished. For example, when the object is beyond the center of curvature (C), we get a real and diminished image. Now, let's summarize the relationships we form through this. Did we take note of the positions? At infinity, at C, between F, and C?
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountLet's memorize some activities we've conducted regarding concave mirrors. Can someone recall what happens when we use a candle and place it at different positions?
When it's placed between the focus and the mirror, we get an enlarged virtual image!
And if the candle is at infinity, we get a highly diminished real image.
Correct! These experiments help us visualize the abstract concepts of light behavior and indeed let us chart an understanding for real-world applications of optics like in lenses and periscopes.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.

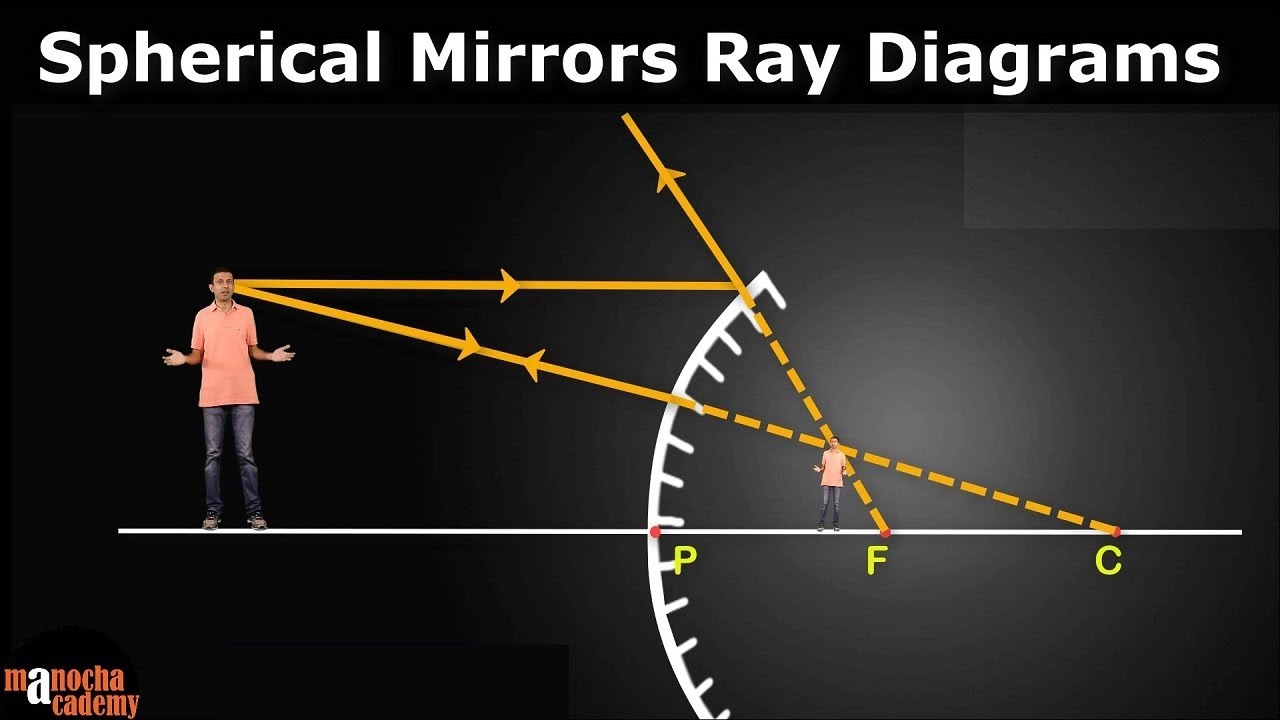

Create a free accountRay diagrams are essential for visualizing how images are formed. Can anyone explain how we draw a ray diagram for a concave mirror?
We draw rays from the object that show how they reflect off the mirror.
Are there specific ray paths we should use?
Yes! For example, a ray parallel to the principal axis reflects through the focal point. Another ray directed at the focal point reflects parallel to the principal axis. We can analyze the intersection for the image. Let’s practice this together!
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountNow that we have covered theoretical aspects, how can we use this knowledge practically? What are some examples?
We can use concave mirrors in solar furnaces to focus sunlight!
And convex mirrors can help drivers see wider areas behind them!
Exactly! Understanding image formation in spherical mirrors affects technology, safety, and everyday conveniences. Remember: 'Mirrors reflect; they show us a different perspective!'
Overview
Short Summary
This section covers the principles of image formation by spherical mirrors, including the characteristics of images formed by concave and convex mirrors.
Medium Summary
The section discusses how spherical mirrors create images and the conditions influencing the nature, position, and size of these images. It provides practical activities to explore these concepts and summarizes the relationships involved in image formation.
Detailed Summary
Image Formation by Spherical Mirrors
In this section, we explore the nature and characteristics of images formed by spherical mirrors, which can be either concave or convex. Understanding how these mirrors operate involves examining how the distance between the object and the mirror affects the properties of the image formed.
Key Concepts
- Concave Mirrors: These mirrors curve inward and can form images that are real or virtual, depending on the object's position relative to the mirror's focal point.
- Convex Mirrors: These mirrors curve outward and always produce virtual images that are diminished.
- Image Characteristics: Factors such as image size (enlarged, diminished, or same size), nature (real or virtual), and position can be predicted using ray diagrams and tabulated observations from experiments.
Significance
The study of image formation by spherical mirrors aids not only in understanding optical principles but has practical implications in everyday life, including the design of lenses, mirrors in cars, and other optical instruments.

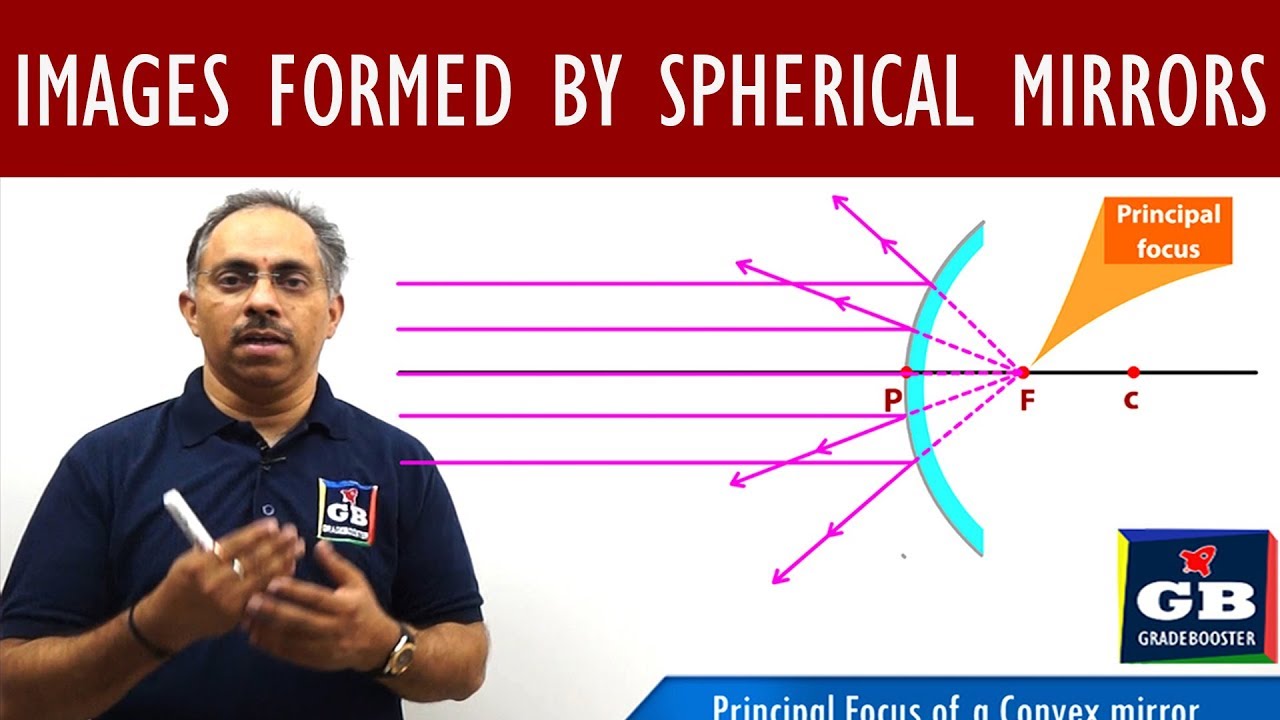

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountYou have studied about the image formation by plane mirrors. You also know the nature, position and relative size of the images formed by them. How about the images formed by spherical mirrors? How can we locate the image formed by a concave mirror for different positions of the object? Are the images real or virtual? Are they enlarged, diminished or have the same size? We shall explore this with an Activity.
Detailed Explanation
In this introduction, we are presented with a challenge: how do spherical mirrors form images? Unlike plane mirrors, where the image is straightforward, spherical mirrors can produce various types of images depending on the object's position. The idea is to investigate if these images are real or virtual and if their size changes. This sets the stage for a practical exploration with activities to determine these characteristics.
Examples & Analogies
Think of a balloon in a funhouse mirror. When you stand close, the balloon looks larger, and when you move away, it looks smaller. Spherical mirrors can create similar effects depending on where you place the object.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountYou have already learnt a way of determining the focal length of a concave mirror. In Activity 9.2, you have seen that the sharp bright spot of light you got on the paper is, in fact, the image of the Sun. It was a tiny, real, inverted image. You got the approximate focal length of the concave mirror by measuring the distance of the image from the mirror.
n Take a concave mirror. Find out its approximate focal length in the way described above. Note down the value of focal length. (You can also find it out by obtaining the image of a distant object on a sheet of paper.)
Detailed Explanation
This paragraph describes a practical activity to measure the focal length of a concave mirror. The process involves using sunlight to create a sharp image on paper, which helps us understand how concave mirrors function. By measuring how far the image forms from the mirror, we can determine the focal length, which is a key property for understanding how mirrors create images.
Examples & Analogies
Imagine using a magnifying glass to focus sunlight on a piece of paper, causing it to burn. The distance from the magnifying glass to where the light concentrates is similar to the focal length in mirrors.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountYou will see in the above Activity that the nature, position and size of the image formed by a concave mirror depends on the position of the object in relation to points P, F and C. The image formed is real for some positions of the object. It is found to be a virtual image for a certain other position. The image is either magnified, reduced or has the same size, depending on the position of the object. A summary of these observations is given for your reference in Table 9.1.
Detailed Explanation
This chunk explains that the characteristics of the image, such as its nature (real or virtual), position (where it appears), and size (whether it is bigger, smaller, or the same) depend heavily on how far the object is placed from the mirror, specifically relative to key points: the pole (P), the focus (F), and the center of curvature (C). Table 9.1 summarizes these findings systematically.
Examples & Analogies
Imagine looking into a curved funhouse mirror; depending on how close or far you stand, your reflection can appear enlarged, shrunken, or sometimes disappear altogether. This illustrates how object placement influences image characteristics.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountTable 9.1 Image formation by a concave mirror for different positions of the object
Detailed Explanation
This table succinctly summarizes the observations made regarding image formation by a concave mirror at different object positions. It outlines how the image's position, size, and nature change based on where the object is placed. Each scenario teaches us about the applicable principles of light and optics in a clear manner.
Examples & Analogies
Visualize a camera lens capturing pictures: depending on how far the subject is, the lens produces different types of images. The table acts like a guideline for predicting these image characteristics, just as photographers rely on specific settings for the desired image outcome.
--
Key Concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Concave Mirrors: These mirrors curve inward and can form images that are real or virtual, depending on the object's position relative to the mirror's focal point.
Convex Mirrors: These mirrors curve outward and always produce virtual images that are diminished.
Image Characteristics: Factors such as image size (enlarged, diminished, or same size), nature (real or virtual), and position can be predicted using ray diagrams and tabulated observations from experiments.
Significance
The study of image formation by spherical mirrors aids not only in understanding optical principles but has practical implications in everyday life, including the design of lenses, mirrors in cars, and other optical instruments.
Examples
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Stories
Flash Cards
Glossary
Concave Mirror
A spherical mirror that curves inward, capable of focusing light to form real images.
Convex Mirror
A spherical mirror that bulges outward, always producing virtual images that are diminished.
Focal Point (F)
The point at which light rays converge or appear to diverge from in mirror optics.
Radius of Curvature (R)
The radius of the sphere from which a spherical mirror is derived.
Principal Axis
An imaginary line that runs through the center and focal point of a mirror.
Virtual Image
An image formed at a location from which light rays appear to diverge, which cannot be projected onto a screen.
Real Image
An image that can be projected onto a screen, formed by actual light rays converging.
Image Size
The dimensions of the image compared to the actual object (enlarged, diminished, or same size).
