9.3.6. Sign Convention for Spherical Lenses
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Today, we will discuss the optical center of spherical lenses. Can anyone tell me what the optical center is?
Isn't it the point in the lens through which light passes without bending?
Exactly! It’s the point where all light rays that pass through it do not deviate. Let's remember it as the 'no-deviate point'!
Why is this point important?
Great question! This point helps us set the reference for measuring distances to define focal lengths and ensure correct image formation.
So it's like the starting point for all our measurements?
Yes, that's right! Just like a coordinate system. Always count distances from the optical center when we apply the sign convention.
To recap, the optical center is crucial as a reference point from which we measure other related distances in lenses.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Now, let’s talk about how we define focal lengths for different types of lenses. Who can tell me the difference?
A convex lens has a positive focal length, right?
Exactly! Convex lenses converge light rays and thus, we assign their focal lengths as positive.
And what about concave lenses?
Good! For concave lenses, we assign a negative focal length because they diverge light rays. Think 'converge is positive' and 'diverge is negative'!
Is it related to how the image is formed?
Yes, it is! The sign of the focal length will help you determine whether the image will be real or virtual later on.
In summary, remember that focal lengths are positive for convex lenses and negative for concave lenses.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountLet’s apply our knowledge of sign conventions. For calculations, how should we assign positive or negative signs to distances?
All distances measured from the optical center to the left are negative, and to the right are positive.
Correct! And what about vertical distances?
Distances above the optical center are positive, while those below are negative.
Exactly! Let's do a quick example. If an object is placed 20 cm to the left of the optical center, what would be its sign?
It would be -20 cm!
Great job! Let's summarize: The left is negative, right is positive, above is positive, and below is negative.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountHow do the sign conventions affect the image we predict when using lenses?
If we assign incorrect signs, we might think the image is virtual when it’s actually real.
Exactly! Keep practicing with examples to ensure you’re applying these conventions correctly.
So, whenever we write formulas, we need to be very careful about the sign of each distance?
Right! Signs dictate the physics of the image produced. The feedback from your calculations should align with physical observations.
Finally, remember to always double-check your signs when solving lens problems, as these conventions are fundamental!
Overview
Short Summary
The section discusses the sign convention applied to distances and measurements in spherical lenses, outlining how focal lengths differ for convex and concave lenses.
Medium Summary
The sign convention in the context of spherical lenses instructs how distances from the optical centre should be measured, defining the focal length of convex lenses as positive and that of concave lenses as negative. This framework is essential for correctly applying formulas related to lens behavior and image formation.
Detailed Summary
In this section, we explore the New Cartesian Sign Convention as applied to spherical lenses, which is similar to that used for spherical mirrors. According to this convention, all measurements are conducted from the optical center of the lens. For a convex lens, the focal length (f) is treated as a positive value, while for a concave lens, it is considered negative. Additionally, object distance (u), image distance (v), object height (h), and image height (h′) must be assigned their respective signs based on this convention. Understanding these distinctions is crucial as they affect calculations related to scattering, convergence, and divergence of light passing through lenses. This section provides a foundation for applying the lens formula and ensuring that distances are correctly interpreted in various problems involving lenses.

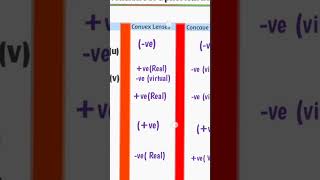

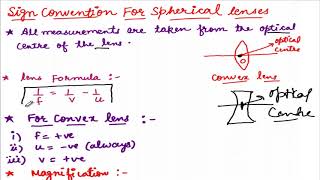

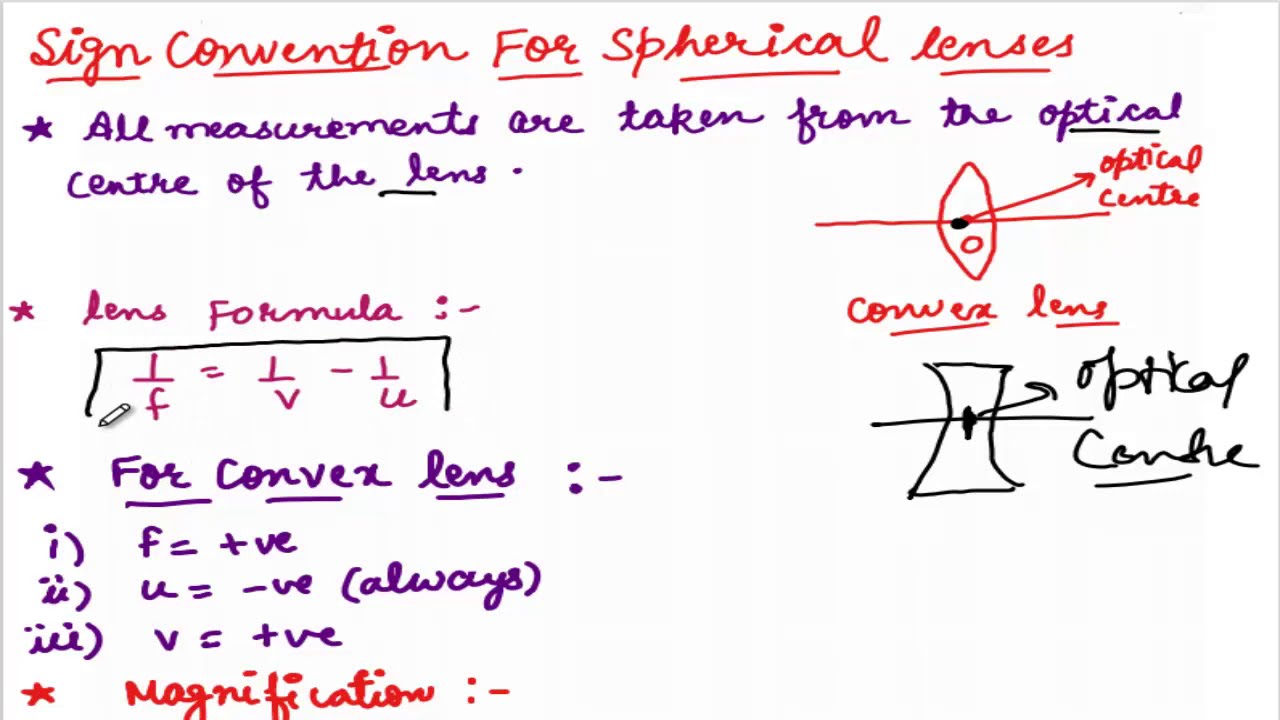

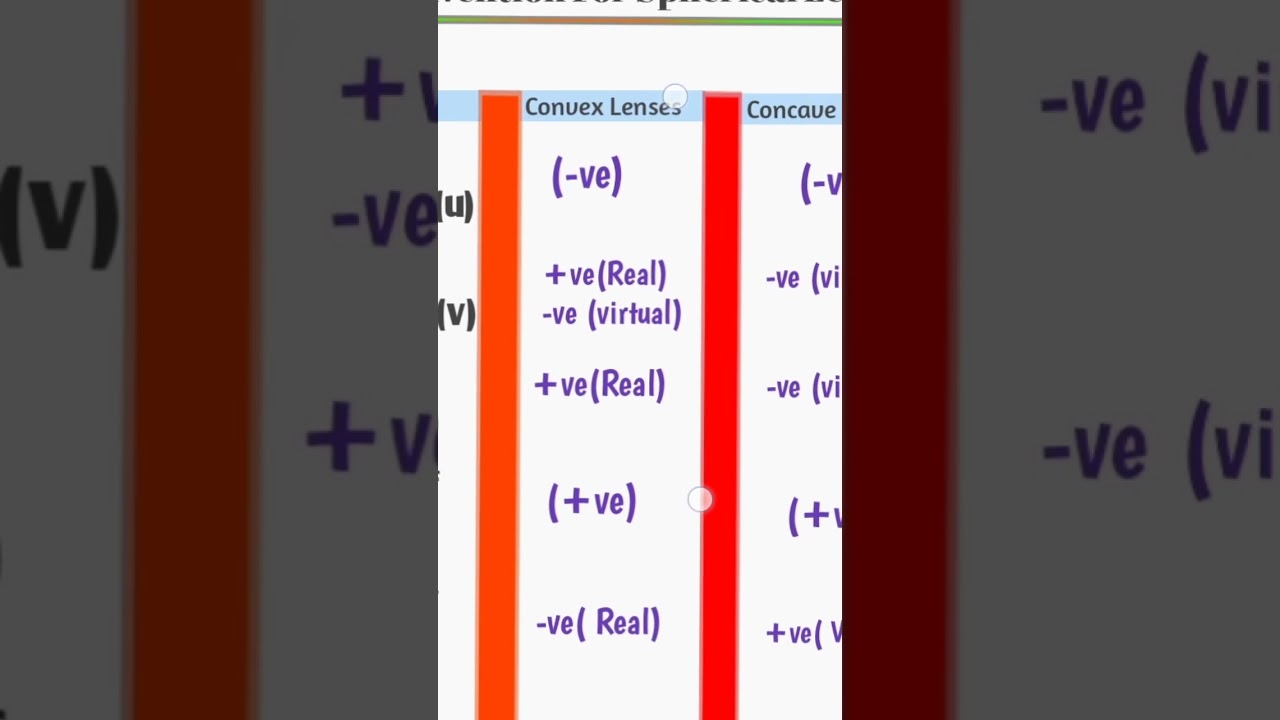

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountFor lenses, we follow sign convention, similar to the one used for spherical mirrors. We apply the rules for signs of distances, except that all measurements are taken from the optical centre of the lens. According to the convention, the focal length of a convex lens is positive and that of a concave lens is negative. You must take care to apply appropriate signs for the values of u, v, f, object height h and image height h′.
Detailed Explanation
In optics, it's essential to maintain consistency with how we define measurements and directions. In the case of lenses, the optical centre serves as the origin, from which all distances are measured. When measuring the focal lengths, convex lenses, which converge light, have a positive focal length, while concave lenses, which diverge light, have a negative focal length. The distances related to the object and image are denoted by 'u' and 'v', respectively. Understanding how to apply these sign conventions is crucial for solving problems related to lenses.
Examples & Analogies
Think of measuring heights in an amusement park: if the ground level is your starting point (like the optical centre of a lens), anything above it (like the heights of rides) is positive. If you were below the ground (like being under a concave lens), those measurements would be negative. This way, everyone can agree on how tall each ride is without confusion!
--
Key Concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Optical Center: The point in a lens where light passes without bending.
Focal Length: The distance from the optical center to the focus; convex is positive, concave is negative.
Sign Convention: A set of rules for assigning positive and negative values to distances in lens calculations.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
If an object is placed 5 cm from a convex lens, the image distance can be calculated using the lens formula with the focal length being positive.
A concave lens having a focal length of -10 cm will always give a virtual image when the object is placed in front of it.
