Introduction to Refraction
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we're going to discuss refraction, which is when light changes direction as it passes from one medium to another. Can anyone give me an example of refraction?
When you put a straw in a glass of water, it looks bent!
Exactly! That's a perfect example. What happens to the light near the straw?
The light bends as it moves from air to water.
Right! And that's the essence of refraction. So, let’s remember that refraction happens at the boundaries of different media.
Laws of Refraction
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s discuss the laws of refraction. Can anyone tell me what they think they might be?
Maybe something about angles and light?
Yes! The first law states that the incident ray, the refracted ray, and the normal line at the interface between the two media all lie in the same plane. What does that mean?
They are all flat in one line!
Correct! And the second law relates to the angles. Can anyone summarize Snell's Law?
It relates the angle of incidence to the angle of refraction with sines!
Practical Experiment with a Glass Slab
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s put our knowledge to the test! We’ll conduct an experiment with a glass slab. Who can tell me the first step?
We need to outline the slab on paper, right?
Yes! After that, we’ll place pins to see where the light goes. What do you think we'll notice?
The light will bend at the edges of the slab!
Exactly! Let’s note that the ray may shift position but still emerge parallel to the incoming ray — that’s because of the refraction effect!
Significance of Refraction
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we understand how refraction works, why do you think it’s important?
It's important for lenses in glasses!
Exactly! Refraction allows us to correct vision with eyeglasses. What else?
Cameras and microscopes use it too!
Correct! Remember, every lens or camera uses the concept of refraction to focus light!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explores the concept of refraction through a rectangular glass slab, illustrating how light bends as it enters and exits different media. Key principles include the laws of refraction and the determination of angles of incidence and refraction.
Detailed
Refraction through a Rectangular Glass Slab
Refraction is the bending of light as it travels from one medium to another, driven by changes in speed. This section details an experiment involving a rectangular glass slab that demonstrates the principle of refraction. When incident light rays encounter the slab, they bend towards the normal when entering the denser glass from air, causing a change in direction. Exiting the slab, the light rays bend away from the normal, emerging parallel to their original direction.
Key Points Covered:
- Laws of Refraction: The incident ray, refracted ray, and normal at the point of incidence lie in the same plane. The ratio of the sine of the angle of incidence to the sine of the angle of refraction is constant for a given pair of media, known as Snell's Law.
- Practical Activity: An outlined experiment with a glass slab demonstrates how to visualize refraction by marking the position of pins at the beginning and end of the refraction process, demonstrating the light ray shifts position but remains parallel before and after passing through the slab.
- Significance: Understanding these concepts is essential in many applications such as lenses in glasses, cameras, and optical instruments. Refraction principles are foundational in understanding optical phenomena in science.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Activity to Observe Refraction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

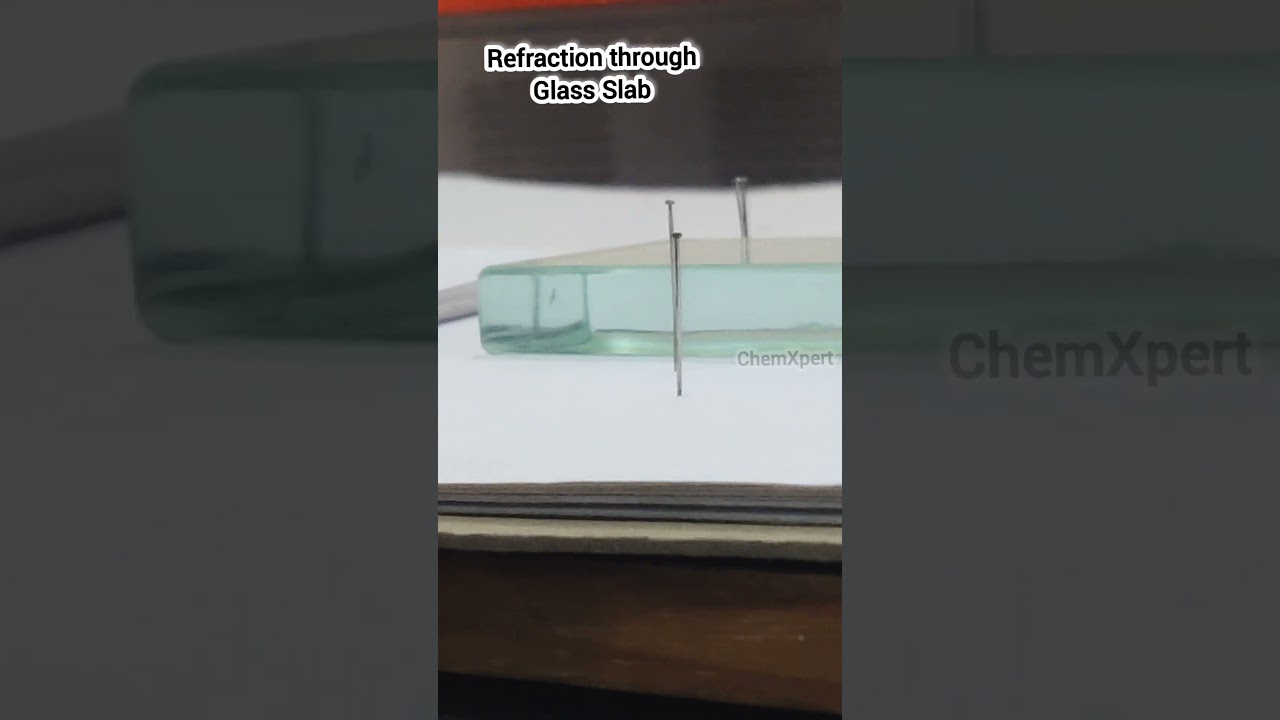

To understand the phenomenon of refraction of light through a glass slab, let us do an Activity.
- Fix a sheet of white paper on a drawing board using drawing pins.
- Place a rectangular glass slab over the sheet in the middle.
- Draw the outline of the slab with a pencil. Let us name the outline as ABCD.
- Take four identical pins.
- Fix two pins, say E and F, vertically such that the line joining the pins is inclined to the edge AB.
- Look for the images of the pins E and F through the opposite edge.
- Fix two other pins, say G and H, such that these pins and the images of E and F lie on a straight line.
- Remove the pins and the slab.
- Join the positions of tip of the pins E and F and produce the line up to AB. Let EF meet AB at O. Similarly, join the positions of tip of the pins G and H and produce it up to the edge CD. Let HG meet CD at O′.
- Join O and O′. Also produce EF up to P, as shown by a dotted line in Fig. 9.10.
Detailed Explanation
In this activity, students will set up a scenario to visually observe how light refracts when passing through a medium like glass. Pins E and F, when viewed through the glass slab, appear at different positions than where they are actually placed. This activity highlights the bending of light as it moves from air (a rarer medium) into glass (a denser medium) and then back out into air again.
Examples & Analogies
Think of this as looking at a stick partially submerged in water. The part that is in water looks as if it's bent or broken at the surface. Similarly, in this activity, the positions where the pins are fixed will appear shifted due to the bending of light at the boundaries of the glass slab.
Understanding Refraction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In this Activity, you will note, the light ray has changed its direction at points O and O′. Note that both the points O and O′ lie on surfaces separating two transparent media. Draw a perpendicular NN’ to AB at O and another perpendicular MM′ to CD at O′. The light ray at point O has entered from a rarer medium to a denser medium, that is, from air to glass. Note that the light ray has bent towards the normal. At O′, the light ray has entered from glass to air, that is, from a denser medium to a rarer medium. The light here has bent away from the normal.
Detailed Explanation
When light travels from one medium to another, its speed changes, causing the light to change direction. This change of direction is called refraction. At point O, as light enters from air (rarer medium) into glass (denser medium), it bends towards the normal line (an imaginary line perpendicular to the surface). Conversely, at point O′, when light exits from glass back into air, it bends away from the normal, illustrating how refraction works when light moves from a denser medium to a rarer medium.
Examples & Analogies
Imagine being on a frozen pond where the ice is very slippery (less dense medium) and walking onto thick grass (denser medium). Your movement changes direction as your foot meets the grass just like light changes direction when entering a different medium.
Laws of Refraction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now you are familiar with the refraction of light. Refraction is due to change in the speed of light as it enters from one transparent medium to another. Experiments show that refraction of light occurs according to certain laws.
- The incident ray, the refracted ray and the normal to the interface of two transparent media at the point of incidence, all lie in the same plane.
- The ratio of sine of angle of incidence to the sine of angle of refraction is a constant, for the light of a given colour and for the given pair of media. This law is also known as Snell’s law of refraction. (This is true for angle 0 < i < 90o)
Detailed Explanation
The laws of refraction describe how light behaves at the boundary between two different media. The first law states that all rays in this interaction will lie in the same plane, making it easier to visualize their paths. The second law, known as Snell's Law, explains the constant ratio that relates the angles at which light enters and exits a medium. This ratio helps to determine how much light bends when entering a new substance, and it varies depending on the types of media involved.
Examples & Analogies
Think of Snell’s Law like a school with different grades. Each grade has its own pace; some students are faster than others. Just as the speed and transition of students from one grade to the next can be predicted, the refractive behavior of light can be predicted using these laws.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Refraction: The bending of light at the boundary of different media.
-
Normal Line: A perpendicular line to the interface at the point of incidence.
-
Snell's Law: Relates angle of incidence and angle of refraction.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Seeing a bent straw in a glass of water due to different light speeds in air and water.
-

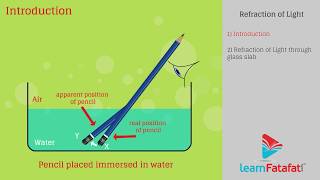

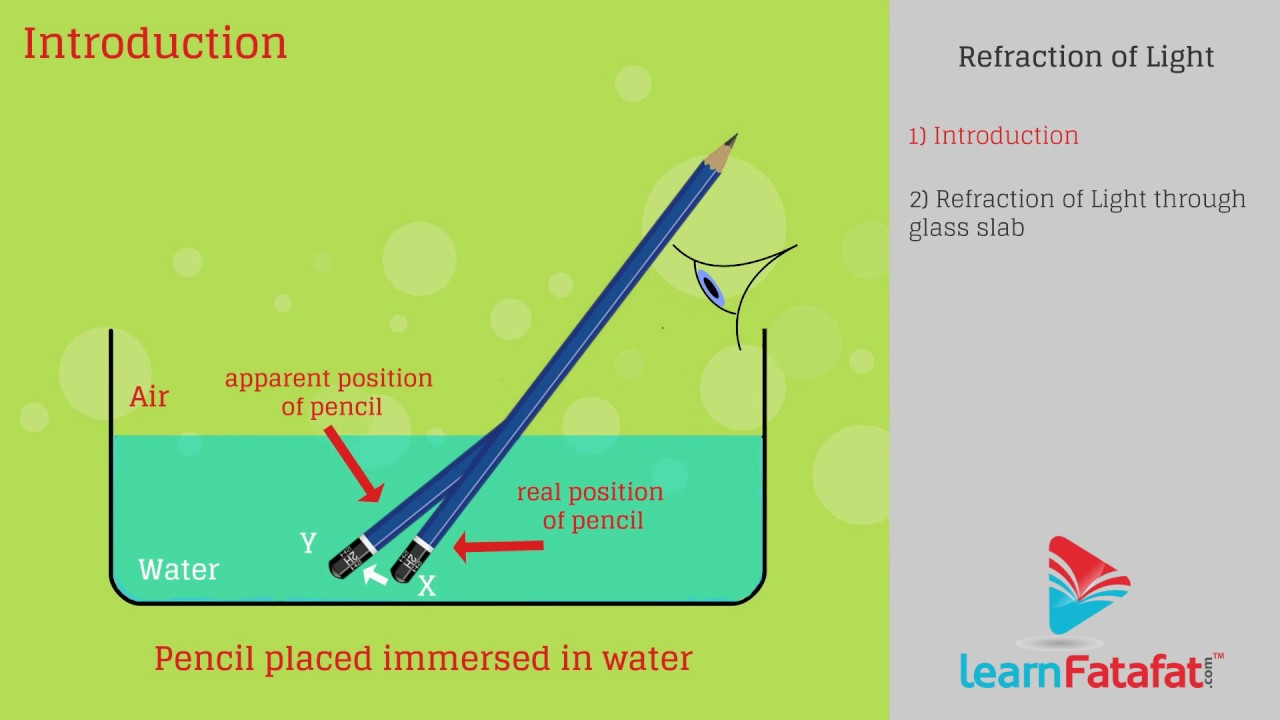

The phenomenon of a pencil appearing broken when partially submerged in water.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Light bends, here the normal describes, the angles change as media divide.
📖 Fascinating Stories
-
Imagine a ray of light, crossing a river from land to the deeper side; it bends towards the hidden normal, just like a swimmer adjusting their stroke.
🧠 Other Memory Gems
-
I P N: Incidence, Propagation, Normal - Helps remember the roles when light travels.
🎯 Super Acronyms
LENS
- Light Enters New Surface - Reminding how light behaves crossing layers.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Refraction
Definition:
The bending of light as it passes from one medium to another.
-
Term: Normal Line
Definition:
A line perpendicular to the surface at the point of incidence.
-
Term: Snell's Law
Definition:
The law that describes how light bends between different media.
-
Term: Emergent Ray
Definition:
The ray of light that leaves the second medium after refraction.
-
Term: Angle of Incidence
Definition:
The angle between the incident ray and the normal line.
-
Term: Angle of Refraction
Definition:
The angle between the refracted ray and the normal line.
