3.5 - VECTOR ADDITION – ANALYTICAL METHOD
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Vector Addition
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome, everyone! Today, we're going to discuss vector addition, focusing on the analytical method. Can anyone tell me why we might prefer this method over the graphical one?
I think the graphical method is good for visualization, but it can be hard to get exact values.
Exactly! The graphical method can sometimes lead to approximations. That's why we break vectors into their components. Do you remember how to represent a vector in components?
Yes, we use Ax for the x-component and Ay for the y-component.
Great! And when we add vectors like A and B, we can express the resultant vector R as R = Ax + Bx in the x-direction and R = Ay + By in the y-direction. This makes calculations simpler!
Summing Components of Vectors
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we’ve introduced vector components, let’s look at how to sum them. Can anyone summarize how to calculate R in both dimensions?
We add the x-components together and the y-components together. So, R = (Ax + Bx)i + (Ay + By)j.
Perfect! And this can be extended to three dimensions. What would the third component look like?
It would be R = (Ax + Bx)i + (Ay + By)j + (Az + Bz)k.
That's correct! We can visualize this as a 3D vector represented by i, j, and k. Remember, vector addition follows the associative and commutative properties, which is crucial. What does that allow us to do?
It means we can group and rearrange the vectors as needed.
Magnitude and Direction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s apply some of these concepts in real-world scenarios. To find the magnitude of a resultant vector formed by two vectors A and B at an angle θ, we utilize the Law of Cosines. Who can recollect the formula?
It’s R² = A² + B² + 2AB cos θ.
Exactly! And how do we find the direction using the Law of Sines?
We can set up the ratios, R/sin(α) = B/sin(β) where α and β are the angles opposite to the respective sides.
Well done! Understanding the geometry helps visualize how these laws apply directly to vector addition.
Practical Example: Motorboat Problem
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s wrap up our discussions with a practical example. We have a motorboat racing north at 25 km/h and a water current at 10 km/h at an angle of 60° east of south. How do we set up our vectors?
We can diagram the two vectors, one for the boat and one for the current. Then we can calculate the resultant velocity.
Exactly! We would utilize both the Law of Cosines to find the resultant's magnitude and the Law of Sines to find the direction. Can anyone provide the final expression for R?
It would be R = √(25² + 10² + 2*25*10*cos(120°)).
Great job! This is how we can apply the analytical method of vector addition in real-life scenarios.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The analytical method of vector addition helps simplify the process of adding vectors by using their components. The section outlines how to derive resultant vectors in both two and three dimensions and applies mathematical laws like the Law of Cosines and the Law of Sines to determine their magnitudes and directions.
Detailed
Detailed Summary
In this section, we explore the analytical method of vector addition, highlighting its advantages over the graphical method. While the graphical approach aids in visualizing vectors, it often proves cumbersome and less accurate. Therefore, by resolving vectors into their components along the x and y axes (and z in three dimensions), we can add them more straightforwardly using the formula:
R = A + B = (Ax + Bx)i + (Ay + By)j

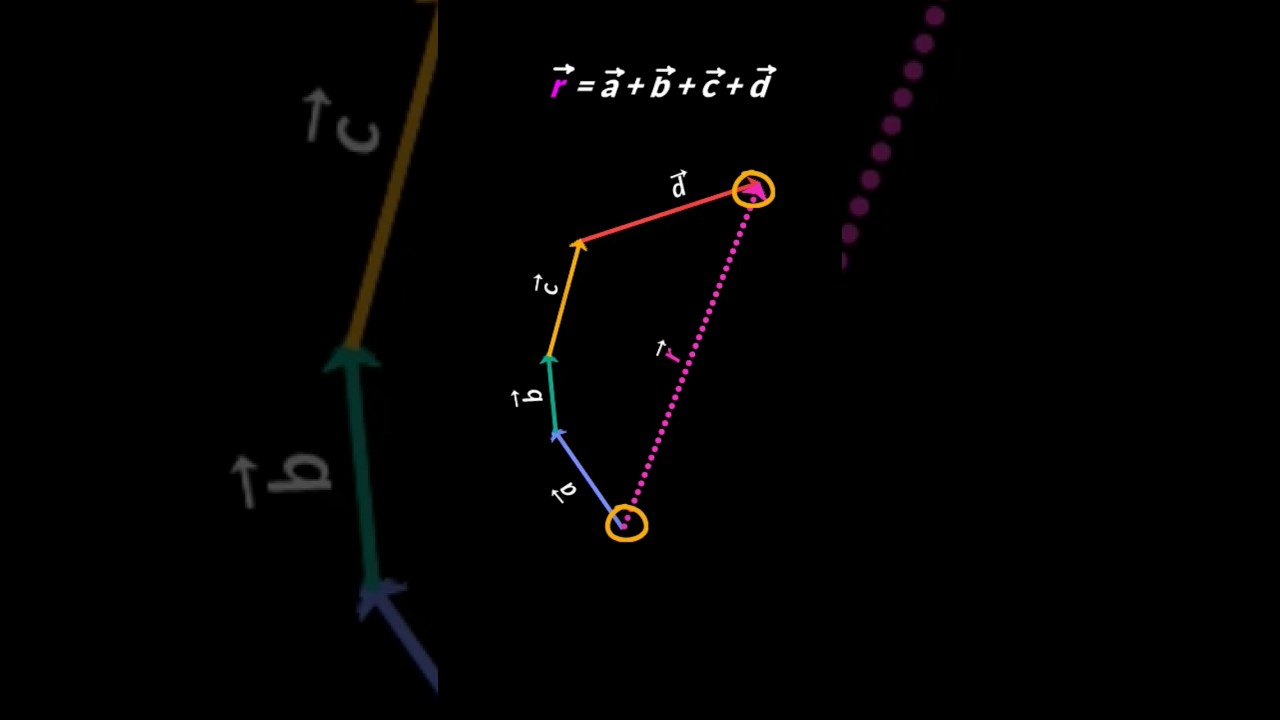

We confirm that the summation of the components results in the resultant vector's components, allowing us to extend this method to any number of vectors. We also cover how to apply the Law of Cosines and the Law of Sines through examples that illustrate how to find the magnitude and direction of resultant vectors given their angles and components. Practical scenarios such as the motion of a motorboat in a current serve as applications of these principles.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Analytical Vector Addition
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Although the graphical method of adding vectors helps us in visualizing the vectors and the resultant vector, it is sometimes tedious and has limited accuracy. It is much easier to add vectors by combining their respective components.
Detailed Explanation
In this chunk, we introduce the concept that while graphical methods (like drawing arrows to represent vectors) can help us understand how vectors interact, they have limitations in precision. Thus, it's often simpler and more accurate to use a mathematical approach where we can describe vectors in terms of their components along the x and y axes.
Examples & Analogies
Imagine trying to find the total distance you walked using a map. Drawing it out might help, but counting the exact distances mathematically can give you a more precise answer, especially if your paths twist and turn.
Components of Vectors in the Plane
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Consider two vectors A and B in the x-y plane with components Ax, Ay and Bx, By: A = Axi + A_y j.
Detailed Explanation
Here, we break down vectors A and B into their horizontal (x-axis) and vertical (y-axis) components. The notation A = Ax i + Ay j signifies that vector A can be expressed in terms of its components along these axes. This provides a clearer understanding of the vector's magnitude and direction in the two-dimensional plane.
Examples & Analogies
Think of walking in a big city while using a map. If you want to get to a location, you might move east for a while and then north. Your total movement can be broken down into your movements to the east and north, much like how we break vectors into their x and y components.
Parallelogram Method and Resultant Vector
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

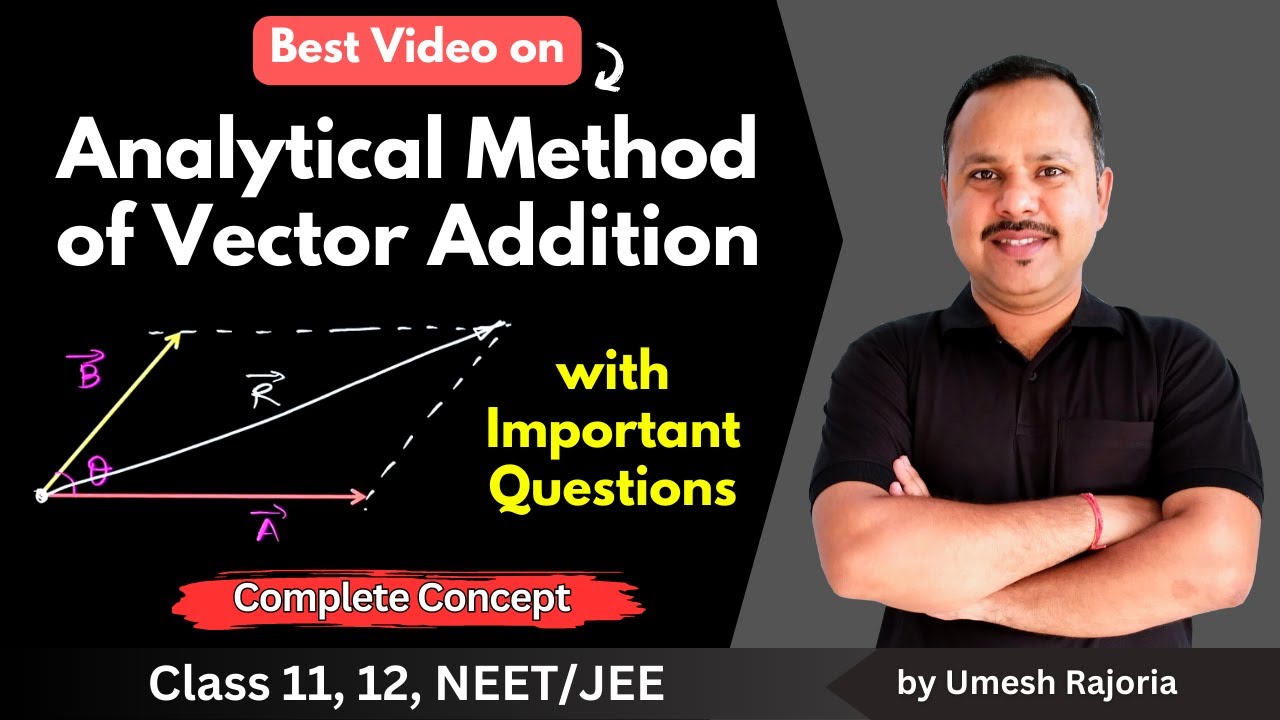

Let OP and OQ represent the two vectors A and B making an angle θ. Then, using the parallelogram method of vector addition, OS represents the resultant vector R.
Detailed Explanation
This chunk describes how to use the parallelogram method for vector addition, where vectors A and B are represented as adjacent sides of a parallelogram. The diagonal of the parallelogram (OS) gives us the resultant vector R, visually illustrating how to combine both vectors into one. This provides a geometric interpretation of vector addition, revealing how they work together to create a single resultant.
Examples & Analogies
Imagine you are in a park with two friends. One friend walks northeast while the other walks northwest. If you want to find out how far you are from the place you started, you could imagine drawing a parallelogram with lines representing the paths your friends walked—this diagonal line gives you the shortest path back.
Magnitude of Resultant Vector Using the Law of Cosines
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Using the parallelogram method of vector addition, we find R² = A² + B² + 2AB cos θ.
Detailed Explanation
The Law of Cosines comes into play when calculating the magnitude of the resultant vector R from two component vectors A and B that meet at an angle θ. This formula shows that the length of the resultant vector depends not only on the lengths of A and B but also on the angle between them, integrating both the geometric and trigonometric aspects of vector addition.
Examples & Analogies
Consider you have two ropes pulling in different directions at an angle. The total force (or tension) you feel from them together isn't just the sum of their individual strengths; it also depends on how much they are pulling you apart, similar to how the angle θ affects the resultant vector's magnitude.
Direction of Resultant Vector Using the Law of Sines
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Combining Eqs. (3.24b) and (3.24c), we get: R sin α = B sin θ.
Detailed Explanation
This part elaborates on finding the direction of the resultant vector using the Law of Sines. It shows that the angle α that the resultant makes with one of the vectors (A or B) can be computed using sine ratios, linking the direction of the resultant vector with the components involved in its formation.
Examples & Analogies
Imagine again being pulled by your two friends in different directions. To know the direction you are being pulled towards—your 'R' direction—you could relate it back to how strongly and in which direction each friend is pulling you, signifying how directionality in vectors works.
Applications of Analytical Method
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Example 3.3: A motorboat is racing towards north at 25 km/h and the water current in that region is 10 km/h in the direction of 60° east of south.
Detailed Explanation
This practical example illustrates using the analytical method of vector addition to find the resultant velocity of a motorboat when both its velocity and the water current's velocity are taken into account. By breaking each velocity into components, we can apply the previously discussed laws to determine the net effect on the boat's overall travel direction and speed.
Examples & Analogies
Think of a swimmer trying to cross a river. The swimmer's effort to move straight across (the boat's speed) is challenged by the river's current (the current's speed). By analyzing both their efforts, you can calculate how far downstream the swimmer ends up.
Key Concepts
-
Analytical Method: The process of adding vectors using their components which is more precise than graphical methods.
-
Resultant Vector: The vector derived from the sum of multiple vectors, represented with its own magnitude and direction.
-
Law of Cosines: A mathematical rule to find the magnitude of the resultant vector when two vectors form an angle.
-
Law of Sines: A mathematical relationship that helps find the direction of the resultant vector.
Examples & Applications
Calculating the resultant vector when two given vectors are at an angle θ.
Determining the resultant speed and direction of a motorboat navigating through a current.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
To add up vectors, break them apart, components together, that's the smart part.
Stories
Imagine a sailor (vector A) sailing north with strong winds from the east (vector B). They combine their path (resultant R) creating a new direction at sea.
Memory Tools
R = A + B: Remember, Add the x’s and y’s, that’s the key.
Acronyms
V.A.R. - Vector Addition Rule
Visualize
Analyze
Result.
Flash Cards
Glossary
- Vector
A quantity that has both magnitude and direction.
- Component
The projection of a vector along the axes of a coordinate system.
- Resultant Vector
The vector sum of two or more vectors.
- Law of Cosines
A formula relating the lengths of the sides of a triangle to the cosine of one of its angles.
- Law of Sines
A formula relating the lengths of the sides of a triangle to the sines of its angles.
