8.4. ELECTROMAGNETIC SPECTRUM

At the time Maxwell predicted the existence of electromagnetic waves, the only familiar electromagnetic waves were the visible light waves. The existence of ultraviolet and infrared waves was barely established. By the end of the nineteenth century, X-rays and gamma rays had also been discovered. We now know that, electromagnetic waves include visible light waves, X-rays, gamma rays, radio waves, microwaves, ultraviolet and infrared waves. The classification of em waves according to frequency is the electromagnetic spectrum. There is no sharp division between one kind of wave and the next. The classification is based roughly on how the waves are produced and/or detected.

This chunk introduces the concept of the electromagnetic spectrum as proposed by Maxwell. At first, only visible light was known, but as discoveries were made, we learned of various electromagnetic waves such as X-rays and gamma rays. The electromagnetic spectrum is a way to classify these waves based on their frequencies and methods of detection, indicating that while there are categories, the boundaries are not strict.

Imagine a music scale that contains different notes. Just as notes can transition smoothly into each other without sharp breaks, electromagnetic waves transition smoothly through different frequencies without clear divisions.

Radio waves are produced by the accelerated motion of charges in conducting wires. They are used in radio and television communication systems. They are generally in the frequency range from 500 kHz to about 1000 MHz. The AM (amplitude modulated) band is from 530 kHz to 1710 kHz. Higher frequencies up to 54 MHz are used for short wave bands. TV waves range from 54 MHz to 890 MHz. The FM (frequency modulated) radio band extends from 88 MHz to 108 MHz. Cellular phones use radio waves to transmit voice communication in the ultrahigh frequency (UHF) band.

Radio waves are a type of electromagnetic wave created when electric charges accelerate, such as in antennas. They play a crucial role in communication technologies where different frequency bands are allocated for various types of broadcasts like AM/FM radio and TV. Understanding these frequency ranges helps in the efficient use of airwaves for sending and receiving signals.

Think of radio waves as musical notes played by a band. Each note (frequency) can be tuned to different stations (or genres) on your radio so you can listen to your favorite music or talk shows, similar to how different channels use specific frequencies.

Microwaves (short-wavelength radio waves), with frequencies in the gigahertz (GHz) range, are produced by special vacuum tubes (called klystrons, magnetrons and Gunn diodes). Due to their short wavelengths, they are suitable for the radar systems used in aircraft navigation. Radar also provides the basis for the speed guns used to time fast balls, tennis serves, and automobiles. Microwave ovens are an interesting domestic application of these waves.

Microwaves fall between radio waves and infrared in the electromagnetic spectrum. They are generated by devices such as klystrons and magnetrons, which are critical in communication and technology applications such as radar and microwaves for cooking. The unique property of microwaves that allows them to heat food is due to their ability to interact with water molecules, causing them to vibrate and produce heat.

Consider how a playground swing works. When you push the swing (microwave) just right, it moves back and forth (heats your food). Just like that, microwaves excite water molecules, creating heat that cooks your meal.

Infrared waves are produced by hot bodies and molecules. This band lies adjacent to the low-frequency or long-wavelength end of the visible spectrum. Infrared waves are sometimes referred to as heat waves. Infrared lamps are used in physical therapy. Infrared radiation also plays an important role in maintaining the earth’s warmth through the greenhouse effect.

Infrared waves are invisible to the human eye but can be felt as heat. These waves are emitted by objects when they are warm, and their energy absorption by materials leads to an increase in temperature. Infrared technology has practical applications in various fields, such as in medical therapies and climate science.

When you feel the warmth from a campfire, what you feel is infrared radiation. Just like a blanket that keeps you warm by trapping heat, infrared waves heat objects or living beings in their path without needing to touch them.

It is the most familiar form of electromagnetic waves. It is the part of the spectrum that is detected by the human eye. It runs from about 4 × 10^14 Hz to about 7 × 10^14 Hz or a wavelength range of about 700 – 400 nm. Visible light emitted or reflected from objects around us provides us information about the world.

Visible light rays are the only electromagnetic waves that humans can see. They provide essential information about our surroundings, and different wavelengths correspond to different colors. This segment of the spectrum is crucial for visibility and understanding our environment.

Imagine a painter using a palette of colors. Just like each color corresponds to a specific wavelength of light, the visible rays allow us to appreciate differing shades and hues in nature—making our world vibrant and full of information.

It covers wavelengths ranging from about 4 × 10^-7 m (400 nm) down to 6 × 10^-10 m (0.6 nm). Ultraviolet (UV) radiation is produced by special lamps and very hot bodies. The sun is an important source of ultraviolet light. But fortunately, most of it is absorbed in the ozone layer.

Ultraviolet rays are higher in energy than visible light. They play significant roles in various applications, including sterilization and phototherapy, but they can also be harmful by causing skin damage. The ozone layer protects us from harmful UV radiation by absorbing a significant amount of it.

Think of the UV light from the sun like a superhero's powerful energy beam. While this energy is beneficial (like vitamin D), it also requires a shield (the ozone layer) to protect us from potential harm (like sunburns).

Beyond the UV region of the electromagnetic spectrum lies the X-ray region. We are familiar with X-rays because of its medical applications. It covers wavelengths from about 10^-8 m (10 nm) down to 10^-13 m (10^-4 nm). X-rays are used as a diagnostic tool in medicine and as a treatment for certain forms of cancer.

X-rays have high energy and shorter wavelengths, which allow them to penetrate soft tissues in the body, making them useful for imaging bones and organs. Their medical applications are crucial for diagnostics and treatment, especially in oncology.

Think of X-rays as a super-sleuth's flashlight, casting light (X-rays) that can see through mystery boxes (your body) to show hidden contents (your bones and organs) that need investigation.

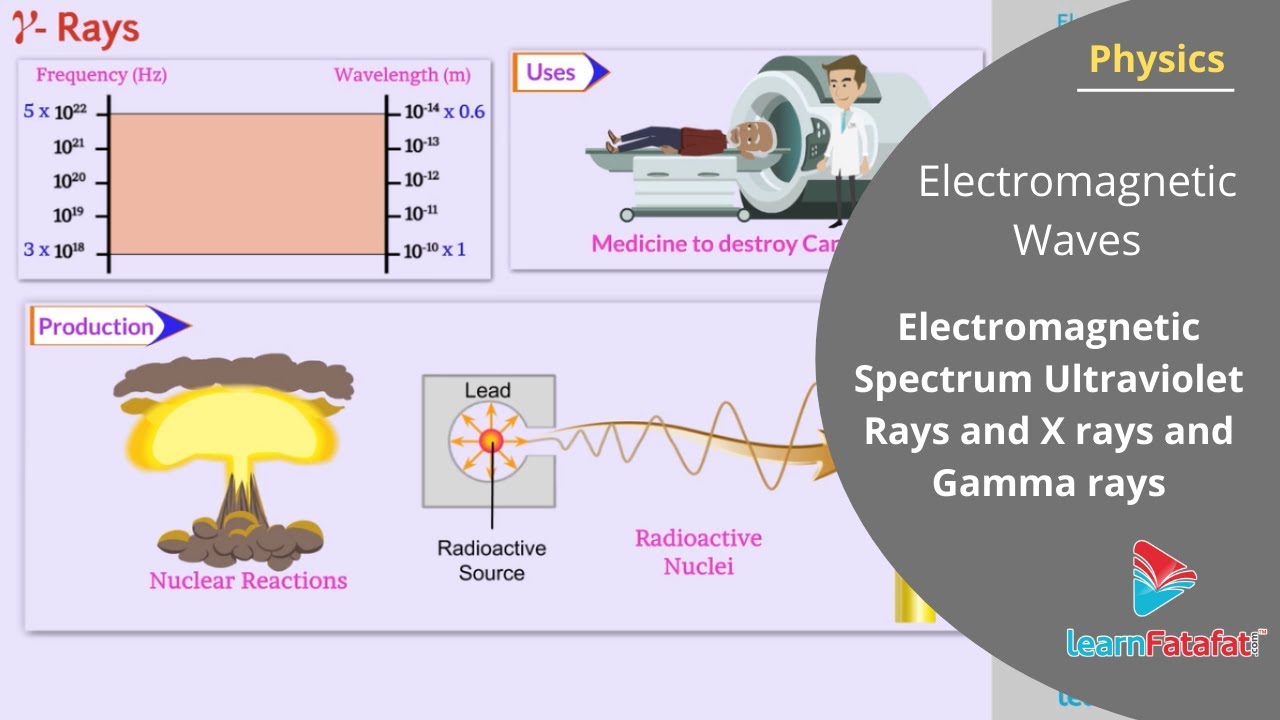

They lie in the upper frequency range of the electromagnetic spectrum and have wavelengths of from about 10^-10m to less than 10^-14m. This high-frequency radiation is produced in nuclear reactions and also emitted by radioactive nuclei.

Gamma rays are the most energetic type of electromagnetic radiation. They are produced during radioactive decay and certain high-energy processes, making them useful in both medicine (for cancer treatment) and scientific research.

Consider gamma rays as the ultimate energy drink in the radiation world—they pack a punch and can deliver significant energy quickly, which is why they can help treat cancer cells but also require careful handling due to their potency.

Table 8.1 summarises different types of electromagnetic waves, their production and detections.

The table offers a concise view of the various types of electromagnetic waves, emphasizing their distinct properties such as wavelength ranges, production methods, and detection techniques. This summary provides a clear reference for understanding the broad spectrum of electromagnetic phenomena.

Think of the table as a menu in a restaurant—it organizes different dishes (waves) by categories (types) so you can easily choose what intrigues you (learn) about how they are made and enjoyed (detected).

--
