8 - ELECTROMAGNETIC WAVES

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Sources of Electromagnetic Waves

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we will explore how electromagnetic waves are produced. Can anyone tell me if stationary charges or steady currents can produce electromagnetic waves?

Student 1
Student 1

No, I think only accelerating charges can do that.

Teacher
Teacher

Exactly! Accelerated charges are responsible for generating electromagnetic waves. When these charges oscillate, they create oscillating electric fields which in turn produce oscillating magnetic fields.

Student 2
Student 2

But why can't a steady current produce the same effect?

Teacher
Teacher

That's a good question! Steady currents produce magnetic fields, but these do not vary with time and hence do not generate electromagnetic waves. The interplay of oscillating fields encapsulates the essence of electromagnetic wave propagation.

Student 3
Student 3

So what happens when we have an oscillating charge?

Teacher
Teacher

An oscillating charge will continuously regenerate both the electric and magnetic fields, leading to a wave that propagates through space. This regeneration process allows the wave to carry energy away from the source.

Student 4
Student 4

Is this how radio waves are transmitted?

Teacher
Teacher

Exactly! Radio waves are a practical application of these principles, where antennas convert oscillating currents into electromagnetic waves that travel through the air.

Teacher
Teacher

Remember, electrons accelerating back and forth create radio waves. So, the key to producing electromagnetic waves is the *acceleration* of charges.

Nature of Electromagnetic Waves

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's discuss the nature of electromagnetic waves. What can you tell me about the orientations of electric and magnetic fields in these waves?

Student 1
Student 1

They are perpendicular to each other and also to the direction in which the wave is moving.

Teacher
Teacher

Correct! If we visualize an electromagnetic wave moving in a particular direction, let's say along the z-axis, the electric field would oscillate along the x-axis, while the magnetic field would oscillate along the y-axis.

Student 2
Student 2

And they both move together, right?

Teacher
Teacher

Absolutely! They regenerate each other as they travel. The relationship between their magnitudes can be described by the equation B = E/c, where c is the speed of light. Can anyone remind me how Maxwell described electromagnetic waves?

Student 3
Student 3

He said they are all connected to electricity, magnetism, and light being part of the same spectrum.

Teacher
Teacher

Exactly! Maxwell unified these concepts and demonstrated that light itself is an electromagnetic wave. This is a landmark in physics!

Teacher
Teacher

Remember the acronym 'PEM' \u2014 Perpendicular Electric and Magnetic fields! This will help you remember their orientations.

Historical Experiments

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's look at some historical context. Can anyone name a scientist who first produced and detected electromagnetic waves?

Student 4
Student 4

That would be Heinrich Hertz, right?

Teacher
Teacher

Correct! Hertz's experiments in 1887 were pivotal in confirming Maxwell's theory. He created radio waves using electrical sparks and measured their properties.

Student 1
Student 1

I remember reading about Jagdish Chandra Bose too. What did he do?

Teacher
Teacher

Good recall! Jagdish Chandra Bose was able to generate and observe electromagnetic waves of significantly shorter wavelengths. His work was crucial for early communications technology.

Student 2
Student 2

And wasn\u2019t Guglielmo Marconi involved in using these waves for communication?

Teacher
Teacher

Yes, indeed! Marconi's innovations helped lay the foundation for modern radio communication. His experiments showed how these waves could be transmitted over long distances.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Electromagnetic waves are produced by accelerated charges, exhibiting oscillating electric and magnetic fields that propagate through space.

Standard

This section discusses the generation of electromagnetic waves through accelerated charges, notably explaining why stationary or uniformly moving charges do not produce such waves. It also covers the perpendicular orientation of electric and magnetic fields in these waves and the pioneering experiments that confirmed Maxwell's theories.

Detailed

Understanding Electromagnetic Waves\n\nThis section delves into the fundamental principles of electromagnetic waves as derived from Maxwell's equations. It begins by addressing how electromagnetic waves are produced, emphasizing that neither static charges nor steady currents can generate them; rather, it is the accelerated charges that are the source of these waves.\n\nAn oscillating charge generates oscillating electric and magnetic fields that regenerate each other, and the frequency of these electromagnetic waves corresponds to the frequency of charge oscillation. The experimental verification of electromagnetic waves by Hertz and further explorations by scientists like Jagdish Chandra Bose and Guglielmo Marconi laid the groundwork for modern communication.\n\nWe learn that electromagnetic waves consist of electric and magnetic fields that are always perpendicular to each other and to the direction of wave propagation. These waves propagate in a vacuum at a speed corresponding to Maxwell's calculations and exhibit properties distinct from mechanical waves due to the absence of a material medium.\n\nThe equations governing the relationship between the electric field (E) and the magnetic field (B) show that their magnitudes are related by the equation B = E/c. Furthermore, the significance of these waves spans a broad spectrum from radio waves to gamma rays, each defined by its respective wavelength and frequency range, illustrating the unified nature of electromagnetism as proposed by Maxwell.

Youtube Videos

Electromagnetic Waves Class 12 Physics Chapter 8 One Shot | New NCERT CBSE
Electromagnetic Waves Class 12 Physics Chapter 8 One Shot | New NCERT CBSE
CBSE Class 12 Physics | Electromagnetic Waves in One Shot Revision | NCERT EMW Short Explanation
CBSE Class 12 Physics | Electromagnetic Waves in One Shot Revision | NCERT EMW Short Explanation
Electromagnetic Waves IMP NCERT Highlights | बस यही पढ़ना है 🔥| Chapter 8 Physics | CBSE 2023 Physics
Electromagnetic Waves IMP NCERT Highlights | बस यही पढ़ना है 🔥| Chapter 8 Physics | CBSE 2023 Physics
Chapter 8 Electromagnetic Waves (NOTES) Class 12 Physics Session 2021-2022
Chapter 8 Electromagnetic Waves (NOTES) Class 12 Physics Session 2021-2022

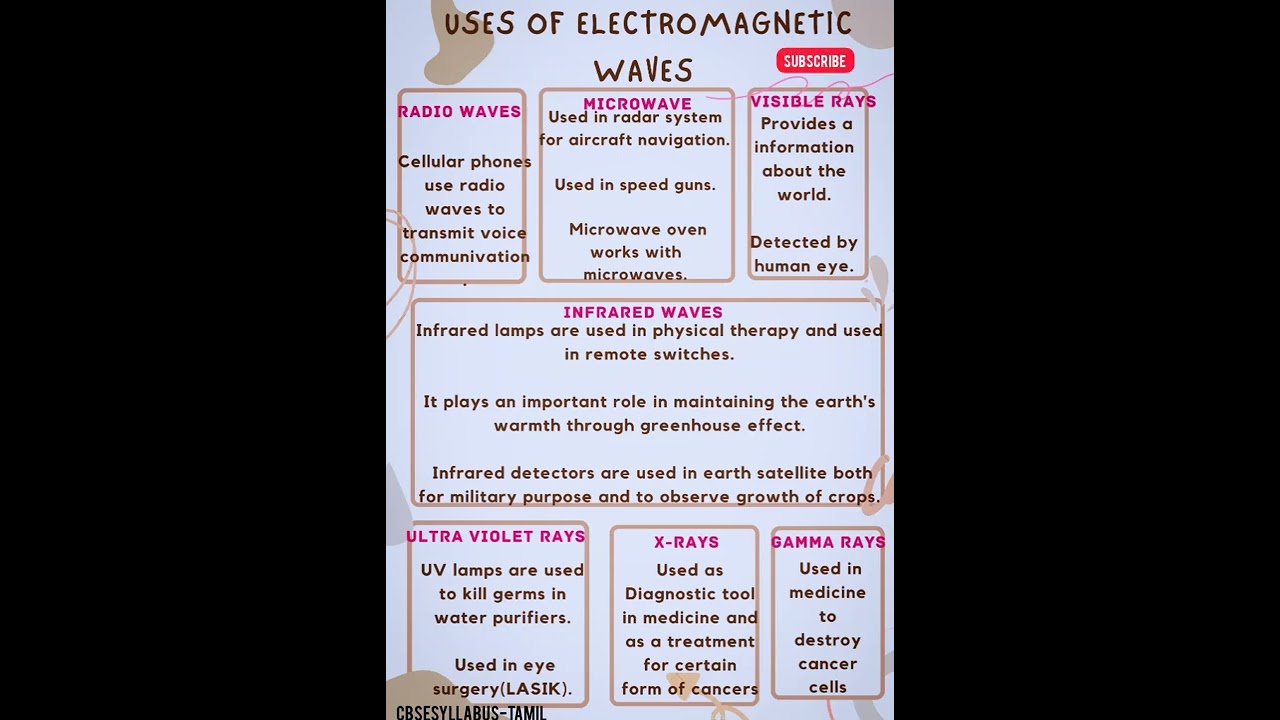

Uses of Electromagnetic waves
Uses of Electromagnetic waves
32. Electromagnetic Spectrum | E M Waves| CBSE | NCERT |Physics Baba 2.0
32. Electromagnetic Spectrum | E M Waves| CBSE | NCERT |Physics Baba 2.0
Best Way to Learn Electromagnetic Spectrum range within 60s #shorts #ssp_sir #neettricks #sspshorts
Best Way to Learn Electromagnetic Spectrum range within 60s #shorts #ssp_sir #neettricks #sspshorts
Electromagnetic Waves in 50 Minutes | Physics Chapter 8 | Full Chapter Revision Class 12th
Electromagnetic Waves in 50 Minutes | Physics Chapter 8 | Full Chapter Revision Class 12th
NCERT Line by Line Electromagnetic Waves Detailed Oneshot CH8 Class 12 CBSE 2024-25 JEE NEET🔥
NCERT Line by Line Electromagnetic Waves Detailed Oneshot CH8 Class 12 CBSE 2024-25 JEE NEET🔥
Class 12th Physics | Electromagnetic Spectrum | Chapter 8: Electromagnetic Waves | NCERT
Class 12th Physics | Electromagnetic Spectrum | Chapter 8: Electromagnetic Waves | NCERT

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Electromagnetic Waves

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In Chapter 4, we learnt that an electric current produces a magnetic field and that two current-carrying wires exert a magnetic force on each other. Further, in Chapter 6, we have seen that a magnetic field changing with time gives rise to an electric field. Is the converse also true? Does an electric field changing with time give rise to a magnetic field? James Clerk Maxwell (1831-1879), argued that this was indeed the case – not only an electric current but also a time-varying electric field generates magnetic field. While applying the Ampere’s circuital law to find magnetic field at a point outside a capacitor connected to a time-varying current, Maxwell noticed an inconsistency in the Ampere’s circuital law. He suggested the existence of an additional current, called by him, the displacement current to remove this inconsistency.

Detailed Explanation

The introduction to electromagnetic waves emphasizes the connection between electric currents and magnetic fields. Initially, we learned that a steady current generates a magnetic field. However, Maxwell expanded this idea by introducing the concept of a changing electric field, which can also produce a magnetic field. This is crucial because it lays the foundation for understanding electromagnetic waves. Maxwell noticed that Ampere's law was incomplete, as it did not account for situations where the electric field is changing, especially in capacitors during charging or discharging. Thus, he proposed the concept of displacement current, which accounts for the changing electric field and completes the understanding of how magnetic fields are generated.

Examples & Analogies

Imagine a light switch that controls a lamp. When you flip the switch (the electric current), it not only lights up the bulb (creating an electric field) but also generates heat (analogous to the magnetic field). Just like how the operation of a switch can be unreliable if not connected properly, the connection between electric fields and magnetic fields is essential for creating electromagnetism. Maxwell's discovery can be thought of as the complete circuit needed for a fully functional system.

Maxwell's Equations and Their Implications

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Maxwell formulated a set of equations involving electric and magnetic fields, and their sources, the charge and current densities. These equations are known as Maxwell’s equations. Together with the Lorentz force formula, they mathematically express all the basic laws of electromagnetism. The most important prediction to emerge from Maxwell’s equations is the existence of electromagnetic waves, which are (coupled) time-varying electric and magnetic fields that propagate in space.

Detailed Explanation

Maxwell's equations are a set of four fundamental equations that describe how electric and magnetic fields interact. They brought together previously separate laws of electricity and magnetism into a unified framework. One of the key outcomes of these equations is the prediction of electromagnetic waves. These waves consist of oscillating electric and magnetic fields that travel through space at the speed of light, confirming that light itself is an electromagnetic wave.

Examples & Analogies

Consider throwing a stone into a still pond. The ripples that travel outward are similar to electromagnetic waves. The stone represents an oscillating charge, causing waves (electric and magnetic fields) to ripple through the 'pond' of space around it, propagating away from the source without the need for any medium.

Displacement Current Explained

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Maxwell showed that for logical consistency, a changing electric field must also produce a magnetic field. This effect is of great importance because it explains the existence of radio waves, gamma rays and visible light, as well as all other forms of electromagnetic waves. To see how a changing electric field gives rise to a magnetic field, let us consider the process of charging of a capacitor...

Detailed Explanation

The concept of displacement current addresses the situation where a magnetic field could still exist even when there is no actual current flowing through a wire, such as in a charging capacitor. Maxwell's insight was that the changing electric field created by the charging process generates a magnetic field, similar to what would happen if there were a current present. This change in electric field is quantified as displacement current, which allows Maxwell's equations to remain valid in all situations, including those involving capacitors.

Examples & Analogies

Think of a crowded dance floor. When one dancer moves (the electric current), they create movement and energy in the nearby dancers (the surrounding magnetic field). If the original dancer stops moving yet some dancers continue to sway in response to the rhythm of the music (the changing electric field), it illustrates how the motion of one can influence the rest—the changing field still creates a dynamism similar to an ongoing current.

Self-Sustaining Nature of Electromagnetic Waves

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider a charge oscillating with some frequency. This produces an oscillating electric field in space, which produces an oscillating magnetic field, which in turn, is a source of oscillating electric field, and so on. The oscillating electric and magnetic fields thus regenerate each other, so to speak, as the wave propagates through the space.

Detailed Explanation

The self-sustaining nature of electromagnetic waves means that once an oscillating charge creates an electric field, that electric field generates a magnetic field. This magnetic field then affects the electric field, leading to a continuous cycle of generation. This is why an electromagnetic wave can travel through empty space without any medium, carrying energy along with it.

Examples & Analogies

Imagine a series of dominos set up in a row. When the first domino is pushed (like the oscillating charge), it causes the next one to fall (creating the electric field), which in turn pushes the next domino, and so on. This continuous chain reaction of movements mirrors how electromagnetic waves are self-propagating.

Relation of Electromagnetic Waves with Speed of Light

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

This led to the remarkable conclusion that light is an electromagnetic wave. Maxwell’s work thus unified the domain of electricity, magnetism and light. The speed of the waves, according to these equations, turned out to be very close to the speed of light (3 × 10^8 m/s), obtained from optical measurements.

Detailed Explanation

Maxwell’s equations predict that electromagnetic waves travel at a fixed speed, which is remarkably the same as the speed of light. This unification led to the understanding that visible light is just a part of the broader spectrum of electromagnetic waves, showcasing how the principles of electricity and magnetism apply universally, including in optics.

Examples & Analogies

Consider a highway where cars (electromagnetic waves) travel at a consistent speed limit of 100 km/h (the speed of light). No matter what type of car (different wavelengths in the electromagnetic spectrum), they all abide by the same speed limit on the highway. This illustrates how all electromagnetic waves travel through the universe at the same speed of light.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Electromagnetic Waves: Oscillating electric and magnetic fields that propagate through space.

  • Displacement Current: A concept introduced to account for changing electric fields creating magnetic fields.

  • Frequency and Wavelength: The inversely proportional relationship between frequency and wavelength defines wave properties.

  • Propagation: The speed at which electromagnetic waves travel, defined in vacuum as c (approximately 3 x 10^8 m/s).

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • The oscillation of charges in an antenna creates radio waves that can be transmitted and received by radios.

  • A laser beam represents visible light, an electromagnetic wave that travels in a vacuum with consistent speed.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • E and B in harmony; they travel so far, raising the bar.

📖 Fascinating Stories

  • Imagine a lively dance between electric and magnetic fields; as one twirls, the other follows, creating waves that journey through space.

🧠 Other Memory Gems

  • Remember PEM: Perpendicular Electric and Magnetic fields in waves.

🎯 Super Acronyms

To memorize the sequence of electromagnetic wave types, think R-M-I-L-U-X-G!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Electromagnetic Waves

    Definition:

    Waves that are propagated by simultaneous oscillations of electric and magnetic fields.

  • Term: Displacement Current

    Definition:

    A term introduced by Maxwell to account for the changing electric field which contributes to the magnetic field in situations where there is no conduction current.

  • Term: Accelerated Charge

    Definition:

    A charge that is changing its velocity, which is essential for the generation of electromagnetic waves.

  • Term: Hertz Experiment

    Definition:

    The first experimental demonstration of the existence of electromagnetic waves, conducted by Heinrich Hertz.

  • Term: Maxwell's equations

    Definition:

    A set of four fundamental equations that describe electromagnetism, formulated by James Clerk Maxwell.

  • Term: Frequency

    Definition:

    The number of oscillations of the field per unit time, measured in hertz (Hz).

  • Term: Wavelength

    Definition:

    The distance over which the wave's shape repeats, which is inversely proportional to frequency.

  • Term: Propagation Speed

    Definition:

    The speed at which the electromagnetic wave travels through space, which is constant in a vacuum.
