9.5.4 - Combination of thin lenses in contact

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Lens Combinations

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we're going to learn about how two thin lenses can work together when placed in contact. Can anyone explain what happens when light passes through a single lens?

Student 1
Student 1

When light passes through a lens, it bends, and depending on the shape and material, it can focus the light to form an image.

Teacher
Teacher

Exactly! Now, when we combine two lenses, how might that change the behavior of light?

Student 2
Student 2

I think it could change where the image is formed, right?

Teacher
Teacher

Yes, very good! The first lens creates an image which then becomes the object for the second lens. Let's explore how these images are formed mathematically.

Image Formation with Two Lenses

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

For our two lenses, let's define their focal lengths as \( f_1 \) and \( f_2 \). We can use the lens formulas to find the resultant image. Can anyone recite the lens formula?

Student 3
Student 3

Sure! The lens formula is \( \frac{1}{v} - \frac{1}{u} = \frac{1}{f} \).

Teacher
Teacher

Great! Now for the first lens, how do we define \( u_1 \) and \( v_1 \)?

Student 4
Student 4

If the object is on the left side, then \( u_1 \) is negative, and \( v_1 \) would be positive since the image formed will be on the right!

Teacher
Teacher

Correct! Now, once we find \( v_1 \), we use it as the object distance for the second lens as \( u_2 = -v_1 \) depending on its location. Let’s calculate an example.

Effective Focal Length Calculation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s go a bit deeper! When it comes to two lenses in contact, what would be our equation for the effective focal length?

Student 1
Student 1

It would be \( \frac{1}{f} = \frac{1}{f_1} + \frac{1}{f_2} \)!

Teacher
Teacher

Exactly! This means that if one lens has a focal length of 10 cm and the second has 15 cm, can someone find the effective focal length?

Student 2
Student 2

Using the formula, I get \( \frac{1}{f} = \frac{1}{10} + \frac{1}{15} = \frac{3 + 2}{30} = \frac{5}{30} \), so \( f = 6 \) cm!

Teacher
Teacher

Well done! Remember that combining lenses can allow us to design glasses, cameras, and more! Let's wrap up with the magnification.

Magnification in Lens Combinations

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s discuss magnification. If each lens has its own magnification given by \( m \), how to find the total magnification of our two lenses?

Student 3
Student 3

I think the total magnification would be \( m = m_1 \times m_2 \)!

Teacher
Teacher

Absolutely right! Can someone come up with a scenario where we would need to calculate total magnification?

Student 4
Student 4

Using a microscope? Each lens would help in magnifying the tiny details of a specimen!

Teacher
Teacher

Exactly! Let’s make an example. If the objective lens has a magnification of 10 and the eyepiece 5, what’s the total?

Student 1
Student 1

That would be 10 times 5, equal to 50!

Teacher
Teacher

Great job! Understanding these concepts is foundational for our studies in optics. Let's summarize.

Wrapping Up Lens Combinations

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

To conclude, we discussed how two lenses can be combined to yield an effective focal length and magnification. What is the key equation for calculating the effective focal length?

Student 2
Student 2

It's \( \frac{1}{f} = \frac{1}{f_1} + \frac{1}{f_2} \)!

Teacher
Teacher

And for total magnification?

Student 3
Student 3

It's \( m = m_1 \times m_2 \)!

Teacher
Teacher

Excellent! Remember these relationships and they will serve you well in optics as we delve deeper into complex systems. Keep practicing!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses how multiple thin lenses placed in contact with each other interact and create an effective focal length and magnification for optical systems.

Standard

The combination of two thin lenses in contact allows the formation of a new effective focal length, where the image formed by one lens serves as the object for the next. This concept is crucial in the design and functioning of various optical instruments, providing enhanced control over image formation and magnification.

Detailed

Youtube Videos

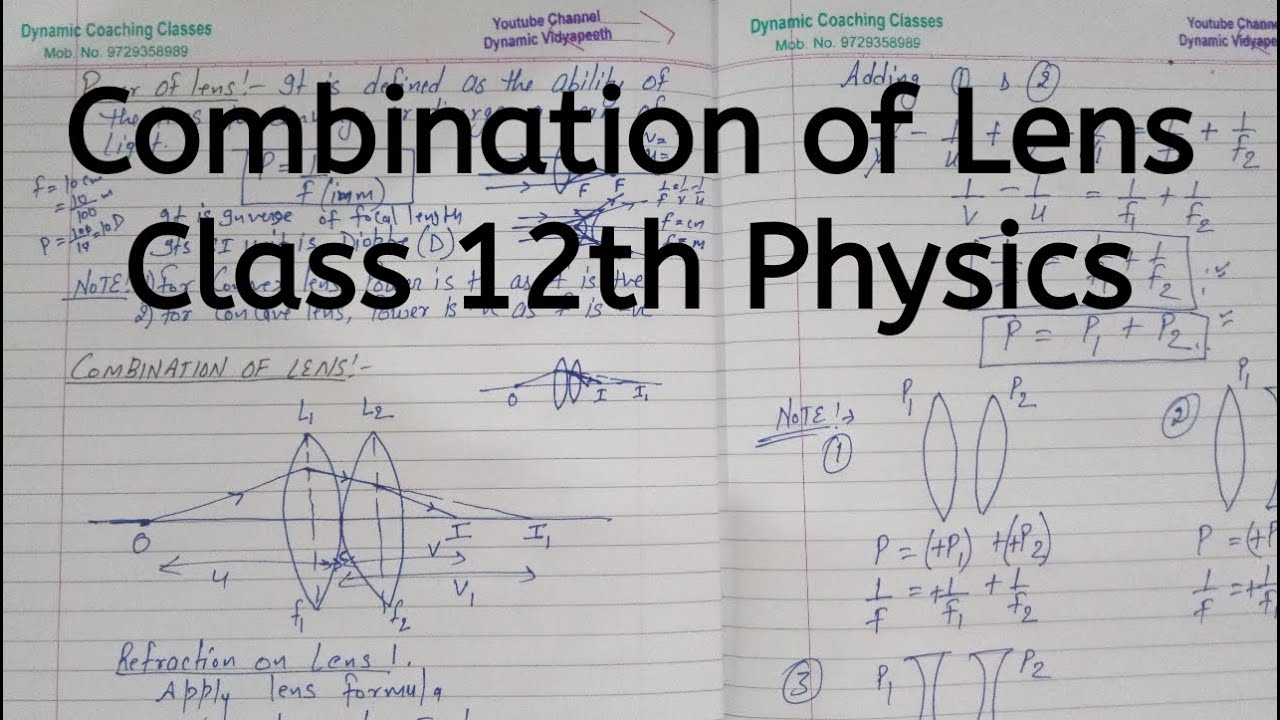

Combination of Lens, Chapter 9, Ray Optics And Optical Instruments, Class 12 Physics
