9.2.3 - The mirror equation

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Image Formation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're diving into how mirrors form images. Can anyone tell me what a real image is?

Student 1
Student 1

A real image is one that's formed when light rays actually converge and can be projected onto a screen.

Teacher
Teacher

Exactly! And how about virtual images?

Student 2
Student 2

Virtual images seem to come from a point where the light rays diverge, like the images in a flat mirror.

Teacher
Teacher

Great responses! Now, let's learn about the mirror equation, which helps us connect these ideas.

The Mirror Equation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

The mirror equation is represented as \( \frac{1}{f} = \frac{1}{u} + \frac{1}{v} \). Can anyone explain what each symbol represents?

Student 3
Student 3

`f` is the focal length, `u` is the object distance, and `v` is the image distance.

Teacher
Teacher

Correct! The focal length is the distance from the mirror's surface to its focus. What can you tell me about the signs associated with these distances?

Student 4
Student 4

In the Cartesian sign convention, distances measured in the direction of incoming light are negative for the object distance, and image distances for real images are positive.

Teacher
Teacher

Well done! Remember that concave mirrors have a negative focal length while convex mirrors have a positive one.

Linear Magnification

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now lets discuss magnification. The formula for linear magnification is \( m = -\frac{v}{u} \). Why do we have the negative sign here?

Student 1
Student 1

The negative sign accounts for the fact that real images are inverted.

Teacher
Teacher

Exactly! And what does it mean if the magnification is less than one?

Student 2
Student 2

It means the image is smaller than the object, right?

Teacher
Teacher

Right again! Larger magnifications imply larger image sizes relative to the object. It's essential to consider these in real-life applications.

Application of the Mirror Equation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s apply the mirror equation with an example. If an object is placed 30 cm in front of a concave mirror with a focal length of -10 cm, what will be the image distance?

Student 3
Student 3

Using the mirror equation, \( \frac{1}{f} = \frac{1}{u} + \frac{1}{v} \), we can rearrange to find \( v = \frac{1}{(1/f) - (1/u)} \).

Teacher
Teacher

Exactly! So plug in the values and calculate.

Student 4
Student 4

Substituting, \( v = \frac{1}{(1/-10) - (1/-30)} \), I get \( v = -15 \) cm.

Teacher
Teacher

Great job! That negative value shows it's a real image on the same side as the object.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the mirror equation, relating object distance, image distance, and focal length for spherical mirrors.

Standard

In this section, we explain the concepts of real and virtual images formed by mirrors, introduce the mirror equation that connects object distance, image distance, and focal length, and discuss linear magnification in relation to mirror images. The focal lengths of concave and convex mirrors are also clarified.

Detailed

Youtube Videos

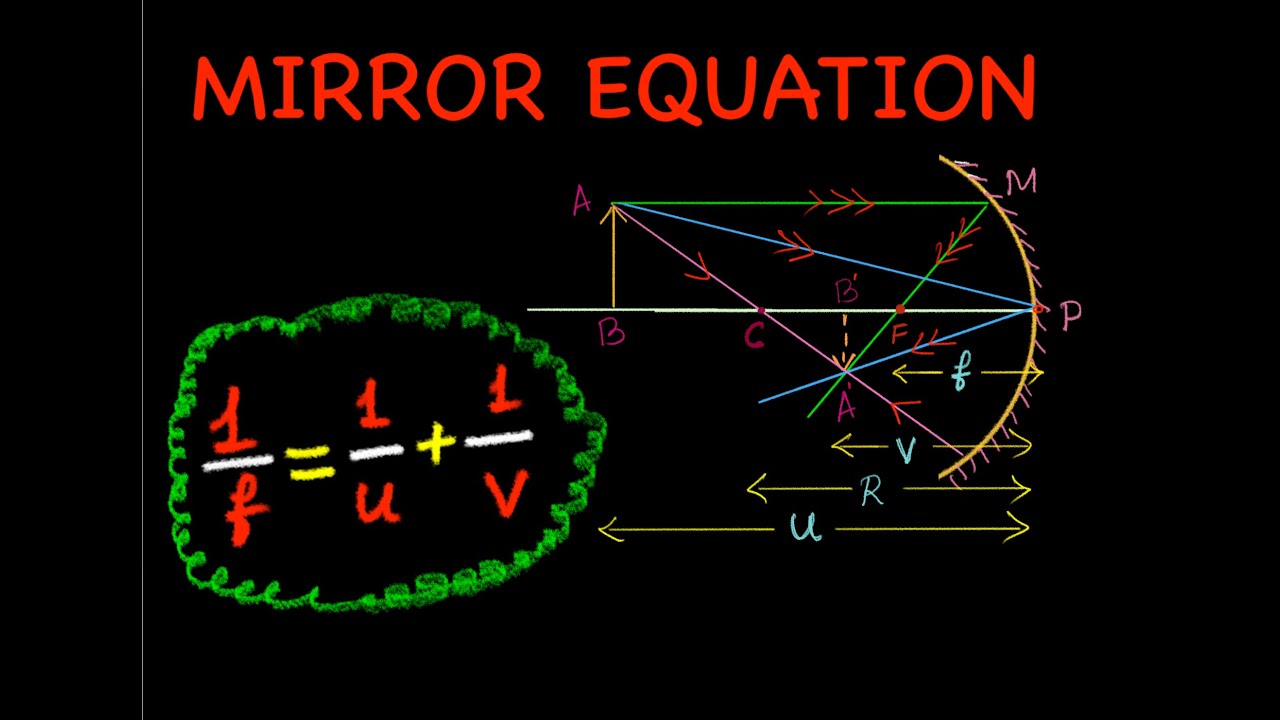

2. Mirror Equation OR Mirror Formula | Chapter 9 Ray Optics and Optical instruments | Class 12
2. Mirror Equation OR Mirror Formula | Chapter 9 Ray Optics and Optical instruments | Class 12
12th class physics chapter 9 ray optics one shot revision in 10 minutes PW....
12th class physics chapter 9 ray optics one shot revision in 10 minutes PW....
Mirror Equation for Concave Mirror - Ray Optics and Optical Instruments | Class 12 Physics 2022-23
Mirror Equation for Concave Mirror - Ray Optics and Optical Instruments | Class 12 Physics 2022-23
Ray optics and optical instruments in class 12 | Part 2 | Mirror equation
Ray optics and optical instruments in class 12 | Part 2 | Mirror equation
Plus Two Physics - Rayoptics and Optical Instruments | Xylem Plus Two
Plus Two Physics - Rayoptics and Optical Instruments | Xylem Plus Two
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Mirror equation concave mirror | Ray Optics #7 | CBSE Class 12 Physics Chapter 9
Mirror equation concave mirror | Ray Optics #7 | CBSE Class 12 Physics Chapter 9
Collimator | collimated beam #iitian #experiment #physics #science #shorts #ms #mandalstudy #ytshort
Collimator | collimated beam #iitian #experiment #physics #science #shorts #ms #mandalstudy #ytshort

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Understanding Images and Reflections

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If rays emanating from a point actually meet at another point that point is called the image of the first point. The image is real if the rays actually converge to the point; it is virtual if the rays do not actually meet but appear to diverge from the point when produced backwards. An image is thus a point-to-point correspondence with the object established through reflection and/or refraction.

Detailed Explanation

An image forms when light rays converge or appear to diverge from a point. If the rays meet at a point, the image is classified as real and can be projected onto a screen. If the rays diverge but seem to originate from a particular point when traced backwards, it results in a virtual image. This distinction is critical in optics as real images can be captured photographically, whereas virtual images cannot.

Examples & Analogies

Think about how a car's headlights reflect off the road and create illuminated spots; these spots represent real images. In contrast, a virtual image is like the apparent position of a fish in a pond. The fish looks higher than its actual location due to light refraction in water - while it seems to be there, that's just an optical illusion.

Using Ray Diagrams

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In principle, we can take any two rays emanating from a point on an object, trace their paths, find their point of intersection and thus, obtain the image of the point due to reflection at a spherical mirror. In practice, however, it is convenient to choose any two of the following rays: (i) The ray from the point which is parallel to the principal axis. The reflected ray goes through the focus of the mirror. (ii) The ray passing through the centre of curvature of a concave mirror or appearing to pass through it for a convex mirror. The reflected ray simply retraces the path. (iii) The ray passing through (or directed towards) the focus of the concave mirror or appearing to pass through (or directed towards) the focus of a convex mirror. The reflected ray is parallel to the principal axis.

Detailed Explanation

To find images formed by mirrors, we can use a few specific rays and their behaviors. The first ray travels parallel to the principal axis and will pass through the focal point. The second ray travels through the mirror’s center of curvature, reflecting back along its path. The third ray directs towards the focal point and, upon reflection, will travel parallel to the principal axis. By analyzing only these rays, we can effectively determine the location and nature (real or virtual) of the image formed by the mirror.

Examples & Analogies

Consider using a magnifying glass, which acts like a concave mirror for viewing small objects. When you hold it so that sunlight hits it and then look at a leaf, the rays from the sun hit the magnifying lens, converge, and form a bright spot—a real image—on the leaf.

Deriving the Mirror Equation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We now derive the mirror equation or the relation between the object distance (u), image distance (v) and the focal length (f). From Fig. 9.5, the two right-angled triangles A¢B¢F and MPF are similar. Therefore, B¢A¢/B¢F = PM/FP. Since ∠APB = ∠A¢PB¢, the right-angled triangles A¢B¢P and ABP are also similar. Comparing these relationships leads to the equation v/f = 1 + u/f, which can be rearranged to give the mirror equation 1/f = 1/v + 1/u.

Detailed Explanation

To derive the mirror equation, we analyze similar triangles formed by the object and its image through a spherical mirror. By applying the concept of similar triangles, we establish relationships between the distances of the object (u), the image (v), and the focal length (f). The final form, known as the mirror equation, provides critical insights into how these distances relate when light interacts with mirrors.

Examples & Analogies

Visualize aiming a flashlight through a concave mirror to illuminate a dark area. The distance from the flashlight (object) to the mirror, along with the distance from the mirror to the illuminated spot (image), can be measured and related mathematically through the mirror equation, helping determine optimal positions for effective lighting.

Understanding Magnification in Mirrors

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The size of the image relative to the size of the object is another important quantity to consider. We define linear magnification (m) as the ratio of the height of the image (h¢) to the height of the object (h): m = h¢/h. With the sign convention, h and h¢ will be taken positive or negative in accordance with the accepted sign convention.

Detailed Explanation

Magnification quantifies how much larger or smaller an image appears compared to the object. The linear magnification is calculated by dividing the height of the image by the height of the object. This ratio allows us to understand whether the image is enlarged, reduced, or the same size as the original object. Additionally, depending on the type of mirror, magnification can be positive or negative, indicating whether the image is erect or inverted.

Examples & Analogies

Imagine looking into a carnival funhouse mirror: your reflection can be much taller or shorter than you, illustrating how magnification works. In this case, the mirror distorts your image, and the ratio of your height to the funhouse mirror's reflection can be measured as magnification.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Mirror Equation: The equation \( \frac{1}{f} = \frac{1}{u} + \frac{1}{v} \) connects object distance, image distance, and focal length.

  • Real vs. Virtual Images: Real images can be projected while virtual images cannot.

  • Linear Magnification: Defined as \( m = -\frac{v}{u} \), indicating the relative size of the image compared to the object.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of calculating image distance using the mirror equation with given object and focal lengths.

  • Demonstrating the concepts of real and virtual images via ray diagrams.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In a concave mirror so bright, real images come to light; virtual ones are just a sight.

📖 Fascinating Stories

  • Imagine a funhouse mirror - it shows you longer or shorter images! This play mirrors how real and virtual images react differently.

🧠 Other Memory Gems

  • FOR Virtual: Face On Reflection - Virtual images are upright.

🎯 Super Acronyms

RIM - Real Image Magnification.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Focal length (f)

    Definition:

    The distance from the mirror's surface to the focus where parallel light rays converge or appear to diverge.

  • Term: Object distance (u)

    Definition:

    The distance from the object to the mirror's surface, measured along the principal axis.

  • Term: Image distance (v)

    Definition:

    The distance from the image to the mirror's surface, measured along the principal axis.

  • Term: Real image

    Definition:

    An image formed when light rays actually converge and can be projected onto a screen.

  • Term: Virtual image

    Definition:

    An image formed when light rays appear to diverge from a point behind the mirror.

  • Term: Linear magnification (m)

    Definition:

    The ratio of the height of the image to the height of the object, describing how enlarged or reduced the image is.
