9.6 - Refraction Through a Prism

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Basic Concepts of Refraction

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we'll explore the fascinating phenomenon of refraction as it occurs in prisms. When light travels from one medium to another, such as from air to glass, it bends. Can anyone describe what happens to light during this process?

Student 1
Student 1

Light bends towards the normal when it enters a denser medium.

Teacher
Teacher

Exactly! Now, when light exits a glass prism back into the air, it bends away from the normal. By understanding this behavior, we can describe concepts like the angle of incidence and refraction. Can anyone tell me how we define these angles?

Student 2
Student 2

The angle of incidence is the angle between the incident ray and the normal at the surface, right?

Student 3
Student 3

And the angle of refraction is the angle between the refracted ray and the normal.

Teacher
Teacher

Correct! It's crucial to visualize these angles when working with prisms.

Understanding Angle of Deviation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s discuss the angle of deviation. What do you think happens to the light ray as it passes through the prism?

Student 1
Student 1

I guess it changes direction, creating an angle between the incoming and outgoing rays.

Teacher
Teacher

That's right! The angle of deviation is measured between the original path of the light ray and its new path after exiting the prism. Can anyone help me out with the formula for this?

Student 4
Student 4

It’s d = i + e - A, where 'd' is the angle of deviation, 'i' is the angle of incidence, 'e' is the angle of emergence, and 'A' is the angle of the prism.

Teacher
Teacher

Exactly! Let's remember: **Deviations** occur at each interface, and the total deviation gives us insight into how light behaves.

Relationship between Angle of Deviation and Refraction

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Can anyone tell me how we can relate the angle of minimum deviation to the refractive index of the prism material?

Student 2
Student 2

We can use the formula n = sin[(A + D_m) / 2] / sin(A/2), where 'n' is the refractive index, 'A' is the angle of the prism, and 'D_m' is the minimum deviation.

Teacher
Teacher

Exactly! This formula helps us calculate the refractive index using the angles related to minimum deviation. Why is understanding this important?

Student 3
Student 3

It helps in designing optical instruments, like lenses and prisms!

Teacher
Teacher

Correct! Remember, mastering these reflections and refractions is key to optical physics.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section covers the principles of light refraction through a prism and introduces the concepts of angle of deviation.

Standard

The section explains how light interacts with a prism, detailing the angles of incidence and refraction, and how they relate to the angle of deviation. It also establishes key relationships, including the formula for refractive index based on minimum deviation.

Detailed

Youtube Videos

Class 12th Physics | Refraction through a Prism | Chapter 9: Ray Optics & Optical Instruments
Class 12th Physics | Refraction through a Prism | Chapter 9: Ray Optics & Optical Instruments
Plus Two Physics - Rayoptics and Optical Instruments | Xylem Plus Two
Plus Two Physics - Rayoptics and Optical Instruments | Xylem Plus Two
Ray Optics and Optical Instruments Class 12 Physics Chapter 9 One Shot | New NCERT CBSE | NEET
Ray Optics and Optical Instruments Class 12 Physics Chapter 9 One Shot | New NCERT CBSE | NEET
Refraction Through a Prism - Ray Optics and Optical Instruments | Class 12 Physics Chapter 9 | CBSE
Refraction Through a Prism - Ray Optics and Optical Instruments | Class 12 Physics Chapter 9 | CBSE
Prism - Ray Optics & Optical Instruments | Class 12 Physics Chapter 9 | CBSE/JEE/NEET
Prism - Ray Optics & Optical Instruments | Class 12 Physics Chapter 9 | CBSE/JEE/NEET
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot

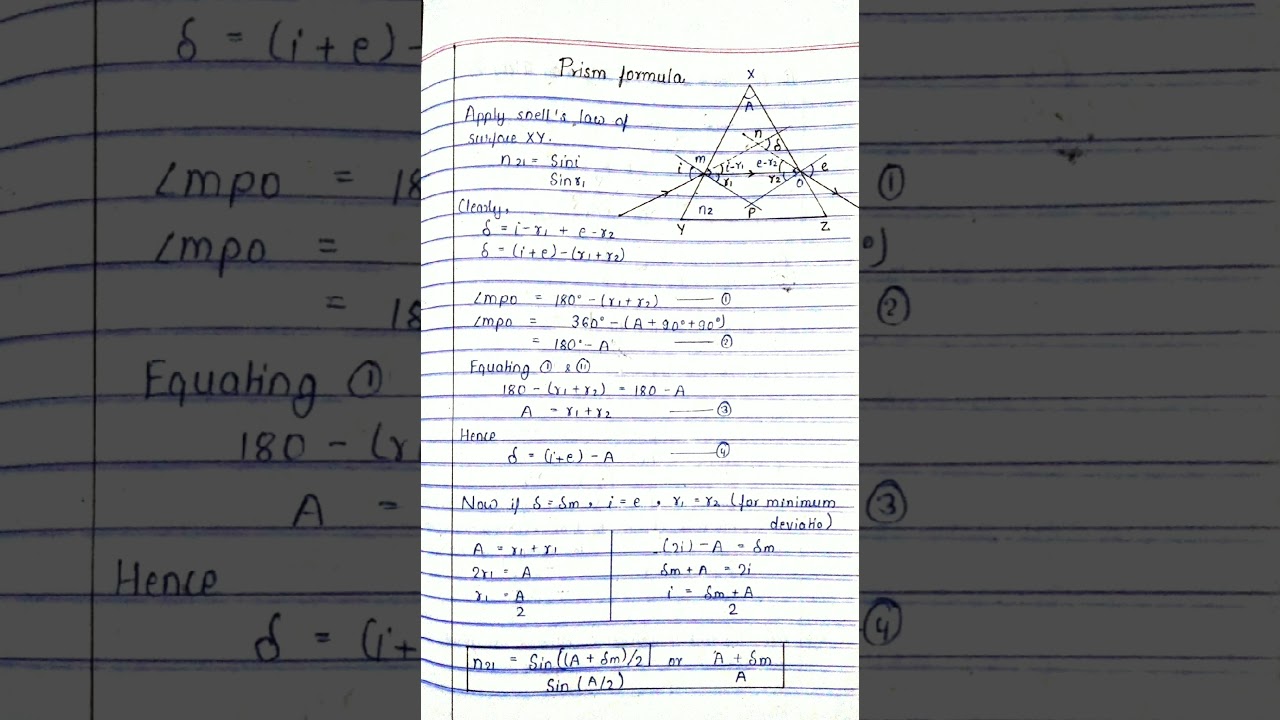

Prism formula derivation | pdf link in description | class 12 physics ray optics | jee | neet | cbse
