9.4 - TOTAL INTERNAL REFLECTION

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Total Internal Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we are discussing total internal reflection, a fascinating phenomenon in optics. Can anyone tell me what happens when light travels from a denser to a rarer medium?

Student 1
Student 1

Does it get reflected back completely?

Teacher
Teacher

Exactly! But it only happens when the angle of incidence exceeds a certain critical angle. This leads to no light escaping into the rarer medium. Let's remember that with a mnemonic: 'Critical Conditions Capture Light' - that highlights the critical angle aspect!

Student 2
Student 2

What determines this critical angle?

Teacher
Teacher

Good question! The critical angle is determined by the refractive indices of the two media. It can be calculated using Snell's law. Who can recall what Snell's law states?

Student 3
Student 3

Is it sin(i)/sin(r) = n?

Teacher
Teacher

Yes! But when we deal with the critical angle, we rearrange Snell's law to focus on that angle where light no longer refracts but gets fully reflected. Let's visualize this with a diagram.

Student 4
Student 4

So, the angle of incidence must be greater than the critical angle for total internal reflection?

Teacher
Teacher

Exactly! If the angle is greater, you have total internal reflection. Remember this concept as it has incredible applications in optics, especially in technology today.

Applications of Total Internal Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's discuss how total internal reflection is applied in modern technology. Can anyone give me an example?

Student 1
Student 1

What about optical fibers?

Teacher
Teacher

Absolutely! Optical fibers use total internal reflection to transmit light over long distances without loss. Can anyone think of devices that use optical fibers?

Student 2
Student 2

Telecommunications and internet, right?

Teacher
Teacher

Correct! Another application is in prisms used in binoculars and cameras. These utilize the same reflection for bending light. Remember the acronym 'PIT' - Prisms, Internal reflection, Technology!

Student 3
Student 3

What about mirages? Are they related to this concept?

Teacher
Teacher

Excellent point! Mirages occur when light bends through air layers of different temperatures, creating an optical illusion—linked closely to principles of refraction and reflection!

Student 4
Student 4

So, total internal reflection can be both practical and observational?

Teacher
Teacher

Absolutely! Remember, the science behind it helps us enhance visual experiences and technology.

Demonstrating Total Internal Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's do a simple experiment to observe total internal reflection. Who can suggest a method to visualize this?

Student 2
Student 2

We could use a laser pointer in water to see the light path!

Teacher
Teacher

Great idea! As we shine the laser through the water, pay attention to the angles we use. At what angle do we start seeing total internal reflection?

Student 1
Student 1

I remember the critical angle - it should be very specific!

Teacher
Teacher

That's right! As we experiment, let's take note of the changing angles and when the water surface reflects all the light back. Remember, the critical angle depends on the refractive index of the materials used.

Student 4
Student 4

This makes physics feel so real! It's interesting to see how these principles are everywhere.

Teacher
Teacher

Absolutely! Physics is all around us, and understanding these principles forms the basis for innovations we use daily.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Total internal reflection occurs when light travels from a denser medium to a rarer medium, resulting in complete reflection of the light.

Standard

The concept of total internal reflection is critical in understanding how light behaves at the interface of two media. This phenomenon happens when the angle of incidence exceeds the critical angle, leading to no refraction but total reflection back into the denser medium. This section discusses the critical angle, some practical applications, and demonstrations illustrating total internal reflection.

Detailed

Total Internal Reflection

Total internal reflection is a phenomenon that occurs when light travels from an optically denser medium to a rarer medium and the angle of incidence exceeds a specific threshold known as the critical angle. While some light is reflected back, in total internal reflection, all light is reflected, with no light escaping into the rarer medium. This principle can be mathematically expressed using Snell's law, where

sin(i) = n * sin(r)

for angles where total internal reflection occurs, the angle of refraction becomes 90° for a critical angle (c), thus modifying Snell’s law to

sin(c) = n_2/n_1.

Examples of total internal reflection can be found in optical devices such as prisms, fiber optics, and everyday occurrences like mirages. Demonstrations can include shining a laser through water to observe the total internal reflection effects under various angles, establishing both theoretical and practical applications of this crucial optical principle.

Youtube Videos

Total Internal Reflection - Ray Optics & Optical Instruments | Class 12 Physics Ch 9 | CBSE/JEE/NEET
Total Internal Reflection - Ray Optics & Optical Instruments | Class 12 Physics Ch 9 | CBSE/JEE/NEET
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Total Internal Reflection of Light - Ray Optics and Optical Instruments | Class 12th Physics CH 9
Total Internal Reflection of Light - Ray Optics and Optical Instruments | Class 12th Physics CH 9
Total Internal Reflection - Ray Optics and Optical Instruments | Class 12 Physics Chapter 9 | CBSE
Total Internal Reflection - Ray Optics and Optical Instruments | Class 12 Physics Chapter 9 | CBSE
Class 12th Physics | Total Internal Reflection | Chapter 9: Ray Optics & Optical Instruments | NCERT
Class 12th Physics | Total Internal Reflection | Chapter 9: Ray Optics & Optical Instruments | NCERT
Ray Optics and Optical Instruments Class 12 Physics Chapter 9 One Shot | New NCERT CBSE | NEET
Ray Optics and Optical Instruments Class 12 Physics Chapter 9 One Shot | New NCERT CBSE | NEET
Total Internal Reflection, TIR, Chapter 9, Ray Optics And Optical Instruments, Class 12 Physics
Total Internal Reflection, TIR, Chapter 9, Ray Optics And Optical Instruments, Class 12 Physics
12th class physics chapter 9 ray optics one shot revision in 10 minutes PW....
12th class physics chapter 9 ray optics one shot revision in 10 minutes PW....
Ray Optics and Optical Instruments One Shot 2024-25 | Class 12th Physics Full NCERT by Ashu Sir
Ray Optics and Optical Instruments One Shot 2024-25 | Class 12th Physics Full NCERT by Ashu Sir

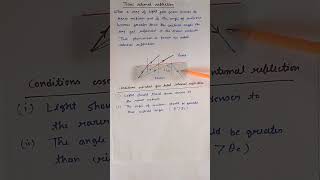

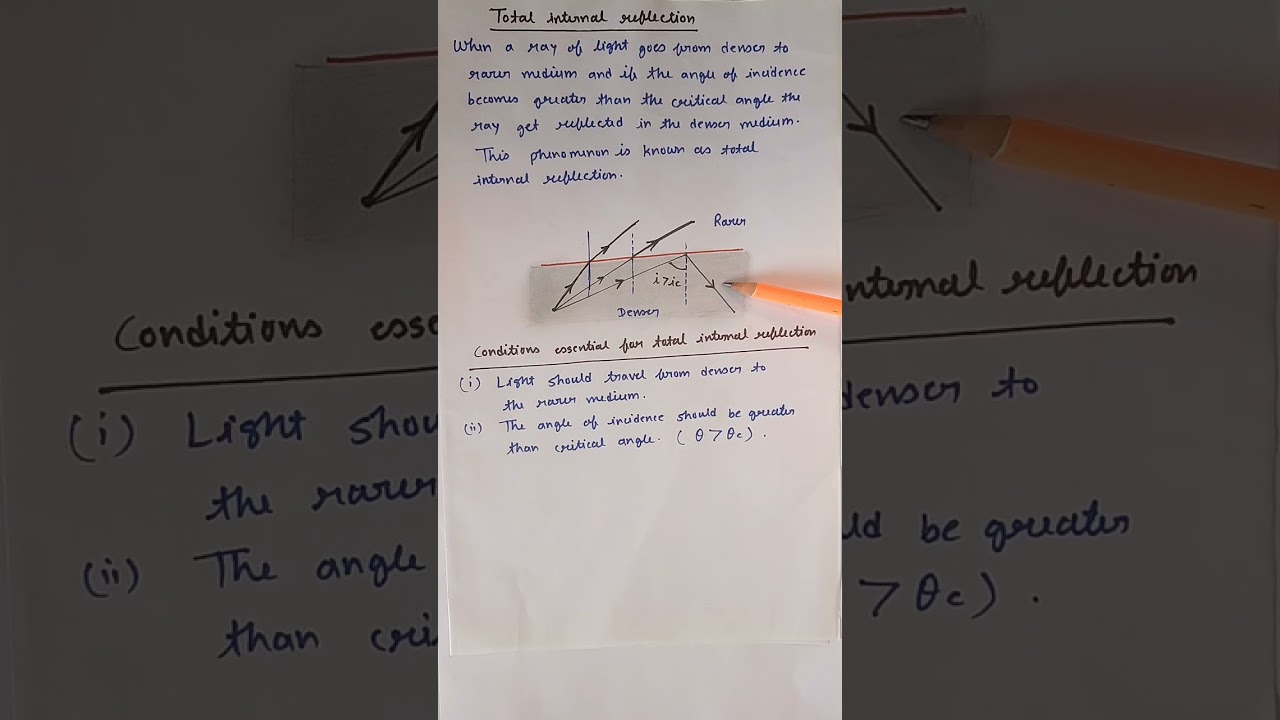

Class12/Physics/Optics/Total internal reflection
