9.2.1 - Sign convention

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding the Sign Convention

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Welcome to today's class! We're going to learn about the sign convention in optics. Why do we need to follow any sign convention?

Student 1
Student 1

To measure distances accurately, right?

Teacher
Teacher

Exactly! In optics, the Cartesian sign convention helps us maintain consistency when measuring distances from mirrors and lenses. Can anyone tell me how distances are measured?

Student 2
Student 2

Distances in the direction of incident light are positive, and those opposite are negative!

Teacher
Teacher

Correct! This means that when light travels towards a mirror or lens, those distances counted in that direction are positive. What's the significance of the pole in a mirror or the optical center in a lens?

Student 3
Student 3

It is the reference point from which we measure the distances.

Teacher
Teacher

Excellent! Let's remember this using the acronym ‘PAC’ — Positive Away from Center! Now, what happens to heights measured?

Student 4
Student 4

Heights upwards are positive, and downwards are negative.

Teacher
Teacher

Good job! Understanding these measurements is crucial for deriving the relevant formulas for mirrors and lenses.

Application of Sign Convention

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's discuss why applying the sign convention is important for formulas. Can anyone think of a formula that is affected by the sign convention?

Student 1
Student 1

The mirror equation, right?

Teacher
Teacher

Absolutely! The mirror equation relates the object distance, image distance, and focal length. Who can tell me the mirror equation?

Student 2
Student 2

It’s 1/f = 1/v + 1/u!

Teacher
Teacher

Correct! Let's see how the sign convention affects our values if we substitute. If we have an object distance of -10 cm, can someone find the image distance if focal length is -5 cm?

Student 3
Student 3

Wait, would it be -15 cm? Working through it helps see how signs impact results.

Teacher
Teacher

Exactly! And that's why we need to strictly follow this convention for accurate predictions. Let’s summarize: what have we learned today?

Student 4
Student 4

We learned the sign convention rules and how they apply in deriving formulas!

Teacher
Teacher

Fantastic! Remembering and applying these rules ensures clarity in our optical work.

Sign Convention in Action

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s connect our knowledge to practical applications. How do we think sign conventions apply in real-world lenses and mirrors?

Student 1
Student 1

In cameras and microscopes, the clarity of the images relies on those calculations.

Teacher
Teacher

Exactly! Optical instruments need precise measurements of distances. What might happen if we didn’t apply the proper signs?

Student 2
Student 2

We could end up with incorrect image positions or sizes!

Teacher
Teacher

Right! Neglecting this could lead to faulty instruments. A quick review: how do we determine heights?

Student 3
Student 3

Heights above the axis are positive, below are negative!

Teacher
Teacher

Correct! Always visualize the axis in your calculations. This critical understanding supports all your further studies in optics!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The sign convention section outlines how to measure distances in optics based on standard Cartesian rules, crucial for deriving formulas related to reflection and refraction.

Standard

This section discusses the Cartesian sign convention for measuring distances in optics. It states that distances measured in the direction of incident light are positive, while those measured in the opposite direction are negative. The section emphasizes the significance of this convention for accurately deriving formulas for reflection by spherical mirrors and refraction by spherical lenses.

Detailed

Youtube Videos

Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Ray Optics & Optical Instruments | Class 12 Physics | NCERT Chapter 9 | CBSE NEET JEE | One Shot
Important terms for Lenses | Sign convention and Assumptions | Ray Optics | 12 Physics #cbse
Important terms for Lenses | Sign convention and Assumptions | Ray Optics | 12 Physics #cbse
Lenses & Sign Conventions - Ray Optics and Optical Instruments | Class 12th Physics Chapter 9 | CBSE
Lenses & Sign Conventions - Ray Optics and Optical Instruments | Class 12th Physics Chapter 9 | CBSE
Sign Convention in Spherical Mirrors | Class 12 Physics Chapter 9 | CBSE/JEE/NEET
Sign Convention in Spherical Mirrors | Class 12 Physics Chapter 9 | CBSE/JEE/NEET
RAY OPTICS AND OPTICAL INSTRUMENT in ONE SHOT || AII Concepts, Tricks & PYQ || Ummeed NEET
RAY OPTICS AND OPTICAL INSTRUMENT in ONE SHOT || AII Concepts, Tricks & PYQ || Ummeed NEET

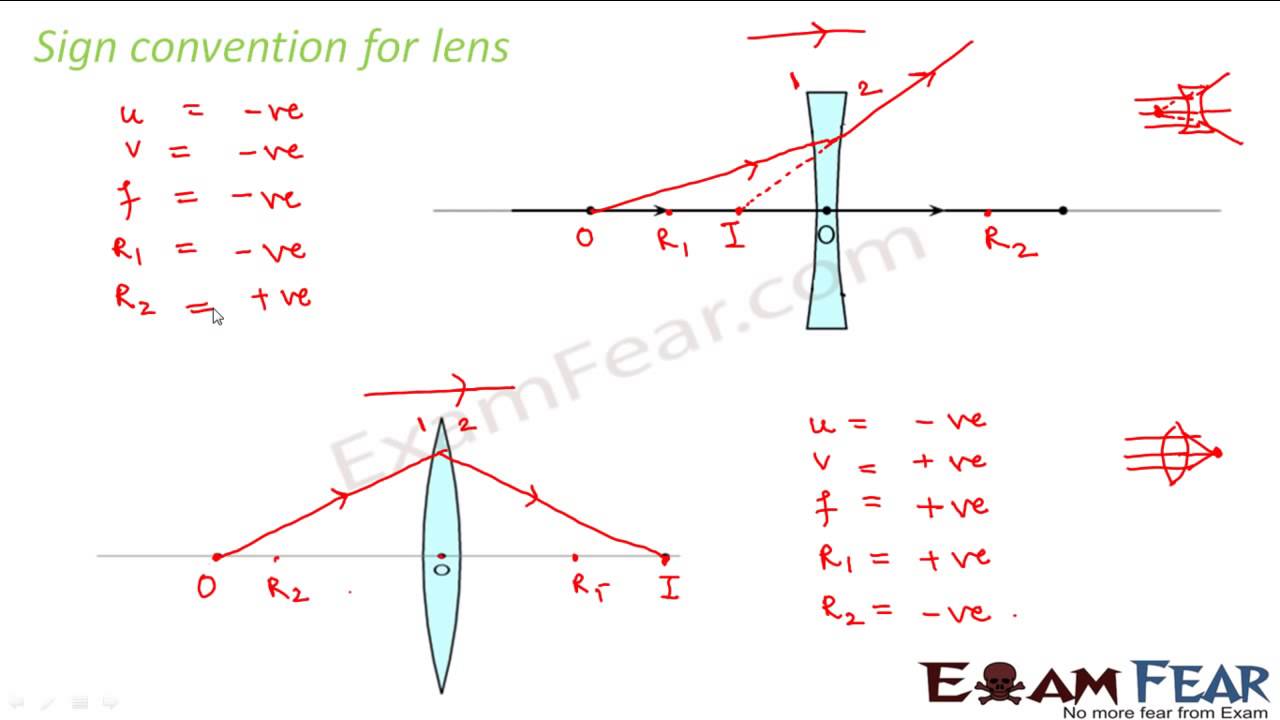

Physics Ray Optics part 29 Sign convention in lens CBSE class 12
Physics Ray Optics part 29 Sign convention in lens CBSE class 12
New Cartesian Sign Conventions - Ray Optics and Optical Instruments | Class 12 Physics 2022-23
New Cartesian Sign Conventions - Ray Optics and Optical Instruments | Class 12 Physics 2022-23

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to the Sign Convention

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

To derive the relevant formulae for reflection by spherical mirrors and refraction by spherical lenses, we must first adopt a sign convention for measuring distances. In this book, we shall follow the Cartesian sign convention.

Detailed Explanation

The sign convention is a standard way of measuring distances in optical systems. It helps in consistently interpreting and calculating various physical quantities related to lenses and mirrors. For this context, we will specifically use the Cartesian sign convention.

Examples & Analogies

Think of measuring distances like navigating a city grid. If you start at a central point and move north, those measurements are positive. If you move south, they become negative. Similarly, the sign convention helps in determining where measurements start and how they progress in optical systems.

Direction of Positivity

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

According to this convention, all distances are measured from the pole of the mirror or the optical centre of the lens. The distances measured in the same direction as the incident light are taken as positive and those measured in the direction opposite to the direction of incident light are taken as negative.

Detailed Explanation

In optics, the pole of the mirror or the lens's optical center acts like our origin point. Measurements taken in the direction that light is coming from are positive. Conversely, measurements taken away from the light's direction are considered negative. For example, if light travels to the right towards a mirror, distances to the right are positive; those to the left are negative.

Examples & Analogies

Imagine you are on a skateboard going downhill. As you roll down in the direction you're facing, it's positive progress. If you were to roll back uphill against the direction you're facing, it would be like reversing your progress, hence a negative measure.

Height Measurements

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The heights measured upwards with respect to x-axis and normal to the principal axis (x-axis) of the mirror/lens are taken as positive. The heights measured downwards are taken as negative.

Detailed Explanation

In this sign convention, we also have a way of measuring heights. If you imagine the optical axis (the line that goes through the lens/mirror), any height measured above this line is considered positive, while any height measured below this line is negative. This is essential as it helps to define the size and position of the images created by the optical systems.

Examples & Analogies

Think of a graph where everything above the line is considered good news (positive) and everything below is bad news (negative). In optics, heights above the axis are where the image forms positively, while images that appear below are negative images, just like a poor report card.

Unified Formula Application

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

With a common accepted convention, it turns out that a single formula for spherical mirrors and a single formula for spherical lenses can handle all different cases.

Detailed Explanation

Having a standardized sign convention allows us to derive universal formulas that apply to both mirrors and lenses. This means we can use the same equations regardless of whether we're working with a concave mirror or a convex lens, simplifying our calculations and understanding.

Examples & Analogies

Think of cooking recipes that have common ingredients. Whether you're making pasta or pizza, many recipes use the same base. Similarly, with a unified formula, you can handle various optical problems without needing separate equations for each scenario.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Pole: The central point from which distances are measured in spherical mirrors.

  • Optical Center: Reference point for distance measurements in lenses.

  • Principal Axis: Line linking the pole and focal point or optical center.

  • Focal Length: Distance to the focal point where rays converge or appear to diverge.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • If a concave mirror's radius of curvature is 30 cm, its focal length is -15 cm.

  • For a convex lens with a focal length of +12 cm, distances measured towards the lens from the optical center are considered positive.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Mirror's focal length is negative, reflect that's the key, / Distances towards light, positive be!

📖 Fascinating Stories

  • Imagine a traveler measuring their distance from a mountain (the mirror), recording every step towards it as positive and each step back as negative.

🧠 Other Memory Gems

  • ‘POSITIVE’ for ‘P’ in the direction of light, ‘P’ for pole of the mirror!

🎯 Super Acronyms

PAC — Positive Away from Center helps remember measurement directions!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Pole

    Definition:

    The geometric center of a spherical mirror, used as a reference for distance measurement.

  • Term: Optical Center

    Definition:

    The central point of a spherical lens, where light rays converge or diverge.

  • Term: Principal Axis

    Definition:

    The line joining the optical center with the principal focus of a lens or the pole with the center of curvature of a mirror.

  • Term: Focal Length

    Definition:

    The distance from the mirror or lens to its focal point, where parallel rays converge or appear to diverge.
