10.4 - COHERENT AND INCOHERENT ADDITION OF WAVES
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Coherence
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we'll discuss the concepts of coherent and incoherent wave sources. Let's start with coherence. Can anyone tell me what coherent sources mean?
Coherent sources are those that have a constant phase difference.
Exactly! Coherent sources, like two needles oscillating in water, create predictable interference patterns. Can anyone explain what happens with incoherent sources?
Incoherent sources don't have a stable phase relationship, so they lead to no distinct patterns.
Right! Incoherent sources result in an average intensity that simply adds up, making it hard to observe clear fringes. Remember: 'Incoherent means unpredictable!'
Why do coherent sources create patterns but incoherent ones don't?
Great question! Coherent sources maintain phase, leading to constructive and destructive interference, whereas incoherent sources change phases too quickly to form stable patterns. Let’s summarize: Coherence leads to consistent interference patterns, while incoherence results in mere summation.
Superposition Principle
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's dive deeper into the superposition principle. Who can explain how it works?
The resultant wave is the sum of the individual displacements from each wave at any point.
Exactly! This is the basis of interference. For two coherent sources at a point, how do we calculate the resultant displacement?
We would add the displacements vectorially, considering the phase difference.
Right! If waves are in phase, they constructively interfere, amplifying the wave. What happens if they are out of phase?
They cancel each other out in destructive interference.
Exactly! So remember, constructive interference results in greater intensity, while destructive interference results in lower or no intensity. This is fundamental in understanding wave behaviors.
Constructive and Destructive Interference
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s talk about how we observe interference in coherent sources. What conditions lead to constructive interference?
When the path difference is an integer multiple of the wavelength.
Great! For destructive interference, what would that condition be?
When the path difference is a half-integer multiple of the wavelength.
Exactly! Remember 'C for Constructive', 'D for Destructive' mnemonic to recall these conditions. Can anyone summarize why coherence is important?
Coherence is necessary for stable patterns because without it, the phases change too rapidly for any pattern to form!
Well said! Coherence ensures the predictability of waves, vital for experiments and applications in optics.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Coherent sources maintain a constant phase difference, leading to predictable interference patterns, while incoherent sources exhibit rapidly changing phase differences. The section illustrates this concept through the example of two needles producing water waves, highlighting constructive and destructive interference based on path differences.
Detailed
In this section, we explore the phenomenon of interference, which occurs when two or more waves superimpose to form a new wave pattern. The superposition principle states that at a given point in a medium, the resultant displacement is the vector sum of the individual displacements of the waves. Coherent sources, such as two needles oscillating in water, produce constant phase differences, resulting in stable interference patterns characterized by bright and dark spots depending on whether waves are in phase (constructive interference) or out of phase (destructive interference). Conversely, incoherent sources lack a fixed phase relationship, resulting in an average intensity that sums without distinct patterns. The section emphasizes the importance of coherence in creating observable interference effects.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Interference and Coherence
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In this section we will discuss the interference pattern produced by the superposition of two waves. You may recall that we had discussed the superposition principle in Chapter 14 of your Class XI textbook. Indeed the entire field of interference is based on the superposition principle according to which at a particular point in the medium, the resultant displacement produced by a number of waves is the vector sum of the displacements produced by each of the waves.
Detailed Explanation
This chunk introduces the concept of interference, which occurs when two or more waves overlap and combine to form a new wave pattern. The key principle involved is called superposition, stating that when multiple waves are present at a point, the total displacement (how far the medium moves) is simply the sum of individual displacements caused by each wave. Importantly, the behavior of the waves can create areas of constructive interference (where waves add up) and destructive interference (where they cancel each other out).
Examples & Analogies
Think of interference like a crowd at a concert where people are waving their arms. If two people wave their arms at the same time, the effect looks bigger (constructive interference) compared to one person waving alone. But if one person waves their arms up while another waves down, they may cancel each other out, leading to less overall movement in the crowd (destructive interference).
Coherent Sources and Waves
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

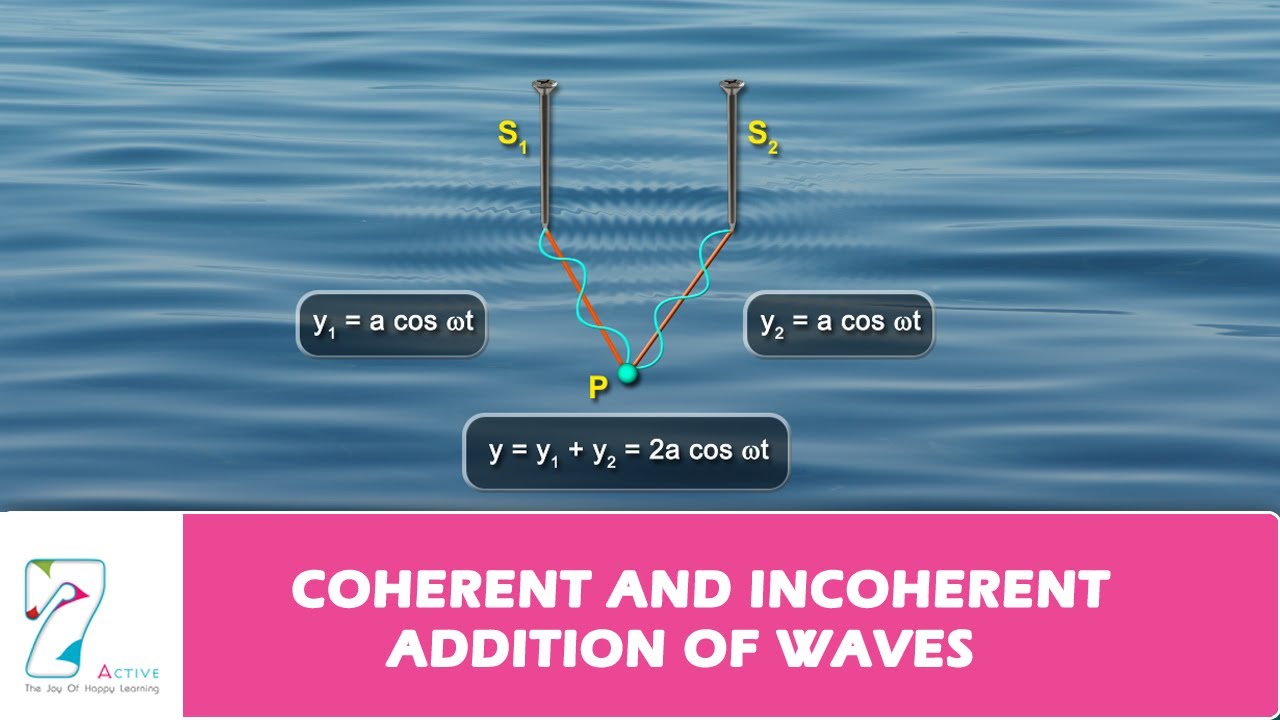

Consider two needles S1 and S2 moving periodically up and down in an identical fashion in a trough of water. They produce two water waves, and at a particular point, the phase difference between the displacements produced by each of the waves does not change with time; when this happens the two sources are said to be coherent.
Detailed Explanation
This chunk explains the idea of coherent sources. Coherence refers to two or more sources emitting waves that maintain a constant phase difference. In our example, two needles creating waves in water are coherent because they oscillate regularly and synchronously. This is essential for stable interference patterns to form since the wave properties at a given point will remain consistent over time, allowing for predictable areas of high and low amplitude (maxima and minima).
Examples & Analogies
Imagine two musicians playing the same tune on their instruments in perfect sync. If they hit the same note together (like two coherent waves), it sounds powerful. But if one musician changes the tempo or misaligns with the other, the music may sound off, resembling incoherent sound with no stable rhythm, similar to incoherent waves.
Constructive Interference
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The displacement produced by the source S1 will also be given by y = a cos wt2. Thus, the resultant of displacement at P would be given by y = y1 + y2 = 2a cos wt. Since the intensity is proportional to the square of the amplitude, the resultant intensity will be given by I = 4I0.
Detailed Explanation
Constructive interference occurs when two waves arrive at a point in phase, meaning their peaks and troughs align perfectly. For instance, if two water waves created by synchronized needles constructively interfere at point P, their combined displacement (resulting wave height) doubles. Consequently, the intensity, related to the wave's energy, quadruples because intensity is proportional to the square of amplitude (I ∝ A²). This results in bright spots on an interference pattern where the resultant wave is more pronounced.
Examples & Analogies
Consider when two friends jump on a trampoline at the same time, increasing the bounce height. If they time their jumps perfectly, kids watching from the side will see a much higher jump (greater intensity). If you plot this on a graph, very bright peaks represent their synchronized heights where they land collectively high, showing constructive interference.
Destructive Interference
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

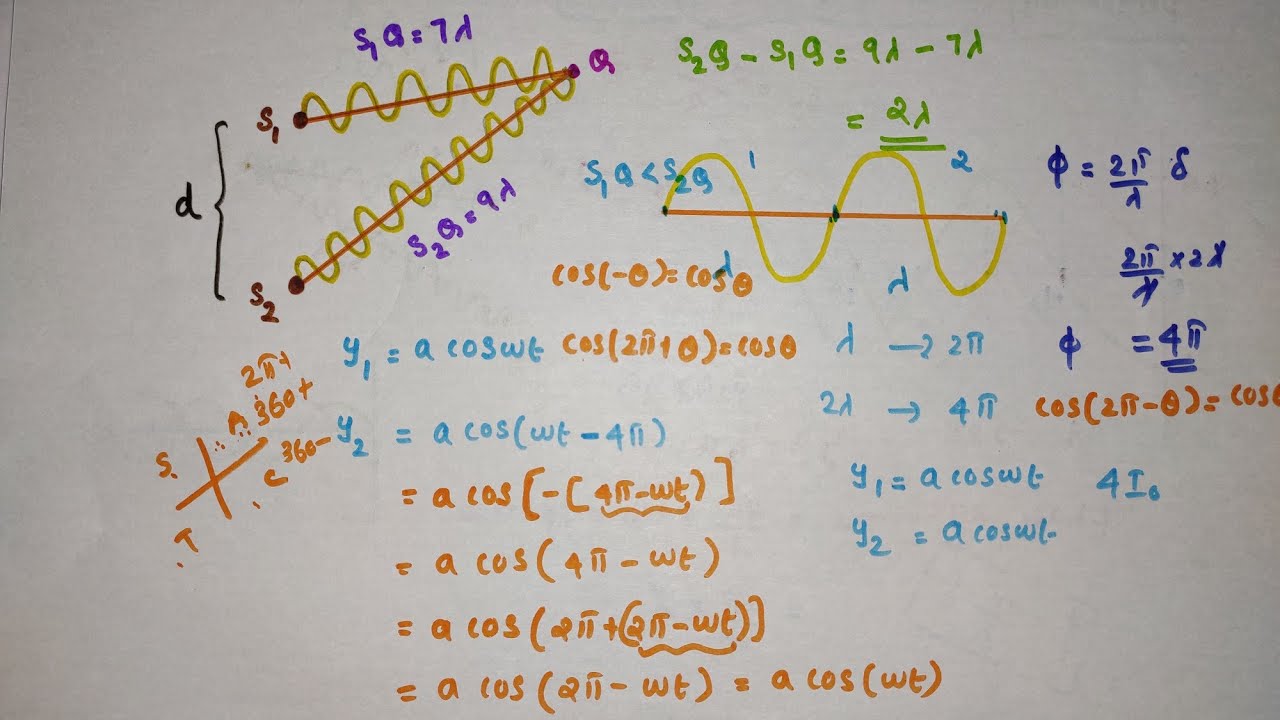

Now, we consider a point R for which S_R - S_R = -2.5λ. The waves emanating from S1 will arrive exactly two and a half cycles later than the waves from S2. Thus if the displacement produced by S1 is given by y = a cos wt1, then the displacement produced by S2 will be given by y = a cos (wt + 5π). The two displacements are now out of phase and the two displacements will cancel out to give zero intensity.
Detailed Explanation
This chunk focuses on destructive interference, which occurs when two waves are perfectly out of phase. In this case, if one wave is at its maximum while the other is at its minimum due to a specific path difference, their effects negate each other. Mathematically, if one wave has a displacement represented by y1 and the other by y2, when they are out of sync by half a wavelength, their resultant displacement is zero, leading to zero intensity in a specific region of the interference pattern (dark spots).
Examples & Analogies
Picture two people singing, where one is singing loudly while the other is humming softly in a slightly different tune. If they are out of sync just right, their voices may cancel each other out at some points, resulting in dead spots in the sound (destructive interference). This is similar to how waves can completely cancel each other in water, creating a still area (dark spots) in an otherwise slightly disturbed surface.
Summary of Interference Patterns
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
To summarize: If we have two coherent sources S1 and S2 vibrating in phase, then for an arbitrary point P whenever the path difference, S P ~ S P = nλ (n = 0, 1, 2, 3,...) we will have constructive interference and the resultant intensity will be 4I0; if the path difference, S P ~ S P = (n+1/2)λ (n = 0, 1, 2, 3, ...) we will have destructive interference and the resultant intensity will be zero.
Detailed Explanation
This chunk succinctly summarizes the conditions for constructive and destructive interference based on path differences between two waves from coherent sources. Specific whole-number multiples of the wavelength result in areas of constructive interference (brighter spots), while half-wavelength differences lead to destructive interference (dark spots). This classification helps predict where bright and dark bands will appear in an interference pattern.
Examples & Analogies
Think of a game where you toss balls on a field. If you throw multiple balls and some land perfectly together (constructive interference), they create a big pile in one area. On the other hand, if two balls are thrown opposingly at the exact same spot, they might just cancel each other out and create nothing. The areas on the field represent the interference pattern, illustrating how some areas are 'busy' or 'empty' based on their path differences.
Coherent vs. Incoherent Sources
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now if the two sources do not maintain a constant phase difference, then the interference pattern will also change with time and, if the phase difference changes very rapidly with time, the positions of maxima and minima will also vary rapidly with time and we will see a "time-averaged" intensity distribution.
Detailed Explanation
This chunk addresses the difference between coherent and incoherent sources. Coherent sources maintain a steady phase relationship, creating stable and predictable interference patterns over time. In contrast, incoherent sources, where the phase relationship changes randomly, lead to a constantly shifting intensity pattern. The average intensity observed from incoherent sources will simply be the sum of the individual intensities, resulting in a smoother or more uniform distribution rather than distinct interference fringes.
Examples & Analogies
Think of a disco party where one DJ plays a consistent beat (coherent), making everyone dance in sync, creating a clear rhythm. Meanwhile, at a different gathering, multiple people play music from different devices at random times (incoherent), leading to chaotic and uncoordinated dances. The former creates a predictable experience, while the latter creates confusion with no clear patterns.
Key Concepts
-
Coherence: The correlation of phase between waves.
-
Interference: Resultant wave formation due to wave superposition.
-
Superposition Principle: The method of adding wave displacements.
-
Constructive Interference: Occurs with waves in phase.
-
Destructive Interference: Occurs with waves out of phase.
Examples & Applications
Two needles in a water trough produce water waves. At certain points, their waves constructively interfere, while at others, they destructively interfere.
In a double-slit experiment, coherent light sources create alternating bright and dark fringes on a detection screen due to interference.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In phase waves may unite, make their brightness shine so bright.
Stories
Imagine two friends jumping on a trampoline together; when they jump in sync, they reach new heights, just like waves reaching higher amplitudes during constructive interference.
Memory Tools
C for Coherent, D for Destructive: 'C' is for construction, 'D' is for down.
Acronyms
COW
Coherent Overlapping Waves produce patterns.
Flash Cards
Glossary
- Coherence
A measure of the correlation between the phases of two or more waves.
- Interference
The phenomenon that occurs when two or more waves superimpose to form a new wave pattern.
- Superposition Principle
A principle stating that the resultant displacement at a point is the sum of the displacements from each wave.
- Constructive Interference
Interference that occurs when waves meet in phase, resulting in increased amplitude.
- Destructive Interference
Interference that occurs when waves meet out of phase, resulting in reduced or zero amplitude.
