10.3 - REFRACTION AND REFLECTION OF PLANE WAVES USING HUYGENS PRINCIPLE

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Huygens' Principle

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we'll delve into Huygens' principle. This principle illustrates that each point on a given wavefront can act as a source of secondary wavelets. Can anyone explain what a wavefront is?

Student 1
Student 1

A wavefront is a surface over which the wave has a constant phase!

Teacher
Teacher

Exactly! These wavefronts help us visualize the propagation of waves. Now, if we consider a wave traveling in a medium, what happens as it meets a different medium?

Student 2
Student 2

The wavefront would change direction as it enters the new medium!

Teacher
Teacher

Correct! This leads us to consider how we can derive the laws of reflection and refraction from Huygens' principle.

Student 3
Student 3

How do these laws connect to Huygens' principle?

Teacher
Teacher

Great question! Huygens' principle allows us to construct new wavefronts from the secondary wavelets and explains these phenomena mathematically.

Teacher
Teacher

To summarize, Huygens’ principle provides a geometric construction for how waves propagate. Next, we'll apply it to understand the laws of refraction.

Deriving Snell's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s derive Snell's law, which governs refraction. Imagine a plane wavefront AB that meets a boundary at angle i. What do we notice immediately?

Student 1
Student 1

The wavefront hits the boundary at an angle and splits into two portions!

Student 4
Student 4

One part continues into the new medium while the other reflects back.

Teacher
Teacher

Precisely! Using Huygens’ construction, we observe that if the wavefront travels a distance BC, we can describe its motion with the speed in both media. This leads to our foundational relationships.

Student 2
Student 2

Right! And how do we mathematically express this?

Teacher
Teacher

We find that n1 * sin(i) = n2 * sin(r). Here n represents the refractive indices, which express the speeds of light in each medium.

Student 3
Student 3

Wow! So this equation is Snell's law?

Teacher
Teacher

Exactly! This law allows us to predict how light bends at an interface. A key takeaway is the relationship between the angles and conversational terms of refractive index.

Reflection of Plane Waves

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s now analyze reflection. When a wavefront encounters a reflective boundary, what principle applies?

Student 4
Student 4

The angle of incidence equals the angle of reflection!

Teacher
Teacher

Correct! This can be derived again from Huygens’ principle. When a wave hits the barrier, it creates secondary wavelets that form a new wavefront.

Student 1
Student 1

So the path of wavelets helps verify these angles?

Teacher
Teacher

Absolutely! By constructing the reflected wavefront using the secondary wavelets, we see that the angles are indeed equal.

Student 2
Student 2

So this is why we define the law of reflection?

Teacher
Teacher

Correct; it greatly aids in understanding optical tools like mirrors and lenses. The final summary is that Huygens’ principle not only leads to refraction but also to reflection.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section explains Huygens' principle to derive the laws of reflection and refraction for plane waves at the interface of two media.

Standard

In this section, we explore Huygens' principle to derive Snell's law, which governs the refraction and reflection of light at the boundary of two different media. The section covers the wavefront behavior during these phenomena, illustrating how wavefronts are constructed from secondary wavelets.

Detailed

In this section, we utilize Huygens' principle to analyze the behaviors of plane waves as they undergo refraction and reflection at the interface between two distinct media. Huygens' principle posits that every point on a wavefront serves as a source of secondary wavelets. These wavelets spread out in all directions, and the new wavefront at a later time is constructed as the envelope of these wavelets.

Initially, we consider the refraction of a plane wave as it crosses into a medium with a different refractive index. By analyzing the relationship between the angles of incidence and refraction, we derive Snell's law, which asserts that n1 * sin(i) = n2 * sin(r), connecting the refractive indices of both media and the angles involved.

In addition, the section explains the behavior during reflection, where the angle of incidence equals the angle of reflection. The concepts presented are critical for understanding various optical devices and applications, emphasizing fundamental optics principles.

Youtube Videos

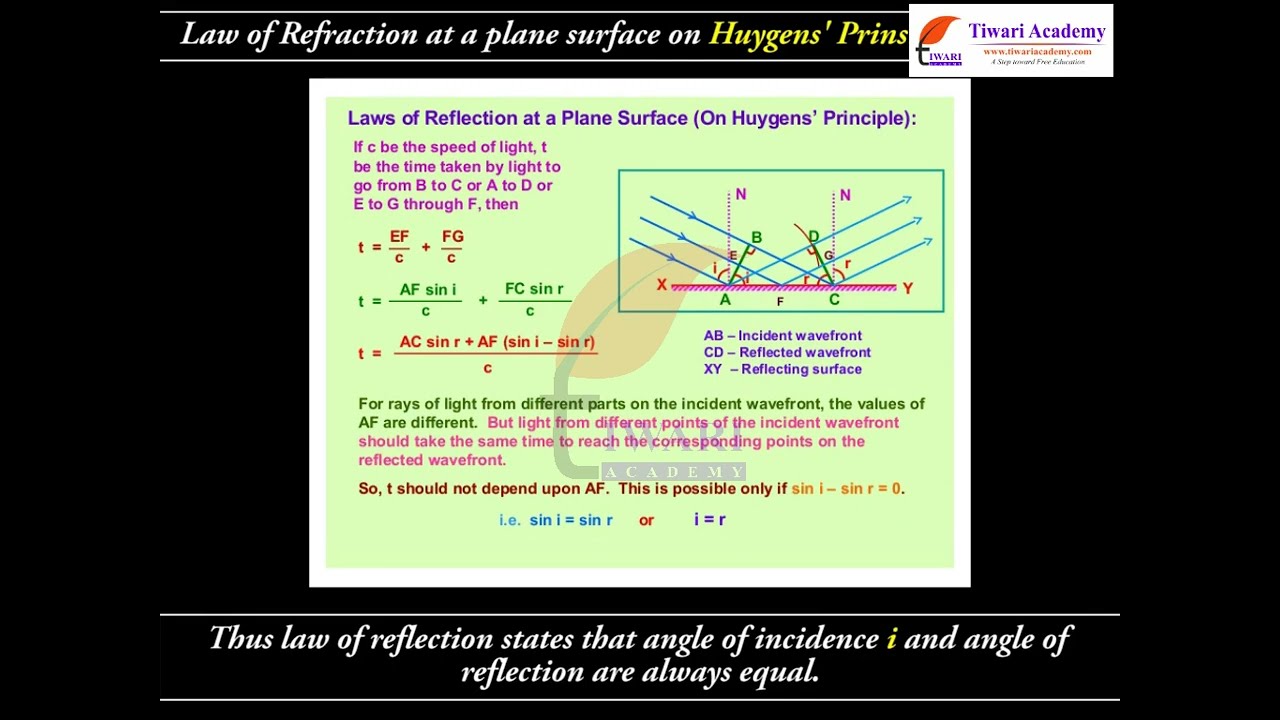

2 - Class 12 - Physics -Wave Optics - Reflection and Refraction using Wave Fronts
2 - Class 12 - Physics -Wave Optics - Reflection and Refraction using Wave Fronts
Wave Optics - Refraction and Reflection of plane Waves Using Huygens principle
Wave Optics - Refraction and Reflection of plane Waves Using Huygens principle
Wave Optics / 2 Important Derivations / Huygens Principle / Plus Two Physics Focus Area / Chapter 10
Wave Optics / 2 Important Derivations / Huygens Principle / Plus Two Physics Focus Area / Chapter 10
Wave Optics 02 II Proof For Laws Of Reflection & Laws Of Refraction By Huygens Principle
Wave Optics 02 II Proof For Laws Of Reflection & Laws Of Refraction By Huygens Principle
Refraction of a plane wave at a rarer medium using Huygens principle // Ch10 Wave optics // Class 12
Refraction of a plane wave at a rarer medium using Huygens principle // Ch10 Wave optics // Class 12
Class 12 Physics Chapter 10 | Wave Optics | Refraction and Reflection of Plane Wave
Class 12 Physics Chapter 10 | Wave Optics | Refraction and Reflection of Plane Wave
Reflection laws proof using Huygen's principle | Wave optics | Physics | Khan Academy
Reflection laws proof using Huygen's principle | Wave optics | Physics | Khan Academy
Class 12th Physics important notes chapter 10(WAVE OPTICS) Huygen's principle🔥💯✅||#physics #youtube
Class 12th Physics important notes chapter 10(WAVE OPTICS) Huygen's principle🔥💯✅||#physics #youtube
12PHYSICS:10.WAVE OPTICS,Refraction & Reflection Of plane wave using Huygens Principle,Interference.
12PHYSICS:10.WAVE OPTICS,Refraction & Reflection Of plane wave using Huygens Principle,Interference.
Physics Wave Optics part 8 (Reflection of plane waves: Huygens) CBSE class 12
Physics Wave Optics part 8 (Reflection of plane waves: Huygens) CBSE class 12

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Refraction of a Plane Wave

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We will now use Huygens principle to derive the laws of refraction. Let PP′ represent the surface separating medium 1 and medium 2, as shown in Fig. 10.4. Let v₁ and v₂ represent the speed of light in medium 1 and medium 2, respectively. We assume a plane wavefront AB propagating in the direction A′A incident on the interface at an angle i as shown in the figure. Let t be the time taken by the wavefront to travel the distance BC.
Thus,
BC = v₁ t.
In order to determine the shape of the refracted wavefront, we draw a sphere of radius v₂t from the point A in the second medium (the speed of the wave in the second medium is v₂). Let CE represent a tangent plane drawn from the point C onto the sphere. Then, AE = v₂t and CE would represent the refracted wavefront. If we now consider the triangles ABC and AEC, we readily obtain
BC/v₁ = AC/AC.
Next, AE/v₂ = AC/AC.
Thus we obtain
sini/v₁ = sinr/v₂.
From the above equation, we get the important result that if r < i (i.e., if the ray bends toward the normal), the speed of the light wave in the second medium (v₂) will be less than the speed of the light wave in the first medium (v₁). This prediction is opposite to the prediction from the corpuscular model of light and as later experiments showed, the prediction of the wave theory is correct.

Detailed Explanation

To understand the refraction of a plane wave, we apply Huygens' principle, which states that every point on a wavefront serves as a source of secondary waves. When a plane wavefront (AB) meets the boundary between two mediums at an angle (i), some of the wave enters the new medium where it travels at a different speed (v₂). The time taken for the wave to travel a specific distance (BC) determines the new wavefront shape in the second medium (CE). By applying the sine ratio of angles of incidence (i) and refraction (r) along with the respective speeds (v₁ and v₂), we derive the law of refraction (Snell's Law), which states that the ratio of the sines of the angles is equal to the inverse ratio of the wave speeds: n₁ sin(i) = n₂ sin(r). This shows that, typically, when light enters into a denser medium, it bends toward the normal line between the two mediums, which leads to a reduction in speed.

Examples & Analogies

Imagine standing on the beach watching waves coming from the ocean. As waves approach the shore (which is a different medium), they slow down and change direction due to the shallow water, bending toward the normal (perpendicular line to the surface). This bending behavior is similar to how light refracts when it moves from air to water, demonstrating how both waves and light follow similar principles when encountering a change in medium.

Refraction at a Rarer Medium

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We now consider refraction of a plane wave at a rarer medium, i.e., v₁ > v₂. Proceeding in an exactly similar manner we can construct a refracted wavefront as shown in Fig. 10.5. The angle of refraction will now be greater than angle of incidence; however, we will still have n₁ sin i = n₂ sin r. We define an angle iₐ by the following equation:
sini = n₂ sin r,
Thus, if i = iₐ, then sin r = 1 and r = 90°. Obviously, for i > iₐ, there can not be any refracted wave. The angle iₐ is known as the critical angle and for all angles of incidence greater than the critical angle, we will not have any refracted wave and the wave will undergo what is known as total internal reflection.

Detailed Explanation

In this chunk, we discuss the behavior of light as it moves from a denser medium to a rarer medium (like from glass to air). When light transitions to a medium in which it travels faster, the angle of refraction becomes greater than the angle of incidence. We can understand this through Snell's Law, which still applies. An important concept introduced here is the 'critical angle' (iₐ); if the angle of incidence exceeds this angle, refraction cannot occur, and the light reflects entirely away from the boundary—a phenomenon known as total internal reflection. This situation can be visualized with prisms and optical fibers, which exploit this effect to guide light.

Examples & Analogies

Think about a swimmer diving underwater. As the swimmer approaches the surface to jump out of the water, they can change direction sharply. This is like light trying to exit a medium; if they try to dive at too steep of an angle, instead of surfacing, they will always reflect back into the water, which relates directly to total internal reflection as light cannot escape a denser medium beyond the critical angle.

Reflection of a Plane Wave

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We next consider a plane wave AB incident at an angle i on a reflecting surface MN. If v represents the speed of the wave in the medium and if t represents the time taken by the wavefront to advance from the point B to C then the distance BC = vt. In order to construct the reflected wavefront, we draw a sphere of radius vt from the point A as shown in Fig. 10.6. Let CE represent the tangent plane drawn from the point C to this sphere. Obviously AE = BC = vt.
If we now consider the triangles EAC and BAC we will find that they are congruent and therefore, the angles i and r (as shown in Fig. 10.6) would be equal. This is the law of reflection.

Detailed Explanation

This part focuses on the reflection of a plane wave when it meets a smooth reflecting surface. As the wavefront (AB) hits the surface (MN), it reflects back into the medium. To find the relationship between angles in this reflection, we can use the congruence of triangles formed (EAC and BAC). This leads us to conclude that angle of incidence (i) equals angle of reflection (r). This principle of reflection holds true universally, explaining how mirrors work and why we see our reflections.

Examples & Analogies

Consider standing in front of a funhouse mirror. As light from your face hits the mirror, the angle at which it strikes compared to the flat surface (angle of incidence) is the same as the angle at which the light bounces back (angle of reflection). This concept is the fundamental basis of how we see ourselves, acting just like any plane mirror, demonstrating that this law is a clear reflection of fundamental physics in action!

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Huygens' Principle: Each point on a wavefront behaves as a source for secondary wavelets.

  • Snell's Law: Describes the relationship between the angles of incidence and refraction when light passes between different media.

  • Reflection Law: The angle of incidence is equal to the angle of reflection.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • When light transitions from air to water, it bends towards the normal due to refraction, demonstrating Snell's law.

  • A mirror reflects light waves, creating an equal angle of incidence and reflection.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When light bends with a slight flick, Snell's Law does the trick.

📖 Fascinating Stories

  • Imagine a tiny boat sailing up through the waters of refraction; as it hits the shallows, it tilts – that’s like light changing speed entering new terrain.

🧠 Other Memory Gems

  • Rays Reflect, Rays Refract—if you remember the R’s, you won't retract!

🎯 Super Acronyms

SIR = Snell's Law

  • Remember Incidence
  • Reflection.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Huygens' Principle

    Definition:

    A principle stating that every point on a wavefront acts as a source of secondary wavelets which combine to form a new wavefront.

  • Term: Wavefront

    Definition:

    A surface of constant phase of a wave, typically visualized as being perpendicular to the direction of wave propagation.

  • Term: Refraction

    Definition:

    The bending of a wave as it passes from one medium to another, caused by a change in its speed.

  • Term: Reflection

    Definition:

    The bouncing back of a wave when it hits a barrier.

  • Term: Snell's Law

    Definition:

    A formula that relates the angles of incidence and refraction to the refractive indices of the two media involved.
