10.6 - DIFFRACTION

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Overview of Diffraction

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to explore diffraction, which is a fascinating phenomenon that occurs with all types of waves. Can anyone explain what diffraction is?

Student 1
Student 1

Isn’t diffraction when waves bend around corners or spread out when passing through a narrow opening?

Teacher
Teacher

Exactly! Those waves can spread out and create patterns of light and dark regions. This is crucial in understanding how light behaves. Think of it as how sound can be heard even around a corner.

Student 2
Student 2

So, diffraction happens with sound as well, right?

Teacher
Teacher

Yes, sound waves exhibit the same effect! Now, let’s remember that diffraction can be demonstrated with light just as well.

Student 3
Student 3

How does this connect to what we see in everyday life?

Teacher
Teacher

Great question! You might notice colorful patterns on a CD or DVD—that's due to diffraction! Remember this: 'Diffraction is the bending and spreading of waves,' to summarize.

Single-Slit Diffraction

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s focus on single-slit diffraction. When monochromatic light passes through a narrow slit, it creates a broad diffraction pattern. What do we expect to see on a screen if we conduct this experiment?

Student 4
Student 4

A central bright line with dark and bright regions on the sides?

Teacher
Teacher

Correct! This is called the single-slit pattern. The central maximum is the brightest part. As you move away, the intensity diminishes. Why do you think this happens?

Student 1
Student 1

Because the waves from different parts of the slit interfere with one another?

Teacher
Teacher

Exactly! This interference creates the dark and bright bands. Remember: 'Bright regions occur where waves constructively interfere.' Let's connect this to our previous discussions on wave patterns.

Practical Applications of Diffraction

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we've discussed diffraction, can anyone think of how this phenomenon affects optical devices, such as microscopes?

Student 3
Student 3

It probably limits their ability to resolve fine details, right?

Teacher
Teacher

Right again! The resolution is limited by diffraction patterns, which affect how closely we can distinguish two points. Remember this phrase: 'Diffraction limits resolution.'

Student 2
Student 2

So, we need to be careful about the size of the openings in lenses!

Teacher
Teacher

Exactly! Lastly, thinking about real life, what other phenomena relate to diffraction?

Student 4
Student 4

The colors we see on things like CDs and DVDs?

Teacher
Teacher

Yes! That's a perfect example of diffraction creating stunning visual effects. Great work today, everyone!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Diffraction is the phenomenon where waves spread out after passing through an opening or around obstacles, leading to observable patterns.

Standard

The section on diffraction explores how waves, particularly light, exhibit diffraction effects when encountering obstacles or apertures. It discusses the single-slit diffraction, the resulting patterns, and how these patterns can be observed and analyzed, linking their significance to broader wave optics principles.

Detailed

Detailed Summary of Diffraction

Diffraction occurs when waves encounter obstacles or apertures, resulting in the bending and spreading of waves around the edges. This section discusses the fundamental principles of diffraction, particularly in relation to light waves, and how it manifests in observable patterns.

  1. Definition and Characteristics: Diffraction is a general wave phenomenon displayed by sound, light, and water waves. It leads to interference patterns where light and dark bands appear, demonstrating that waves can bend around obstacles and fill regions predicted to be in shadow.
  2. Single-Slit Diffraction: When light passes through a single narrow slit, it produces a diffraction pattern characterized by a central bright fringe followed by alternating dark and bright regions. This pattern reinforces the wave nature of light and can be analyzed in terms of path differences and the resulting phase differences among the wavefronts emanating from different points of the slit.
  3. Experimental Observation: Observations can be made practically with simple materials, illustrating the principles of diffraction using everyday items (e.g., razor blades to create a narrow slit). The section emphasizes the significance of diffraction in understanding wave optics and its role in various optical phenomena and technologies.

Understanding diffraction is critical as it limits optical resolution in instruments like microscopes and telescopes and plays a crucial part in phenomena such as the colorful patterns seen on CDs.

Youtube Videos

10 - Class 12 - Physics - Wave Optics - Diffraction
10 - Class 12 - Physics - Wave Optics - Diffraction
Diffraction or Interference ? #shorts #physics #cbse #experiment #science
Diffraction or Interference ? #shorts #physics #cbse #experiment #science
Diffraction & Polarization - Wave Optics (Part-2) | Formulae and Concept REVISION in 15 min | JEE
Diffraction & Polarization - Wave Optics (Part-2) | Formulae and Concept REVISION in 15 min | JEE

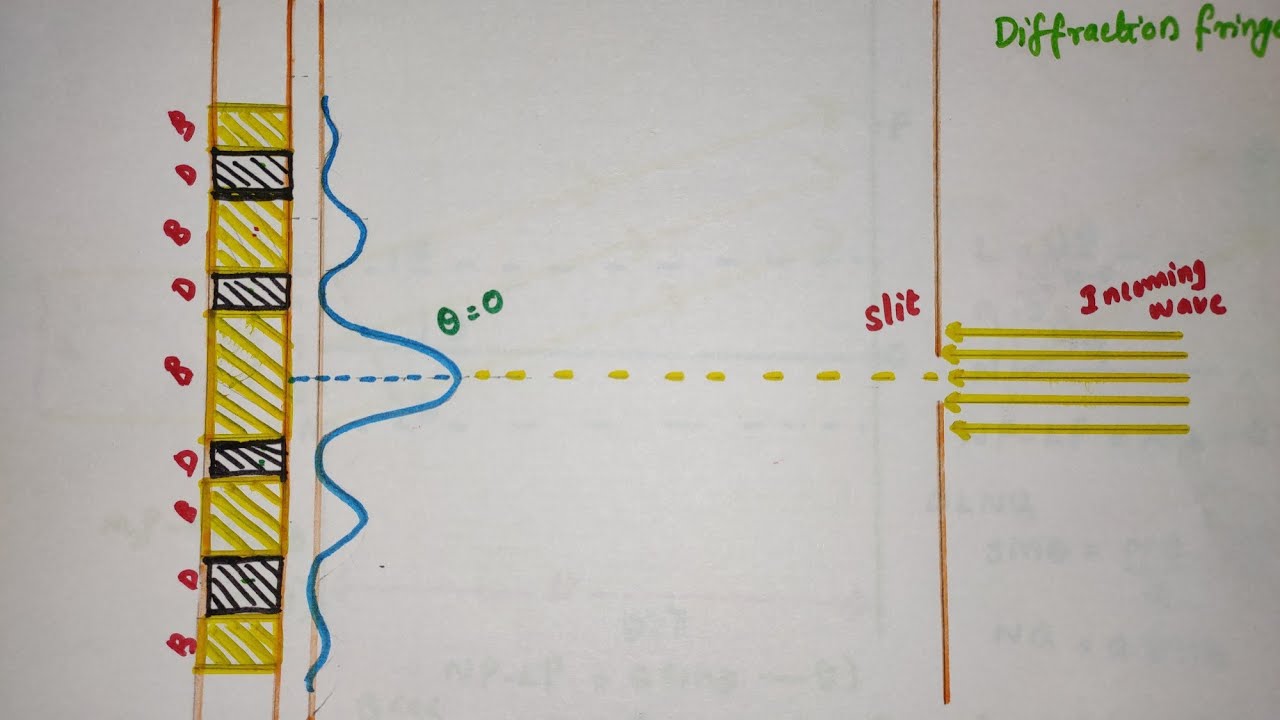

Diffraction // PART 2 // Class 12 Physics // Chapter 10 Wave optics
Diffraction // PART 2 // Class 12 Physics // Chapter 10 Wave optics
Class 12th Physics | Diffraction | Chapter 10: Wave Optics | NCERT
Class 12th Physics | Diffraction | Chapter 10: Wave Optics | NCERT
12 - Class 12 - Physics -Wave Optics - Problems on diffraction Part 2
12 - Class 12 - Physics -Wave Optics - Problems on diffraction Part 2
Diffraction of Light💥All Concepts & Numericals 🎯Part 3/3 Chap 10 Wave Optics💥Class 12 Physics
Diffraction of Light💥All Concepts & Numericals 🎯Part 3/3 Chap 10 Wave Optics💥Class 12 Physics
Diffraction Part 2 Class XII Physics Ch-10 Wave Optics
Diffraction Part 2 Class XII Physics Ch-10 Wave Optics
Diffraction // PART 1 // Class 12 Physics // Chapter 10 Wave optics
Diffraction // PART 1 // Class 12 Physics // Chapter 10 Wave optics
11 - Class 12 - Physics - Wave Optics - Problems on diffraction Part 1
11 - Class 12 - Physics - Wave Optics - Problems on diffraction Part 1

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Diffraction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If we look clearly at the shadow cast by an opaque object, close to the region of geometrical shadow, there are alternate dark and bright regions just like in interference. This happens due to the phenomenon of diffraction. Diffraction is a general characteristic exhibited by all types of waves, be it sound waves, light waves, water waves or matter waves.

Detailed Explanation

Diffraction refers to the bending and spreading of waves when they encounter obstacles or openings. When observing the shadow of an object, instead of a sharp boundary between light and dark, one will notice a pattern of alternating light and dark areas. This occurs because waves (like light) can bend around corners and spread out after passing through narrow slits or around obstacles. Such behavior is not limited to light; it applies to all types of waves, including sound and water waves.

Examples & Analogies

Imagine the way sound travels around a corner. If someone is speaking in another room, you can still hear them even though you can't see them. This is similar to diffraction: the sound waves spread and bend around the corner, reaching your ears even though the direct path is blocked.

Diffraction Through a Single Slit

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In the discussion of Young’s experiment, we stated that a single narrow slit acts as a new source from which light spreads out. Even before Young, early experimenters – including Newton – had noticed that light spreads out from narrow holes and slits. It seems to turn around corners and enter regions where we would expect a shadow.

Detailed Explanation

A narrow slit allows light to pass through and then spread outwards. This is analogous to what happens when waves in water pass through a narrow gap. After passing through the slit, light behaves as if it is emanating from new, virtual sources along the width of the slit, and this causes a broad pattern of light with a central bright area and alternating dark and bright fringes on a screen placed to catch the light.

Examples & Analogies

Think of how a garden hose works. If you partially cover the end of a hose, the water sprays out and spreads out in a cone-shaped fountain pattern. Similarly, light goes through a slit like the hose and spreads out into a broader area, creating patterns of light and shadow.

Understanding the Single Slit Intensity Pattern

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

When the double slit in Young’s experiment is replaced by a single narrow slit (illuminated by a monochromatic source), a broad pattern with a central bright region is seen. On both sides, there are alternate dark and bright regions, the intensity becoming weaker away from the centre.

Detailed Explanation

When light passes through a single slit, it diffracts and creates a pattern of intensity that has a central maximum (the brightest spot) and then decreases in brightness in adjacent areas. This pattern results from the interference of light waves emanating from different parts of the slit. The light waves interfere with one another, leading to areas of constructive and destructive interference. The central maximum is the brightest because it receives direct light and contributions from all parts of the slit.

Examples & Analogies

Think of a flashlight being shone through a narrow opening. At close range, the light is concentrated and bright, but as you move further away, the light disperses more, creating a gradient from bright to dim. The brighter areas correspond to where the light waves constructively interfere, just like the bright central region of the diffraction pattern.

Comparison of Interference and Diffraction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

There has been prolonged discussion about the difference between interference and diffraction among scientists since the discovery of these phenomena. In this context, it is interesting to note what Richard Feynman has said in his famous Feynman Lectures on Physics: 'No one has ever been able to define the difference between interference and diffraction satisfactorily.'

Detailed Explanation

The discussion around interference and diffraction often involves overlapping concepts. Both phenomena arise from the wave nature of light, but interference typically involves the superposition of waves from two or more sources, while diffraction refers to the spreading of waves as they encounter obstacles or openings. Richard Feynman's observation highlights that while we can distinguish these terms based on the context, they fundamentally describe similar wave behaviors.

Examples & Analogies

Consider waves in a pond. If you drop two stones in at different points, the overlapping waves create interference patterns where they overlap. However, if you drop a stone and observe the ripples spreading out from a corner of the pond, that's diffraction. Both are wave behaviors but are perceived differently based on the situation.

Experiments Demonstrating Diffraction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

It is surprisingly easy to see the single-slit diffraction pattern for oneself. The equipment needed can be found in most homes – two razor blades and one clear glass electric bulb preferably with a straight filament.

Detailed Explanation

To observe diffraction, one can create a simple experiment using household items. By holding two razor blades with a narrow slit between them and positioning them in front of a light source like a bulb, the light will pass through the slit and produce a visible diffraction pattern, revealing the bright and dark bands characteristic of the phenomenon.

Examples & Analogies

Imagine setting up a tiny stage for a puppet show using a narrow opening. The light from a single bulb highlights the puppet but also casts intricate shadows behind it. Like that puppet show, when light passes through the narrow slit between the blades, it reveals patterns that play out visually across a surface, making the invisible behavior of light waves visible.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Diffraction: The spreading of waves when they pass through an opening.

  • Single-slit diffraction: A specific case of diffraction where light passes through a narrow slit creating a pattern of bright and dark bands.

  • Central maximum: The brightest point in a diffraction pattern.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of the colorful patterns seen on a CD which are a result of diffraction.

  • Experimentation with a single slit using a monochromatic light source.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Waves spreading wide, gentle and free, /Through the narrow slit, oh what a sight to see!

📖 Fascinating Stories

  • Once upon a time, waves traveled in a straight line, until they encountered a door. As they squeezed through the opening, they spread like guests at a party, filling every corner!

🧠 Other Memory Gems

  • Remember 'SSS' for Single-Slit diffraction: 'Spread, Shadow, Shine' to recall how light interacts with slits.

🎯 Super Acronyms

C-M-A for Central Maximum Appearance describes the bright fringe in a diffraction pattern.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Diffraction

    Definition:

    The bending and spreading of waves when they encounter obstacles or openings.

  • Term: Singleslit diffraction

    Definition:

    A phenomenon where light passing through a narrow slit creates a diffraction pattern.

  • Term: Central maximum

    Definition:

    The brightest fringe in a diffraction pattern located directly in line with the aperture.
