Understanding Natural Frequencies
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's begin our discussion by defining natural frequencies. In MDOF systems, natural frequencies tell us how the system tends to vibrate in response to disturbances. These are derived from the eigenvalues of the system.
So, natural frequencies are like specific frequencies at which a structure naturally wants to oscillate?
Exactly! These frequencies are vital for predicting how structures respond during dynamic events like earthquakes. Each natural frequency corresponds to a specific mode of vibration in the system.
How many natural frequencies can a system have?
A system with n degrees of freedom can have n natural frequencies, each associated with its own unique mode shape.
But why do we care about these frequencies?
Good question! Knowing these frequencies helps in designing structures that can withstand dynamic forces without resonance, which can cause catastrophic failures. Remember this with the acronym 'FREDD' - Frequencies Reveal Effective Dynamic Design!
Got it! Frequencies are crucial for structural safety.
Mode Shapes Explained
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's talk about mode shapes. Mode shapes are the patterns of deformation that the structure undergoes at each natural frequency.
So, each natural frequency has a specific shape associated with it?
Exactly! Each mode shape represents how the structure will respond dynamically during vibration at that frequency.
Are the mode shapes independent of each other?
Great observation! Mode shapes are orthogonal, meaning they do not interfere with each other during motion. This orthogonality property simplifies calculations significantly.
How does that simplification help us?
With these properties, we can decouple the equations of motion, allowing us to analyze each mode independently. This is particularly important in complex systems such as buildings and bridges.
I'll remember that! Mode shapes help us simplify things. Maybe I can think of them as 'dynamic dance moves' that the structure does at each frequency.
That's a creative analogy! Remember, observing the mode shapes is crucial for effective structural design.
Generalized Eigenvalue Problem
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
"Let's delve into the equation we use to find natural frequencies and mode shapes. The equation is a generalized eigenvalue problem:
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the principles of natural frequencies and mode shapes are explored in the context of MDOF systems. The relationship between eigenvalues and eigenvectors is established, leading to an understanding of the system's dynamic behavior. Key properties such as orthogonality are highlighted, which assist in simplifying the analysis.
Detailed
Mode Shapes and Natural Frequencies
In the study of Multiple Degree of Freedom (MDOF) systems, understanding the natural frequencies and corresponding mode shapes is crucial. To analyze these systems under dynamic loads effectively, we begin with the assumption of harmonic solutions in the form of
$$ \{u(t)\} = \{\varphi\}\sin(\omega t) $$
Substituting this into the equations of motion leads us to the generalized eigenvalue problem given by:
$$ ([K] - \omega^2 [M])\{\varphi\} = \{0\} $$
In this equation, \(\omega^2\) represents the eigenvalues (which are the squares of the natural frequencies), and \{\varphi\} denotes the corresponding eigenvectors (which represent the mode shapes).
Key Properties
- There are exactly \(n\) natural frequencies and \(n\) mode shapes for an \(n\)-DOF system.
- The mode shapes are orthogonal with respect to both the mass matrix \([M]\) and the stiffness matrix \([K]\). This orthogonality simplifies the decoupling of equations of motion and allows for easier computation and analysis of the system.
Understanding these concepts lays the foundation for more complex analyses, such as modal superposition and the response of structures to dynamic loading, particularly in seismic applications.

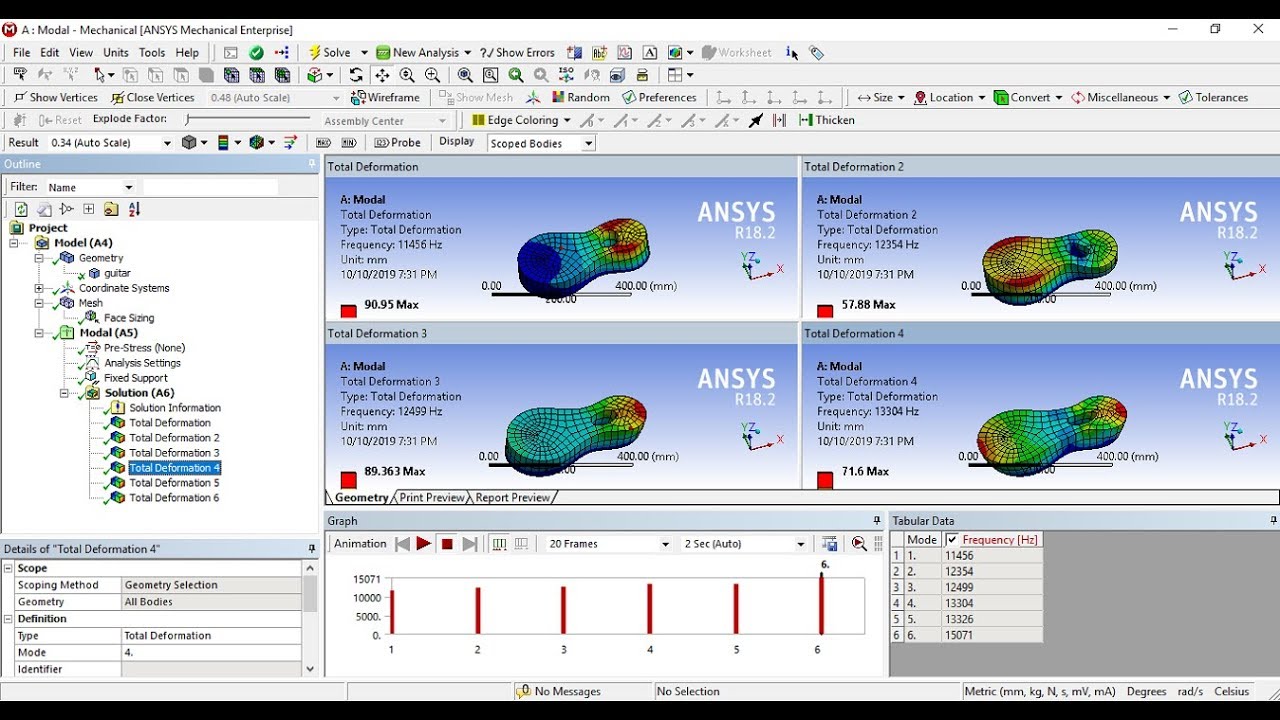

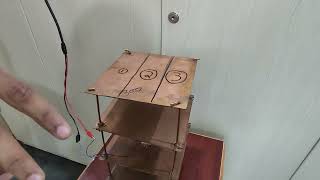

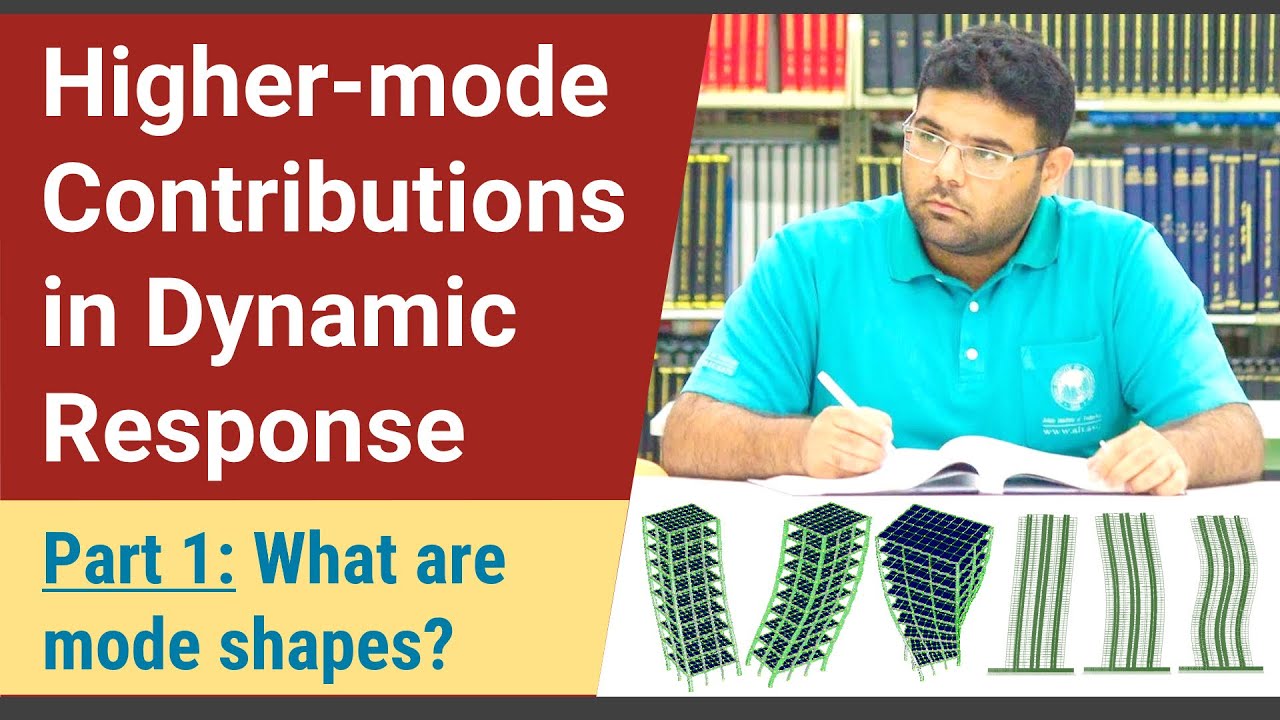

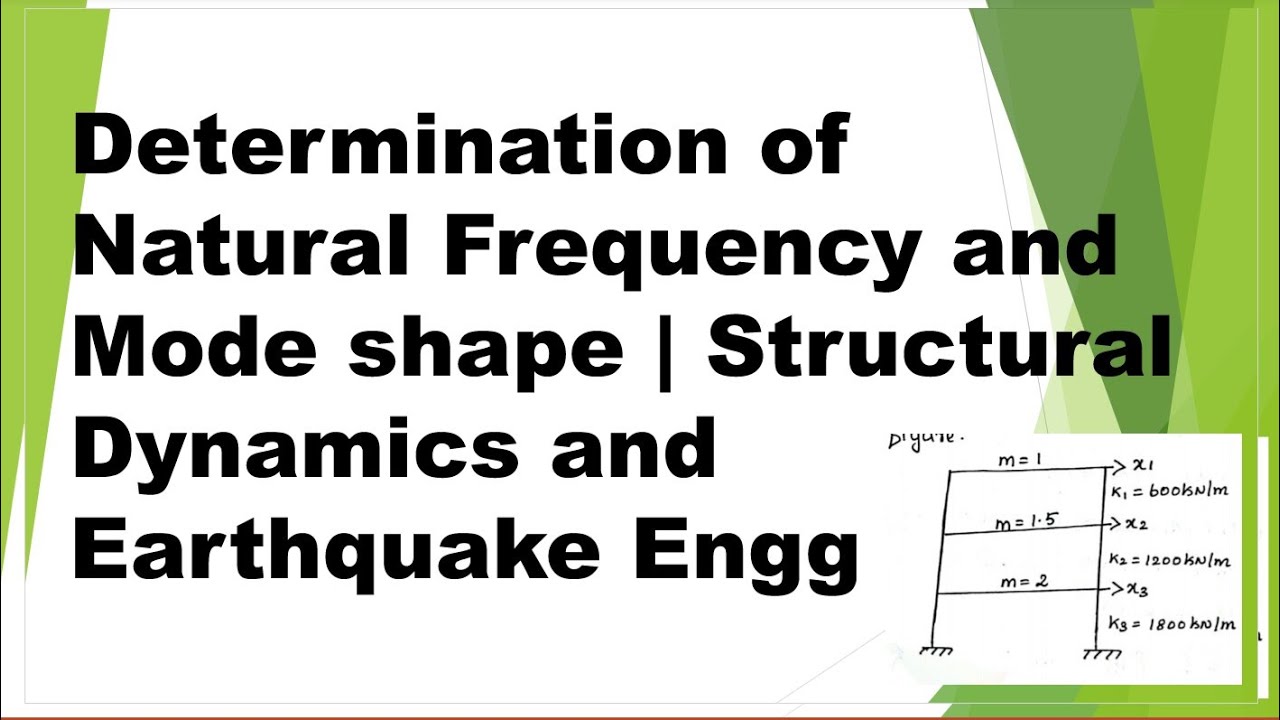

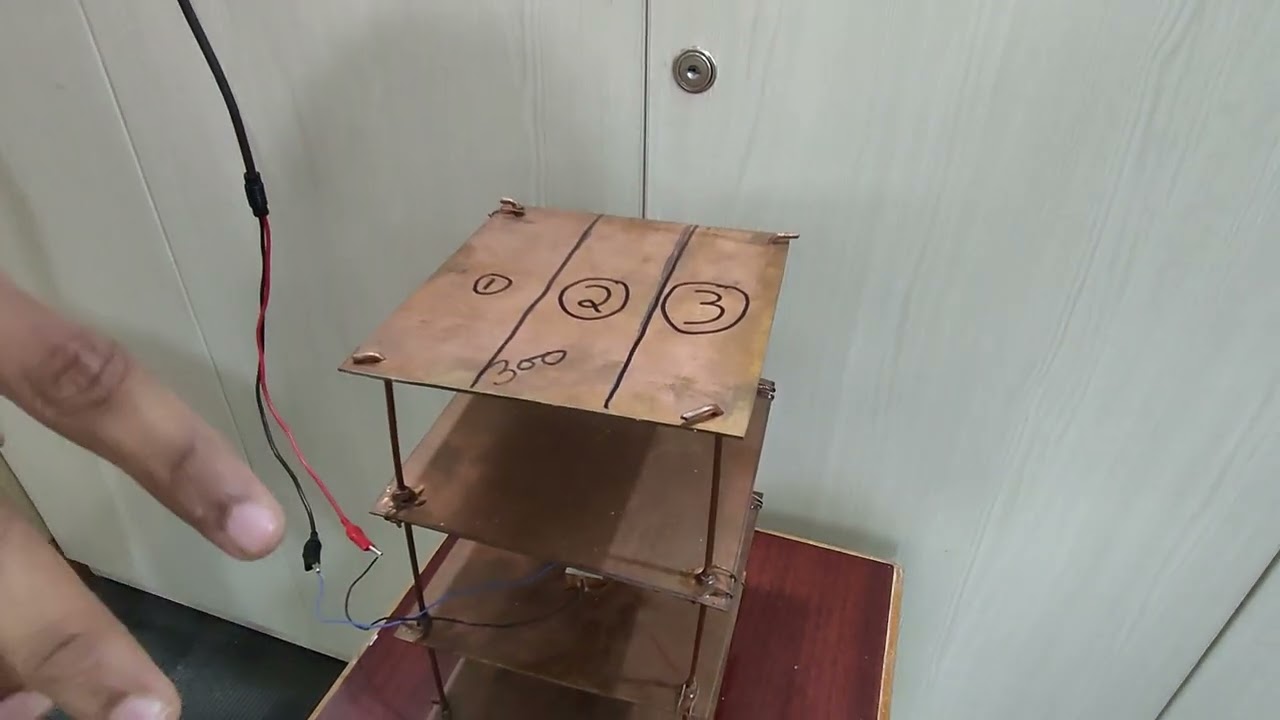

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Harmonic Solution Assumption
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
To determine the natural behavior of the system, we assume a harmonic solution:
{u(t)}={ϕ}sin(ωt)
Detailed Explanation
In dynamics, we often look for solutions that repeat over time, known as harmonic solutions. A common way to represent these types of solutions is to express the displacement of a system as a product of a mode shape, {ϕ}, and a sine function that describes a particular frequency, ω. The sine function oscillates, allowing us to explore how the system moves in response to vibrational stimuli.
Examples & Analogies
Think of a swing at a playground. When you push a swing, it moves back and forth in a periodic manner. The way the swing moves can be described similarly to the harmonic solution, where the swing's position depends on the angle (the mode shape) and the frequency of your pushes.
Generalized Eigenvalue Problem
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Substituting into the equation of motion:
([K]−ω2 [M]){ϕ}={0}
This is a generalized eigenvalue problem, where:
- ω2 are the eigenvalues (square of natural frequencies)
- {ϕ} are the corresponding eigenvectors (mode shapes)
Detailed Explanation
When we substitute our assumption into the equation of motion, we transform it into a specific type of mathematical problem known as an eigenvalue problem. In this context, ω² represents the natural frequencies of the system, while {ϕ} gives us the mode shapes, which are the specific patterns of motion the system can exhibit at these frequencies. Essentially, this means each natural frequency corresponds to a unique way the system can vibrate.
Examples & Analogies
Consider a guitar string. When plucked, the string vibrates at different frequencies, producing different musical notes. Each note corresponds to a specific natural frequency of the string, and the way the string moves for each note corresponds to its mode shape.
Properties of Natural Frequencies and Mode Shapes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Properties:
- There are n natural frequencies and n mode shapes.
- Mode shapes are orthogonal with respect to both [M] and [K].
Detailed Explanation
For every system with n degrees of freedom, there will be n unique natural frequencies and mode shapes. One important property is orthogonality, which means that the different mode shapes do not interfere with each other when analyzed mathematically using mass and stiffness matrices. This property greatly simplifies the analysis because it allows us to consider each mode independently when assessing the system's dynamic behavior.
Examples & Analogies
Imagine a symphony orchestra where each musician plays a unique instrument. Each instrument produces distinct sounds that do not overlap when played together, much like how each mode shape works independently during vibration analysis. This allows the 'orchestra' of vibrations in a structure to work together without disrupting each other.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Natural Frequencies: Frequencies at which a system oscillates naturally.
-
Mode Shapes: Patterns of vibration corresponding to natural frequencies.
-
Generalized Eigenvalue Problem: A mathematical formulation to find natural frequencies and mode shapes.
-
Orthogonality: The property that allows mode shapes to be treated independently.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A two-story building experiencing vibrations during an earthquake reveals distinct natural frequencies and mode shapes, vital for assessing structural integrity.
-
In mechanical systems, a cantilever beam will have multiple mode shapes associated with its natural frequencies, helping predict bending vibrations.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Frequency and motion in a groove, natural shapes that help us move.
📖 Fascinating Stories
-
Imagine a band performing; each member plays at their chosen note (natural frequency) but dances in their unique way (mode shape), creating a beautiful performance where they stay in harmony without overlapping.
🧠 Other Memory Gems
-
Remember 'SHOCK' for Mode Shapes: Shape, Harmonic, Observance, Coupled, Kinetics.
🎯 Super Acronyms
FAN - Frequencies Are Naturally-focused.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Natural Frequency
Definition:
The specific frequency at which a system tends to oscillate when disturbed.
-
Term: Mode Shape
Definition:
The pattern of deformation of a structure that corresponds to a natural frequency.
-
Term: Eigenvalue Problem
Definition:
A mathematical problem of finding the eigenvalues and eigenvectors that describe a system's dynamic behavior.
-
Term: Orthogonality
Definition:
A property of vectors (mode shapes) indicating that they are independent and do not interfere with each other.
