Introduction to MDOF Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Welcome, class! Today, we're delving into Multiple Degree of Freedom systems, or MDOF systems. Can anyone tell me why MDOF systems are essential when modeling structures?
They represent structures with multiple parts that can move independently, like a tall building that shakes during an earthquake.
Exactly! MDOF systems use multiple independent coordinates to describe their motion. Can anyone give me an example of where we might find an MDOF system?
Multi-span bridges!
Yes, multi-span bridges are a great example! Remember, structures like these can vibrate in various modes simultaneously. Let's remember that with the acronym 'VIBRANT': **V**ibrations, **I**ndependent coordinates, **B**ridge, **R**esponse, **A**ccelerations, **N**atural frequencies, and **T**orsional effects. Great job!
Equations of Motion for Undamped MDOF System
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s talk about the equations of motion for an undamped MDOF system. Can someone tell me the general form of the equations?
Is it [M]{u¨(t)} + [K]{u(t)} = {0}?
That's right! The mass matrix, [M], and the stiffness matrix, [K], are crucial for understanding the system's dynamics. What can you tell me about the mass and stiffness matrices?
The mass matrix [M] is usually diagonal in lumped-mass systems, right?
Exactly! Let's commit that to memory. 'DIAG': **D**iagonal, **I**ntegration, **A**cceleration, **G**overning equations. Make sure to remember the relationship between mass and stiffness when analyzing system behavior!
Mode Shapes and Natural Frequencies
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's move on to mode shapes and natural frequencies. Who can explain what a mode shape is in the context of MDOF systems?
A mode shape shows how a structure vibrates in a specific mode.
Perfect! And when we solve for natural frequencies, it usually involves solving an eigenvalue problem. What does the equation look like?
Is it ([K] - ω²[M]) {ϕ} = 0?
Fantastic! Remember to associate the natural frequencies with their corresponding eigenvalues. To help with that, think of 'FREQE': **F**requency, **R**esponse, **E**igenvalues, **Q**uestion of behavior in dynamics, and **E**igenvectors!
Response of MDOF Systems to Dynamic Loading
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s examine how MDOF systems respond to dynamic loading, particularly under seismic conditions. What is the modified equation when external forces are applied?
It's [M]{u¨(t)} + [C]{u˙(t)} + [K]{u(t)} = {f(t)}!
Exactly! Understanding that is crucial for engineering seismic-resistant structures. How can this knowledge help us in practice?
We can predict how buildings will move during earthquakes and design them to withstand those forces!
Correct! Let's summarize this with the acronym 'BUILD': **B**uilding design, **U**nderstanding motion, **I**mplementing forces, **L**imits of movement, **D**ynamic response.
Numerical Solution Techniques
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Finally, let's wrap up with numerical solution techniques for MDOF systems. Can anyone tell me some methods we might use?
We could use the Finite Element Method to derive the mass and stiffness matrices!
Correct! Additionally, methods like Newmark’s could help with time integration. Why is using numerical techniques particularly important in MDOF analysis?
Because closed-form solutions are often impractical for large or irregular systems!
Exactly! Keep in mind the acronym 'NUMERICAL' for numerical methods: **N**umeric, **U**seful for large systems, **M**atrix methods, **E**lement methods, **R**oundabout solutions, **I**ntegration techniques, **C**omplex scenarios, **A**ccurate results, **L**arge-scale applications.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
MDOF systems, unlike SDOF systems, utilize multiple degrees of freedom to analyze structures such as buildings and bridges during dynamic loading scenarios like earthquakes. This section discusses their equations of motion, modal analysis, and response to dynamic loads.
Detailed
Detailed Summary
The Multiple Degree of Freedom (MDOF) system is integral in the analysis of real-world structures subjected to dynamic loads, particularly during seismic events. Unlike Single Degree of Freedom (SDOF) systems, MDOF systems can encapsulate the behavior of structures exhibiting motion through several independent coordinates, thereby offering more accurate representations of complex vibrations. This chapter section thoroughly discusses the characteristics of MDOF systems, the derivation of equations of motion for both undamped and damped systems, modal analysis, and numerical methods vital for solving MDOF problems. It highlights key properties such as the mass and stiffness matrices, the orthogonality of mode shapes, and techniques for practical seismic response assessment. By showcasing examples and exploring efficacy in design, the chapter underscores the need for modal superposition and numerical solutions to accurately predict the dynamic response of MDOF systems.

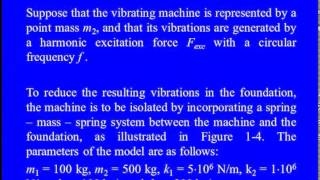

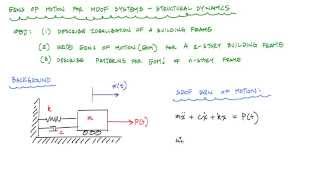

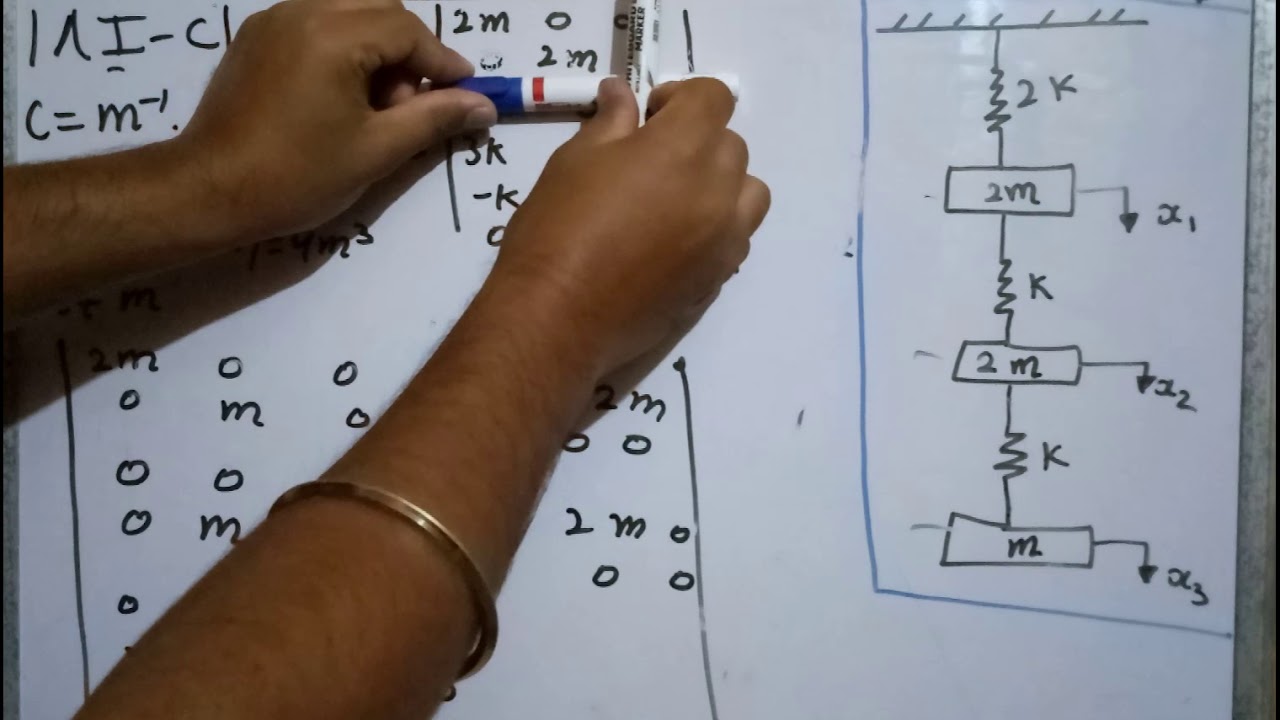

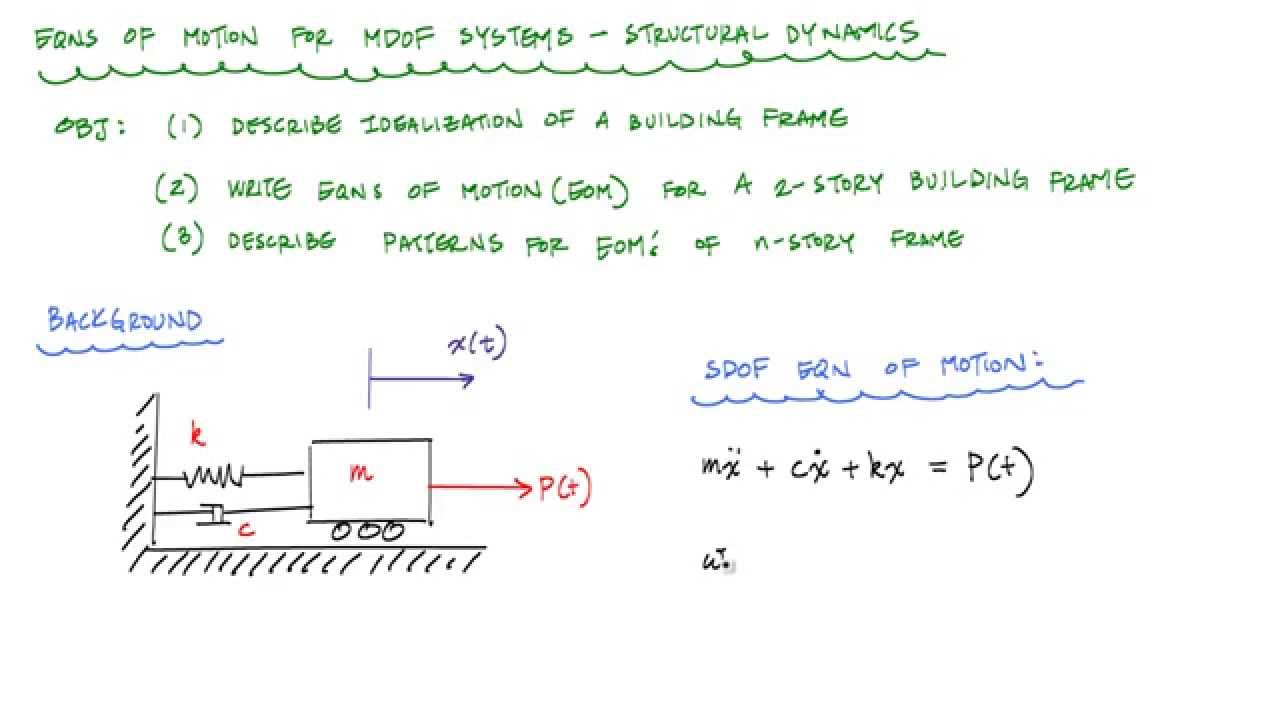

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to MDOF Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In real-world structures, motion due to earthquakes cannot be accurately modeled with Single Degree of Freedom (SDOF) systems alone. Most structures such as buildings, bridges, and towers possess multiple masses distributed in space and can vibrate in several modes simultaneously. These types of systems are best represented as Multiple Degree of Freedom (MDOF) systems.
Detailed Explanation
MDOF systems are crucial in accurately representing the behavior of structures during events like earthquakes. Unlike SDOF systems, which simplify motion to a single point of movement, MDOF systems account for multiple points of motion. This means that things like skyscrapers or long bridges, which have many parts that can vibrate in combination, need to be analyzed as MDOF systems for better understanding and safety.
Examples & Analogies
Think of a musical orchestra where each musician plays their own instrument. If one musician plays alone, it's like an SDOF system—simple and straightforward. However, when the entire orchestra plays together, similar to an MDOF system, the sound is complex because each instrument adds its own unique tone and rhythm, creating a rich musical experience.
Characteristics of MDOF Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Definition: A mechanical or structural system that requires two or more independent coordinates (degrees of freedom) to describe its motion.
• Examples:
o A shear building model with multiple floors.
o Multi-span bridges.
o Towers with mass concentrated at various levels.
• Key Properties:
o Each DOF has an associated mass and stiffness.
o Coupled differential equations govern motion.
o System responds in multiple vibration modes.
Detailed Explanation
MDOF systems require more than one degree of freedom because they involve complex interactions between different parts of a structure. For instance, a multi-floor building sways not just as one unit but each floor moves independently to some extent, which must be accounted for to understand the overall response during vibrations. These systems typically lead to coupled equations, meaning that the motion of one part affects others, creating various vibration modes.
Examples & Analogies
Imagine a multi-level parking garage. When cars move on one floor, the other floors experience movement too, affecting the whole structure. If we just looked at one floor in isolation (like SDOF), we wouldn’t capture all the dynamics and potential safety issues that arise during an earthquake.
Equations of Motion for Undamped MDOF System
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Consider an n-DOF linear system with lumped masses and linear springs. The general form of the equations of motion without damping and external forces is:
[M]{u¨(t)}+[K]{u(t)}={0}
Where:
• [M] = Mass matrix (n×n)
• [K] = Stiffness matrix (n×n)
• {u(t)} = Displacement vector
• {u¨(t)} = Acceleration vector
Key Concepts:
• Mass matrix is usually diagonal in lumped-mass systems.
• Stiffness matrix is symmetric and positive-definite.
• This leads to a system of n coupled second-order differential equations.
Detailed Explanation
The equation presented describes how the forces acting on an MDOF system relate to its motion. The mass matrix ([M]) represents how much 'weight' is concentrated in different parts of the structure, while the stiffness matrix ([K]) indicates how resistant those parts are to deformation. Together, they create a set of coupled equations that need to be solved to understand how the structure moves when impacted by forces like earthquakes.
Examples & Analogies
Think of a team of people standing in a row holding onto a rope. When one person pulls on the rope, their movement also affects the others due to the tension in the rope. Just like that team, the different parts of a structure are interconnected, and understanding their collective movement requires analyzing these coupled equations.
Mode Shapes and Natural Frequencies
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
To determine the natural behavior of the system, we assume a harmonic solution:
{u(t)}={ϕ}sin(ωt)
Substituting into the equation of motion:
([K]−ω2 [M]){ϕ}={0}
This is a generalized eigenvalue problem, where:
• ω2 are the eigenvalues (square of natural frequencies)
• {ϕ} are the corresponding eigenvectors (mode shapes)
Properties:
• There are n natural frequencies and n mode shapes.
• Mode shapes are orthogonal with respect to both [M] and [K].
Detailed Explanation
In this section, we explore how to predict how structures behave naturally without any external influence. By assuming that displacements follow a sinusoidal pattern, we can derive 'natural frequencies'—specific speeds at which a structure likes to oscillate—and 'mode shapes'—the patterns of how it sways or vibrates at those frequencies. This leads us to a system where each mode is independent of the others, making calculations much simpler.
Examples & Analogies
Imagine pushing a child on a swing. The swing has a natural rhythm—if you push it just right (at its natural frequency), it goes higher with less effort. Similarly, understanding a structure's natural frequency helps engineers predict how it will respond to external forces, such as the winds or earthquakes, avoiding potential structural failures.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Multiple Degree of Freedom (MDOF): A system structure that requires several independent coordinates to describe its motion.
-
Dynamics of Structures: The response of structures to dynamic loads such as earthquakes.
-
Modal Analysis: A technique used to determine natural frequencies and mode shapes of a system.
-
Damping Effects: The important role of damping in reducing vibration amplitudes in structures.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A high-rise building during an earthquake can be analyzed as an MDOF system due to its multiple floors and dynamic response differences.
-
A multi-span bridge modeled as an MDOF system can capture the complex interactions of vibrations across its length.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In MDOF, we see, many ways to sway, to describe the motion, in a detailed array.
📖 Fascinating Stories
-
Imagine a tall tower swaying in the wind. It bends and moves at different levels, much like a dancer — each part reflecting its own unique rhythm. That's how MDOF systems behave!
🧠 Other Memory Gems
-
For MDOF remember: Many Directions Of Freedom exist.
🎯 Super Acronyms
MDOF
- **M**ultiple
- **D**egree
- **O**f
- **F**reedom.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Degree of Freedom (DOF)
Definition:
An independent motion component in a mechanical system, crucial for defining the system's behavior.
-
Term: Mass Matrix
Definition:
A matrix used to represent the mass properties of a mechanical system in MDOF analysis.
-
Term: Stiffness Matrix
Definition:
A matrix that describes a system's resistance to deformation under external loads.
-
Term: Natural Frequencies
Definition:
Frequencies at which a system tends to vibrate when disturbed.
-
Term: Mode Shapes
Definition:
The specific patterns of deformation that a system undergoes at its natural frequencies.
-
Term: Damping
Definition:
The effect that reduces the amplitude of vibrations in a system.
-
Term: Modal Analysis
Definition:
A method that determines the natural frequencies and mode shapes of a dynamic system.
-
Term: Eigenvalue Problem
Definition:
A mathematical problem where we find the eigenvalues and eigenvectors defining system modes.
