26.9. Case Studies of S and Rayleigh Wave Impacts
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we're going to discuss the Mexico City Earthquake of 1985 and how Rayleigh waves impacted the city. Rayleigh waves are known for their amplification effects, especially when traveling through soft sediments. What do you think might happen if the ground is less stable?
Could it cause more destruction to buildings?
Exactly! The softer the ground, the greater the shaking, which we saw in this earthquake. Can anyone explain what materials the Mexico City buildings were made out of?
Many were built on the basin of a former lake, so they were likely made with materials not ideal for such conditions.
Correct! This combination of factors led to significant damage. Remember: 'S' for Shear, 'R' for Rayleigh. So, think of the impacts through 'SR'.
So, SR helps us remember S-waves and Rayleigh waves are both critical in earthquake damage!
Good point! Now let’s recap: the amplification of Rayleigh waves was detrimental in soft sediment areas, specifically affecting structural integrity. What’s one takeaway from this discussion?
We need to consider soil types when designing buildings in earthquake-prone areas.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Next, let’s talk about the Kobe Earthquake of 1995. What do you recall about S-waves and their effects?
I remember that S-waves can cause a lot of lateral motion in structures.
That's right! At Kobe, the strong lateral motion caused by S-waves led to many structural failures. What structural features might help in mitigating such effects?
Bracing or foundation isolation technologies could help.
Great suggestions! Also, recalling the S for Shear can help us remember why these waves are damaging. Can anyone summarize what’s essential to prevent such damages?
We need to design buildings with strong lateral resistance.
Exactly! Let’s summarize: S-waves contribute significantly to earthquake damage, and improving structural design is vital. Any final thoughts?
We can learn a lot from past earthquakes to improve future designs!
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Finally, let’s consider the Bhuj Earthquake of 2001. Interestingly, both S and Rayleigh waves amplified in sediment-filled basins. What does this tell us about the waves?
It indicates that both types of waves can amplify shaking, leading to greater damage.
Exactly! When both wave types are involved, the impacts can be more severe. Can anyone give an example of building design to counteract these effects?
Using stronger materials or better foundations might help.
Perfect! Integrating knowledge about wave impacts into design can protect structures. How can we summarize our learning about these earthquakes?
We must account for both S and Rayleigh waves in seismic designs to reduce risks.
Excellent summary! In conclusion, real-world cases show us that understanding wave behavior greatly influences engineering practices.
Overview
Short Summary
This section presents case studies highlighting the destructive impacts of S-waves and Rayleigh waves during significant earthquakes.
Medium Summary
The section discusses three notable earthquakes: the Mexico City Earthquake (1985), Kobe Earthquake (1995), and Bhuj Earthquake (2001), illustrating how S-waves and Rayleigh waves caused extensive damage to structures through amplification and lateral motion effects.
Detailed Summary
Case Studies of S and Rayleigh Wave Impacts
This section covers significant earthquakes that demonstrate the effects of S-waves and Rayleigh waves on structural integrity and ground motion.
-
Mexico City Earthquake (1985): This earthquake caused widespread devastation primarily due to the amplification of Rayleigh waves propagating through lakebed sediments. The soft soil conditions led to greater shaking levels that severely damaged buildings.
-
Kobe Earthquake (1995): Notable for its S-wave contributions, this event resulted in significant structural collapses. The lateral motion caused by S-waves exerted immense shear forces that many structures were not designed to withstand, leading to catastrophic failures.
-
Bhuj Earthquake (2001): This earthquake demonstrated the amplification effects of both S and Rayleigh waves, particularly in sediment-filled basins. The combined influence of these wave types highlighted the necessity for accounting for wave behavior in seismic design.
These case studies provide essential insights into the effects of seismic waves in real-world scenarios, underscoring the importance of understanding wave dynamics in earthquake engineering.
Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Extensive damage due to Rayleigh wave amplification in lakebed sediments.
Detailed Explanation
The 1985 Mexico City earthquake is a significant case study illustrating the effects of Rayleigh waves. During this earthquake, the energy from the seismic waves was amplified by the soft lakebed sediments that Mexico City was built on. As these Rayleigh waves traveled through the sediments, they caused severe shaking and ultimately extensive damage to buildings and infrastructure because the soft sediments amplified the wave's energy, leading to greater ground motion than expected.
Examples & Analogies
Imagine throwing a stone into a pond; the ripples created may seem small at first, but if the area around the pond is soft mud, those ripples get bigger and disturb the surrounding mud more than if they were in hard ground. Similarly, in Mexico City, the Rayleigh waves' effect was intensified because the soft sediments reacted strongly to the seismic energy.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Notable S-wave generated structural collapses due to strong lateral motion.
Detailed Explanation
The 1995 Kobe earthquake serves as a crucial case study for understanding S-wave impacts. During this event, the shear waves (S-waves) produced strong lateral motion, causing several buildings to collapse. The S-waves have lateral shaking characteristics that can impose significant stress on structures, particularly those that are not designed to withstand such forces. This earthquake emphasized the need for engineers to consider S-wave effects when designing buildings in seismically active areas.
Examples & Analogies
Think of a row of dominoes standing tall. If you push one domino sideways, it tends to topple due to the lateral force. The same principle applies to buildings during an earthquake; when S-waves shake the ground sideways, the forces can be too much for weak structures, leading to collapse.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account- Amplification of both S and Rayleigh waves in sediment-filled basins.
Detailed Explanation
The Bhuj earthquake showcases how both S-waves and Rayleigh waves can get amplified in sediment-filled basins, making these areas particularly vulnerable. As seismic waves encounter sedimentary basins, their energy can be trapped and intensified, leading to more severe ground shaking than in surrounding solid ground. This phenomenon contributed to considerable damage during the earthquake, highlighting the importance of understanding wave behavior in seismic risk assessments.
Examples & Analogies
Consider the difference between a guitar string being plucked over hardwood and plucked over a soft blanket. The blanket absorbs some sound but can amplify certain frequencies differently, creating unique effects. Similarly, in Bhuj, the sediment basins acted like the blanket, amplifying the seismic waves and leading to stronger shaking that caused more damage.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Amplification impacts from Rayleigh waves lead to severe structural damage, especially in soft soils.
S-waves contribute lateral forces that can result in structural failures during earthquakes.
The combination of S and Rayleigh waves can exacerbate damage in sediment-rich environments.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
The Mexico City Earthquake exemplified Rayleigh wave amplification effects, causing extensive damage to structures built on soft lake sediments.
During the Kobe Earthquake, the lateral shear forces from S-waves led to notable collapses in buildings not designed for such motion.
The Bhuj Earthquake illustrated how both S and Rayleigh waves can amplify in sediment basins, significantly affecting engineering parameters.
Memory aids
Imagine a city on a lake's edge, where waves cause buildings to pop and hedge, Rayleigh's dance makes failure more dread.
Flash Cards
Glossary
S-waves
Secondary or shear waves that cause particle motion perpendicular to the direction of wave propagation and do not travel through fluids.

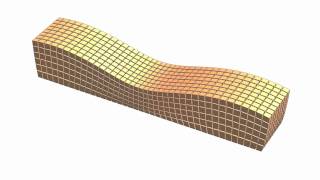

Rayleigh Waves
Surface waves that travel along the Earth's surface, causing elliptical particle motion and significant energy dissipation near the surface.
Amplification
The increase in ground motion caused by soft soil conditions during seismic events.
Seismic Event
Natural occurrences such as earthquakes that produce seismic waves in the Earth.
Structural Integrity
The ability of a building or structure to withstand its intended load without experiencing failure.
