Introduction to Seismic Waves
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Welcome, everyone! Today, we will discuss seismic waves, particularly Shear Waves and Rayleigh Waves, and their importance in earthquake engineering. Can anyone remind me of the two main types of seismic waves?
Body waves and surface waves!
Exactly! Body waves include P-waves and S-waves, while surface waves include Rayleigh and Love Waves. It's crucial to understand these classifications as they determine how energy propagates through the Earth during an earthquake. Let’s focus on S-waves and Rayleigh waves—any guesses on their unique features?
I think S-waves cause shear motion, and Rayleigh waves create elliptical motion?
Great observation! S-waves cause particles to move perpendicular to the wave direction, while Rayleigh waves exhibit retrograde elliptical motion. Now let’s dive deeper!
Shear Waves (S-Waves)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s explore Shear Waves in detail. S-waves are transverse waves that cannot travel through fluids. Can anyone explain why this property is significant?
Because they don’t propagate in the outer core, which is liquid?
Correct! This helps seismologists infer structural information about the Earth's interior. The mathematical description of S-waves is described by the wave equation. The velocity of S-waves reflects both the shear modulus and the density of the medium. Who can recall this formula?
I think it was v=sqrt(G/ρ)?
Exactly! That’s the shear wave velocity formula. Now, let's discuss the implications for engineering—why is understanding S-wave behavior crucial?
Because they cause a lot of destruction with high amplitudes?
Yes! S-waves contribute significantly to lateral forces on structures, making it essential to consider them in seismic hazard analysis.
Rayleigh Waves
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's turn our attention to Rayleigh waves. Who can describe how these waves move?
They move in an elliptical motion, like ocean waves!
Exactly! Rayleigh waves combine vertical and horizontal movements. They can induce significant shaking, especially in urban areas. What impacts do they have on structures?
They can cause resonance in flexible buildings and lead to differential settlement on soft soils.
Perfectly said! These effects highlight the need for careful design in areas prone to Rayleigh wave impacts. Can we summarize the differences between S-waves and Rayleigh waves?
S-waves are body waves with transverse motion, and Rayleigh waves are surface waves with elliptical motion.
Great summary! Remember these differences as they are pivotal in understanding their effects on structures during seismic activities.
Applications in Earthquake Engineering
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's discuss the applications of S-waves and Rayleigh waves in earthquake engineering. How can understanding these waves help us in seismic hazard analysis?
We can model ground motions and identify areas at risk for amplification?
Exactly! Proper understanding leads to better seismic design and earthquake-resistant structures. S-wave and Rayleigh wave characteristics are also reflected in building codes. How do these concepts directly relate to site-specific seismic analysis?
They’re crucial for determining how buildings will respond during an earthquake!
Absolutely! I hope all of you grasp the significance of these waves in protecting lives and property. Any final questions?
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the physics and engineering implications of Shear Waves and Rayleigh Waves. Both wave types are crucial for understanding seismic activity and designing earthquake-resistant structures. The section details their propagation characteristics, underlying mathematics, and how they affect structures during seismic events.
Detailed
Shear and Rayleigh Waves
This section focuses on two critical types of seismic waves: Shear Waves (S-waves) and Rayleigh Waves. Understanding these waves is crucial in earthquake engineering, as they have unique propagation characteristics and significantly impact structures during seismic events.
Seismic Wave Classification Recap
Before diving into the specifics of S-waves and Rayleigh Waves, it’s essential to acknowledge the broader classification of seismic waves, which are categorized as body waves (P-waves and S-waves) and surface waves (Rayleigh and Love Waves).
Shear Waves (S-Waves)
- Nature and Motion: S-waves are transverse waves causing perpendicular particle motion to the wave's direction. They cannot travel through fluids, which means they are not found in Earth's outer core.
- Mathematical Description: Governed by the shear wave equation, S-wave velocity is determined by the medium's shear modulus and density.
- Velocity and Attenuation: S-waves are slower than P-waves, but faster than surface waves, with higher attenuation due to energy dissipation in heterogeneous media.
- Engineering Significance: They are highly destructive and contribute significantly to lateral forces on structures. Understanding their behavior is essential for seismic hazard analysis, dynamic soil-structure interaction models, and ground motion prediction equations.
Rayleigh Waves
- Nature and Motion: Rayleigh waves travel along the Earth's surface with retrograde elliptical particle motion, combining vertical and longitudinal motion.
- Mathematical Model: Derived from elastic half-space theory, Rayleigh wave velocity is approximately 0.9 times that of S-waves.
- Energy Distribution and Dispersion: They carry considerable seismic energy, especially near the surface, with dispersion effects present in layered media.
- Effects on Structures: They induce complex ground motions resulting in significant structural challenges like differential settlement and resonance in tall buildings, particularly in soft soil layers.
Comparison between Shear and Rayleigh Waves
Shear Waves and Rayleigh Waves differ significantly in terms of propagation type, particle motion, and their respective impacts on structures. For instance, S-waves are body waves with transverse motion, while Rayleigh waves are surface waves with elliptical motion.
Applications in Earthquake Engineering
- These wave types are pivotal for site response analysis, seismic hazard mapping, interpretation of seismographs, soil-structure interaction modeling, and informing seismic design codes.
Conclusion
Understanding Shear and Rayleigh Waves is paramount in earthquake engineering for assessing ground motion and designing resilient structures.

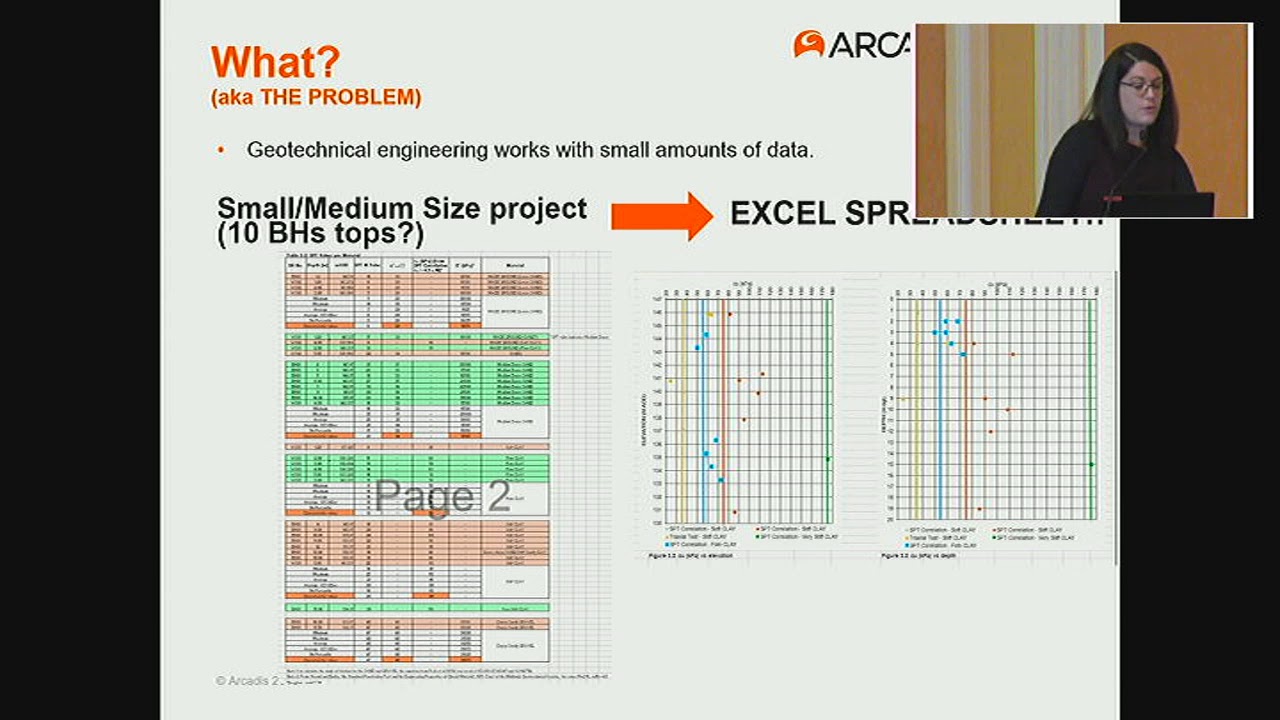

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Seismic Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In Earthquake Engineering, understanding the different types of seismic waves is critical for assessing ground motion, structural response, and foundation design. Among these waves, Shear Waves (S-waves) and Rayleigh Waves play a dominant role in the propagation of energy through the Earth during seismic events. These waves exhibit unique propagation characteristics and interact differently with geological formations and structural systems.
Detailed Explanation
In this introduction, we learn that seismic waves are crucial for understanding earthquakes. They help engineers design structures that can withstand earthquakes by analyzing ground motion and how buildings respond. Two main types of seismic waves are Shear Waves and Rayleigh Waves, each having distinct behaviors and impacts on the Earth's surface and structures during an earthquake.
Examples & Analogies
Imagine a swimming pool where you see ripples when a stone is thrown in. The way these ripples move through the water is similar to how seismic waves travel through the Earth. Just as you can predict where the ripples will go based on how the stone was thrown, engineers can predict how buildings will react based on seismic wave patterns.
Seismic Wave Classification
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Before exploring S-waves and Rayleigh waves specifically, it is helpful to understand the broader classification of seismic waves:
• Body Waves: Travel through the interior of the Earth.
– P-waves (Primary or Compressional Waves)
– S-waves (Secondary or Shear Waves)
• Surface Waves: Travel along the Earth's surface.
– Rayleigh Waves
– Love Waves
Detailed Explanation
Seismic waves are classified into two main categories: Body Waves and Surface Waves. Body Waves include P-waves, which push and pull the material they pass through, and S-waves, which create a sideways motion. Surface Waves move along the Earth’s surface and include Rayleigh Waves and Love Waves, which are generally slower but often more damaging.
Examples & Analogies
Think of a trampoline: when you jump on it, the waves travel through the fabric (Body Waves) and spread out along the edge (Surface Waves). The body of the trampoline represents how waves move through the Earth’s interior, while the edges represent how waves travel along the surface.
Shear Waves (S-Waves) Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This chapter focuses exclusively on S-waves and Rayleigh Waves, highlighting their characteristics, generation, and influence on structures.
Detailed Explanation
The chapter's primary focus is on understanding S-waves and Rayleigh waves. S-waves are characterized by their unique sideways motion and inability to travel through liquids, leading to specific impacts on structures during an earthquake. This focus is essential for engineers who design buildings to endure seismic events.
Examples & Analogies
Imagine trying to push a rope sideways. The way the rope moves mimics the sideways motion of S-waves. Just like the rope can't push forward if you only pull sideways, S-waves affect solid structures differently than they would if they could move through liquids.
Nature and Motion of Shear Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Shear waves are transverse body waves that cause particle motion perpendicular to the direction of wave propagation.
• Unlike P-waves, which compress and expand the material, S-waves shear the ground sideways or up-and-down.
• They do not propagate through fluids, making them absent in the Earth’s outer core.
Detailed Explanation
S-waves, or shear waves, are characterized by causing the ground particles to move in a direction that's perpendicular to the direction the wave travels. This motion is different from P-waves, which push and pull the ground. Importantly, S-waves cannot travel through liquids, which is why they cannot be detected in the outer core of the Earth where the material is fluid.
Examples & Analogies
Think of shaking a rope at one end. If you shake it up and down (perpendicular to the length), the waves that travel along the rope are similar to S-waves. If you push and pull the rope (in the same direction), that represents P-waves.
Mathematical Description of S-Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Governed by the wave equation for shear waves:
∂²u / ∂t² = v² ∇²u
• where: u = displacement vector, v = shear wave velocity, t = time.
• Shear wave velocity is expressed as:
v_s = √(G/ρ)
• where: G = shear modulus of the medium, ρ = density of the medium.
Detailed Explanation
The behavior of S-waves can be described mathematically through a specific wave equation that relates the displacement of particles, wave velocity, and the medium's properties. The shear wave velocity is derived from properties like shear modulus and density, which helps in predicting how quickly S-waves can travel through different materials.
Examples & Analogies
Imagine measuring how different materials (like rubber or concrete) react to being shaken. The formula gives us a way to calculate how fast the shaking (S-waves) will travel through each material, much like a race where softer materials may slow down the speed of the waves.
Velocity and Attenuation of S-Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Velocity: Slower than P-waves, but faster than surface waves.
• Attenuation: Higher than P-waves due to their transverse nature and energy dissipation in heterogeneous media.
Detailed Explanation
S-waves travel slower than the quicker P-waves but are generally faster than surface waves like Rayleigh waves. Their transverse nature means that they lose energy more quickly as they travel through various materials, which is referred to as attenuation.
Examples & Analogies
Think of riding a bike on different surfaces – asphalt (solid ground) versus gravel (looser material). You’ll go faster on asphalt because less energy is absorbed compared to gravel. Similarly, S-waves lose speed as they move through different types of ground.
Engineering Significance of S-Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• S-waves are highly destructive due to their high amplitude and ground shaking capability.
• Contribute significantly to lateral forces on structures.
• Understanding S-wave behavior is essential for:
– Site-specific seismic hazard analysis,
– Dynamic soil-structure interaction models,
– Ground motion prediction equations (GMPEs).
Detailed Explanation
S-waves are particularly damaging to structures because of their strong sideways shaking and high amplitude. Engineers focus on S-wave behavior to improve designs for buildings in earthquake-prone areas, allowing for safer structures that can withstand such forces.
Examples & Analogies
Consider a tall tree swaying in the wind. The base of the tree may bend in response to strong lateral winds (much like how a structure reacts to S-waves). If the tree is not anchored deeply in the ground, it might fall over, similar to how buildings without proper design can be damaged or collapse during an earthquake.

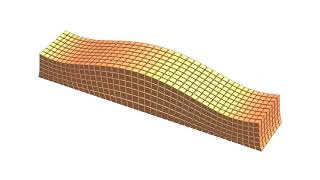

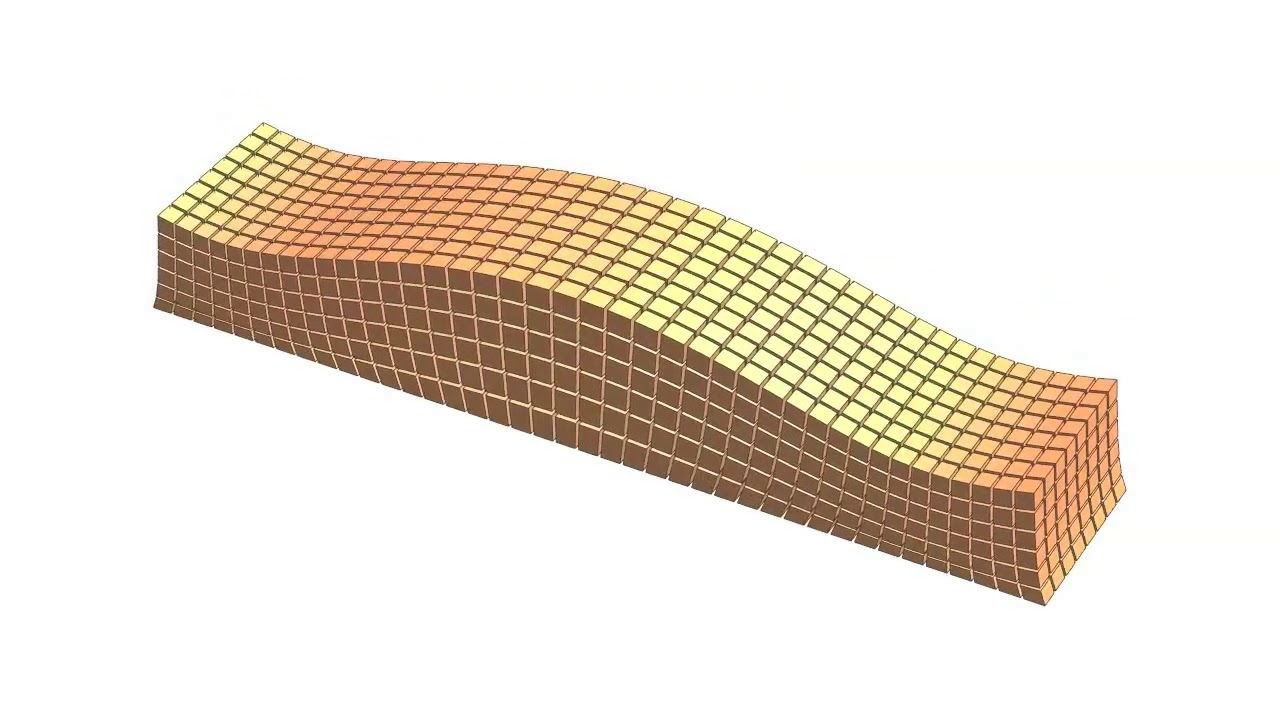

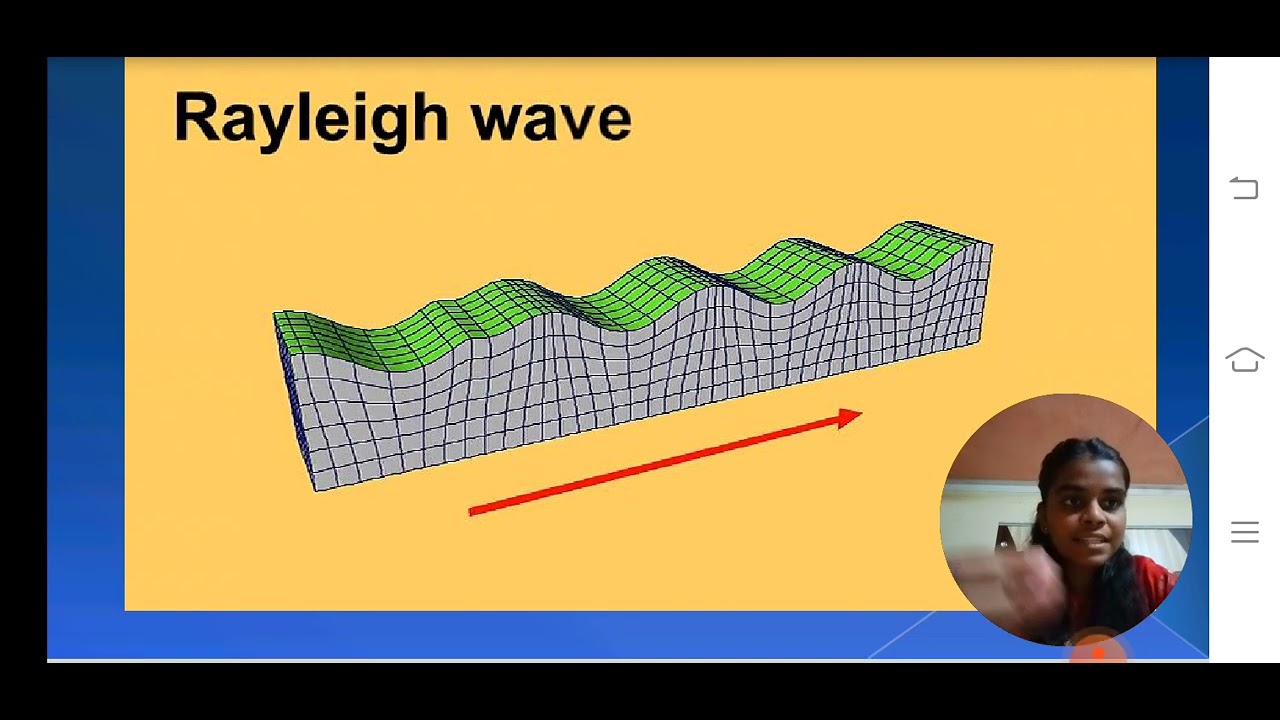

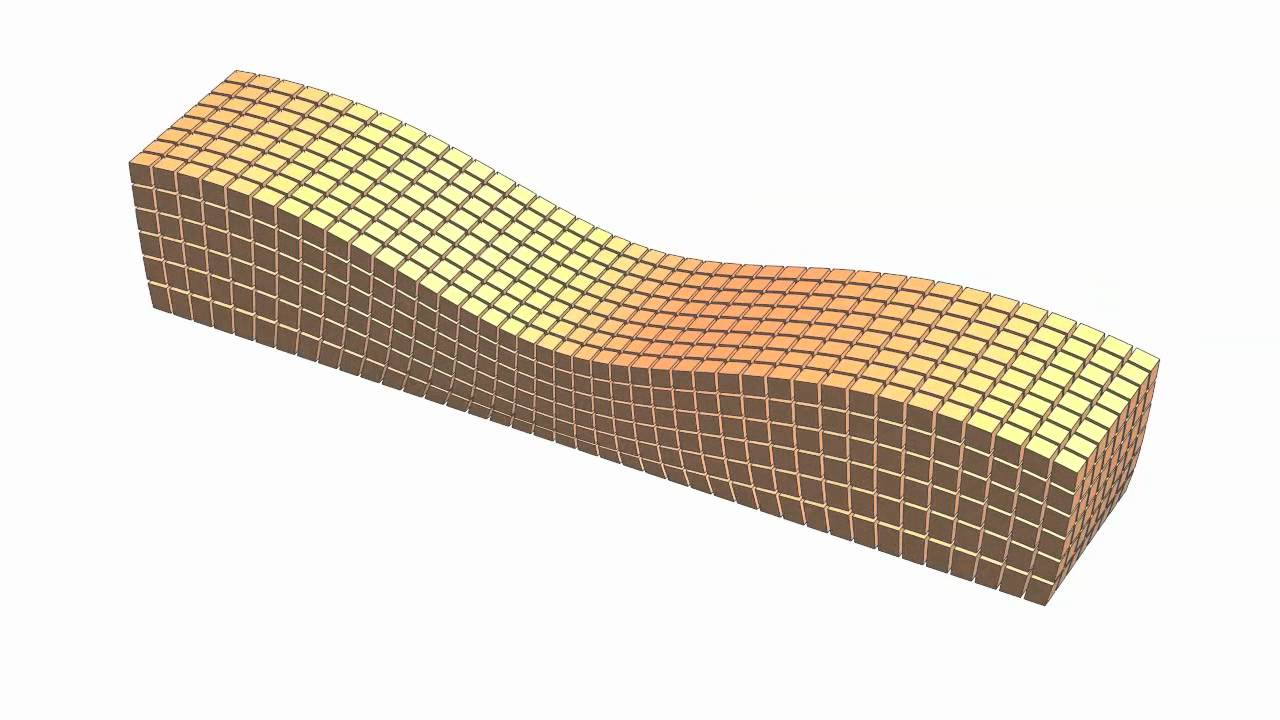

Nature and Motion of Rayleigh Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Rayleigh waves are surface seismic waves that travel along the Earth's surface in a retrograde elliptical motion.
• They combine longitudinal and vertical ground motion, similar to ocean waves.
• Particle motion: Ground particles move in elliptical paths, opposite to the direction of wave travel.
Detailed Explanation
Rayleigh waves cause particles on the surface of the Earth to move in circular paths, both up and down and side to side, while the wave travels forward. This motion resembles how ocean waves roll and crash on the shore, leading to complex interactions with structures and foundations.
Examples & Analogies
Think of a leaf floating on the surface of a pond as ripples travel outward from where a stone was thrown. The way the leaf dips and rises mirrors the motion of particles during a Rayleigh wave's passage, giving insight into how such waves will affect nearby buildings and landscapes.
Mathematical Model of Rayleigh Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Derived using elastic half-space theory, first developed by Lord Rayleigh in 1885.
• Displacement potential function approach is used to obtain the Rayleigh wave solution:
u(x,z,t)=Ae^{-αz}cos(kx−ωt)+Be^{-βz}sin(kx−ωt)
• Rayleigh wave velocity (v_R) is slightly less than v_s, typically:
v_R ≈ 0.9·v_s
• depending on Poisson’s ratio of the medium.
Detailed Explanation
The mathematical model for Rayleigh waves allows us to predict their behaviors using complex equations that consider various factors, such as the material's characteristics and the wave's properties. The velocity of Rayleigh waves is a bit slower than that of S-waves, a critical factor for engineers modeling seismic activity.
Examples & Analogies
Imagine a wave moving through a crowd. If the crowd's density varies, the wave will not travel at the same speed in every section. The model captures this behavior, helping us understand how different geological factors will influence the speed of Rayleigh waves.
Energy Distribution and Dispersion of Rayleigh Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Rayleigh waves carry significant seismic energy, especially near the surface.
• Dispersion occurs in layered media – wave velocity varies with frequency and depth.
• Low-frequency Rayleigh waves penetrate deeper and affect taller structures.
Detailed Explanation
Rayleigh waves are known for carrying a lot of energy close to the surface, which is crucial during earthquakes. When they travel through multiple layers of different materials, their speed and behavior can change, a phenomenon known as dispersion. Lower frequency waves can travel deeper into the ground and impact taller buildings more significantly.
Examples & Analogies
Think about sound waves in water; lower pitches can travel farther than higher pitches. Similarly, in the ground, low-frequency Rayleigh waves penetrate deeper, much like how a deep voice resonates longer in a cave compared to a higher pitch.
Effects of Rayleigh Waves on Structures
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Induce both vertical and horizontal shaking, resulting in:
– Differential settlement,
– Resonance in flexible or tall buildings,
– Ground amplification near soft soil layers.
• Urban damage during earthquakes is often linked to Rayleigh wave action.
Detailed Explanation
Rayleigh waves cause significant shaking, which can lead to uneven settling of buildings (differential settlement) and excessive movement in towers or flexible structures (resonance). Additionally, when these waves reach soft soils, they can amplify the shaking, causing even more destruction during an earthquake.
Examples & Analogies
Picture how a rubber band stretches and vibrates when you pluck it. Similar to how the rubber band's motions can distort and distort its shape, buildings can sway dangerously during an earthquake when affected by Rayleigh waves, especially if they are built on softer soil.
Comparison of Shear and Rayleigh Waves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
| Feature | Shear Waves (S-Waves) | Rayleigh Waves |
|---|---|---|
| Type | Body wave | Surface wave |
| Particle Motion | Transverse | Retrograde elliptical |
| Speed | Moderate (slower than P-waves) | Slower than S-waves |
| Penetration | Through solid interior | Along the surface (few km depth) |
| Impact on Structures | High horizontal shear | Vertical and horizontal forces |
| Damaging Potential | High | Very high near surface, especially in soft soils |
| Propagation Medium | Solids only | Solids (near-surface) |
Detailed Explanation
This comparison highlights the distinct differences between S-waves and Rayleigh waves. S-waves are internal waves traveling through solids, whereas Rayleigh waves travel along the Earth's surface. Each type of wave has unique particle motion patterns and implications for structural engineering, particularly regarding their damaging potential during seismic events.
Examples & Analogies
Think of the difference between swimming beneath the surface of a pool (like S-waves) and floating on the surface where the waves are visibly moving (like Rayleigh waves). Each environment (submerged versus surface) affects how you experience the water—a useful analogy for understanding these seismic wave differences.
Applications in Earthquake Engineering
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Site Response Analysis: S-waves and Rayleigh waves are essential inputs for evaluating soil amplification and local site effects.
• Seismic Hazard Mapping: Understanding the propagation of these waves helps model ground motion for different regions.
• Seismograph Interpretation: Time delay between P, S, and Rayleigh arrivals is used to locate epicenters and estimate magnitudes.
• Soil-Structure Interaction (SSI): Accurate modeling of these waves improves prediction of foundation behavior during seismic loading.
• Seismic Design Codes: Wave characteristics are reflected in building codes via spectral acceleration curves and design response spectra.
Detailed Explanation
The information about S-waves and Rayleigh waves is crucial for practical applications in earthquake engineering. This includes analyzing how ground materials respond during an earthquake, predicting where the strongest shakes may occur, and informing building codes to enhance construction safety in earthquake-prone areas.
Examples & Analogies
Imagine a doctor using various tools to assess a patient's health. Engineers use seismic wave data similar to how doctors use medical devices to understand the body's condition. The data helps engineers make informed decisions ensuring that buildings and infrastructure are healthy and robust against earthquakes.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Shear Waves (S-Waves): Waves that cause perpendicular motion and cannot travel through fluids, resulting in destructive impacts during earthquakes.
-
Rayleigh Waves: Surface waves that induce both vertical and horizontal shaking, leading to complex structural challenges, particularly in urban areas.
-
Seismic Wave Classification: Understanding the distinction between body waves and surface waves is crucial for assessing seismic hazards.
-
Propagation Behavior: The characteristics of S-waves and Rayleigh waves play distinct roles in how they interact with geological formations.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a recent earthquake, the intense shaking caused by S-waves led to structural failures in buildings designed without adequate lateral support.
-
The 1985 Mexico City earthquake highlighted the damage caused by Rayleigh waves traveling through soft lakebed sediments, resulting in significant urban destruction.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
S-waves shake and shear, causing buildings to fear!
📖 Fascinating Stories
-
Imagine a wave surfing on the land, it rolls with a bounce, never bland—Rayleigh waves make structures sway, twisting and turning day by day.
🧠 Other Memory Gems
-
SHARE: Shear (S) and Rayleigh (R) waves Amplify Resonant Effects.
🎯 Super Acronyms
S-WAVE
- Structures Withstanding Amplifications from Vibration of Earth.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Shear Waves (SWaves)
Definition:
Transverse body waves that cause particle motion perpendicular to the direction of wave propagation.
-
Term: Rayleigh Waves
Definition:
Surface seismic waves that travel along the Earth's surface in a retrograde elliptical motion, combining longitudinal and vertical ground motion.
-
Term: Seismic Wave
Definition:
Energy waves that travel through the Earth, produced by geological processes such as earthquakes.
-
Term: Body Waves
Definition:
Seismic waves that travel through the interior of the Earth, including P-waves and S-waves.
-
Term: Surface Waves
Definition:
Seismic waves that travel along the Earth’s surface, including Rayleigh and Love waves.
