26.2 - Shear Waves (S-Waves)
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Shear Waves
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are focusing on S-waves, or shear waves. Can anyone tell me how S-waves move compared to P-waves?
I think S-waves move differently because they shake the ground sideways or up and down?
Exactly! S-waves cause particle motion that is perpendicular to the direction of the wave propagation. In contrast, P-waves compress and expand the material as they move. You can remember this difference by thinking of S-waves as 'sideways', which emphasizes their shear motion. What else distinguishes S-waves from P-waves?
S-waves can't travel through liquids, right?
Yes! That's a crucial point. S-waves do not propagate through fluids, meaning they do not exist in the Earth's outer core. Understanding this helps us assess how seismic waves affect different geological setups. Let's keep this in mind as we explore further.
Mathematical Description of S-Waves
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next up, let's dive into the mathematical aspect of S-waves. The motion of S-waves can be described by a specific wave equation. Can anyone recall how this equation is structured?
Is it something like relation between displacement and time?
Close! The general format of the wave equation for S-waves is $$\frac{1}{v_s^2} \frac{\partial^2 u}{\partial t^2} = \nabla^2 u$$. Here, \(u\) is the displacement vector, \(v_s\) is the shear wave velocity, and \(t\) is time. Can someone explain why knowing the shear wave velocity is important?
It's important because it helps predict how fast the wave will travel through different materials.
Exactly! The shear wave velocity influences how we model seismic impacts, particularly in various substrates. That leads us directly into our next topic: the relationship between velocity and attenuation of S-waves.
Velocity and Attenuation in S-Waves
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand the wave equation, let's talk about the velocity of S-waves. Who can tell me how S-wave velocity compares to P-wave velocity?
S-waves are slower than P-waves, but faster than surface waves.
Great! They travel at moderate speeds compared to other seismic waves. And what about attenuation? Why might S-waves exhibit higher attenuation?
Maybe because they are transverse waves and lose energy more quickly in heterogeneous materials?
Exactly! The transverse nature of S-waves leads to more energy dissipation, especially in complex media. This is crucial when assessing potential damage during earthquakes.
Engineering Significance of S-Waves
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s explore the engineering significance of S-waves. Why do you think understanding S-wave behavior is essential for earthquake engineering?
Because they can cause high amplitude shaking that damages structures.
Exactly! S-waves are highly destructive and contribute significantly to lateral forces experienced by buildings. This makes them vital for site-specific seismic hazard analyses. Can anyone share examples of how engineers use this information?
They probably use it for designing earthquake-resistant structures and predicting ground motion.
That's right! Engineers utilize insights on S-waves to formulate ground motion prediction equations and dynamic soil-structure interaction models. These practices directly influence building codes and safety measures.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
S-waves, or shear waves, play a significant role in earthquake engineering due to their ability to induce high amplitude ground shaking. Unlike P-waves, S-waves propagate through solids and exhibit unique mathematical properties that affect their velocity and attenuation. Understanding these aspects is essential for assessing seismic hazards and designing resilient structures.
Detailed
Shear Waves (S-Waves)
Shear waves, abbreviated as S-waves, are a type of transverse body wave that produce particle motion perpendicular to the direction of wave propagation. This distinguishes them from primary waves, or P-waves, which involve compressive particle motion.
Key Characteristics
- Motion: S-waves cause particles to oscillate either sideways or up-and-down, rather than pulling them together or pushing them apart.
- Propagation Medium: S-waves cannot travel through fluids, which means they are not present in the Earth’s outer core.
- Mathematical Description: The behavior of S-waves is governed by a specific wave equation, which can be expressed as:
$$(1/v_s^2) \frac{\partial^2 u}{\partial t^2} = \nabla^2u$$ where \(u\) is the displacement vector, \(v_s\) represents the shear wave velocity, and \(t\) is time. - The shear wave velocity (
\(v_s = \sqrt{G/\rho}\)), where \(G\) refers to the shear modulus and \(\rho\) denotes the density. - Velocity and Attenuation: S-waves travel slower than P-waves but faster than surface waves. Due to their transverse characteristics, they exhibit higher attenuation than P-waves, particularly in heterogeneous materials.
Engineering Significance
- Due to their high amplitude and the ground shaking they induce, S-waves can cause significant structural damage during earthquakes.
- Their impact on lateral forces emphasizes the importance of accurate assessment in seismic hazard analysis and dynamic soil-structure interaction models.
- S-wave behavior is vital for creating ground motion prediction equations (GMPEs), which are crucial for earthquake-resistant design standards.

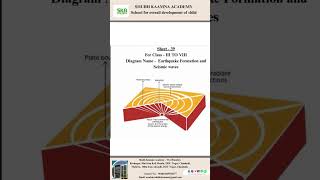

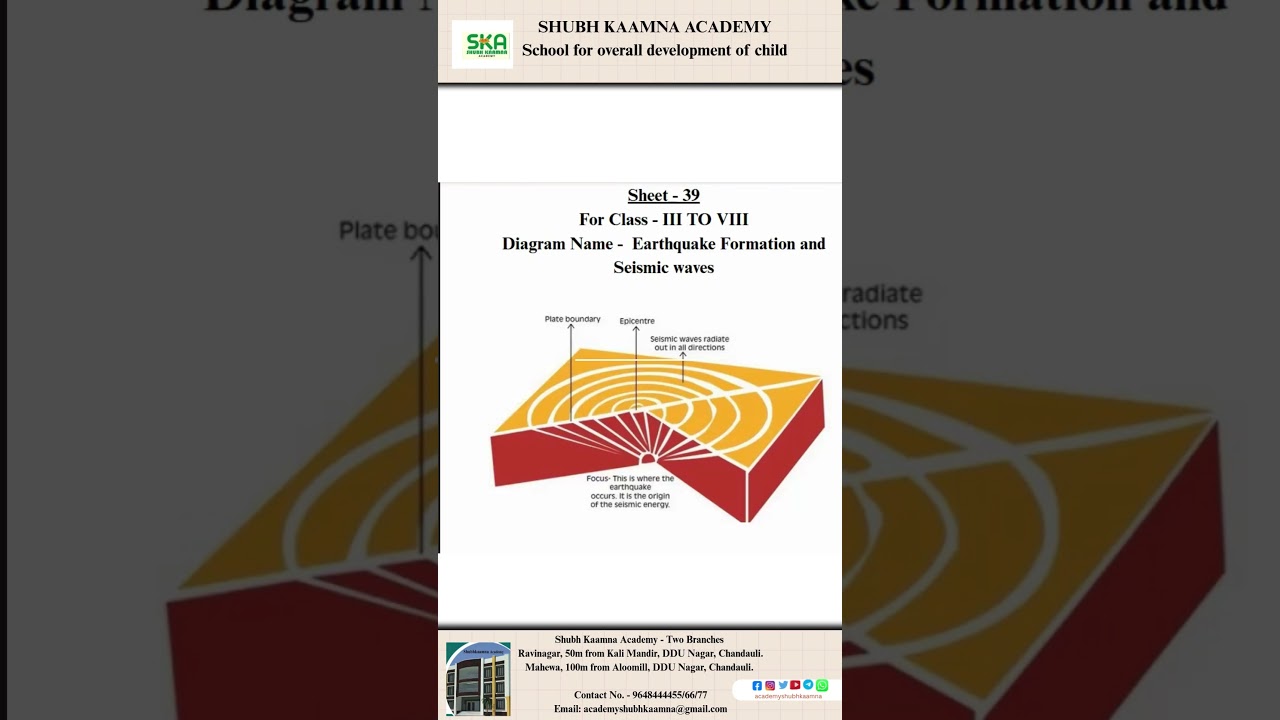

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Nature and Motion of S-Waves
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Shear waves are transverse body waves that cause particle motion perpendicular to the direction of wave propagation.
• Unlike P-waves, which compress and expand the material, S-waves shear the ground sideways or up-and-down.
• They do not propagate through fluids, making them absent in the Earth’s outer core.
Detailed Explanation
Shear waves (S-waves) are a type of seismic wave that move through the Earth as transverse waves. This means that instead of the ground moving in the same direction as the wave, it moves up and down or side to side. This is different from primary waves (P-waves) which compress and expand materials as they travel. Importantly, S-waves cannot travel through fluids, which is why they are not found in the outer core of the Earth—since that region is liquid. This characteristic makes them crucial for understanding the solid structures within the Earth.
Examples & Analogies
Think of how a skipping stone moves on water. The stone creates ripples that move outward, but if you were to stand on the shore, you'd see the surface of the water rise and fall in a circular motion. This is akin to how S-waves move: they create a side-to-side (or up-and-down) movement in the ground.
Mathematical Description of S-Waves
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Governed by the wave equation for shear waves:
\[ \nabla^2 u = \frac{1}{v_s^2}\frac{\partial^2 u}{\partial t^2} \]
• where: u = displacement vector, v_s = shear wave velocity, t = time.
• Shear wave velocity is expressed as:
\[ v_s = \sqrt{\frac{G}{\rho}} \]
• where: G = shear modulus of the medium, \( \rho \) = density of the medium.
Detailed Explanation
The behavior of S-waves can be described mathematically using a wave equation. This equation illustrates how the wave's displacement (how far particles move from their resting position) changes over time and space. The speed of the S-wave, known as the shear wave velocity (v_s), depends on the properties of the material it’s traveling through, specifically the shear modulus (G) and density (ρ). The equation shows that as the shear modulus increases or the density decreases, the velocity of the S-wave increases.
Examples & Analogies
Imagine you’re at a trampoline park. The tension and firmness of the trampoline (analogous to the shear modulus) will affect how high someone bounces (analogous to velocity). A firm trampoline with a good tension will send you up higher and faster—just like how S-waves behave in different Earth materials!
Velocity and Attenuation of S-Waves
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Velocity: Slower than P-waves, but faster than surface waves.
• Attenuation: Higher than P-waves due to their transverse nature and energy dissipation in heterogeneous media.
Detailed Explanation
S-waves travel slower than P-waves, which are the fastest seismic waves, but they travel faster than surface waves like Rayleigh waves. Additionally, S-waves experience more attenuation, meaning they lose strength and energy more quickly as they pass through the Earth’s materials. This higher attenuation is primarily due to their transverse motion which interacts differently with the heterogeneities (variations in material properties) within the Earth.
Examples & Analogies
Consider a game of telephone. The message starts clear and fast when whispered directly to another person (like P-waves), but as it gets passed along (akin to S-waves), it becomes more garbled and slower. Just like the message, S-waves lose energy more quickly due to how they interact with the materials they pass through.
Engineering Significance of S-Waves
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• S-waves are highly destructive due to their high amplitude and ground shaking capability.
• Contribute significantly to lateral forces on structures.
• Understanding S-wave behavior is essential for:
– Site-specific seismic hazard analysis,
– Dynamic soil-structure interaction models,
– Ground motion prediction equations (GMPEs).
Detailed Explanation
In engineering, S-waves are particularly important because they can cause significant ground shaking, which can lead to destruction during an earthquake. Their lateral forces affect the stability of structures, making it essential for engineers to understand how S-waves behave when designing buildings, bridges, and other infrastructures. Knowledge of S-wave characteristics informs seismic hazard assessments and helps create robust models that predict how buildings will respond in an earthquake.
Examples & Analogies
Think of S-waves as the force of a large wave crashing against a shore. Just like how a strong wave can erode a sandcastle, the forces generated by S-waves can shake and damage buildings. Engineers study these waves to build structures that can withstand the powerful forces from earthquakes, much like designing a castle with sturdy walls to resist the waves.
Key Concepts
-
Transverse Motion: S-waves cause motion that is perpendicular to wave direction.
-
Propagation through Solids: S-waves cannot travel through fluids.
-
Wave Velocity: Speeds are slower than P-waves and influence seismic impact.
-
Higher Attenuation: S-waves exhibit greater energy loss in heterogeneous materials.
-
Engineering Implications: S-wave characteristics are crucial for earthquake-resistant design.
Examples & Applications
S-waves propagate through the Earth's crust during an earthquake, causing sideways shaking that affects buildings.
The estimation of shear wave velocity from S-wave measurements helps engineers design appropriate foundations.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
S-waves slide and move sideways, when stress hits, they shake like rays.
Stories
Imagine a dance floor where guests can only sway side to side, just like S-waves that can't glide through water, only across solid ground.
Memory Tools
S-Waves are Solid (S) and Shear (S) but can’t go through Liquids (L), remember 'SLS' to sort them out.
Acronyms
S.W.A.V.E.
Shear
Wave
Attenuation
Velocity
Earthquake.
Flash Cards
Glossary
- Shear Wave (SWave)
A type of transverse wave that causes particle motion perpendicular to the direction of wave propagation.
- Pwave
Primary waves that compress and expand materials in the direction of propagation.
- Velocity
The speed at which a wave travels through a medium.
- Attenuation
The reduction in the amplitude of a wave as it propagates through a medium.
- Shear Modulus
A measure of the modulus of elasticity of a material in shear or angular deformation.
- Displacement Vector
A vector that describes the change in position of points in a material due to wave propagation.
