26.10 - Influence of Soil Type on Wave Propagation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Soft vs. Hard Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re diving into how soil types affect wave propagation. Can anyone tell me what happens to seismic waves in soft soils?
I think soft soils amplify seismic waves because they aren't as firm.
Exactly! Soft soils have a low shear modulus and a high damping ratio. Can anyone remember what the shear modulus indicates?
It measures how much a material resists shear deformation, right?
Great job! So, what about hard soils? How do they respond?
They transmit waves faster and don’t really amplify them.
Correct! This understanding is crucial for designing structures in earthquake-prone areas. Remember: for soft soils, think 'amplification'!
Layered Soil Profiles
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s now explore how layered soil profiles interact with seismic waves. What happens when a soft layer is sandwiched between stiffer layers?
I remember that it might cause wave trapping and resonance!
Exactly! This can lead to increased wave amplitudes. Can anyone explain why Rayleigh waves are particularly affected by near-surface layers?
Because they travel along the surface, and the surface layer can change how they behave.
Perfect! And what do we mean by dispersion in this context?
It means that the wave velocity varies with frequency and depth, causing different frequencies to arrive at different times.
Well done! Just remember: layered profiles can greatly influence the waves' characteristics!
Liquefaction and Wave Behavior
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let's discuss liquefaction. Can someone describe what happens during liquefaction?
It happens when loose, saturated sands lose their strength and behave like a liquid during shaking.
Excellent! And how does this change the propagation of seismic waves?
It alters energy dissipation and can increase displacements and settlements.
Precisely! Understanding liquefaction is vital for predicting potential damage during an earthquake. Any final thoughts?
So, the type of soil can really change the outcome of an earthquake?
Absolutely! The soil's characteristics can dictate how waves behave and affect structures!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section highlights how different soil types, particularly soft and hard soils, affect the amplification and behavior of seismic waves, including phenomena like wave trapping and liquefaction. Understanding these interactions is crucial for seismic hazard analysis and engineering applications.
Detailed
Influence of Soil Type on Wave Propagation
Soil type plays a critical role in the propagation of seismic waves, particularly Shear Waves (S-waves) and Rayleigh waves.
1. Soft vs. Hard Soils
Soft soils tend to amplify both S-waves and Rayleigh waves due to their low shear modulus, high damping ratio, and nonlinear stress-strain behavior. This amplification leads to higher damage potential during earthquakes. Conversely, hard rocks or stiff soils transmit seismic waves more rapidly with less amplification, which can be beneficial in terms of reducing damage to structures.
2. Layered Soil Profiles
When a soft layer is sandwiched between stiffer layers (or vice versa), it can lead to trapping of the waves and significant resonant amplification. Rayleigh waves are often affected by the characteristics of near-surface layers, displaying considerable dispersion in layered soil profiles.
3. Liquefaction
Under strong shaking, loose saturated sands may undergo liquefaction, drastically changing the propagation behavior of both S-waves and Rayleigh waves. The energy dissipation mechanisms shift, which can increase horizontal displacements and settlement, presenting additional challenges in earthquake engineering.
Understanding these soil effects is essential for effective seismic hazard analysis and the design of earthquake-resistant structures, ensuring that engineers can account for both wave amplification and possible liquefaction in their analyses.

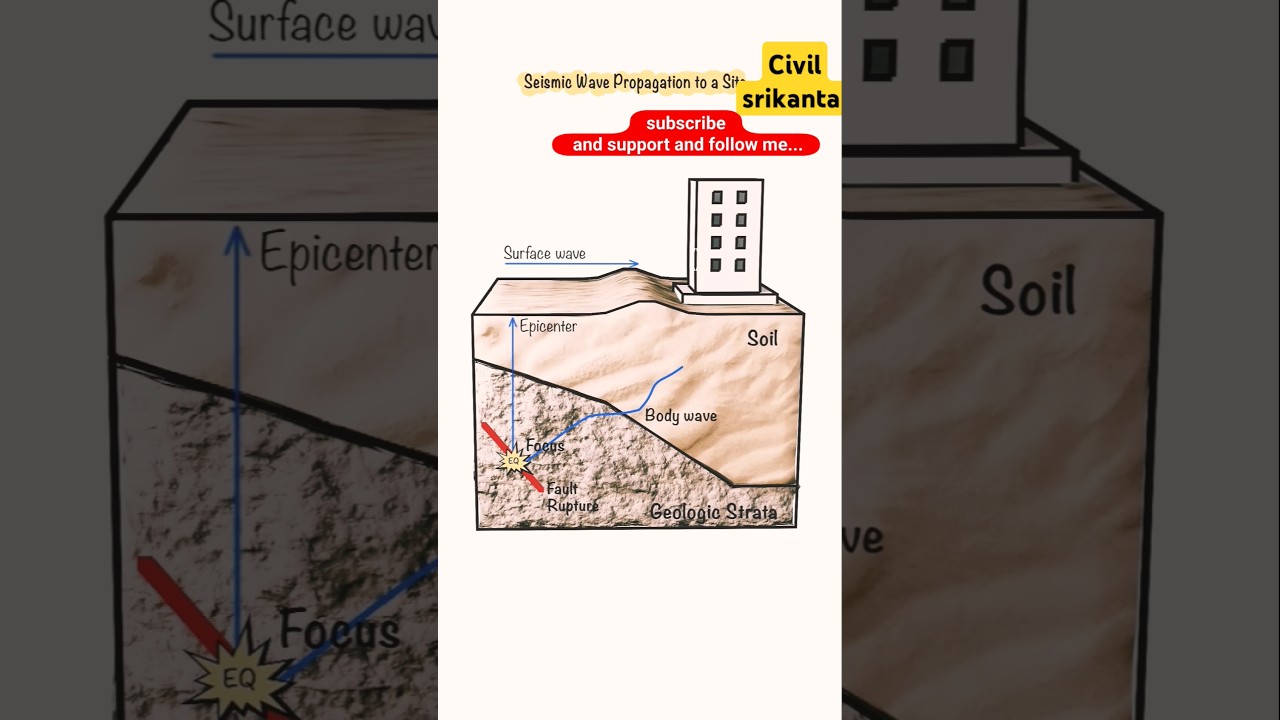

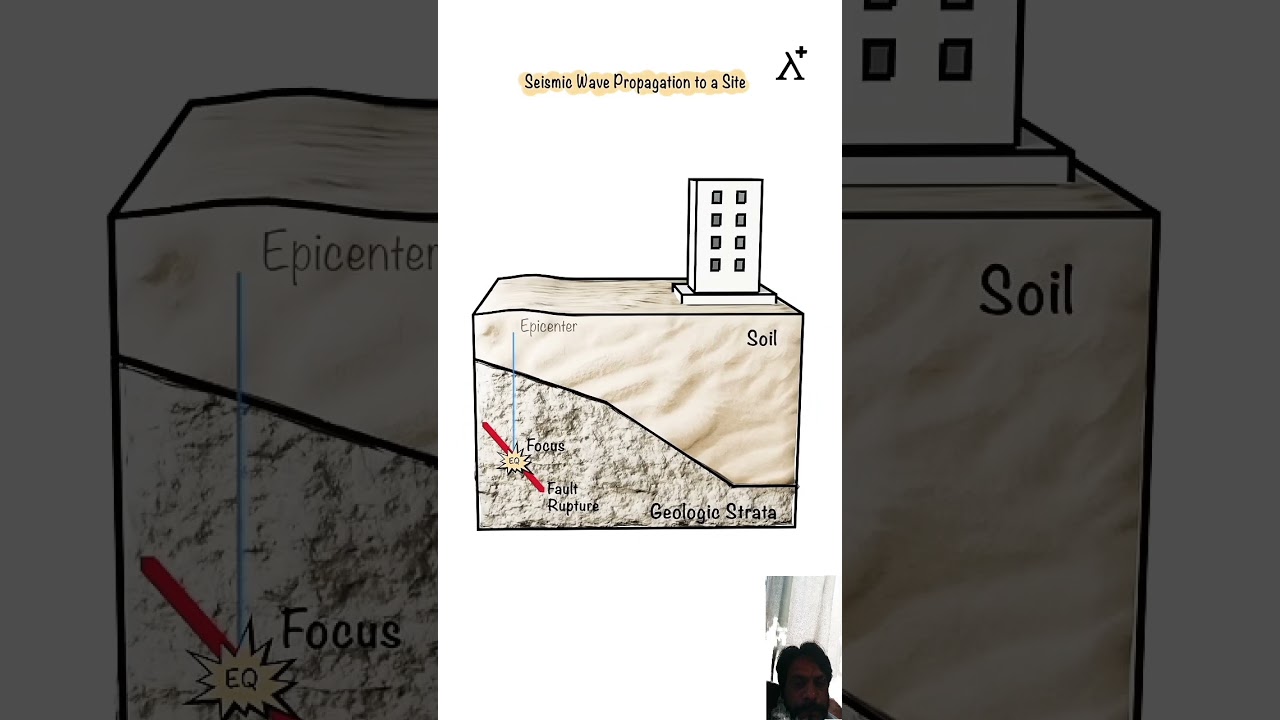

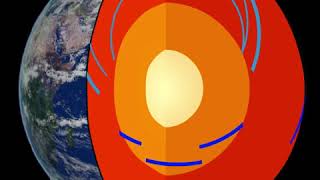

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Soft vs. Hard Soils
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Soft soils tend to amplify both S and Rayleigh waves due to:
– Low shear modulus,
– High damping ratio,
– Nonlinear stress-strain behavior.
• Hard rock or stiff soils transmit seismic waves more rapidly but with lesser amplification.
Detailed Explanation
In this chunk, we learn about how different soil types affect the behavior of seismic waves. Soft soils, which are typically less dense and more pliable, are known to amplify seismic waves like Shear (S) and Rayleigh waves. This amplification happens because these soils have a low shear modulus, meaning they don't resist deformation very well. They also have a high damping ratio, which means they can absorb more energy, causing waves to become stronger but also more scattered. In contrast, hard soils or rocks transmit seismic waves quickly but do not amplify them noticeably. Instead, they provide a stiff response, which leads to a faster travel of seismic energy without significant enhancement.
Examples & Analogies
Imagine walking on a beach versus walking on concrete. On the beach (soft soil), your footsteps create deeper impressions and the ground feels more 'squishy', amplifying the sound of your steps. However, on concrete (hard soil), your footsteps are more muted and travel faster as there's no soft ground to absorb and amplify the sound.
Layered Soil Profiles
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• When a soft layer is sandwiched between stiff layers (or vice versa), wave trapping and resonant amplification may occur.
• Rayleigh waves are especially sensitive to near-surface layers and may show significant dispersion in such profiles.
Detailed Explanation
This chunk explains the phenomenon that occurs in layered soil profiles where different types of soils are stacked together. When a softer soil layer is situated between two stiffer layers, seismic waves can become trapped. This happens because the contrast between the soft and hard layers causes certain frequencies of waves to resonate, leading to an amplification of the waves. Rayleigh waves, which travel along the surface, are particularly impacted by these near-surface layers, and their velocity can vary depending on the frequency and properties of the layers they encounter. This phenomenon is important for understanding how waves will behave in different geological conditions.
Examples & Analogies
Think of a trampoline: if someone jumps on it, the fabric (soft layer) can flex significantly between the frame (stiff layers). The bounce might increase if another person jumps at just the right time, causing a resonance effect where the jumps amplify each other, similar to how seismic waves can be trapped and amplified in layered soils.
Liquefaction and Wave Behavior
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• During strong shaking, saturated loose sands may undergo liquefaction, drastically altering how shear and Rayleigh waves propagate.
• Energy dissipation mechanisms shift, potentially increasing horizontal displacements and settlement.
Detailed Explanation
In this chunk, we learn about liquefaction, a process that occurs during earthquakes when loose, saturated sand behaves like a liquid due to intense shaking. When the soil particles are forcibly vibrated apart, the water causing saturation takes less load, which can drastically change how seismic waves travel through this layer. This can lead to increased horizontal movement and settlement of structures built on these types of soils, creating additional risks during seismic events. Understanding liquefaction is crucial for engineers when assessing sites and designing buildings in areas prone to earthquakes.
Examples & Analogies
Imagine shaking a bottle of water with a sand layer at the bottom. When the water becomes turbulent, the sand can lift and flow around like a liquid rather than staying compact. This scenario mirrors what happens during an earthquake when saturated loose sands undergo liquefaction, allowing buildings on top to shift unexpectedly.
Key Concepts
-
Soil Types: Different soil types influence seismic wave behavior, affecting amplification and propagation.
-
Wave Amplification: Soft soils can amplify seismic waves due to their inherent properties.
-
Layering Effects: The arrangement of layers in soil profiles can lead to unique wave behaviors, such as trapping.
-
Liquefaction: In saturated soils, liquefaction can dramatically change how seismic waves propagate.
Examples & Applications
In an earthquake, structures located on soft soil are more likely to experience significant damage compared to those on hard rock.
A layered soil profile with a soft layer beneath harder soils may lead to amplified effects during a seismic event.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Soft soils sway, hard soils stay, waves go fast, but the soft ones last.
Stories
Imagine a soft sponge under a heavy book; it squishes down and can't hold firm like the hard table under the book. This represents how soft soils amplify shaking while hard soils stand strong.
Memory Tools
S-H-A-L, remember that Soft-High, Amplify, Layers affect wave behavior.
Acronyms
S-A-L
Soft soils Amplify seismic waves
Liquefaction affects stability.
Flash Cards
Glossary
- Shear Wave (Swave)
A type of seismic wave that causes particle motion perpendicular to the direction of wave propagation.
- Rayleigh Wave
A surface seismic wave that travels along the Earth's surface in a retrograde elliptical motion.
- Soft Soil
Soil types that have low strength, high compressibility, and tend to amplify seismic waves.
- Hard Soil
Soil types with high strength and density that transmit seismic waves more rapidly and with lower amplification.
- Liquefaction
The process by which saturated soil substantially loses strength and stiffness in response to applied stress, often during earthquakes.
- Amplification
The increase in wave amplitude caused by certain soil types, enhancing the severity of seismic effects.
- Layered Soil Profile
A geological structure consisting of different layers of soil, each with varying properties affecting seismic wave behavior.
