41 - Design as per the Codes
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Philosophy of Earthquake Resistant Design
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start by discussing the philosophy behind earthquake-resistant design. What do you think our main objectives are?
To make buildings safe during earthquakes?
Exactly! Our primary aim is to ensure safety against collapse and limit damage during seismic events. Can anyone tell me what assumptions we base our designs on?
Earthquake forces are unpredictable, right?
Correct! We also assume that structures must have adequate ductility, strength, and stiffness. Now, what about the different design levels?
We have Operational Level Earthquake and Design Basis Earthquake!
Good! And remember, for rare and very strong earthquakes, there is the Maximum Considered Earthquake. Understanding these levels helps in risk assessment. Let’s summarize: our objectives include safety, acceptable damage, and performance against different earthquake intensities.
Indian Seismic Codes Overview
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s move on to Indian seismic codes, specifically IS 1893 and IS 13920. Who can explain what these codes cover?
IS 1893 sets the criteria for earthquake-resistant design, right?
Absolutely! It includes seismic zoning and design spectrum calculations. And what about IS 13920?
It deals with ductile detailing of reinforced concrete structures!
Yes! This is particularly crucial in seismic zones III, IV, and V. Ductile detailing enhances energy dissipation, preventing collapse. Summarizing, these codes guide how we analyze, design, and detail our structures to safeguard against seismic forces.
Seismic Zoning and Design Factors
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss seismic zoning. How is India divided according to seismic zones?
Into four zones: II, III, IV, and V, each with its own Zone Factor.
Right! The Zone Factor indicates the potential for ground motion. For example, Zone V has the highest factor at 0.36. What factors do we need to consider in each design?
Importance Factor and Response Reduction Factor!
Exactly! The Importance Factor considers the significance of a building, while the Response Reduction Factor accounts for ductility and structural overstrength. Summarizing this, understanding zoning and these factors is essential for effective design.
Base Shear and Dynamic Analysis
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s dive into calculating design seismic base shear. Can someone explain the formula?
Is it Vb = Zak·W / (2·R)?
Almost! It’s Vb = Z·I·S/g·W / (2·R). We consider the Zone Factor and Importance Factor. Who knows what V represents?
It's the seismic weight!
Correct! Now, we can also analyze structures dynamically. What kinds of buildings require dynamic analysis?
Irregular or tall buildings!
Great! Both methods, static and dynamic, help us assess building performance under seismic loads. To summarize, we calculated base shear considering various factors and understood the significance of different analysis methods.
Ductile Detailing and Structural Elements
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, let’s discuss ductile detailing as prescribed by IS 13920. Why is this important in seismic design?
It helps absorb energy and prevents failure!
Exactly! Key elements like beam detailing, column detailing, and joints must be designed to ensure that damage occurs in a controlled manner. Can anyone mention a key concept related to beams?

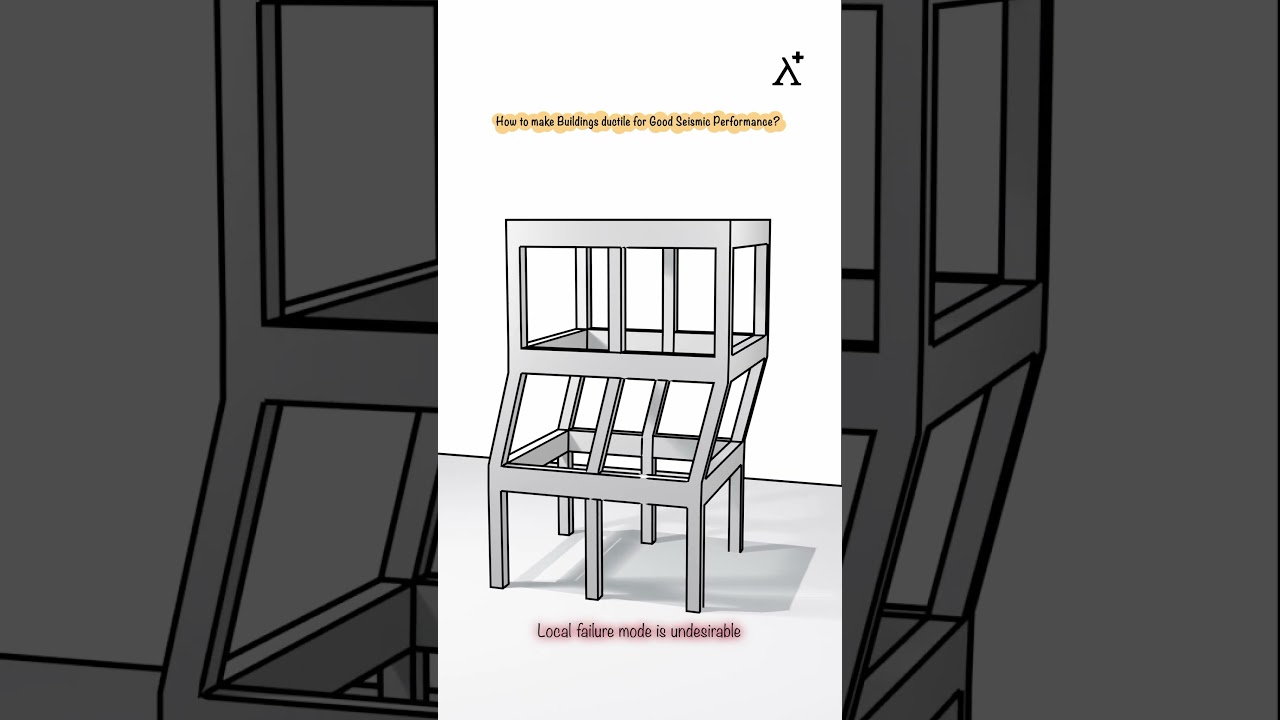

The strong column-weak beam concept!
Right! Ensuring proper detailing in beams and columns, as well as joints and shear walls, is critical. So, to summarize, ductile detailing is fundamental for improving energy dissipation and ensuring structural integrity during an earthquake.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The content outlines the philosophy behind earthquake-resistant design, emphasizes the role of Indian codes like IS 1893 and IS 13920, and discusses various design principles, including seismic zoning, response reduction factors, and ductile detailing to ensure structural integrity during seismic events.
Detailed
In this section, we explore the critical importance of designing structures that can withstand seismic forces, especially in seismically active regions of India. The main guiding documents, IS 1893 and IS 13920, provide essential guidelines for earthquake-resistant design, focusing on safety, serviceability, and the acceptable performance of structures during earthquakes. Key design aspects discussed include the performance objectives, seismic zoning, importance factors, response reduction factors, and the calculation of base shear, which all play vital roles in ensuring the resilience of structures. Moreover, ductile detailing is emphasized as a means to enhance the energy dissipation capacity of buildings, thereby preventing collapse and safeguarding lives.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Earthquake Resistant Design
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Designing earthquake-resistant structures is a critical part of civil engineering in seismically active regions. Indian codes such as IS 1893 (Part 1): 2016 and IS 13920: 2016 play a vital role in standardizing procedures for earthquake-resistant design. These codes provide guidelines for analyzing, designing, and detailing buildings and structures to withstand seismic forces with acceptable levels of safety and serviceability.
Detailed Explanation
This chunk introduces the concept of earthquake-resistant design, emphasizing its importance in areas prone to seismic activity. It mentions two key Indian codes, IS 1893 and IS 13920, which help engineers design structures that can withstand earthquakes. The goal is to ensure that buildings are safe and functional even during seismic events.
Examples & Analogies
Think of designing a bridge. Just as engineers make sure a bridge can hold the weight of cars and withstand strong winds, earthquake-resistant design ensures buildings can stay standing during strong earthquakes, much like how certain buildings are designed to sway slightly but not collapse in heavy winds.
Philosophy of Earthquake Resistant Design
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Performance Objective: To ensure safety against collapse and limit damage under design earthquake.
• Basic Assumptions:
– Earthquake forces are random in nature.
– Structures must have adequate ductility, strength, and stiffness.
– Some damage is acceptable under strong earthquakes, but collapse must be prevented.
• Design Levels:
– Operational Level Earthquake (OLE) – frequent, low-intensity events; minimal or no damage.
– Design Basis Earthquake (DBE)–moderate earthquakes; acceptable damage, no collapse.
– Maximum Considered Earthquake (MCE) – rare, very strong earthquakes; extensive damage allowed but collapse must be avoided.
Detailed Explanation
This chunk breaks down the philosophy behind earthquake-resistant design. The primary performance objective is to prevent collapse while minimizing damage during earthquakes. Engineers work under the assumption that earthquakes are unpredictable and structures need specific qualities like ductility and strength. Three levels of design earthquakes guide engineers: Operational Level for minor events, Design Basis for moderate ones, and Maximum Considered for the most severe, where damage is acceptable, but collapse is not.
Examples & Analogies
Imagine you're designing a toy tower. For daily play (OLE), it should withstand kids knocking it over occasionally. For a bigger playdate (DBE), it should be sturdy enough for excited kids jumping around. However, for a major family event (MCE), even if it gets some wear and tear, it should not fall down completely.
Overview of Indian Seismic Codes
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
IS 1893 (Part 1): 2016 – Criteria for Earthquake Resistant Design of Structures
• Applies to general buildings and includes seismic zoning, seismic coefficients, and design spectrum.
• Provides method for calculating base shear and its distribution.
IS 13920: 2016 – Ductile Detailing of Reinforced Concrete Structures Subjected to Seismic Forces
• Mandatory for buildings in seismic zones III, IV, and V.
• Prescribes detailing methods that enhance ductility and energy dissipation capacity.
Detailed Explanation
This chunk provides an overview of key Indian seismic codes. IS 1893 outlines how buildings should be designed to be earthquake-resistant, including zoning and calculation methods for base shear. IS 13920 focuses on 'ductile detailing', a technique that improves how reinforced concrete structures can absorb and dissipate energy during earthquakes, which is especially important in higher seismic zones.
Examples & Analogies
Think of a bike with a flexible frame that bends but does not break when hitting a bump. Similarly, ductile detailing in buildings allows them to flex during an earthquake rather than become rigid and fail, which is vital for ensuring safety and integrity.
Seismic Zoning and Zone Factor (Z)
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• India is divided into four seismic zones: II, III, IV, V.
• Each zone has a Zone Factor (Z):
– Zone II: Z = 0.10
– Zone III: Z = 0.16
– Zone IV: Z = 0.24
– Zone V: Z = 0.36
• Zone factor represents the effective peak ground acceleration (PGA).
Detailed Explanation
This section explains how India categorizes its regions based on seismic risk into four zones. Each zone has a corresponding Zone Factor (Z), indicating the strength of potential seismic activity. These factors are vital for engineers to determine the level of seismic design required for buildings in those areas, as higher Z values correlate with greater earthquake risk.
Examples & Analogies
Imagine some areas are more prone to snow than others. Just like a town that gets heavy snow every winter needs stronger roofs than one that gets just a flurry now and then, buildings in higher seismic zones must be designed to withstand greater earthquake forces.
Importance Factor (I)
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Accounts for the significance of structure.
• Example:
– Hospitals, schools: I = 1.5
– Residential buildings: I = 1.0
Detailed Explanation
This chunk addresses the Importance Factor (I), which scales the design requirements based on the structure's significance. Critical buildings like hospitals and schools are assigned a higher importance factor because their failure during an earthquake could lead to greater loss of life and service disruption, thus necessitating stricter design criteria.
Examples & Analogies
Think of a lifeguard tower at a beach. Since it’s crucial for safety, it needs to be built more robustly compared to a normal beach chair. Similarly, hospitals need to be better designed as they serve critical roles during crises.
Key Concepts
-
Earthquake Resistant Design: Designing structures to prevent collapse during seismic events.
-
Ductile Detailing: Enhancing energy absorption capacity to avoid sudden failure.
-
Seismic Zoning: Classifying regions based on their seismic risk profile.
-
Response Reduction Factor: Adjusting seismic design based on the ductility of the structure.
-
Base Shear Calculation: The total expected lateral force due to seismic activity.
Examples & Applications
Consider a residential building designed in Seismic Zone V, where the importance factor is set to 1.5 due to its critical use as a hospital.
An office building that utilizes ductile detailing methods in its construction, enhancing its resilience against earthquakes.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When earthquakes shake, don’t take a break, have ductile beams, for safety's sake.
Stories
Imagine a sturdy building standing tall; its ductile beams and strong columns prevent a fall during an earthquake.
Memory Tools
Remember 'D.I.B.E.R' for earthquake-resistant design: Ductility, Importance Factor, Base Shear, Energy Dissipation, Response Factor.
Acronyms
Z.I.R. stands for
Zoning
Importance Factor
Response Reduction Factor.
Flash Cards
Glossary
- Ductility
The ability of a material to deform under tensile stress; important for energy absorption during seismic loading.
- Seismic Zone Factor (Z)
A coefficient representing the potential ground shaking severity in a given seismic zone.
- Importance Factor (I)
A factor that accounts for the significance and occupancy of a structure, impacting its design.
- Response Reduction Factor (R)
Represents the inherent ductility and overstrength of a structural system, reducing the design seismic forces.
- Base Shear (Vb)
The total lateral force that a structure must be designed to resist, derived from seismic loads.
