41.1 - Philosophy of Earthquake Resistant Design
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Performance Objectives
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing performance objectives in earthquake-resistant design. The foremost aim is to ensure safety against collapse and limit damage during a design earthquake. Can anyone tell me why preventing collapse is our primary concern?
Because a collapse can lead to loss of lives!
Exactly! Protecting human life is paramount. A good design should guarantee that while some damage may occur, the structure remains standing. Now, what might be some acceptable forms of damage during a strong earthquake?
Maybe things like cracks or minor failures in non-structural elements?
Correct! Cracks in walls or ceilings, for instance, can be acceptable as long as it doesn't compromise the structure's integrity. Let's summarize: the main performance objectives are safety against collapse and limiting damage. Remember this with the acronym SDC – Safety, Damage Limit, and Collapse prevention.
Basic Assumptions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's move on to the basic assumptions that guide earthquake-resistant design. Can anyone share what they think of as an assumption?
That earthquake forces are unpredictable?
Yes, precisely! Earthquake forces are random in nature, meaning we cannot predict when they will occur or how strong they will be. Therefore, structures must possess adequate ductility, strength, and stiffness. What do we mean by ductility?
It's the ability of a structure to bend without breaking, right?
Exactly! Ductility is crucial because it allows structures to absorb energy from seismic forces without collapsing. To wrap up, remember our three assumptions: Randomness of forces, adequate ductility, and that some damage—like cracks—is acceptable but collapse is not.
Design Levels
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s discuss the different design levels. Can anyone tell me how many design levels we have?
Three: OLE, DBE, and MCE!
Good job! OLE is the Operational Level Earthquake with minimal damage expected. Next, we have DBE, which manages moderate earthquakes but still allows for some damage. Finally, what about MCE?
That’s the Maximum Considered Earthquake? It allows extensive damage but no collapse!
Exactly right! This categorization is crucial in determining how we design structures to ensure they meet required safety against earthquakes. Remember MCE for maximum impact without a collapse!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section covers the essential philosophy of earthquake-resistant design, highlighting performance objectives that prioritize safety and acceptable damage. It discusses the basic assumptions regarding seismic forces and structural behavior, as well as categorizing design levels to ensure that buildings can withstand both frequent minor earthquakes and rare, major seismic events.
Detailed
Philosophy of Earthquake Resistant Design
Designing earthquake-resistant structures is essential for protecting lives in seismically active areas. The philosophy revolves around a few crucial performance objectives:
- Safety against Collapse: The primary goal is to ensure that structures do not collapse during earthquakes, thus safeguarding lives.
- Damage Limitation: While some damage to structures may be acceptable during significant seismic events, the design must avert total collapse.
Basic Assumptions:
- Randomness of Earthquake Forces: Earthquake forces are inherently unpredictable, necessitating robust design.
- Adequate Structural Properties: Structures need to possess sufficient ductility, strength, and stiffness to withstand seismic forces.
- Damage Assessment: Engineers anticipate acceptable levels of damage that do not compromise the structural integrity.
Design Levels:
There are three design levels categorized by the intensity of the earthquakes:
- Operational Level Earthquake (OLE): Involves frequent, low-intensity events with minimal or no damage expected.
- Design Basis Earthquake (DBE): Represents moderate earthquakes, for which acceptable damage is allowed, but collapse must be avoided.
- Maximum Considered Earthquake (MCE): Pertains to rare but severe earthquakes, where extensive damage is permitted, provided collapse is prevented.
This foundation establishes a framework for engineers to develop safe, resilient structures capable of enduring seismic forces.

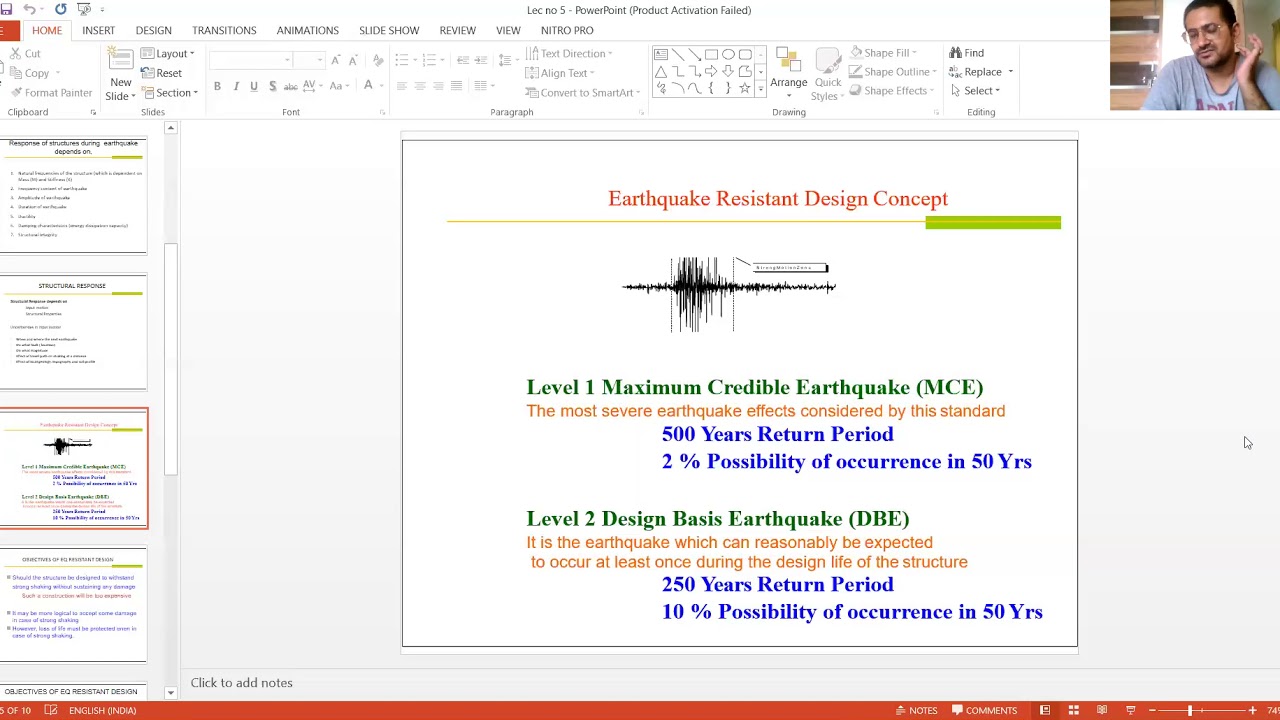

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Performance Objective
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
To ensure safety against collapse and limit damage under design earthquake.
Detailed Explanation
The main goal of earthquake resistant design is to protect lives and minimize property damage during an earthquake. This involves ensuring that structures can withstand earthquakes without collapsing while also limiting the amount of damage that might occur. Engineers use specific design protocols to create structures that can absorb and dissipate seismic energy, thereby reducing the risk of failure.
Examples & Analogies
Think of a well-designed building during an earthquake like a strong tree in a storm. Just as the tree bends and sways with the wind to avoid breaking, a building should be able to flex and move with the seismic forces without falling.
Basic Assumptions
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Earthquake forces are random in nature.
• Structures must have adequate ductility, strength, and stiffness.
• Some damage is acceptable under strong earthquakes, but collapse must be prevented.
Detailed Explanation
The design of earthquake resistant structures is based on a few key assumptions. First, engineers recognize that earthquakes are unpredictable and can vary widely in strength and duration. As a result, structures need to be designed with enough ductility (the ability to deform without breaking), strength (the ability to hold up under pressure), and stiffness (the ability to resist deformation). While some damage can occur during severe earthquakes, the priority is to ensure that the structure remains standing and does not collapse.
Examples & Analogies
Imagine a rubber band. It can stretch a lot (ductility) without breaking, which is what we want in a building during an earthquake. We also want the rubber band to be strong enough to hold together and not snap (strength) and firm enough not to distort easily (stiffness).
Design Levels
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Operational Level Earthquake (OLE) – frequent, low-intensity events; minimal or no damage.
• Design Basis Earthquake (DBE)–moderate earthquakes; acceptable damage, no collapse.
• Maximum Considered Earthquake (MCE) – rare, very strong earthquakes; extensive damage allowed but collapse must be avoided.
Detailed Explanation
Design levels categorize earthquakes by their expected frequency and strength. The Operational Level Earthquake (OLE) is a common, low-intensity earthquake where buildings should experience little to no damage. The Design Basis Earthquake (DBE) is anticipated to occur occasionally with manageable damage but no threat of collapse. Finally, the Maximum Considered Earthquake (MCE) represents a rare but extremely strong event where damage can occur, yet the structure must remain standing. This categorization helps engineers plan for various scenarios and design structures accordingly.
Examples & Analogies
Consider a bridge designed for different traffic conditions. It needs to be strong enough for everyday cars (OLE), withstand occasional heavy trucks (DBE), and still be safe during rare floods that might wash over it (MCE).
Key Concepts
-
Performance Objectives: Ensuring structures remain safe and limit damage during earthquakes.
-
Basic Assumptions: Understanding the randomness of seismic forces and the need for adequate ductility.
-
Design Levels: Classification of earthquakes based on intensity and expected structure behavior.
Examples & Applications
An operational level earthquake potentially causes minor cracking but no structural damage.
A design basis earthquake might stress the structure, allowing for some damage but full avoidance of collapse.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In quakes we trust, for structures never bust, safety's our goal, to protect every soul.
Stories
Once upon a time, a city was built with strong walls and flexible beams. When the earthquakes came, the buildings danced but stood firm, allowing their inhabitants to escape unharmed. The buildings knew their ductility was the key to safety.
Memory Tools
Remember the acronym SDC for earthquake design: Safety, Damage Limit, Collapse prevention.
Acronyms
OLE, DBE, MCE – just think of the quakes that sway but keep our lives at bay!
Flash Cards
Glossary
- Ductility
The ability of a material or structure to deform significantly before failure.
- Ductile Detailing
Design methods that ensure a structure can endure seismic loads through predetermined plastic deformations.
- Performance Objective
Goals set for a structure's behavior under seismic events, focusing on safety and damage limitations.
- Design Basis Earthquake (DBE)
A moderate earthquake level used as a basis for designing structures to avoid collapse.
- Operational Level Earthquake (OLE)
Frequent, low-intensity seismic events expected without structural damage.
- Maximum Considered Earthquake (MCE)
Rare, high-intensity earthquakes where significant damage is tolerated without collapse.
