Understanding Base Shear
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to talk about the vertical distribution of base shear and why it is crucial in earthquake-resistant designs. Base shear is the total seismic force that acts at the base of a structure during an earthquake.
Why do we need to know about base shear?
Great question! Knowing about base shear helps engineers ensure that buildings can withstand seismic forces without structural failure. It helps in calculating how forces are distributed at different heights.
How is the total base shear calculated?
The total base shear is calculated using several factors, including the building's seismic weight and the height at each level from the ground. We’ll get into the specific formula shortly.
Formula for Base Shear Distribution
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s break down the formula for distributing the base shear. The distribution is given by: Q = (Vb * Wi * hi^2) / Σ(Wi * hi^2). Can anyone tell me what each component represents?
Q represents the lateral force at level i, right?
Exactly! And Wi is the seismic weight at that level, and hi is the height from the base to that level. Who can explain how this helps in design?
It ensures that the forces are proportionally distributed based on weights and heights, so we design for the most critical sections!
Significance of Vertical Distribution
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s talk about the importance of this distribution. Why do you think we can't just apply the base shear at the building's base?
Because different levels experience different forces during an earthquake?
Correct! If we only applied the base shear at the bottom, we might overlook critical factors affecting higher levels. Any other thoughts?
Maybe it would lead to uneven distribution of forces and potential failure at weak spots!
Exactly! This method helps identify weak points and strengthens them accordingly.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The vertical distribution of base shear is calculated based on the seismic weight and height of each level in a structure. This distribution is critical for ensuring that forces are appropriately managed at various heights, helping to prevent structural failure during an earthquake.
Detailed
In seismic design, the vertical distribution of base shear is fundamental to understanding how seismic forces affect the structure at various levels. The total base shear (Vb) is distributed using the equation:
Q = (Vb * Wi * hi^2) / (Σ(Wi * hi^2))
Where:
- Q is the lateral force at level i,
- Wi is the seismic weight at level i,
- hi is the height at level i from the base, and
- Vb is the total base shear calculated earlier.
This calculation helps ensure that the lateral forces are adequately accounted for at each level, thus improving the structure's resilience against seismic activity.

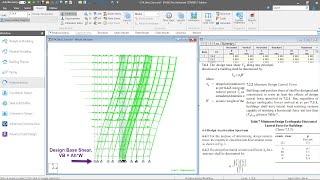

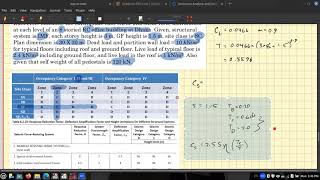

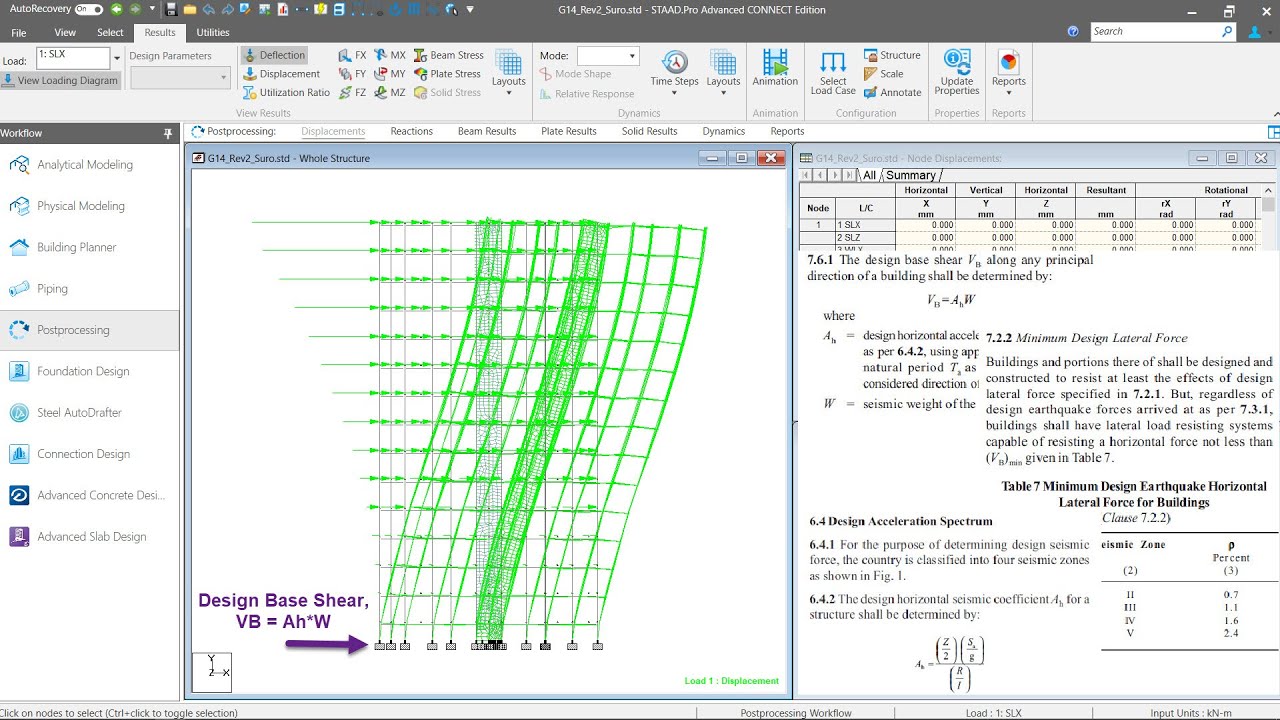

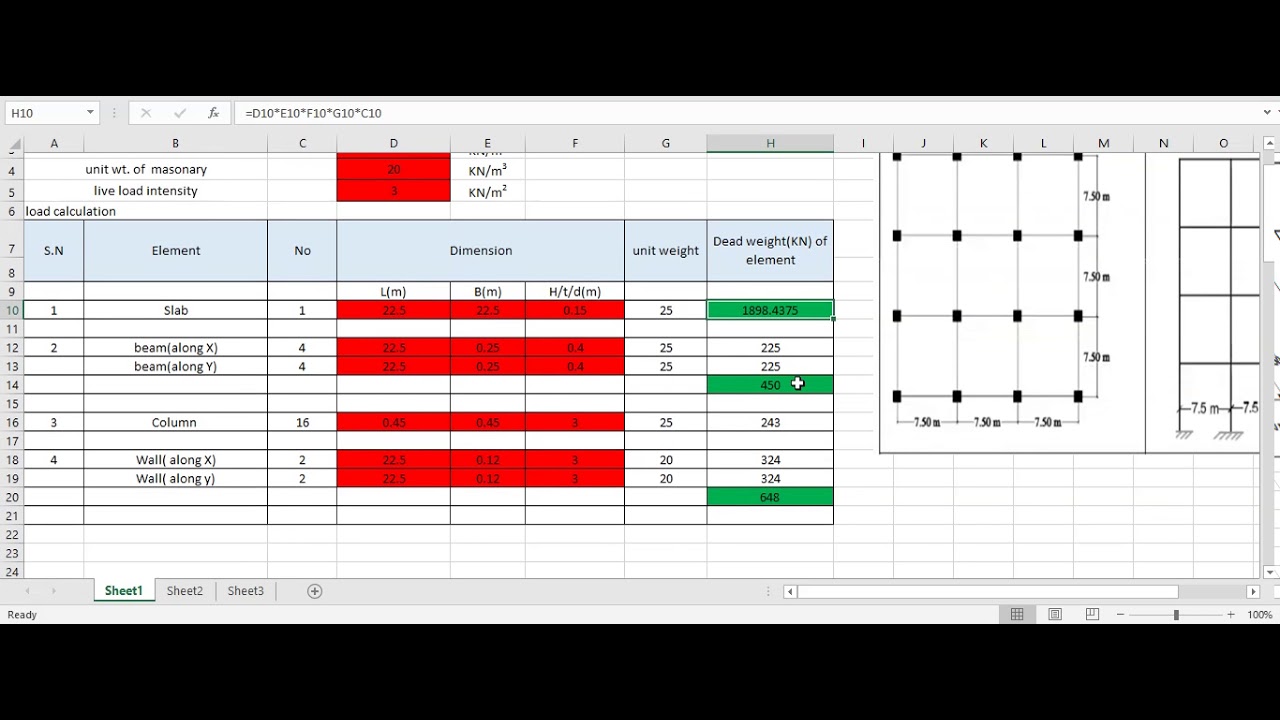

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Total Base Shear Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Total base shear is distributed along the height of the building using:
\[ Q = \frac{V_b \cdot W_i \cdot h_i^2}{\sum W_j \cdot h_j^2} \]
Where,
- Q = Lateral force at level i
- W_i = Seismic weight at level i
- h_i = Height of level i from base
- V_b = Total base shear
- \sum W_j = Sum of seismic weights at all levels
Detailed Explanation
In this chunk, we introduce the equation for determining how the total base shear (the total lateral force a building must resist during an earthquake) is allocated across different levels of a building. The formula given uses the base shear (V_b) and considers both the seismic weight at each level (W_i) and the height of those levels (h_i) squared to calculate the lateral force (Q) at each level (i).
The square of the height emphasizes that higher levels in a building will experience larger forces due to their increased distance from the ground, which is where the seismic forces are primarily applied. This distribution is crucial for ensuring that each part of the structure is designed to withstand the forces it will likely encounter during an earthquake.
Examples & Analogies
Think of a skyscraper as a tall tree. When the wind (akin to seismic forces) blows, the higher branches sway more than the lower ones. Just as these branches experience different amounts of wind forces due to their heights, segments of a building experience varying lateral forces based on their heights in relation to the ground. The formula ensures that each segment is adequately evaluated for the unique forces it will face, much like evaluating different branches of a tree for their exposure to wind.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Base Shear: The total seismic force acting at the base of a structure.
-
Vertical Distribution: The method of allocating base shear forces along the height of the structure.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A tall building experiencing an earthquake may have its base shear distributed unevenly, with higher forces at the top due to its height and structural stiffness.
-
For a multi-story building, understanding vertical distribution allows engineers to create reinforcement strategies that prevent failure in upper levels.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Base shear goes from low to high,
📖 Fascinating Stories
-
Imagine a tower standing tall, under its weight, it must not fall. With seismic forces pushing left and right, it redistributes to make staying tight.
🧠 Other Memory Gems
-
To remember base shear distribution: Think of 'W-H-Q' - Weight, Height, and Q for forces.
🎯 Super Acronyms
Remember Q, for 'Quick Distribution'; think of it flowing through the structure from the base upward.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Base Shear (Vb)
Definition:
The total force acting at the base of a structure due to seismic activity.
-
Term: Lateral Force (Q)
Definition:
The force distributed along the height of a building due to seismic actions.
-
Term: Seismic Weight (Wi)
Definition:
The effective load of a structure used to calculate seismic forces.
-
Term: Height (hi)
Definition:
The vertical distance from the base of the structure to a specific level.
