Introduction to Base Shear
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will discuss the concept of base shear or Vb in seismic design. It refers to the total horizontal force that a structure is expected to experience during an earthquake.
How do we actually calculate this base shear?
Good question! We use the formula Vb = (Z × I × Sa / g) / R × W. Has anyone seen this equation before?
Yes! But can you explain what each term means?
Absolutely! Let’s break it down into parts. Z is the zone factor, which accounts for the seismicity of the area...
So, more seismic activity means a higher Z value?
Exactly! And as you can see, this formula helps us ensure that buildings can stand firm against earthquakes.
What's the importance factor for buildings like hospitals?
Great follow-up! Hospitals typically have an importance factor (I) of 1.5 due to their critical role in emergencies.
To summarize, base shear is essential for designing earthquake-resistant structures to ensure safety. Remember the acronym **ZISR** to recall Zone, Importance, Spectral Acceleration, and Response reduction factor!
Components of Base Shear Calculation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's delve deeper into the components of our base shear calculation. Who can tell me the role of the spectral acceleration coefficient Sa?
Isn't it related to how much the ground moves?
Correct! Sa represents the expected ground motion. It's vital for calculating how much force the structure should resist. Now, what about the response reduction factor R?
That relates to the structure's ability to withstand seismic forces due to its design, right?
That's right! R can range from 3 to 5 depending on the structure's ductility and overstrength. Could someone give an example of a structure type and its typical R value?
A ductile reinforced concrete frame can have an R value of 5!
Excellent! Understanding these components is crucial as they all contribute to the calculation of the base shear, ensuring our structures are resilient.
Remember the mnemonic **'ZOOS-W'**! It stands for Zone, Importance, Spectral acceleration, and Weight, linked to the Base shear equation.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In seismic design, the base shear (Vb) represents the total horizontal force the building must withstand during an earthquake. It is calculated using key factors including the seismic zone, importance, response reduction, and weight of the structure, helping engineers ensure safety and structural integrity.
Detailed
Design Seismic Base Shear (Vb)
The base shear (Vb) is a crucial element in designing earthquake-resistant buildings, representing the total horizontal force determined by the building's seismic response. The formula to calculate base shear is as follows:
Vb = (Z × I × Sa / g) / R × W
Where:
- Z = Zone factor, reflecting local seismic risk.
- I = Importance factor, accounting for the building's significance (e.g., hospitals often have I = 1.5).
- Sa/g = Spectral acceleration coefficient, indicating the expected ground motion.
- R = Response reduction factor, related to the structure's ductility and overstrength (values range from 3 to 5).
- W = Seismic weight of the building, calculated based on the dead load.
Understanding and accurately calculating Vb is imperative for ensuring that structures can endure seismic events without collapsing, thereby safeguarding lives.

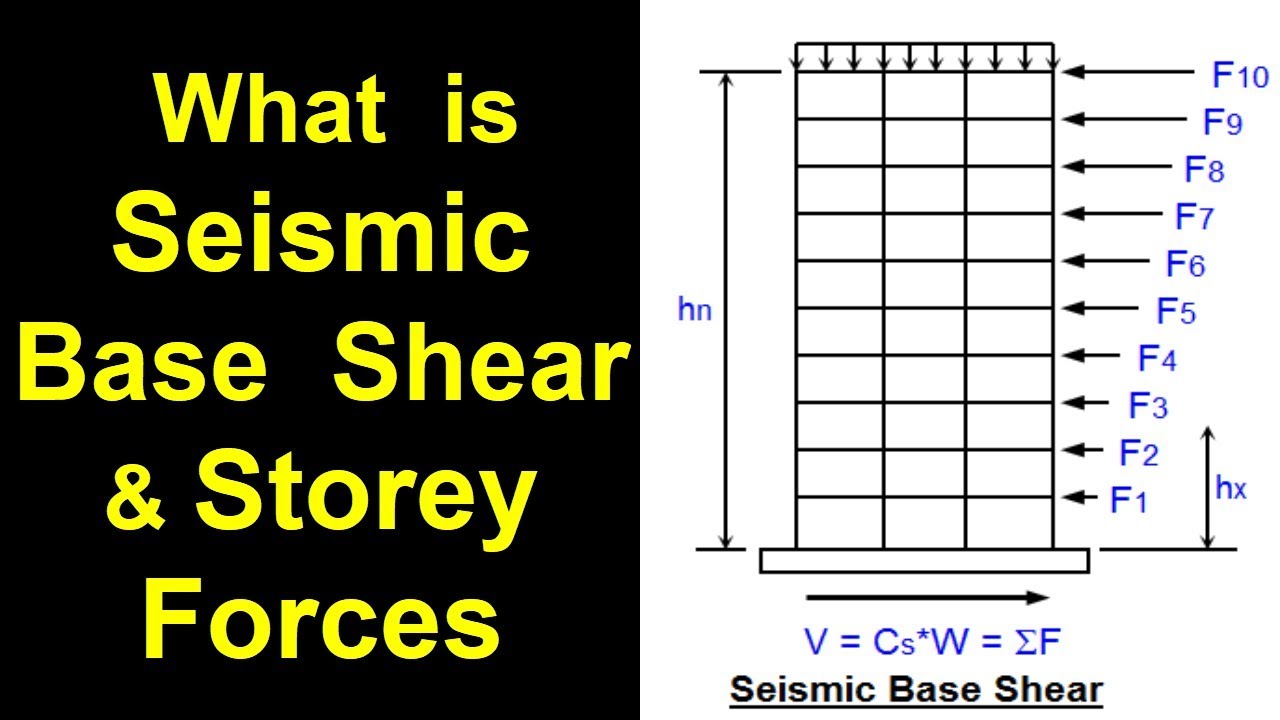

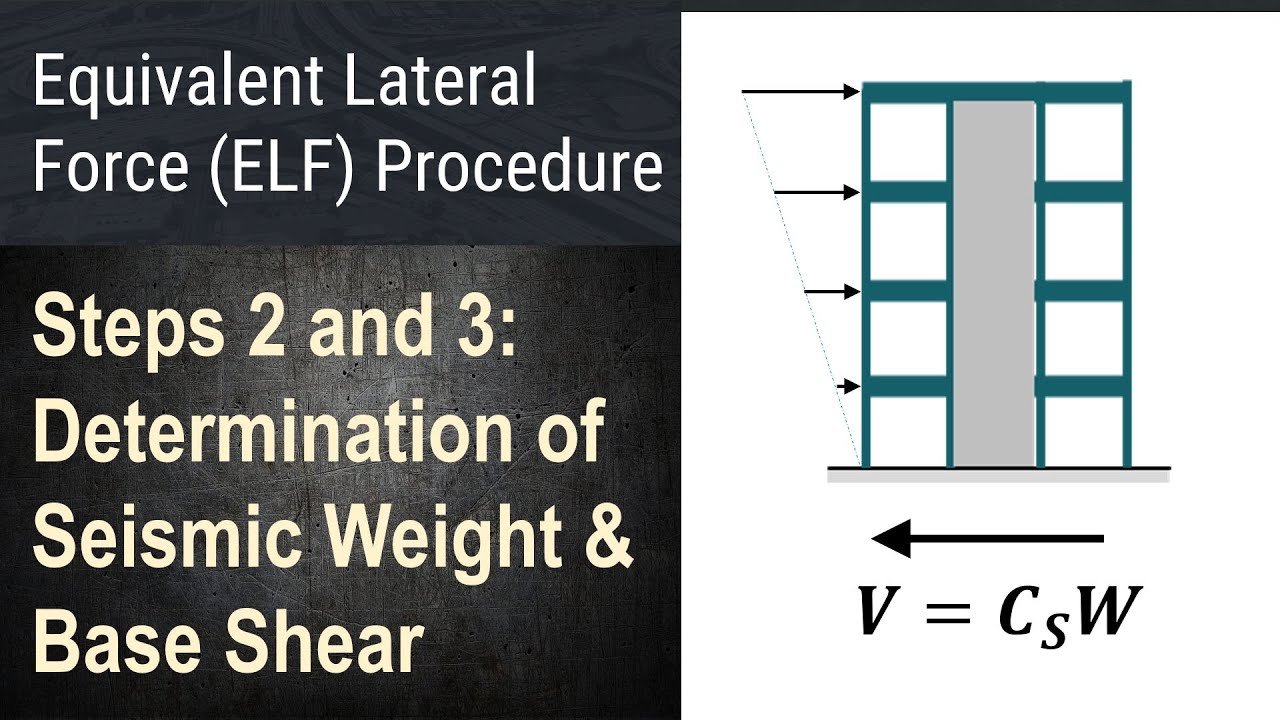

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Base Shear Formula
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Vb = Z·I·S / R · W
Where,
• Z = Zone factor
• I = Importance factor
• R = Response reduction factor
• S/g = Spectral acceleration coefficient
• W = Seismic weight of the building
Detailed Explanation
The base shear (Vb) is a critical value in seismic design that represents the total lateral force that a building must withstand during an earthquake.
- Z is the zone factor which takes into account the geographical seismic risk of the area where the building is located.
- I is the importance factor, reflecting the significance of the structure. For instance, essential facilities like hospitals have a higher importance factor since their performance during an earthquake is crucial.
- R is the response reduction factor that accounts for the building's ductility; structures that can deform without collapsing can withstand less force.
- S/g refers to the spectral acceleration coefficient, which indicates how much the ground shakes during an earthquake, and W is the total weight of the structure, as heavier buildings need to resist larger forces.
Examples & Analogies
Think of base shear as a parent holding a child during a storm. The force of the wind (seismic forces) tries to push them over. The parent (the building) must withstand this force, and how well they hold their child (the importance factor) is key to ensuring their safety. A sturdier parent (higher ductility) can lean and sway without falling over, while a weaker one may risk losing balance.
Importance of Each Factor
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Z: Higher zones face stronger earthquakes, resulting in a larger base shear calculation.
• I: Essential structures must be built to a higher standard, using a greater amount of force in the design.
• R: Ductile materials reduce the force needed because they can absorb and dissipate energy more effectively.
Detailed Explanation
Each factor in the base shear formula plays a significant role:
- Zone factor (Z) is determined by where the building is located. In a high seismic risk area, buildings must be designed to withstand higher forces, hence an increased Z leads to larger design forces.
- The importance factor (I) signifies that some buildings need to be more robust than others; for example, a hospital must remain operational after an earthquake, thus it has a higher importance factor compared to a regular house.
- The response reduction factor (R) indicates how much energy a structure can absorb. Buildings designed with ductile materials can flex and move during seismic activity, thereby needing to resist less overall force, making the structure safer.
Examples & Analogies
Consider a basketball player trying to maintain balance while being bumped during a match. A stronger player (higher R due to design strength) can sway back and forth without falling, thus needing less effort to stay upright as compared to a player with a lesser ability to absorb knocks (lower R). Similarly, buildings with higher ductility can handle seismic stresses without significant damage.
Seismic Weight Definition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
W = Seismic weight of the building
Detailed Explanation
The seismic weight (W) of a building is essentially its total weight, which influences how much force must be resisted during seismic events. The heavier the building, the more force it will exert downwards and the more resistance it needs to have in the event of an earthquake. The weight includes all permanent components of the structure, such as floors, walls, roofs and other attached systems.
Examples & Analogies
Imagine trying to lift something heavy versus something light. The heavier object (akin to a taller building) requires more strength to lift, thus it faces greater gravitational force (representing seismic weight) and will impact and need more support during any shaking, just like a tall building does during an earthquake.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Base Shear (Vb): The total horizontal load that a structure experiences during earthquakes.
-
Zone Factor (Z): Reflects the seismic risk of the area.
-
Importance Factor (I): Indicates how vital a building is during an earthquake.
-
Response Reduction Factor (R): Defines the building’s ability to absorb and dissipate energy.
-
Spectral Acceleration (Sa): The expected ground motion impact on a structure.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A hospital building in a seismic zone IV has an importance factor of 1.5, making it crucial to calculate Vb accurately.
-
A ductile reinforced concrete frame typically has a response reduction factor of 5, reflecting its ability to withstand seismic forces.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a quake, oh what a fright, Base shear holds with all its might!
📖 Fascinating Stories
-
Imagine a building named 'Stronghold' standing tall in Zone IV. It knows its responsibilities due to the Memory 'ZISR.' When the quake strikes, it remembers to secure its base shear!
🧠 Other Memory Gems
-
Use 'ZISR' to remember: Zone, Importance, Spectral Acceleration, Response reduction, Seismic weight!
🎯 Super Acronyms
Remember **'V - ZISR'** where V stands for Base Shear and ZISR captures all components!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Base Shear (Vb)
Definition:
The total horizontal load acting on a structure during an earthquake.
-
Term: Zone Factor (Z)
Definition:
A coefficient that represents the seismic risk of a specific area.
-
Term: Importance Factor (I)
Definition:
A factor accounting for the significance of the structure in a seismic event.
-
Term: Response Reduction Factor (R)
Definition:
A factor that represents the structural system's ductility and overstrength.
-
Term: Spectral Acceleration (Sa)
Definition:
A measure of the maximum expected ground acceleration expressed as a coefficient.
-
Term: Seismic weight (W)
Definition:
The total weight of the building, including permanent loads, considered during seismic analysis.
