Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to the Equivalent Static Method
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're discussing the Equivalent Static Method of Analysis used for assessing seismic effects on buildings. This method is particularly applicable to regular buildings up to certain heights depending on the seismic zone.
What are the height limits for using this method?
Great question, Student_1! For buildings in seismic zones IV and V, it's applicable for heights up to 15 meters, while for other zones, the height limit extends to 40 meters.
Why is it only for regular buildings?
Regular buildings have a uniform distribution of mass and stiffness, which simplifies calculations for base shear distribution. Irregular structures typically require dynamic analysis due to their complex behavior.
Can you explain what base shear is?
Certainly! Base shear is the total horizontal force that acts on a building during an earthquake. It's crucial for determining how much seismic force a structure must be designed to withstand.
To summarize, the Equivalent Static Method is vital for analyzing regular buildings within specified height limits in different seismic zones.
Calculating Base Shear
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's dive into how we calculate base shear using the Equivalent Static Method.
What formula do we use for that?
We use the formula: Vb = Z * I * S/g * W / R. Here, Vb is the base shear, Z is the zone factor, I is the importance factor, S/g is the spectral acceleration coefficient, W is the seismic weight, and R is the response reduction factor.
How do you determine the zone factor Z?
The zone factor Z is assigned based on the seismicity of the area where the building is located, designated by different seismic zones in the IS codes.
How does the weight of the building affect the base shear calculation?
Excellent observation! The seismic weight W directly influences the base shear because a heavier building will experience a larger seismic force. Thus, proper estimation of weight is critical for accurate base shear calculation.
To conclude, calculating base shear involves multiple factors, and its proper assessment is crucial for effective seismic design.
Distribution of Base Shear
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson

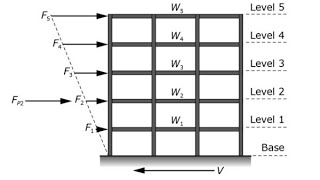

Let’s discuss how the calculated base shear is distributed across different levels of the structure.
How do we know how much force each level will experience?
We use a proportional distribution method based on the seismic weight of each level and its height relative to the total height of the building.
Can you give an example of how that distribution works?
Sure! If we have a building with two floors and the first floor has more seismic weight than the second floor, it will receive a larger portion of the total base shear. This is calculated using the formula Q = Vb * (Wi * hi²) / Σ(W*hi²).
So it's like a balance based on weight and height?
Exactly, Student_1! The distribution helps ensure that each part of the structure can effectively handle its share of seismic forces.
In summary, proper distribution of base shear is essential for effective seismic design and structural integrity.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section focuses on the Equivalent Static Method of Analysis, which is primarily utilized for assessing the seismic forces on regular buildings. It outlines the criteria for its application based on building height and seismic zones, emphasizing its simplicity and common use within civil engineering practices.
Detailed
Equivalent Static Method of Analysis
The Equivalent Static Method of Analysis is an approach employed in seismic design to estimate the effects of earthquake-induced forces on buildings. According to the IS codes, this method can be implemented for buildings up to 15 meters in height in seismic zones IV and V, or up to 40 meters in height in other zones.
Key Points:
- Base Shear Calculation: The method calculates the base shear, which represents the total horizontal force exerted on a building due to seismic activity. The base shear is then distributed to various levels of the structure according to their mass and stiffness.
- Simple and Widely Used: The method's straightforward nature makes it a commonly adopted practice in the design of earthquake-resistant structures.
- Applicability: It is suited for regular buildings that exhibit uniform mass and stiffness distribution, allowing for an effective application without complex computational analyses.
This method serves to provide a baseline understanding of how buildings will respond to seismic activities and ensures that structures are designed adequately to withstand potential earthquakes, ultimately prioritizing safety and public welfare.

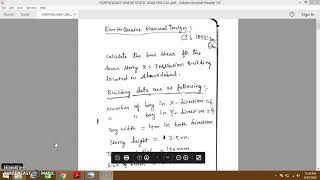

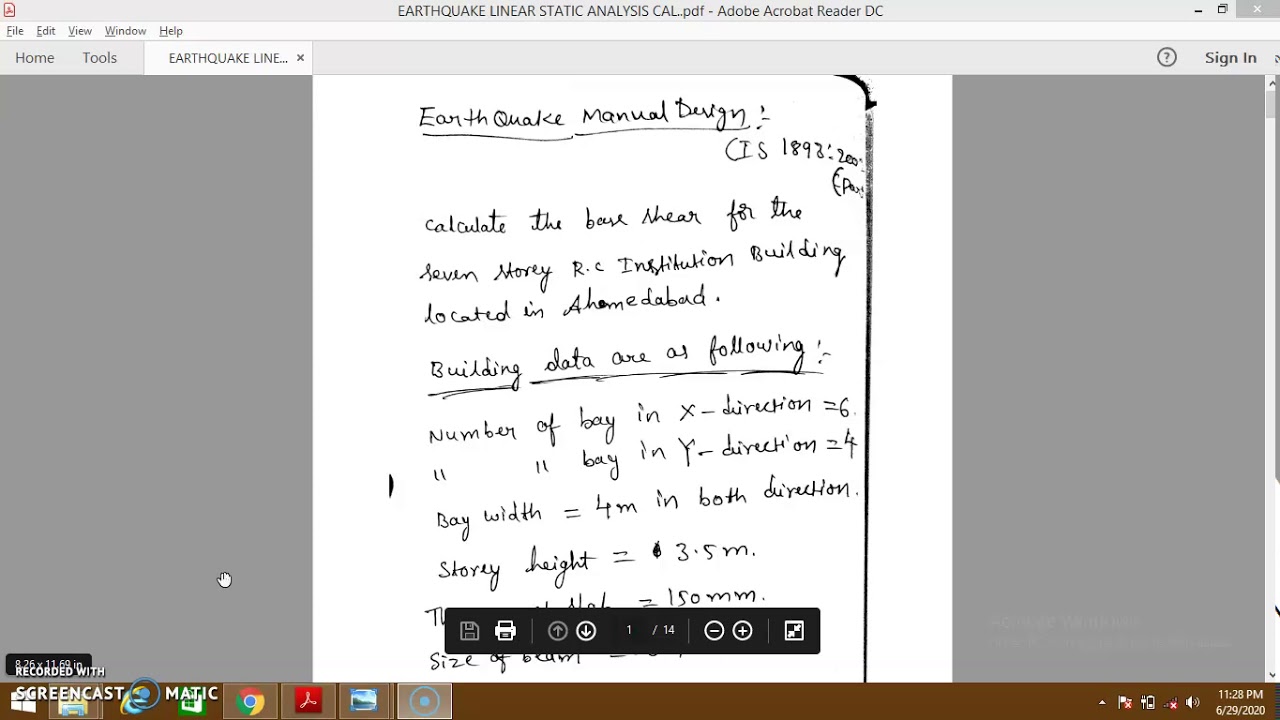

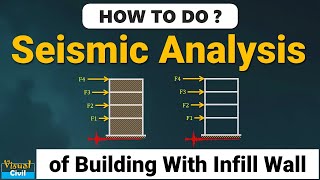

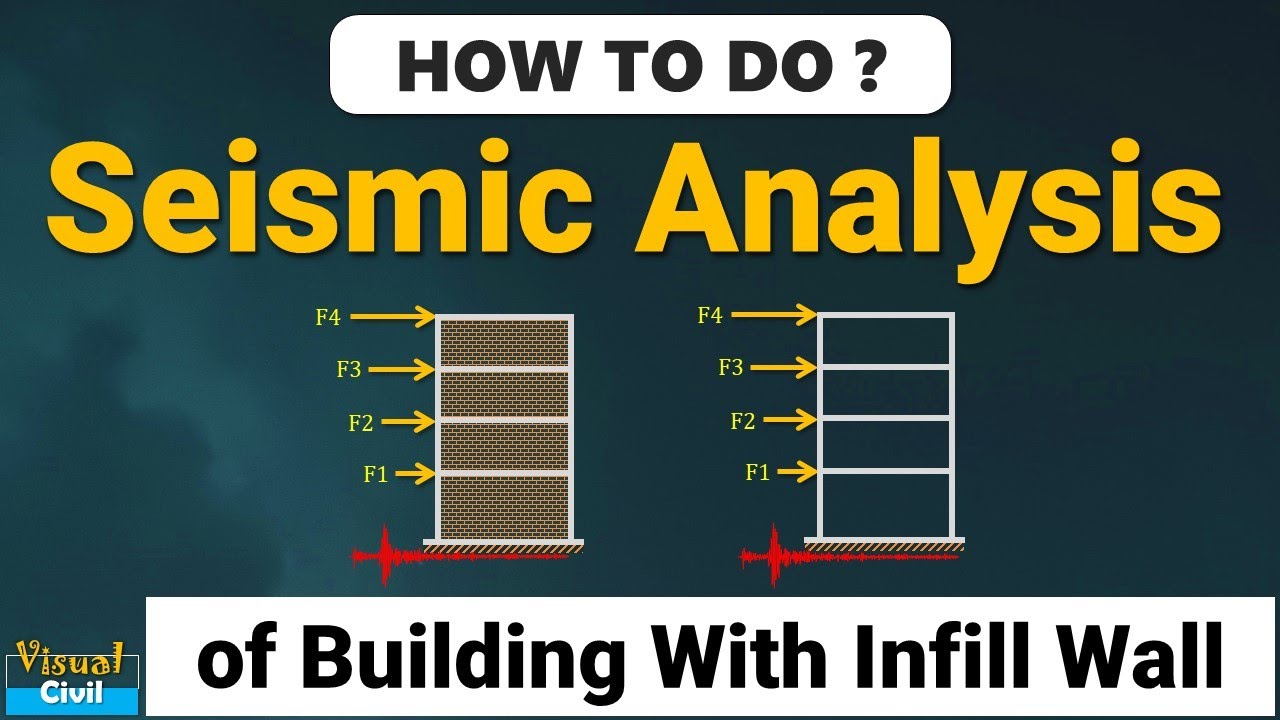

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of the Equivalent Static Method
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Used for regular buildings up to 15m height in Zone IV and V or up to 40m in other zones.
Detailed Explanation
The Equivalent Static Method is a simplified analysis approach typically used in seismic design. It is applicable for regular buildings that have a height of up to 15 meters in higher seismic zones (Zone IV and V) and can be used for taller structures (up to 40 meters) in less seismic-prone areas. This method is particularly useful because it provides a straightforward way to estimate how a building will respond to seismic forces without requiring complex dynamic analysis.
Examples & Analogies
Imagine you are designing a small office building in an area prone to earthquakes. Instead of performing complex calculations, which could take a long time and require advanced tools, you can use the Equivalent Static Method to get a quick estimate of how much the building may sway during an earthquake, ensuring it is safe without becoming overwhelming.
Base Shear Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Involves base shear calculation and distribution.
Detailed Explanation
In the Equivalent Static Method, the first step is calculating the base shear, which is the total horizontal seismic force that acts at the base of the structure during an earthquake. This is done using formulas based on the building's weight, importance, and seismic zone factors. After calculating the total base shear, it is distributed along the height of the building to understand how different levels of the building will experience different forces.
Examples & Analogies
Think of the base shear like a team of people pushing against a wall. If the wall were made of clay, the force exerted by each person (representing different segments of the building) would determine how much the clay wall deforms. Calculating the base shear ensures we understand how hard each segment of the building will be 'pushed' during an earthquake.
Simplicity and Common Use
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Simple and widely used method.
Detailed Explanation
One of the key reasons the Equivalent Static Method is favored by engineers is its simplicity compared to more complex dynamic analyses like Response Spectrum Method. Engineers can easily apply this method without needing sophisticated software. This makes it especially useful for small to medium-sized projects where a quick evaluation of seismic performance is needed, while still adhering to safety requirements.
Examples & Analogies
Consider the Equivalent Static Method as the 'quick recipe' in cooking. Just as a quick recipe allows you to prepare a meal without elaborate techniques or time-consuming steps, this method enables engineers to ensure safety in a building without delving into the more complicated aspects of structural dynamics. It provides a fast check to see if the design meets basic seismic safety standards.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Equivalent Static Method: A simplified approach for seismic analysis of buildings.
-
Base Shear: The total seismic force acting on a structure at its base.
-
Distribution of Base Shear: Method for allocating base shear to various levels of the structure based on mass and height.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a 15-meter tall school building in seismic zone IV using the Equivalent Static Method to calculate and distribute base shear.
-
An analysis scenario where a 40-meter office building in a lower seismic zone (II) utilizes the static method to determine its seismic design.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Building sways in a quake just right, Base shear keeps it safe and tight.
📖 Fascinating Stories
-
Imagine a tall building during an earthquake. It stands strong because it knows how to calculate and distribute base shear effectively, keeping it balanced like a tightrope walker.
🧠 Other Memory Gems
-
RBE: Regular Building Equivalents where R is the response factor, B is base shear, and E is the equal distribution.
🎯 Super Acronyms
SEAD
- Simplified Equivalent Analysis for Design.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Base Shear
Definition:
The total horizontal force that acts on a building due to seismic activity.
-
Term: Seismic Zone
Definition:
Designated areas based on the level of seismic risk, influencing building codes and design requirements.
-
Term: Seismic Weight
Definition:
The total weight of the structure that contributes to seismic forces during an earthquake.
-
Term: Response Reduction Factor
Definition:
A factor representing the reduction in seismic forces due to the structural system's inherent ductility and overstrength.
-
Term: Zone Factor (Z)
Definition:
A coefficient used in seismic calculations that reflects the severity of ground shaking in different seismic zones.
