Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Similarity Concepts
Unlock Audio Lesson
Welcome class! Today, we’re diving into the concept of similitude. Can anyone tell me what we mean by geometric similarity?
Is it about maintaining the same shape and proportions while scaling down a model?
Exactly! Geometric similarity means that all dimensions of the model represent proportions of the prototype. For example, if the prototype length is scaled down by a ratio of 1:100, everything else must maintain that ratio.
What about angles?
Good question! Angles must also remain equivalent. This maintains the model's fluid flow characteristics. Remember the acronym G.A.P - Geometric similarity includes maintaining **Geometric proportions**, **Angles**, and **Proportions**.
Kinematic Similarity
Unlock Audio Lesson
Now let’s discuss kinematic similarity. Can anyone summarize what it entails?
It involves ensuring that the velocity ratios and flow patterns of the model correspond to those of the prototype, right?
Yes! This is often analyzed using dimensionless numbers like Reynolds and Froude numbers. What does the Froude number help us with?
It helps relate velocity to gravitational effects in flows!
Great! You can remember Froude number's significance with the phrase: "Fouls Flows Fastest" - basically emphasizing that in free surface flows, maintaining similarity in these ratios is crucial.
Dynamic Similarity
Unlock Audio Lesson
Let’s move on to dynamic similarity. Why do you think it's essential in fluid dynamics?
It’s necessary to ensure that force ratios, like inertia and pressure forces, are similar in both model and prototype to accurately predict flow behavior.
Exactly! Dynamic similarity requires both geometric and kinematic similarity to be effective. Can anyone summarize the types of forces involved?
Inertia, pressure, friction, and gravity forces all need to be comparable.
Right! A way to remember this is the acronym PIFG - **Pressure**, **Inertia**, **Friction**, and **Gravity** forces must remain constant for dynamic similarity.
Applications of Similarity
Unlock Audio Lesson
Now, let's consider how we apply these similarity concepts in real-world situations. Can anyone give an example?
I remember the Kosi barrage model in Pune. They used smaller models to understand the flow patterns before building the actual dam.
Exactly! These models help engineers observe how flow behaves, determine energy dissipation, and visualize potential issues before construction.
And it saves time and resources, right?
Absolutely! It’s a cost-effective method of testing designs. Keep in mind the phrase: 'Test before you invest' when thinking about physical modeling!
Review and Summary
Unlock Audio Lesson
To wrap up, who can summarize the three types of similarity we've discussed today?
Geometric, where we scale down dimensions; kinematic, focusing on velocity ratios and streamlines; and dynamic, which includes balancing force ratios.
Well done! Remember, understanding these concepts is essential for accurate fluid dynamic modeling. Keep practicing with examples to reinforce these ideas.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explores the importance of similarity in fluid mechanics, particularly in physical modeling. It differentiates between geometric, kinematic, and dynamic similarity, providing practical examples and emphasizing how these concepts ensure accurate representation of fluid behavior in scaled-down models.
Detailed
Concept of Similarity or Similitude
In this section, we delve deeply into the concepts of similarity or similitude in fluid mechanics, which is vital for conducting physical modeling experiments. Fluid mechanics often necessitates the use of models due to practical constraints in the size of prototypes, especially in civil engineering projects like dams and barrages.
Key Points Covered:
- Geometric Similarity: This involves scaling down the dimensions of a prototype while maintaining the same shape and angles, ensuring that proportional relationships are preserved.
- Kinematic Similarity: Refers to the preservation of velocity ratios, streamlines, and flow directions between the model and prototype, critically analyzed using dimensionless numbers such as Reynolds and Froude numbers.
- Dynamic Similarity: Involves the matching of force ratios (inertia, pressure, viscous forces) in both model and prototype, relying on achieving both geometric and kinematic similarities first.
The section concludes with examples that highlight how these similarities are utilized in practical applications, such as testing in wind tunnels and analyzing flow patterns through scaled models. Mastery of these concepts enables engineers to predict performance and behavior of prototypes based on model tests.

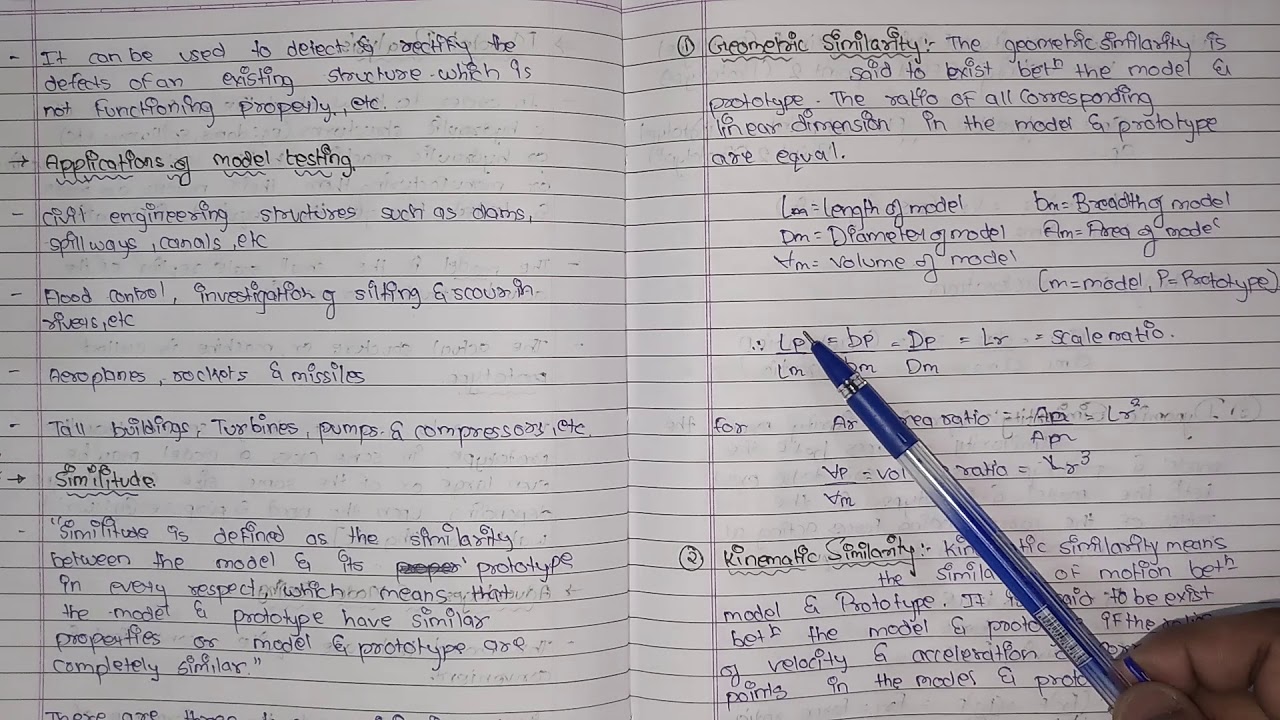

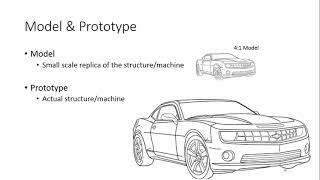

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Similarity in Fluid Dynamics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In fluid dynamics, when you conduct the experiments, we should have a relationship between full scale or the prototype and the flow with smaller ones which is the model. We need to have a relationship between that. If that is the conditions either you conduct the experiment with the full scale as we saw lot of experiment facilities for automobile industry they do, to tell full scale models okay, but many of the cases we cannot go for the full scale models like a dam which is in generally of having dimensions for 30 meters high, it is width of 40 meters, more than that, we cannot conduct these type of big experiment scale experiment in any big set up.
Detailed Explanation
This chunk introduces the concept of similarity in fluid dynamics. It emphasizes the importance of having a relationship between full-scale prototypes and their smaller model counterparts when conducting experiments. For instance, full-scale experiments may be feasible and common in the automobile industry, but for large structures like dams with dimensions that are impractically large for physical testing, scaled-down models become necessary.
Examples & Analogies
Think of a chef trying out a new recipe. Instead of making a huge cake immediately, the chef may opt to bake a smaller version first. This smaller version allows the chef to test the flavors and textures without the risk of wasting ingredients or time. Similarly, engineers use smaller models to evaluate designs before committing to full-scale constructions.
Types of Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This 4 type of the similarities happens geometric similarity, kinematic similarity, dynamic similarity and the thermal similarity. So as we are not talking about energy, conservations much more in these lectures, we focus on these 3 similarity, geometry, kinematics and the dynamic similarity.
Detailed Explanation
The chunk lists the four types of similarity that are important in fluid dynamics: geometric similarity, kinematic similarity, dynamic similarity, and thermal similarity. In this context, the lecture will primarily focus on geometric, kinematic, and dynamic similarities. Geometric similarity refers to the proportionality in shape between the model and the prototype, kinematic similarity refers to the relationship in motions (like velocity patterns), and dynamic similarity deals with the forces and pressures acting on the model and prototype.
Examples & Analogies
Consider a scale model of a famous building, like the Eiffel Tower. The model maintains the same proportions and shapes (geometric similarity). If wind is blown over both the model and the actual tower and they experience similar flow patterns (kinematic similarity), the results of how each structure responds to the wind can be anticipated. If their structural responses—such as stresses and strains—also match effectively, we achieve dynamic similarity.
Geometric Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look it, this is what the prototypes, pole scale okay, that is what is the Boeing X48B but we cannot conduct this big scale experiments, what we do it we scale down it. We make it exactly the same in terms of a scale down models so that we keep all the angle, the flow direction are preserved.
Detailed Explanation
This chunk discusses geometric similarity, which is the process of scaling down models to maintain the same proportions and angles as the prototypes. This preservation is critical in ensuring that the model accurately reflects the behavior of the full-scale version under similar conditions.
Examples & Analogies
Imagine using a map to navigate. If the map is drawn to scale, a smaller representation will maintain the true distances and angles between roads. This allows us to use the map as a reliable guide, just like a scaled model serves to predict the behavior of a full-scale structure in tests.
Kinematic Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When you talk about the kinematics what it says that we have the model, we have the prototypes, that this is the prototypes, this is the models, that means in the model and prototypes would have the same velocity factor, the stream lines patterns that means the velocity factors what we have the velocity direction that stream line and the models would have a scale factors.
Detailed Explanation
Kinematic similarity refers to the relationship between the velocity patterns of the model and the prototype. This means the flow behavior in the model must match the flow behavior in the prototype in terms of speed and direction, ensuring that the same streamlines are represented in both cases.
Examples & Analogies
Think about a race track and a tiny car racing game. Even though the toy cars are much smaller than actual race cars, they must be driven at speeds that reflect the same proportionality. If the toy car travels at a certain speed, it needs to correspond with the full-size car's speed to provide an accurate racing experience, paralleling kinematic similarity.
Dynamic Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
These similarity adjust when you have the 3 scale ratios, like the length, time and the force. So are the same or model and the prototypes. So the dynamic similarity happens not only this length and the time scale but also the force scale similar ratios will be there, what do you mean by that if you have a let you have a problems like this, you have a prototype, you have a gate.
Detailed Explanation
Dynamic similarity encompasses the relationship between length, time, and force parameters between the model and the prototype. For dynamic similarity to hold true, all force vectors acting on both the model and prototype must be crisscrossed in a manner that accurately represents the real-world behavior of fluids around the structures. This allows predictions about how these structures will behave under operational conditions.
Examples & Analogies
Imagine testing the strength of a bridge using a small model made from the same materials. If the forces acting on the small model (like weight, wind pressure, and vibrations) are accurately scaled down, engineers can extrapolate how the larger, full-size bridge will react under similar forces, ensuring safety and stability before actual construction.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Geometric Similarity: Ensures that the shape and proportions of the model are the same as the prototype.
-
Kinematic Similarity: Involves maintaining the same flow patterns and velocity ratios.
-
Dynamic Similarity: Balances the force ratios in models and prototypes for accurate predictions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In civil engineering, dams are often tested using scaled-down models to accurately predict behavior under water pressure.
-
Kinematic similarity is used in wind tunnel testing for aircraft, ensuring that velocity ratios observed in smaller models are reflective of real flight conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To maintain similarity, remember G.A.P, keep dimensions and angles, that’s the key to tap.
📖 Fascinating Stories
-
Imagine an engineer who loves designing bridges. He builds a model of the bridge in his garage to ensure it will hold up in the real world. By applying geometric similarity, he keeps the proportions the same. Then, he uses kinematic similarity to test the flow of water underneath.
🧠 Other Memory Gems
-
To remember the three types of similarity: G for Geometric, K for Kinematic, and D for Dynamic.
🎯 Super Acronyms
GKD
- Geometric
- Kinematic
- Dynamic.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Geometric Similarity
Definition:
A relationship where models and prototypes maintain the same shape and proportion during scaling.
-
Term: Kinematic Similarity
Definition:
A relationship ensuring that velocity ratios and streamlines between a model and prototype correspond.
-
Term: Dynamic Similarity
Definition:
A condition where the force ratios in models and prototypes are comparable, including inertia, pressure, and friction forces.
-
Term: Reynolds Number
Definition:
A dimensionless number used to predict flow patterns in different fluid regimes.
-
Term: Froude Number
Definition:
A dimensionless number that relates the flow velocity to gravitational effects in fluids.
