15.2.5. Reynolds Number Apparatus Experiment

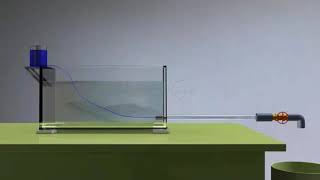

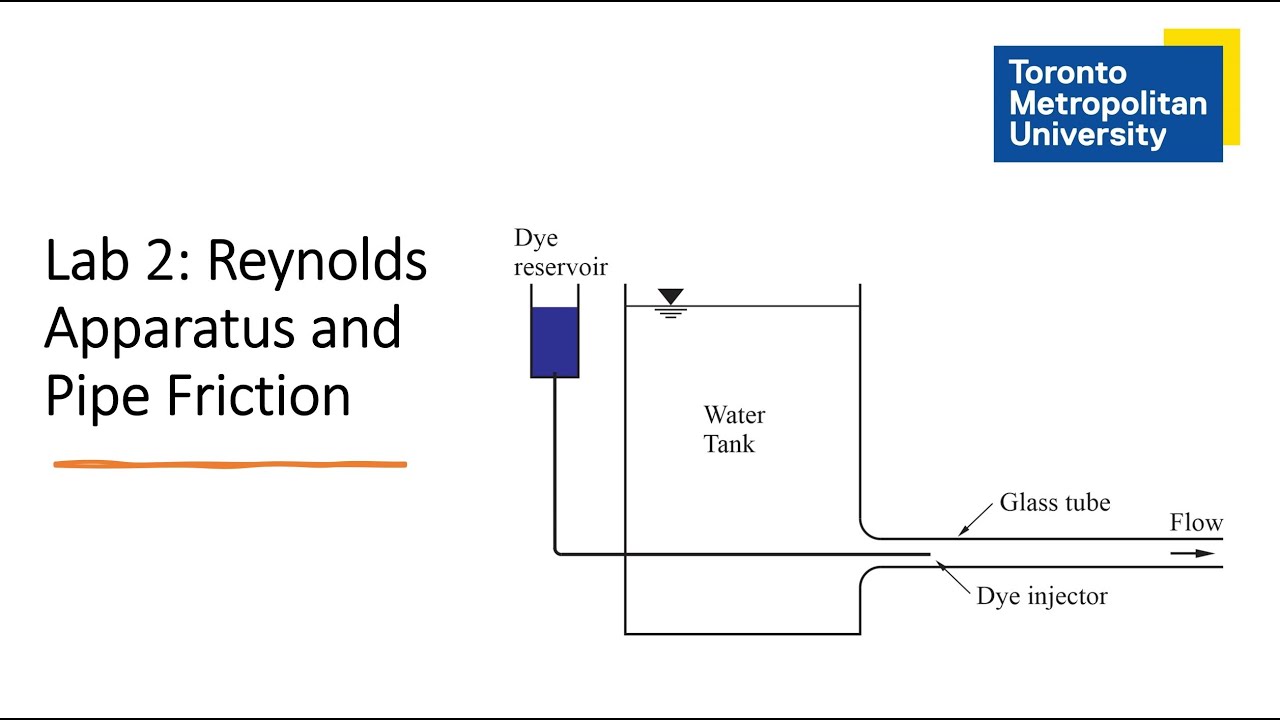

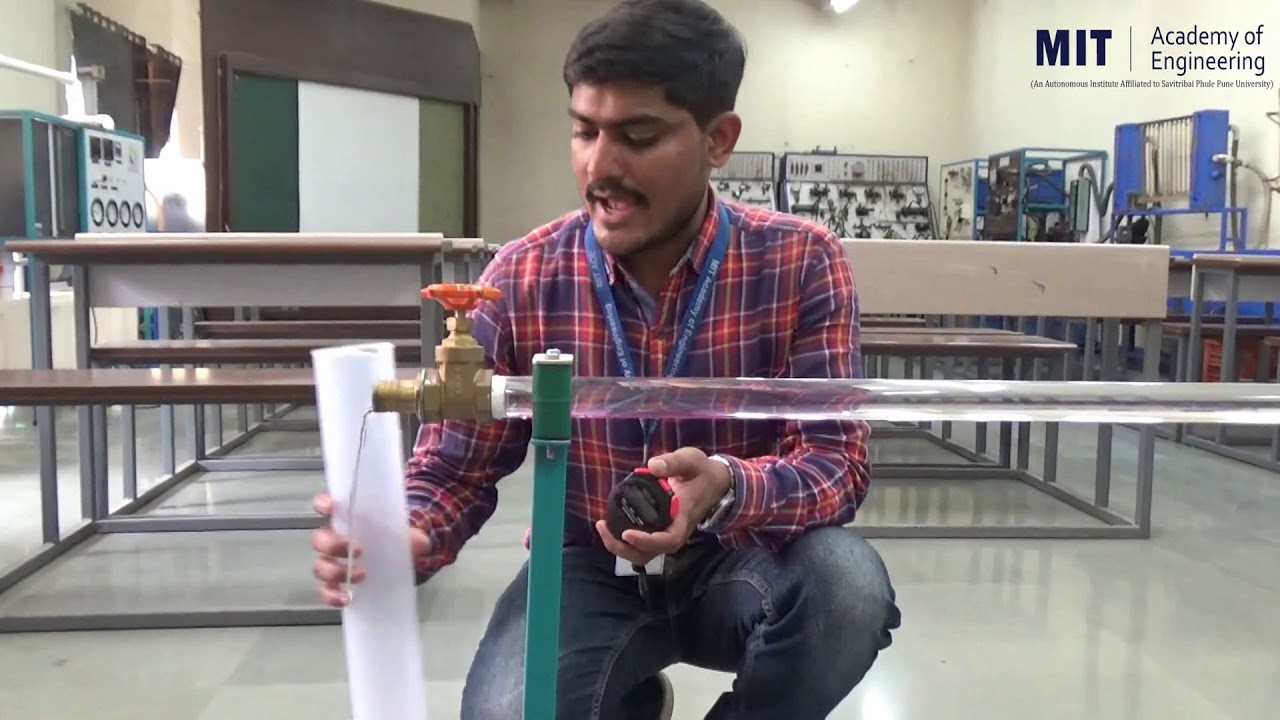

Now if you look it before starting the topic on similarities, I can say that let us have do a small experiments which is called Reynolds number apparatus experiment which is very simple experiment what was conducted by Reynolds with a colour dye facilities, is a dye injectors and there is a pipe which is regulated the floor here and the flow can be conducted with different Reynolds numbers, the flow Reynolds numbers. The flow Reynolds number as you know it is defined as this way,
. that means inertia force by viscous force, if I make it that receives will gives Reynolds number, but this that what as you increase the number of the Reynolds numbers as is indicated this that, if you increase the number of Reynolds number you can see this coloured dyes are changing it, that means there are lot of diffusions of coloured dyes happening.

The Reynolds number is a dimensionless quantity used to predict flow patterns in different fluid flow situations. It is calculated as the ratio of inertial forces to viscous forces in a fluid. Higher Reynolds numbers indicate more turbulent flow, while lower numbers indicate laminar flow. In this experiment, a dye is injected into a flowing fluid to visualize the flow patterns and how they change as the Reynolds number increases. As the Reynolds number increases, the diffusion of the dye increases, allowing observation of the transition from laminar to transitional to turbulent flow.

Imagine mixing food coloring in a glass of water. Initially, if you pour the coloring gently, it spreads slowly (laminar flow). If you pour it more vigorously, it swirls and mixes quickly (turbulent flow). The Reynolds number helps us understand at what point this change occurs, similar to noticing when a gentle stir turns into vigorous mixing.

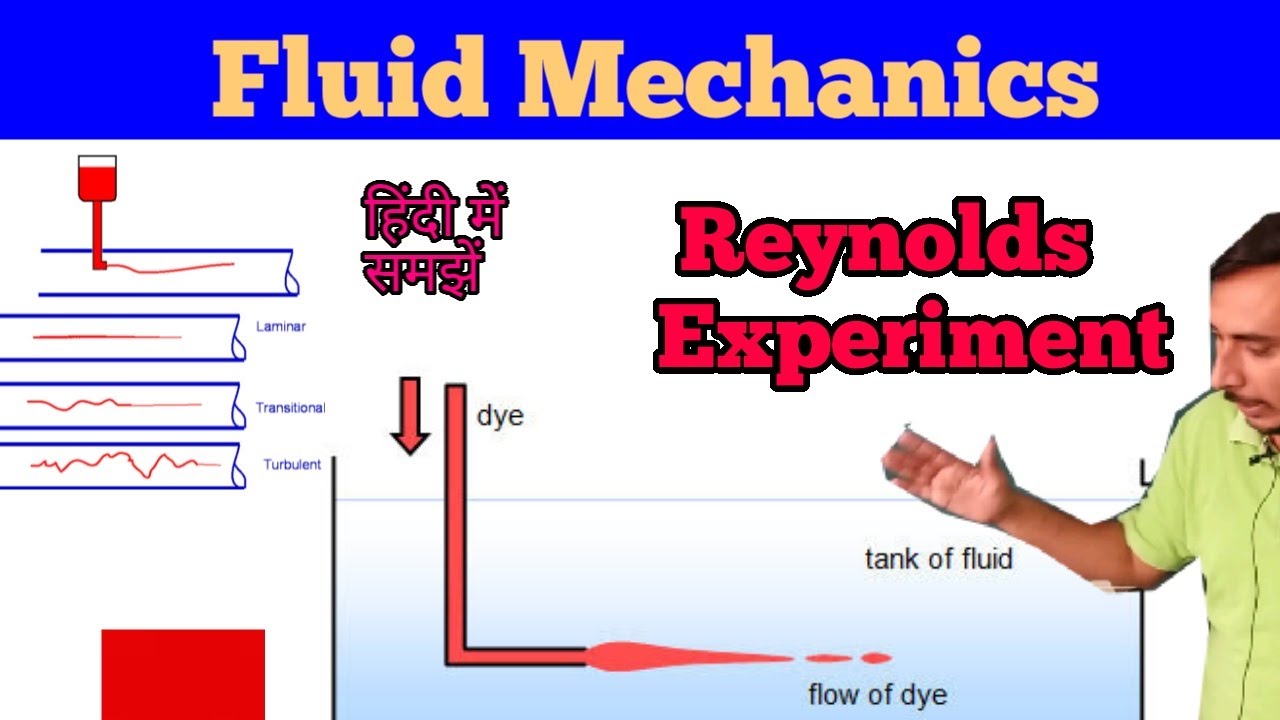

The flow patterns are changing it, visually what we are saying it, there is change of the flow patterns, there is change of flow from the laminar to transitions to the turbulent. We will discuss all how it happens with virtual fluid ball concepts but you can see that with simple coloured dye experiments we can find out at what the Reynolds numbers, the flow changes from lamina to transitions.

This chunk focuses on the visualization of flow patterns using colored dye in the fluid. As the flow transitions from laminar (smooth and orderly) to turbulent (chaotic and irregular), the patterns observed in the dye show how fluid behavior can vary based on speed and other conditions. This experiment allows students to see firsthand the effects of Reynolds number changes on flow patterns.

Think of wind blowing through a field of grass. At light winds, the grass sways gently (laminar flow). As the wind picks up speed, the grass bends more dramatically, and you can see patches of grass moving vigorously (turbulent flow). The dye helps illustrate these subtle changes visually, much like watching the grass respond to changing wind conditions.

The transitions stage to the turbulent stage, we can identify and we conduct the experiment with respect to the nondimensional number of Reynolds numbers. So that way this is a very simple experiment to find out the threshold of the Reynolds numbers to divide between laminar transitional flow, transitional flow and the turbulent flow.

Here, the experiment helps determine the specific Reynolds number threshold that marks the transition between laminar, transitional, and turbulent flow. By performing this experiment, students can quantify these changes and understand better how physical flow conditions impact fluid behavior. This segmentation is crucial in fluid dynamics because it influences how systems behave in practical applications.

Consider riding a bike on a straight path. Initially, you pedal smoothly at a slow pace (laminar flow). As you pedal faster, you start to wobble a bit as the speed increases (transitional flow). Finally, if you really speed up, you feel the wind whipping around you, making control more challenging (turbulent flow). The Reynolds number helps define the speeds at which each type of 'bike ride' occurs.

--
