Introduction to Physical Modelling
Unlock Audio Lesson
Welcome everyone! Today, we're starting with the basics of physical modeling experiments in fluid mechanics. Can anyone tell me why physical modeling is important?
Is it because it helps us understand complex flows without using massive setups?
Exactly! Physical models are essential for visualizing flow behaviors and validating theories. For example, we scale down huge dimensions from rivers or dams so we can experiment in manageable setups. What terms do you think are important when we discuss scaling?
Geometric similarity and dynamic similarity?
Great points! Geometric similarity refers to maintaining the same shape, while dynamic similarity involves replicating forces and flow patterns at different scales. Remember, we often use Froude, Reynolds, and Mach numbers for these comparisons.
How does scaling down help us practically?
Scaling allows us to create models that accurately reflect larger systems, enabling engineers to analyze flow behavior and make informed decisions. Let's always keep in mind the prototypes and their corresponding models.
Dimensional Analysis
Unlock Audio Lesson
Now, let’s discuss dimensional analysis. What does it mean and why is it necessary?
It’s about checking the dimensions of equations to see if they balance, right?
Correct! It helps us verify if our mathematical models are consistent. For example, in fluid mechanics, we often deal with complex equations involving pressure, velocity, and flow rates. How do you think we would apply this in our experiments?
By ensuring that every term in the equations reflects the same dimensional units?
Absolutely! Doing so assures us that our derived equations are physically valid. A quick tip is to list the dimensions of each term so you can easily spot inconsistencies.
What about if the dimensions don’t match?
If they don’t match, we’ll need to recheck our derivations and calculations. It’s a crucial step that saves us from potential errors. Let’s summarize: dimensional analysis ensures our models correlate properly with our real-world applications.
Types of Similarity
Unlock Audio Lesson
Next, we’ll dive into the three key types of similarity: geometric, kinematic, and dynamic. Can anyone explain geometric similarity?
It’s when the model and prototype have the same shape but different sizes, maintaining proportions.
Exactly! And what about kinematic similarity?
That refers to having similar flow patterns and velocities at corresponding points in the model and prototype.
Excellent! Finally, what is dynamic similarity?
It involves replicating the forces acting on the fluid, ensuring that all force ratios are the same in both the model and prototype.
Well done! To remember these, think of the acronym 'GKD': Geometric, Kinematic, Dynamic. Always seek to establish these similarities in experiments for accurate results.
Applications of Physical Modeling
Unlock Audio Lesson
Lastly, how do we apply these concepts in real engineering projects? Can anyone provide an example?
Like building a dam or a barrage project, where we can't physically test full-scale designs?
Right! Physical models help in predicting flow behaviors and evaluating the design before actual construction. In context, let’s consider the Brahmaputra river as a model for testing.
And testing how water flows around it helps us design better structures?
Exactly! Such experimental setups let engineers visualize and analyze the potential energy dissipation and hydraulic jumps. Remember, this approach is complemented by numerical models for comprehensive solutions.
That makes it clearer why both methods are crucial.
Yes, the combination of physical and numerical models provides confidence before project implementation. Great job today! Let’s recap: the key is to ensure similarity and validate it through dimensional analysis.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section highlights the significance of physical modeling experiments in fluid mechanics by exploring dimensional analysis, scaling prototypes for experimentation, and studying the principles of similarity. It emphasizes the use of physical models in civil engineering projects to understand flow behavior and energy dissipation effectively.
Detailed
In fluid mechanics, physical modeling experiments are crucial for understanding complex flow phenomena without the expense and logistical challenges of testing full-scale prototypes. This section focuses on the physical modeling conducted at IIT Guwahati and similar institutions. It discusses how dimensional analysis is employed to ensure the proper scaling of geometric and dynamic properties between the real prototype and the laboratory model. A case study on the Brahmaputra river illustrates the large-scale dimensions that need to be scaled down for practical experimentation. Key concepts like geometric similarity, kinematic similarity, and dynamic similarity are introduced, defining how these relationships allow engineers to predict flow behaviors accurately. The discussion extends to real-world applications, emphasizing how both physical and numerical models are complementary in achieving a comprehensive understanding of fluid behavior in civil engineering projects.
Youtube Videos

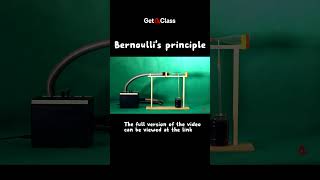

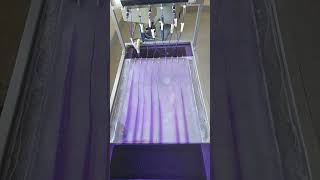

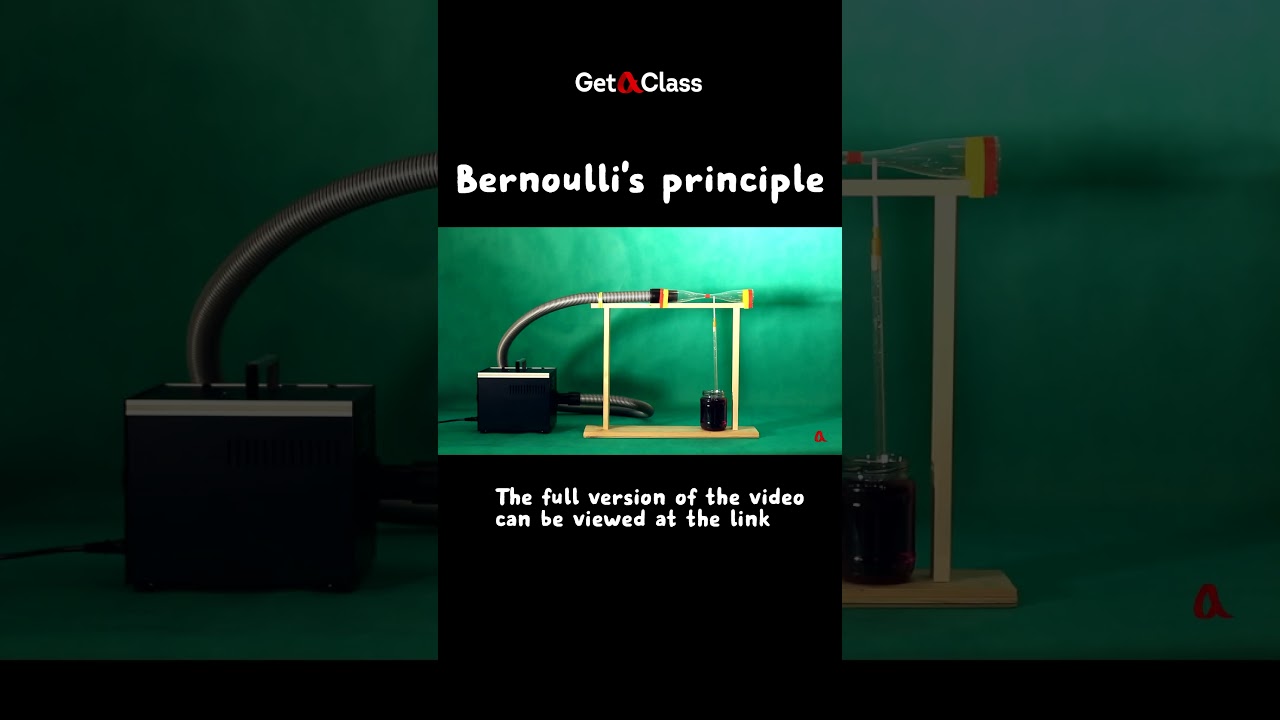

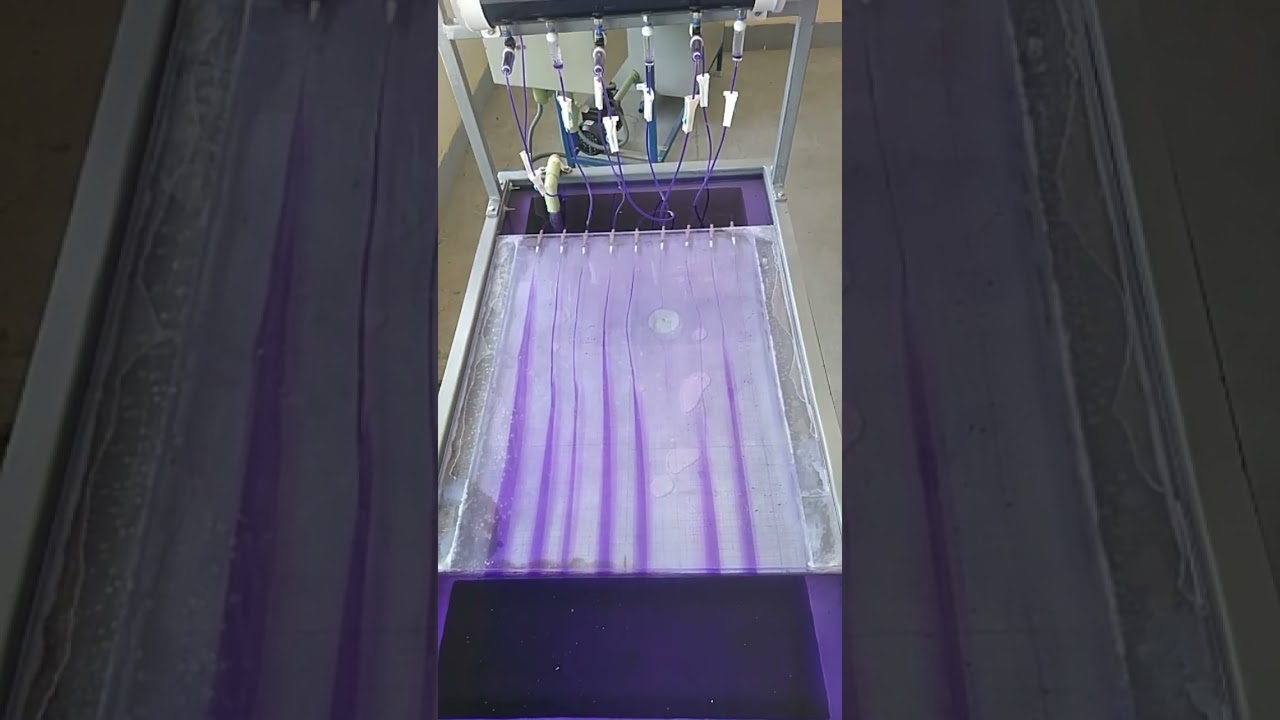

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Physical Modelling Experiments
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you talk about that I will start with the physical modelling experiments, what we have in IIT Guwahati or elsewhere, how we conduct the physical modelling experiment. Then I will talk about the dimensions of fluid mechanics properties which last class we discussed, but just I have to repeat it and more interesting things today I will talk about the dimensional analysis of Bernoulli's equation okay.
Detailed Explanation
In this opening statement, the speaker introduces the topic of physical modelling experiments. These experiments are essential for understanding fluid mechanics and are conducted in labs such as those at IIT Guwahati. The speaker indicates that they will discuss how to conduct these experiments, the fundamental dimensions of fluid mechanics, and link them to the analysis of Bernoulli's equation, which is critical in fluid dynamics.
Examples & Analogies
Think of a chef experimenting with a new recipe in a kitchen. Just like the chef adjusts the ingredients and measurements to get the right taste, engineers conduct physical modelling experiments to test and validate their theories about how fluids behave under different conditions.
Prototype and Scale Models
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So huge dimensions in terms of the length and the width of the islands, the discharge is about 10,000 metre cube per second, huge discharge, the particle size. Then width of the left channel and the right channel, these are the dimensions of real rivers and we call the dimensions of prototype. So the real river dimensions what is that is given as a prototype dimensions, that is what we reflect in the modelling setups what we have, where we scale down it with the distance level as well as the geometry level we scale down it, like for example, the length of the island at the prototype level is 6.5 kilometres. But the dimensions what you have put it here is about 1.73 metres.
Detailed Explanation
This chunk clarifies the concept of a prototype in physical modelling, emphasizing the significant dimensions that real rivers exhibit. The speaker contrasts these large dimensions with scaled-down versions used in experimental models. For instance, a real river could be modeled on a much smaller scale (from kilometers to meters) to conduct experiments that are manageable yet still representative of the actual flow behaviors.
Examples & Analogies
Imagine a miniature golf course. The large fairways and holes on a full-size golf course are represented on a smaller scale in the miniature version, allowing players to practice skills in a controlled setting. Similarly, engineers create smaller models of rivers or dams to study their dynamics without the logistical challenges of working with large water bodies.
Importance of Physical Models in Engineering
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Most of the civil engineering projects before implementing the field, we conduct a series of physical modelling tests also we conduct numerical models what available today in different commercially or free softwares we also conduct the experiment. But I can say that most of the times we rely, we depend upon the physical model because that is what gives a lot of the strength the support to engineer to take the decision because they can see visually how the flow is happening.
Detailed Explanation
This section highlights the importance of physical models in civil engineering projects. Before actual construction, engineers often rely on both physical models and computer simulations to predict how structures will behave under real-world conditions. Physical models allow for visual confirmation of theoretical predictions, thereby bolstering engineers’ confidence in their designs and decisions.
Examples & Analogies
Think of a child building a Lego model of a bridge before creating it in real life. By testing how much weight the Lego bridge can hold, the child learns about physics and stability, just like engineers do with physical models before building real bridges.
Types of Similarities in Experiments
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So the models are bigger size than the prototype, but these are very special scales. So of you look at this way we have a lot of applications of the physical models conducted or any major river projects or the dam projects.
Detailed Explanation
In this part, the speaker discusses different scaling scenarios. While most models are smaller than real prototypes, some instances exist where models might be larger. This discussion leads to practical applications of physical modelling, particularly in significant engineering projects like dams and river systems, where understanding fluid dynamics is vital.
Examples & Analogies
Consider an architect who might create a large-scale model of a new skyscraper. Sometimes, these models are built larger than the actual structure to allow for detailed study of aesthetics and functionality, similar to how engineers use physical models to analyze fluids.
Experimental Setups and Observations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
You can see this flow patterns, how the flow is going on. It is very easy to observe the flow pattern, the stream lines, the vortex formations all we can see it very closely conducting this experiment.
Detailed Explanation
Here, the speaker emphasizes the advantages of physical experiments in observing fluid behaviors such as flow patterns, streamlines, and vortex formations. These observations are essential for understanding the dynamics of fluid motion and for validating models against theoretical predictions. The ability to visualize these phenomena helps engineers refine their designs and improve project outcomes.
Examples & Analogies
Think of watching water flowing through a model stream created in a sandbox. You can see how smooth or turbulent the flow is, which helps you understand how a real river behaves during a flood, just as engineers study these patterns to design sustainable infrastructure.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Geometric Similarity: Maintaining proportions between model and prototype to ensure accuracy.
-
Kinematic Similarity: Ensuring similar flow patterns and velocities between model and prototype.
-
Dynamic Similarity: Replicating force ratios to ensure consistent flow behavior in experiments.
-
Dimensional Analysis: A technique that validates the dimensional consistency of equations.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Scaling down the dimensions of the Brahmaputra river and conducting experiments to study flow patterns and energy dissipation.
-
Constructing a physical model of the Kosi Barrage to predict performance before implementation.
-
Using Reynold's number experiments to observe the transition from laminar to turbulent flow.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When flows are downscaled, don't forget the rule, Keep shape and forces right, or we'll look like a fool.
📖 Fascinating Stories
-
Once there was a big dam that wanted to be built. Instead of risking it all at first, they built a small model in a lab. The smaller version saved the day, showing them how to design it right before the big build!
🧠 Other Memory Gems
-
Remember the key similarities: GKD - Geometric, Kinematic, Dynamic.
🎯 Super Acronyms
GKD - Helps you recall the three types of fluid model similarities.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Geometric Similarity
Definition:
The concept of maintaining the same shape and proportions in models, allowing for accurate scaling from prototypes.
-
Term: Kinematic Similarity
Definition:
The condition where the velocity patterns and flow lines in model tests are replicated in prototypes, ensuring accurate flow characterization.
-
Term: Dynamic Similarity
Definition:
Achieved when the ratios of forces acting upon the fluid in models match those in prototypes, ensuring comprehensive analysis of fluid behaviors.
-
Term: Dimensional Analysis
Definition:
A method for checking the consistency of equations by ensuring that all terms have the same dimensional units.
-
Term: Reynolds Number
Definition:
A dimensionless quantity used to predict flow patterns in different fluid flow situations, defined as the ratio of inertial forces to viscous forces.
-
Term: Froude Number
Definition:
A dimensionless number comparing inertial and gravitational forces, crucial in modeling submerged flows.
-
Term: Prototype
Definition:
The real-life instance or object which the model represents in a scaled-down fashion.
