Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Dynamic Similarity
Unlock Audio Lesson
Welcome, class! Today we are going to explore the concept of dynamic similarity in fluid mechanics. Can anyone tell me what they understand by 'similarity' in this context?
I think it means that the behavior of fluids in a model should reflect the behavior in a real system.
Exactly! Dynamic similarity ensures that the flow behavior of a fluid in a scaled model can be related back to the actual full-scale prototype. This involves understanding the relationships between length, time, and force.
So does this mean we can conduct experiments on small models?
Yes! It allows us to analyze large systems, like dams or rivers, without needing to build them full-scale first. This is especially important in civil engineering!
What are the main types of similarities we need to consider?
Great question! We focus on geometric similarity, kinematic similarity, and dynamic similarity. Let's dive into each of these in our next session.
Geometric Similarity
Unlock Audio Lesson
Let's start with geometric similarity. Can anyone explain what that means?
I think it refers to having the same shape but scaled down, right?
Yes, precisely! When we create models, we keep the same shape and proportions. For example, if a dam is 100 meters high, our model might be 1 meter high, preserving the ratio.
How does this affect the fluid behaviors we observe?
Geometric similarity ensures that flow patterns observed in our scaled models approximate those in real models, allowing us to predict actual performance. Remember the acronym G-MAP: **G**eometry, **M**odels, **A**pplied, **P**redictions.
That's a helpful way to remember it!
Let’s summarize: Geometric similarity is vital for maintaining consistent ratios in shape that allow for effective modeling of fluid dynamics.
Kinematic Similarity
Unlock Audio Lesson
Next, we’ll discuss kinematic similarity. Who can define this term?
Does it have to do with the motion of fluids?
You got it! Kinematic similarity means that the flow velocities and streamlines of the model must match those of the prototype in relative terms to achieve correct flow representation.
How do we ensure kinematic similarity in our models?
We achieve this by maintaining ratios of velocities via Reynolds or Froude numbers. Kinematic similarity is crucial when examining free surface flows like waves.
I see, so it’s about maintaining the relationship in flow motion across scales.
Exactly! Remember the mnemonic KISS: **K**inematic, **I**s, **S**ame, **S**cale. This captures the essence of kinematic similarity!
Dynamic Similarity
Unlock Audio Lesson
Finally, let’s cover dynamic similarity. Who can tell me its importance in modeling?
It’s about making sure the forces acting on the fluid behave the same in our models as they do in the real thing.
Exactly! Dynamic similarity incorporates all forces—pressure, gravity, and viscous effects—ensuring they correlate correctly in scale models.
What happens if we don’t achieve dynamic similarity?
Without it, our results could misrepresent actual fluid behaviors, leading to unsafe designs. Think of the acronym POW: **P**ressure, **O**ften, **W**rong predictions without dynamic similarity.
That’s a strong point. It emphasizes how much we depend on accurate modeling!
Exactly! Remember that achieving all three types of similarity is essential for reliable engineering and research practices.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Dynamic similarity is crucial in fluid mechanics, allowing for the representation of flow behaviors in prototype systems by using scale models. The section emphasizes the relationships between geometric, kinematic, and dynamic similarities, detailing how these concepts apply to physical modeling experiments, particularly in civil engineering.
Detailed
Dynamic Similarity in Fluid Mechanics
In fluid mechanics, dynamic similarity refers to the correlation between model and prototype systems in flow characteristics such that the resulting behaviors are consistent across scales. This section defines and explains the key elements of dynamic similarity, its subclasses—geometric and kinematic similarities—and how these concepts are applied in practical scenarios, particularly for hydraulic structures such as dams and barrages.
Key Elements of Dynamic Similarity
Dynamic similarity involves ensuring that three primary factors are equivalent between model and prototype:
1. Length Scale: The geometrical proportions captured in the models according to a defined ratio.
2. Time Scale: The temporal factors involved in the flow patterns that must correspond in both model and prototype.
3. Force Scale: The forces acting on the fluid which should equilibrate in terms of their dynamic effects.
Importance in Civil Engineering
In applications such as dam design, it's often impossible to work with full-scale prototypes. Hence, engineers use scaled models to observe and predict flow behaviors under various conditions. Proper modeling employs dimensional analysis to maintain these similarities, ensuring that results from scaled experiments can be correctly interpreted and applied to real-world conditions.
By focusing on geometric and kinematic similarities as foundational principles, civil engineers can ensure that their experiments yield reliable and applicable data that enhance the safety and effectiveness of hydraulic structures.

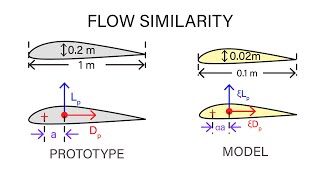

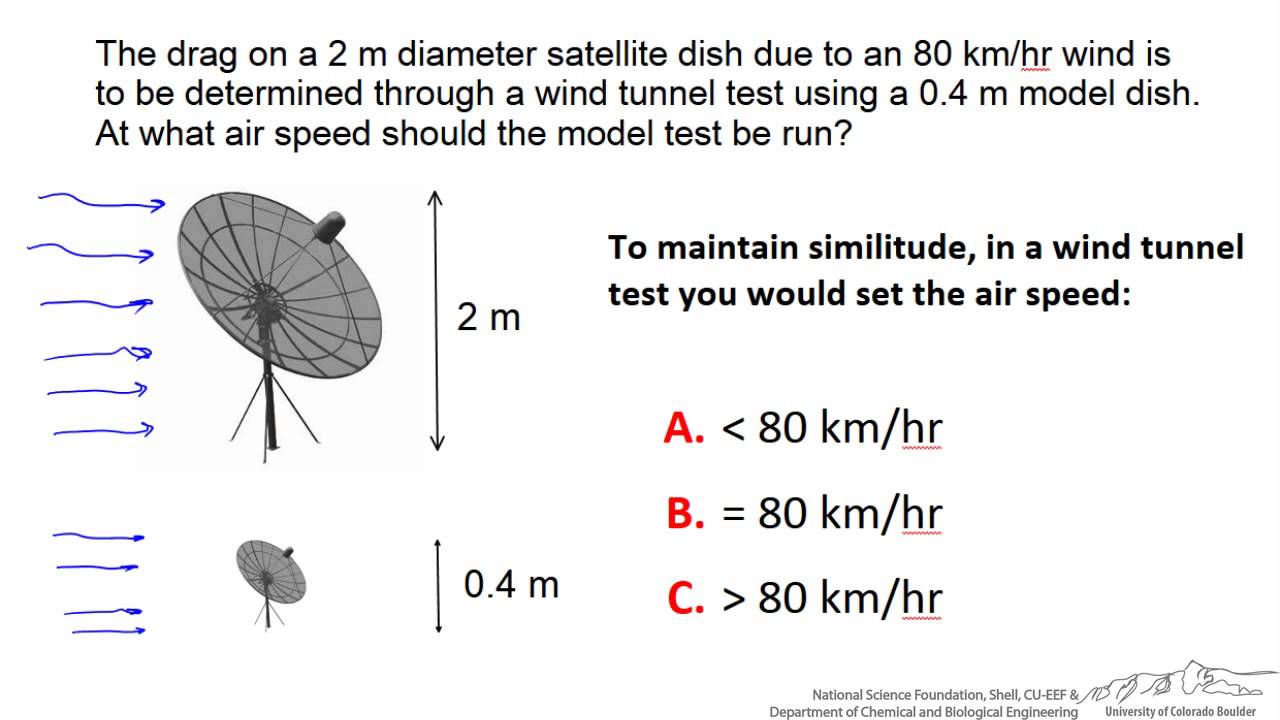

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Dynamic Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dynamic similarity occurs when a model and its prototype exhibit similar flow characteristics under the same set of conditions. This means that ratios of forces acting on both the model and the prototype are identical.
Detailed Explanation
Dynamic similarity is an essential concept in fluid mechanics that helps engineers ensure that the behavior of a scaled model in laboratory settings can accurately predict the behavior of the actual prototype in real-world conditions. To achieve dynamic similarity, it’s crucial that the forces acting on both the model and prototype are proportionally the same.
Consider that both the model and prototype are subjected to various forces like pressure differences, gravitational pull, and viscous forces. If these forces are proportional, then the flow behavior in both will mimic each other. This aspect is vital for applications involving dams, bridges, and any structure interacting with fluid flows.
Examples & Analogies
Imagine a small-scale model of a water dam created in a laboratory. Engineers run tests on this small model to observe how water flows around it. If the scaled model shows the same flow behaviors—like the development of eddies and pressure changes—as the full-size dam would under similar conditions, then we can confidently state that the dynamic similarity has been achieved. This ensures that predictions made from the model will hold true for the actual dam.
Forces in Dynamic Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dynamic similarity requires that the forces acting on the model and the prototype are in a consistent ratio. These forces include pressure forces, inertial forces, and viscous forces, which need to be balanced the same way in both models.
Detailed Explanation
In dynamic similarity, you cannot just rely on one force. All significant forces acting on the model must be considered. This includes:
- Inertial Forces: These come into play because of the mass and acceleration of moving fluid.
- Pressure Forces: These result from the fluid's ability to exert pressure on surfaces, which can be impacted by flow conditions.
- Viscous Forces: These arise from friction between the fluid layers and the surfaces they are in contact with.
To achieve dynamic similarity, the sum of these forces acting on the model must match the corresponding forces acting on the prototype, often expressed in ratios known as dimensionless numbers like the Reynolds number.
Examples & Analogies
Think of two identical hockey players: one is a child and the other is an adult. If both are skating on ice with similar intensity and speed but different weights, the way they interact with the ice (force exerted on the ice) would differ. A smaller child might slide easily while the heavier adult pushes harder; these forces therefore exemplify the challenges of dynamic similarity. In a model of a dam, if the weights (forces) of water behind it and how they affect the dam's structural integrity vary, the predictions may become unreliable unless proper scaling is done.
Achieving Dynamic Similarity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
To successfully establish dynamic similarity, it is essential first to achieve geometric and kinematic similarities. Geometric similarity ensures that the shapes of the model and prototype are in proportion, while kinematic similarity ensures that the flow patterns and velocities correspond appropriately.
Detailed Explanation
Dynamic similarity cannot exist in isolation. For it to be valid, we first must achieve:
- Geometric Similarity: All relevant dimensions of the model must be scaled down to maintain the shape and proportion of the prototype. For example, if a dam is scaled to half its height, its width and depth must also be reduced proportionally.
- Kinematic Similarity: This involves both the velocity and movement patterns being preserved. The flow rate and characteristics must reflect similar behavior at all relevant scales.
Without achieving both geometric and kinematic similarities, dynamic similarity cannot be reliably assessed or achieved.
Examples & Analogies
Think of life-sized mannequins used to test safety gear for cars. The manufacturers create smaller versions to represent the average size of individuals who might use the gear. These smaller mannequins must not only be designed proportionally to replicate actual human movements (geometric similarity) but also must mimic the same velocity and patterns of movement in the car’s crash tests (kinematic similarity) for the results to be valid.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Dynamic Similarity: Ensures that the involvement of forces is equivalent in models and prototypes.
-
Geometric Similarity: Maintains consistent shape and proportions across scales.
-
Kinematic Similarity: Guarantees matching velocity fields and streamline patterns.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An example of dynamic similarity is when a small physical model of a dam accurately replicates the pressure forces experienced in a real dam under water flow.
-
In automotive testing, scale models are used to study airflow, demonstrating geometric similarity to predict how the full-sized vehicle will behave.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In models small, let shapes stand tall, with ratios true, we'll learn it all.
📖 Fascinating Stories
-
Imagine a tiny dam model placed in a table stream. As water flows, it shows how a big dam would rise and fall, teaching engineers in its wake.
🧠 Other Memory Gems
-
G-K-D: Geometry, Kinematics, Dynamics are the three types of similarity.
🎯 Super Acronyms
Remember G-MAP
- **G**eometry
- **M**odels
- **A**pplied
- **P**redictions for geometric similarity.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Dynamic Similarity
Definition:
A relationship in fluid mechanics where model and prototype characteristics match in flow behavior.
-
Term: Geometric Similarity
Definition:
When the shape and proportions of a model replicate those of the prototype in a scale-reduced manner.
-
Term: Kinematic Similarity
Definition:
Matching velocity and streamline patterns in both model and prototype systems.
