Introduction to Head Loss

Unlock Audio Lesson

0:00
Teacher
Teacher

Today we’re going to discuss head losses in pipe flow. Can anyone tell me what head loss means in a flowing fluid?

Student 1
Student 1

Isn't it the loss of energy as the fluid moves through the pipe?

Teacher
Teacher

Exactly! Head loss represents the energy lost due to friction and other factors as fluid flows through a pipe. Now, can anyone identify the two main types of head losses?

Student 2
Student 2

There are major losses and minor losses!

Teacher
Teacher

That's correct. Major losses primarily arise from friction, while minor losses occur due to fittings or components like bends and valves. Remember: Major = Friction, Minor = Components. Let's dive into how we calculate these losses.

Calculating Major Head Loss

Unlock Audio Lesson

0:00
Teacher
Teacher

To calculate major head loss, we use the Darcy-Weisbach equation. Who can explain what this equation involves?

Student 3
Student 3

It includes factors like the length of the pipe, diameter, and flow velocity, along with a friction factor?

Teacher
Teacher

Well pointed out! The equation is essential in pipeline design. Now, if we know the friction factor is 0.024, the length is 3000 meters, and we want to find the head loss, can anyone suggest how we would set this up?

Student 4
Student 4

We can use the formula: h_f = f * (L/D) * (V^2 / (2g)).

Teacher
Teacher

Right again! Great job, let’s work through an example together.

Understanding Minor Losses

Unlock Audio Lesson

0:00
Teacher
Teacher

Minor losses can come from components like bends. Who remembers how we calculate these losses?

Student 1
Student 1

We use loss coefficients related to the type of fitting, right?

Teacher
Teacher

Correct! For each fitting, there's a specific loss coefficient that allows us to calculate how much energy is lost, typically expressed as a fraction of the velocity head. Can you think of examples of components that could cause minor losses?

Student 2
Student 2

Bends, valves, and even the entrance and exit points of the pipe!

Teacher
Teacher

Absolutely! And we can sum these minor losses for a total effect. Now let's apply these concepts using Bernoulli’s equation next.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses major and minor head losses in pipe flow, including how to compute them using Bernoulli's equations.

Standard

In this section, we analyze head losses, particularly major losses due to friction and minor losses from components like bends and valves. We use Bernoulli’s equation to demonstrate how these losses impact pressure calculations within a piped system connecting two reservoirs.

Detailed

Detailed Summary

This section elaborates on the concept of head losses in fluid dynamics, focusing specifically on both major and minor losses encountered in pipe flow. Major head losses are primarily attributed to friction as fluid flows through a pipe, while minor losses are associated with fittings, bends, and valves that disrupt smooth flow.

Key Points Covered:

  • Major Pipe Head Loss Due to Friction: Calculated using the Darcy-Weisbach equation, where the pressure drop is directly proportional to the friction factor, pipe length, and flow velocity.
  • Minor Losses: Discusses losses from bends, valves, and entry/exit points in the pipe. Minor losses are addressed using specific coefficients derived from experimental data.
  • Bernoulli's Equation Application: Demonstrated the use of Bernoulli’s equations to determine the pressure drop across a pipeline, considering both major and minor losses.
  • Problem Solving Framework: Illustrated with examples including specific numerical calculations that illustrate the principles of head loss in practical situations, particularly in connecting two reservoirs.

This detailed examination highlights the importance of accounting for both major and minor losses when designing piping systems.

Youtube Videos

surface tension experiment
surface tension experiment
UNIT PRESSURE - Sample Problem No. 16 (Fluid Mechanics & Hydraulics)
UNIT PRESSURE - Sample Problem No. 16 (Fluid Mechanics & Hydraulics)

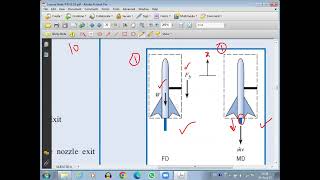

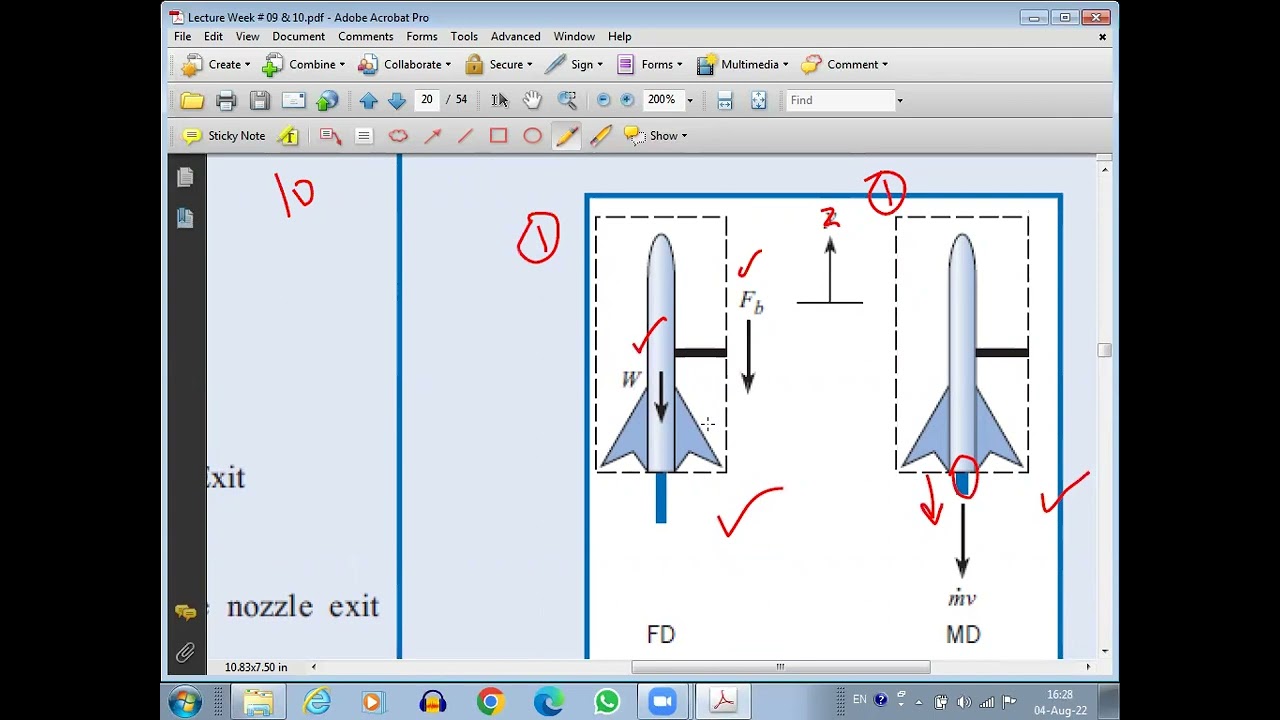

Video Lecture Fluid Mechanics 09/16 Part 2/2
Video Lecture Fluid Mechanics 09/16 Part 2/2
UNIT PRESSURE - Sample Problem No. 2 (Fluid Mechanics & Hydraulics)
UNIT PRESSURE - Sample Problem No. 2 (Fluid Mechanics & Hydraulics)
Lecture 20: Review of Fluid Mechanics - II
Lecture 20: Review of Fluid Mechanics - II
UNIT PRESSURE - Sample Problem No. 2 (Fluid Mechanics & Hydraulics)
UNIT PRESSURE - Sample Problem No. 2 (Fluid Mechanics & Hydraulics)
Fluid Mechanics Lesson: Specific Gravity, Pressure in the Fluids & Pascal's Principle
Fluid Mechanics Lesson: Specific Gravity, Pressure in the Fluids & Pascal's Principle
UNIT PRESSURE - Sample Problem No. 28 (Fluid Mechanics & Hydraulics)
UNIT PRESSURE - Sample Problem No. 28 (Fluid Mechanics & Hydraulics)
Fluid Mechanics Lab IIT Bombay | #iit #iitbombay #jee #motivation
Fluid Mechanics Lab IIT Bombay | #iit #iitbombay #jee #motivation
2.19 Mechanics Vol 2 CH- Fluid Mechanics - P351/L2/Ex 56 by Er. DC Gupta
2.19 Mechanics Vol 2 CH- Fluid Mechanics - P351/L2/Ex 56 by Er. DC Gupta

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Understanding Head Loss

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

So that means I know the head losses; that is what is computed here by substituting this value. There will be minor losses like bend losses, valve losses, the entry and exit losses. All the components, this entry and exit loss we do not consider it here. Only the bend loss and valve loss we compute it, which we have these values.

Detailed Explanation

Head loss refers to the reduction in the total mechanical energy of the fluid due to friction and other resistance within the pipe. In this case, while calculating the total head loss, only minor losses caused by bends and valves are taken into account. Entry and exit losses are omitted for simplification.

Examples & Analogies

Imagine a water slide where water flows down smoothly but slows down at corners (bends) and when a stopper (valve) is placed. The water's energy decreases slightly at these points, which represents how head loss happens in pipes.

Major Pipe Head Loss (Due to Friction)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Major pipe head loss (due to friction):
$$\Delta h = \frac{f \times L}{D} \times \frac{V^2}{2g}$$
Where:
- $f$ = friction factor
- $L$ = length of the pipe
- $D$ = diameter of the pipe
- $V$ = flow velocity
- $g$ = acceleration due to gravity

Detailed Explanation

The major head loss in a pipe is primarily due to friction. This equation shows how the friction factor, length of the pipe, and flow velocity contribute to the total head loss. The longer the pipe and the higher the velocity, the greater the energy loss due to friction.

Examples & Analogies

Think of a long slide; the longer it is, the more friction your body experiences with the surface, thus slowing you down. Likewise, as water travels through long pipes, it loses energy primarily due to friction with the pipe walls.

Minor Losses

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Minor losses:
$$h_{minor} = K \frac{V^2}{2g}$$
Where:
- $K$ = loss coefficient for a fitting or fitting type
- $V$ = flow velocity
- $g$ = acceleration due to gravity

Detailed Explanation

Minor losses occur at fittings in the piping system, like bends, valves, and other components. The loss coefficient ($K$) quantifies how much energy is lost at each fitting, which is then multiplied by the velocity head to determine the total minor loss.

Examples & Analogies

Consider navigating a series of turns on a bike; every time you turn (similar to a bend in a pipe), you slow down a bit due to friction and drag. These small reductions in speed during turns represent minor losses in a fluid system.

Using Bernoulli’s Equation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Now we are substituting Bernoulli’s equations, the modified Bernoulli’s equations to compute what could be the pressure. So I am not going more detail as you can read this ppt to get these details.

Detailed Explanation

Bernoulli's equation relates pressure, velocity, and elevation to describe fluid flow. By considering the known losses in the system, we can calculate the remaining pressure at specific points in the pipe to ensure sufficient flow.

Examples & Analogies

Imagine a balloon losing air as you squeeze it. The air pressure inside decreases, affecting how quickly the balloon can expand again. Similarly, understanding losses in a pipe system allows us to predict pressure changes as fluid moves through.

Pressure Calculation at Point B

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Pressure at B (using Bernoulli’s equation):
$$P_B = P_A - \Delta h$$
After computing it you substitute the value then compute the pressures. So it is quite an easy job now once you know that.

Detailed Explanation

To find the pressure at point B in the system, we use the modified Bernoulli's equation. We need the pressure at point A and the total head loss to calculate the pressure down the line at point B, showing how energy is conserved and converted between types (pressure, kinetic, potential).

Examples & Analogies

Think of water flowing down a hill; as it descends, the pressure at the top (high point) is greater than at the bottom (low point). By knowing the height difference (head losses), we can predict the pressure at lower points.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Head Loss: The energy lost as fluid moves through a pipe or fitting.

  • Major Losses: Due primarily to friction; calculated via the Darcy-Weisbach equation.

  • Minor Losses: Result from fittings and obstacles; assessed by loss coefficients.

  • Bernoulli’s Equation: Key to relating pressure and velocity in a flowing system.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • An example problem calculating major losses through a length of pipe using a given friction factor.

  • A case study on minor losses resulting from a valve in a piping system.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In pipes so long and bends so wide, energy lost is what we can't hide.

📖 Fascinating Stories

  • Imagine a river flowing smoothly. Now, picture a rock placed in the river's path. Just as the water slows down and loses energy, fluids in pipes encounter similar losses due to obstacles, causing head loss.

🧠 Other Memory Gems

  • Fabulous Pipes Lose Energy (FPLE) for remembering friction and minor losses.

🎯 Super Acronyms

H.M (Head Major) for Head Loss, Major loss from Friction, and Minor Loss from fittings.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Head Loss

    Definition:

    The reduction in the total mechanical energy of the fluid as it moves through a system.

  • Term: Major Losses

    Definition:

    Energy losses primarily due to friction in a pipe.

  • Term: Minor Losses

    Definition:

    Energy losses that occur due to fittings, bends, valves, and other components.

  • Term: DarcyWeisbach Equation

    Definition:

    An equation used to calculate pressure loss due to friction in a pipe.

  • Term: Bernoulli’s Equation

    Definition:

    A principle that relates pressure, velocity, and elevation head in a flowing fluid.
