Introduction to Eddy Formation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we'll talk about how eddies form in turbulent flows. Can anyone define what turbulence is?
Isn't turbulence the chaotic movement of fluid?
Exactly! Turbulence involves irregular fluctuations and mixing. Now, how do we visualize this?
Using virtual fluid balls? Like imagining balls of different sizes and colors?
Right! We can think of these virtual fluid balls disintegrating and integrating in turbulent zones. Can someone summarize how they behave?
In high turbulence, they disintegrate into smaller balls and form eddies!
Great! Remember, increased turbulence leads to more disintegration. Let’s move on to discuss Reynolds numbers.
So what are Reynolds numbers and why are they significant in distinguishing flow types?
They help determine whether flow is laminar or turbulent based on inertia and viscous forces.
Exactly! Below 2300 indicates laminar flow, above 4000 indicates turbulent flow. Can someone provide a summary of when transitions occur?
2300 is the critical value to transition from laminar to turbulent flow.
Correct! Understanding these transitions is crucial for designing efficient pipe systems.
Understanding Mass and Momentum Flux
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s dive deeper into how turbulence affects mass and momentum flux. Can anyone explain what we mean by mass flux?
It’s the mass of fluid passing through a unit area over time, right?
Exactly! And in turbulent flow, these fluxes fluctuate significantly. Can someone visualize how these changes occur?
When these fluid balls disintegrate due to turbulence, they change their velocities, causing changes in mass flux.
Well done! And how do we relate this to momentum?
We can also see changes in momentum flux due to fluctuations in velocity.
That’s right! These effects are what we see in turbulent flows causing chaotic behaviors. How can we summarize the impact of turbulence on mass and momentum flux?
Turbulence leads to significant variations in both mass and momentum as fluid balls disintegrate and their velocities change.
Perfect summary! Remember, these concepts are essential for understanding the dynamics in fluid transportation systems.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Eddy formation is a key phenomenon in fluid mechanics, particularly in turbulent flow. The section discusses how virtual fluid balls disintegrate and integrate in turbulent conditions, leading to momentum and mass flux changes. It also elaborates on the transition between laminar and turbulent flow characterized by Reynolds numbers.
Detailed
Eddy Formation
This section discusses the concept of eddy formation in turbulent flows. As fluid flows, particularly in high Reynolds number scenarios, it undergoes various states, transitioning from laminar to turbulent flow. This transition is marked by the disintegration and integration of virtual fluid balls, leading to the formation of eddies. When the fluid experiences turbulence, it can be visualized as a series of colored balls that disintegrate and swirl together, creating smaller balls or clusters that move at different velocities.
Key concepts include:
- Virtual Fluid Balls: A model to help visualize how fluid particles interact during turbulence.
- Transition Between Flows: The critical Reynolds number indicates the transition between laminar flow (Re < 2300), transition flow (2300 < Re < 4000), and turbulent flow (Re > 4000).
- Mass and Momentum Flux: The section explains how fluctuating velocities in turbulent flow lead to significant changes in both mass and momentum flux, resulting in chaotic fluid behaviors. Overall, understanding eddy formation is crucial for designing efficient pipe systems for fluid transport.
Youtube Videos

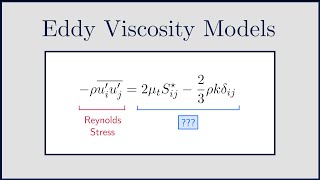

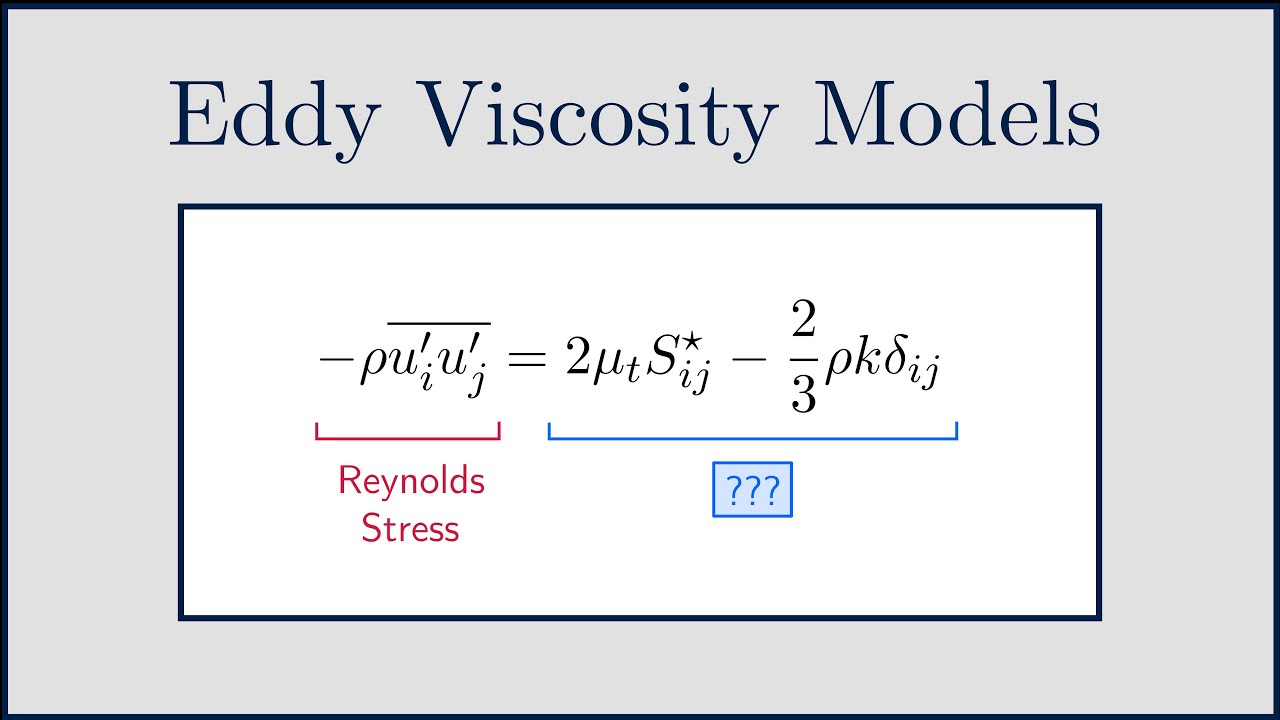

![[CFD] Eddy Viscosity Models for RANS and LES](https://img.youtube.com/vi/SVYXNICeNWA/mqdefault.jpg)

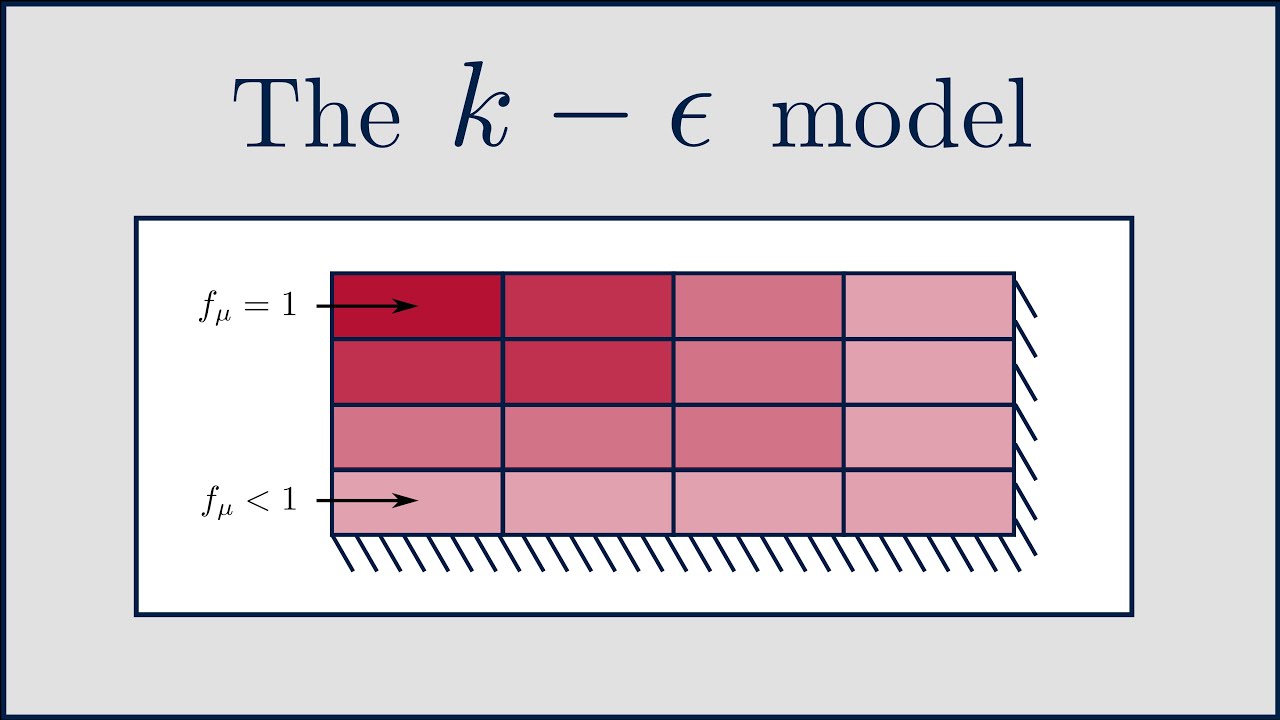

![[CFD] The k - epsilon Turbulence Model](https://img.youtube.com/vi/fOB91zQ7HJU/mqdefault.jpg)

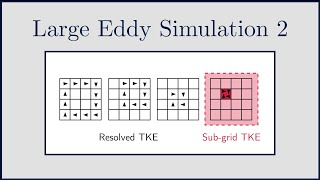

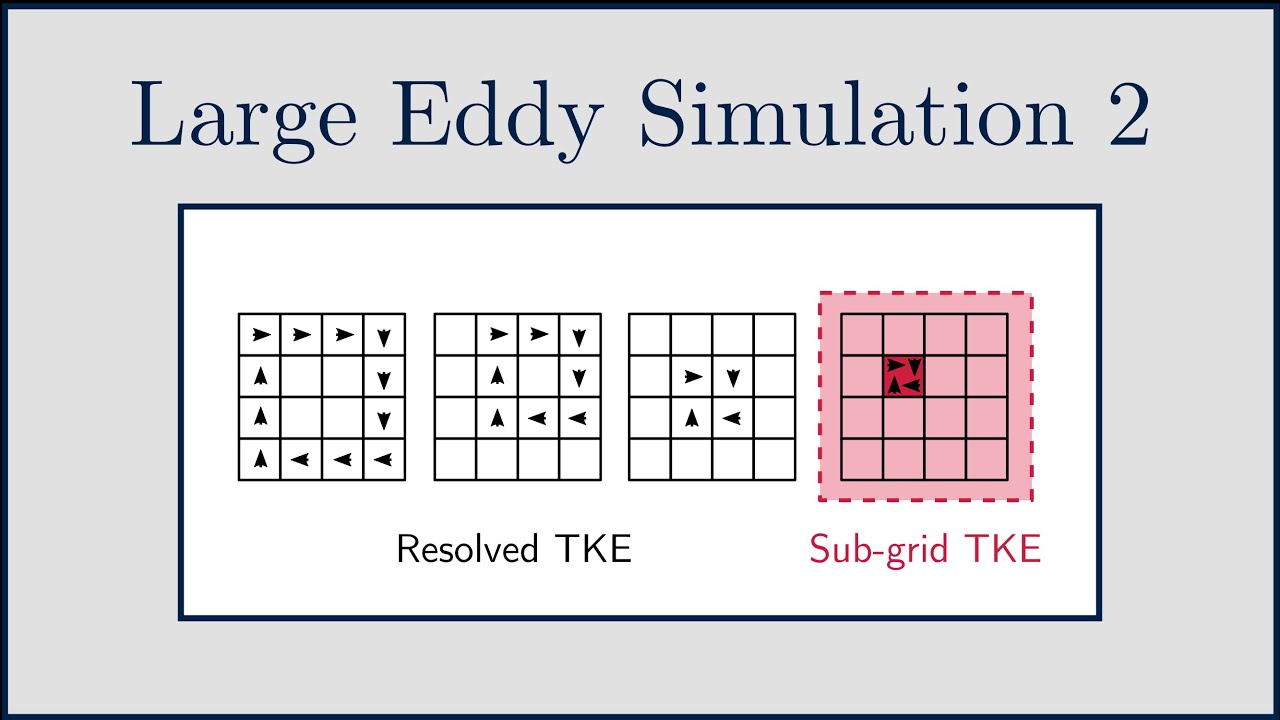

![[CFD] Large Eddy Simulation (LES) 2: Turbulent Kinetic Energy](https://img.youtube.com/vi/QKDFTCUh7zU/mqdefault.jpg)
![[CFD] Large Eddy Simulation (LES): An Introduction](https://img.youtube.com/vi/r5vP45_6fB4/mqdefault.jpg)

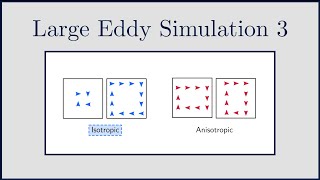

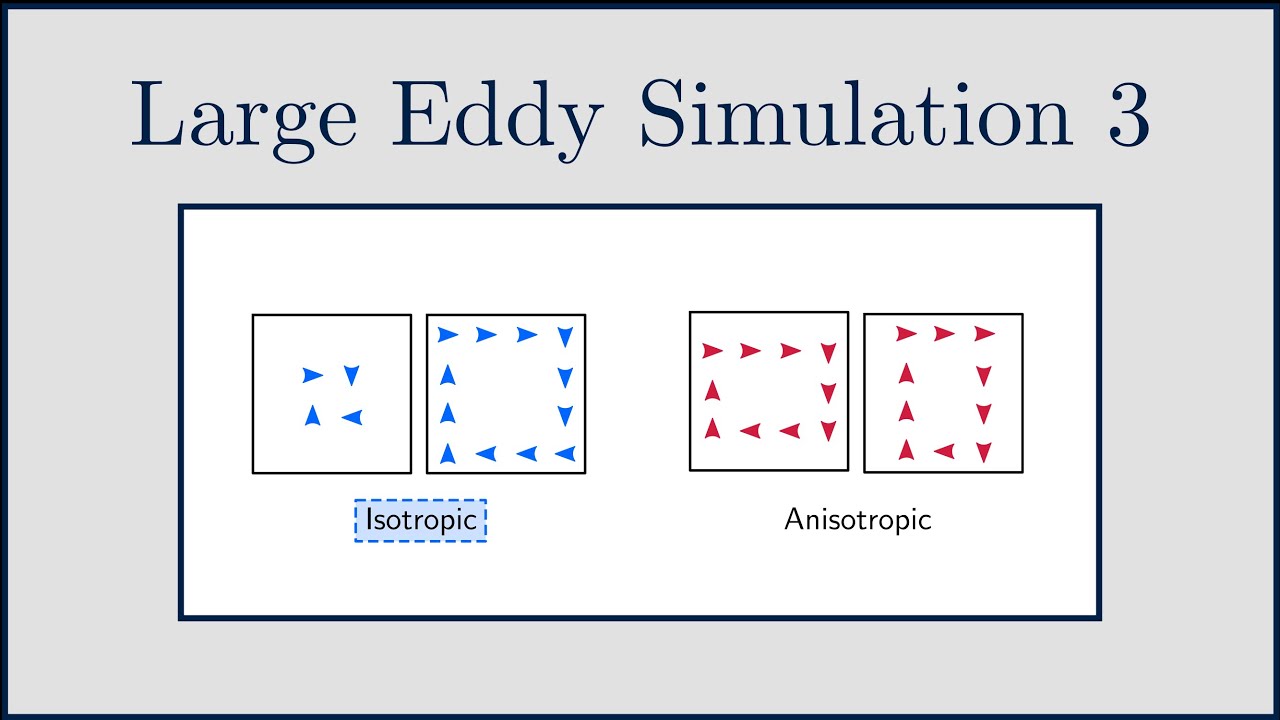

![[CFD] Large Eddy Simulation (LES) 3: Sub-Grid Modelling](https://img.youtube.com/vi/N81Io_yrOQU/mqdefault.jpg)
