17.1.1 - Laminar and Turbulent Flows
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Flow Types
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome, everyone! Today we are going to explore the fascinating world of fluid dynamics, focusing on laminar and turbulent flows. Can anyone tell me what laminar flow looks like?
Isn’t laminar flow the smooth kind where the layers of fluid slide over each other?
Exactly, great observation! Laminar flow involves fluid layers moving in parallel, with minimal mixing between them. It's like a well-organized dance! Now, what about turbulent flow?
Turbulent flow is chaotic, right? Like when you stir a cup of coffee?
Yes, absolutely! Turbulent flow resembles agitation, where the fluid experiences irregular fluctuations and mixing. This chaos leads to efficient mass and momentum transport. Let's remember this distinction: 'laminar is calm; turbulent is tumultuous.'
How do we measure which type of flow we have?
Good question! We use the Reynolds number, which is the ratio of inertial forces to viscous forces. A Reynolds number below 2300 indicates laminar flow, while above 4000 indicates turbulent flow.
What happens between those numbers?
That represents a transitional flow zone. We call it unstable as it fluctuates between laminar and turbulent states!
Today we will emphasize these ideas and connect them with our virtual fluid ball concept for better understanding!
Understanding Virtual Fluid Balls
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s dive deeper into our virtual fluid ball concept! Imagine fluid as distinct colored balls moving together. How does this help us understand laminar and turbulent flows?
Are the balls representing layers of flow? In laminar, they stay intact, right?
Exactly! In laminar flow, the balls represent orderly fluid layers. They slide past each other smoothly. Now, what happens as turbulence sets in?
The balls break apart into smaller pieces, mimicking how turbulence creates chaos?
Spot on! Turbulent flow leads to disintegration of the balls, creating smaller units that experience varied velocities. This process creates eddies which help in energy and mass transport.
Can you explain what an eddy is?
Of course! An eddy is a circular movement of fluid acting like a vortex, crucial for mixing in turbulent flows. Visualize a swirling tornado!
So, to recap: in laminar flow, our virtual balls are stable and intact, while in turbulent flow, they fragment and create turbulent structures.
Experimental Demonstrations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
How can we visualize these concepts practically? Can anyone suggest an experiment?
Using dyes in water, right? Like in a Reynolds apparatus?
Absolutely! The Reynolds apparatus helps illustrate flow behavior. When dye is injected into water flowing at low velocities, it shows laminar flow, creating clear patterns. High velocities will disrupt these patterns into chaotic trolls.
I remember that when the flow is fast, the dye swirls everywhere!
Exactly! At that point, we observe the transition from laminar to turbulent flow. Always control the velocity!
Got it! So, experiments help us see the effects of varying Reynolds numbers.
Right again! These tangible demonstrations reinforce our learning of flow types through visual evidence.
In summary, experiments like these help bridge theory with real-life fluid behavior.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section covers essential concepts of laminar and turbulent flows in fluid mechanics, emphasizing the significance of the Reynolds number in determining flow types and the use of virtual fluid balls to conceptualize the mechanisms involved in mass and momentum transport in fluids.
Detailed
In fluid mechanics, two primary flow types are distinguished: laminar and turbulent flows. Laminar flow is characterized by smooth, orderly motion with fluid layers sliding past each other, typically occurring at Reynolds numbers below 2300. Conversely, turbulent flow involves chaotic oscillations and irregular fluctuations, with Reynolds numbers exceeding 4000. This section highlights the importance of Reynolds number as a dimensionless quantity that represents the ratio of inertial forces to viscous forces within a fluid. It also introduces the concept of virtual fluid balls to visualize fluid behavior, explaining how turbulence causes fluid elements to disintegrate into smaller parts, leading to the formation of eddies and promoting mass and momentum transport. Experimental methods, particularly those using the Reynolds apparatus, reinforce these concepts by allowing visualization of flow patterns using dye, further solidifying our understanding of laminar and turbulent flows.
Youtube Videos

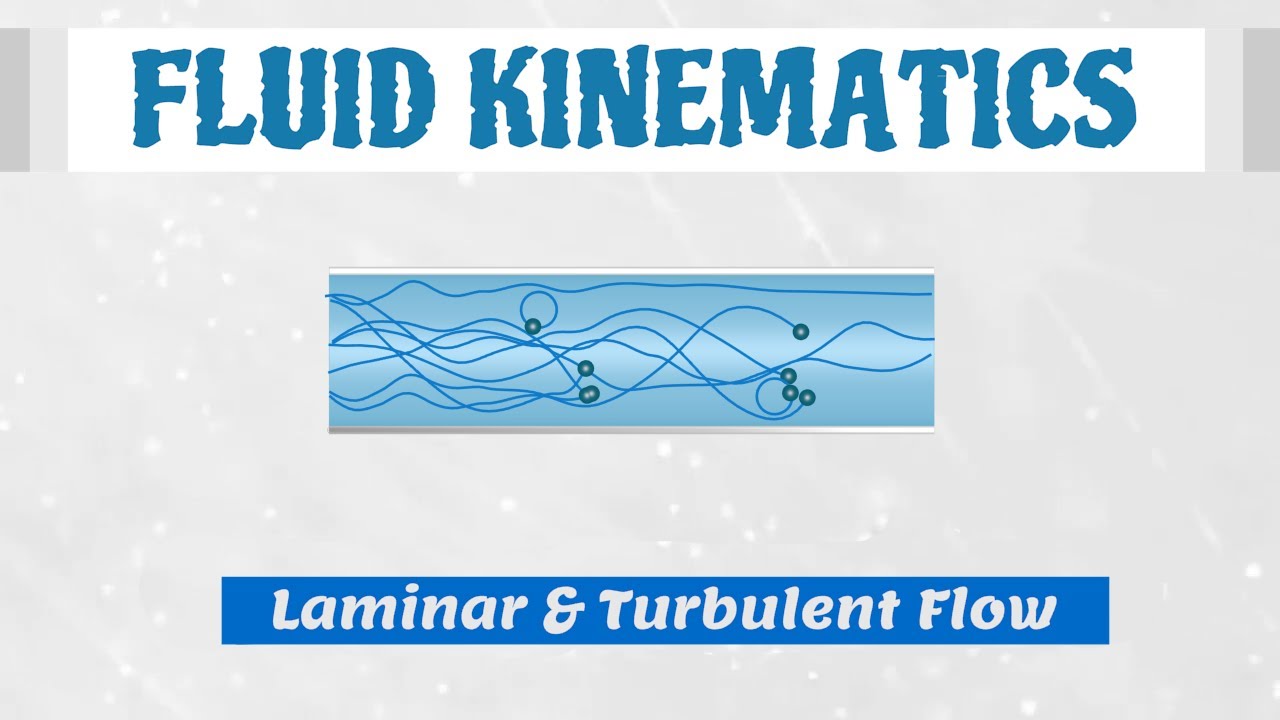

![Animation of Laminar Flow and Turbulent Flow [Fluid Mechanics]](https://img.youtube.com/vi/neD9XPPJuto/mqdefault.jpg)
