17.5 - Energy in Turbulent Flows
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Turbulent Flows
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome, everyone! Today we're going to dive into turbulent flows. Can anyone tell me what they understand by turbulence in fluid mechanics?
I think turbulence is related to chaotic fluid movements.
That's correct, Student_1! Turbulence involves irregular fluctuations and chaotic behavior in the flow. Now, how many of you know why understanding turbulence is essential in civil engineering?
I guess it's about designing better systems for transporting fluids?
Exactly! Knowing how turbulence affects energy dissipation helps us design efficient pipe systems for transporting liquids and gases. Let's explore virtual fluid balls further. Who remembers what they represent in our discussions?
They're like theoretical representations of fluid parcels moving in a flow!
Right again, Student_3! These 'balls' help us visualize the disintegration and integration processes during turbulent flow.
Key takeaway: Turbulent flows are critical in fluid transportation systems due to their complex behaviors.
Energy Dissipation in Turbulent Flows
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s talk about energy dissipation in turbulent flows. Can anyone explain what happens to energy when a flow becomes turbulent?
I think energy is lost due to the chaotic motions.
Correct! The chaotic motions lead to increased friction and energy loss, which is a critical consideration in fluid systems.
So, in turbulent zones, aren't there significant changes in mass and momentum flux as well?
Absolutely, Student_1! In turbulent flows, both mass and momentum are constantly exchanged among the disintegrating and integrating fluid balls, causing fluctuations. Remember: as turbulence increases, so does energy dissipation.
Summary: Energy dissipation is a key concept in understanding turbulent flows, and it's vital for efficient fluid transportation.
Reynolds Number and Flow Transition
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let's focus on the Reynolds number. Can someone explain what this number indicates in fluid mechanics?
I believe it’s a ratio of inertial forces to viscous forces.
Exactly! And what do you think happens at different Reynolds numbers? For instance, below 2300, what type of flow do we have?
A laminar flow!
Correct! As we exceed 2300, the flow transitions to unstable states, and once we hit 4000, we reach turbulence. That's the critical threshold!
Key Concepts: 2300 is transitional, and 4000 is fully turbulent. Let's keep these thresholds in mind.
Computation of Mass and Momentum Flux
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, how about we discuss momentum flux? Can anyone remember how we compute additional mass flux in turbulent flows?
It's based on the fluctuating velocity component!
That's right! We look at the velocity fluctuations to calculate the mass flux and derive the momentum flux from it.
So, if we have u dash for time-averaged components, we multiply that with density?
Exactly, Student_1! Density times the fluctuating velocity gives the additional mass flux. Keep in mind to consider all three velocity components: x, y, and z in your calculations.
Summary: Understanding momentum and mass flux in turbulent flows is vital, especially when using the fluctuating velocity approach.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we explore turbulent flows, emphasizing the role of turbulence in energy dissipation, mass transport, and momentum flux. We also discuss the characteristic behaviors of fluid balls in turbulent environments and the transition between laminar and turbulent flows as affected by Reynolds numbers.
Detailed
Energy in Turbulent Flows
This section delves into the complex behavior of turbulent flows in fluid mechanics, particularly focusing on energy dissipation. Turbulence is characterized by irregular fluctuations and chaotic behavior, which complicate the transport mechanisms of mass and momentum.
Key Concepts Covered:
- Virtual Fluid Balls: The analogy of fluid mechanics using the concept of moving virtual fluid balls to understand how turbulence alters the flow.
- Turbulence and Energy: The impact of turbulence on energy dissipation in flows, including the formation and disintegration of fluid balls that lead to energy loss.
- Reynolds Number: The critical role of Reynolds number in determining flow characteristics, distinguishing between laminar, transition, and turbulent flows, with thresholds established at Reynolds numbers of 2300 and 4000.
- Momentum and Mass Flux: How momentum and mass flux are computed in turbulent flows, including average and fluctuating components of velocity.
Understanding these concepts is critical for designing efficient transport systems in civil engineering, where energy-efficient pipe systems are needed for fluid transport.
Youtube Videos
![[CFD] y+ for Laminar Flow](https://img.youtube.com/vi/yfYr72Gc4S4/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Turbulent Flows
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Turbulent flow occurs in most natural flows, particularly at high Reynolds numbers, creating various turbulent structures. Examples include the transition from high to low turbulence observed in phenomena like waterfalls.
Detailed Explanation
Turbulent flow is typically characterized by chaotic changes in pressure and flow velocity. When we observe natural phenomena like waterfalls, we see different levels of turbulence, with areas of high turbulence creating a chaotic environment. This is related to the concept of Reynolds numbers, which indicates whether flow is laminar or turbulent depending on conditions like velocity. At high Reynolds numbers, such as those observed in turbulent flows, the flow appears chaotic and complex.
Examples & Analogies
Imagine standing next to a river. At the surface, the water is bubbling and swirling rapidly, which represents turbulent flow, while deeper down, the water may flow more smoothly, resembling laminar flow. This visual helps you understand how turbulent flows mix and move with energy.
Virtual Fluid Balls in Turbulence
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In turbulent flows, consider the concept of virtual fluid balls—representing fluid parcels—that can disintegrate or combine depending on turbulence levels. In high turbulence, larger balls break down into smaller ones, which carry mass and momentum.
Detailed Explanation
The idea of virtual fluid balls helps visualize the behavior of fluids in turbulence. When we say these balls can disintegrate, it means that in turbulent conditions, larger parcels of fluid break into smaller ones, each moving at different speeds. This disintegration leads to energy dissipation and momentum transfer, making the flow more unpredictable. The interaction between these balls—or parcels—results in energy being transferred and mixed throughout the flow.
Examples & Analogies
Think of a large crowd of people at a concert (the virtual fluid balls). Initially, they start together, but as the music gets louder and more energetic (increased turbulence), they begin to break off into smaller groups, moving in various directions. Just like the fluid balls, each group can exchange energy and momentum with others, illustrating how energy flows through turbulent conditions.
Reynolds Number: The Transition Point
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

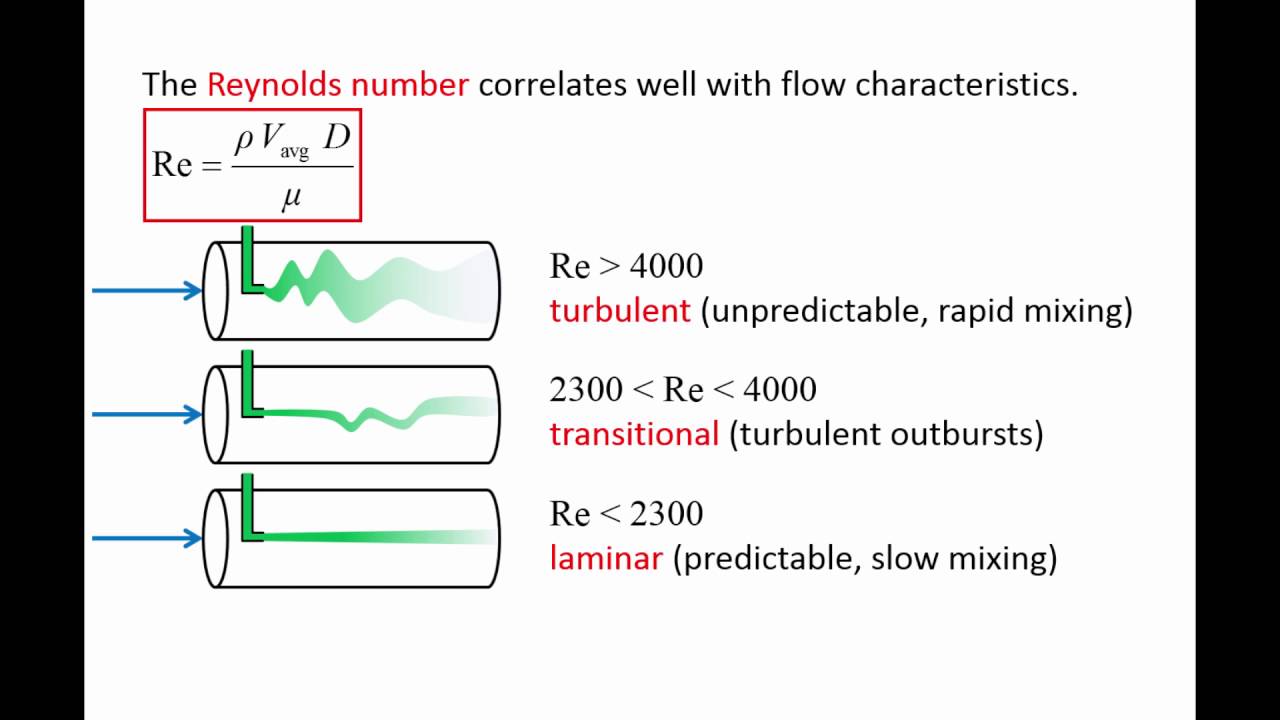

The Reynolds number illustrates the relationship between inertial and viscous forces in a fluid. A flow is considered laminar if the Reynolds number is below 2300. Transition occurs as the number exceeds this value, leading to turbulent flow at numbers above 4000.
Detailed Explanation
The Reynolds number (Re) is critical in determining the type of flow in a pipe. A low Reynolds number indicates that viscous forces dominate, resulting in smoother, laminar flow. As the flow's speed increases and the Reynolds number crosses the threshold of 2300, disturbances arise, causing transition to turbulence. When the number exceeds 4000, turbulence predominates, illustrating the chaotic nature of the flow that leads to much greater mixing and energy dissipation.
Examples & Analogies
Imagine a smooth, winding slide at a water park. If you slide down slowly, you glide smoothly (laminar flow). But if you speed up significantly, you begin to splash around and bounce off the sides—this is akin to moving from laminar to turbulent flow as you pass the transitions defined by Reynolds numbers.
Fluctuations and Average Velocity in Turbulent Flow
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In turbulent flow, the velocity has both a time-averaged component and fluctuating components. This results in a complex pattern of flow where the turbulent velocities change rapidly around the average speed.
Detailed Explanation
In a turbulent flow, the velocity at any point can be described by an average speed, alongside varying instantaneous speeds that are constantly changing. This means at any given point in a turbulent flow, you have both a stable central tendency (the average velocity) and random fluctuations around it, representing how chaotic and dynamic turbulent flow is. This analysis helps in understanding energy dissipation and provides insights into how momentum is transferred within the fluid.
Examples & Analogies
Consider the flow of traffic on a busy highway. The average speed of cars might be 60 miles per hour, but individual vehicles may speed up or slow down due to various factors—changes in road conditions, driver behavior, or obstacles. Just like the fluctuating velocities in turbulent flow, the average speed and the unpredictable changes among the cars create a complex flow environment.
Mass and Momentum Fluxes in Turbulence
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When considering the mass and momentum flux in turbulent flows, fluctuations in velocity contribute additional mass and momentum transfer across flow layers, making the study of turbulence complex.
Detailed Explanation
In turbulent flows, as we discussed earlier, fluid parcels interact in unpredictable ways. The mass flux (the amount of mass flowing through a unit area) is affected by the velocities of the fluid parcels. When small fluid balls disintegrate, the changing velocities contribute to both incoming and outgoing mass flux, leading to a more complex representation of how fluids behave under turbulent conditions. This shows the interconnectedness of mass transfer and energy dissipation in a turbulent scenario.
Examples & Analogies
Think of a blender mixing different ingredients. As you blend, individual pieces of fruit are chopped up, and the mixture can flow smoothly in and out of the blades. The result is a dynamic mixing process, akin to the mass and momentum fluxes at play in turbulent flows where mass moves unpredictably but efficiently through the system.
Key Concepts
-
Virtual Fluid Balls: The analogy of fluid mechanics using the concept of moving virtual fluid balls to understand how turbulence alters the flow.
-
Turbulence and Energy: The impact of turbulence on energy dissipation in flows, including the formation and disintegration of fluid balls that lead to energy loss.
-
Reynolds Number: The critical role of Reynolds number in determining flow characteristics, distinguishing between laminar, transition, and turbulent flows, with thresholds established at Reynolds numbers of 2300 and 4000.
-
Momentum and Mass Flux: How momentum and mass flux are computed in turbulent flows, including average and fluctuating components of velocity.
-
Understanding these concepts is critical for designing efficient transport systems in civil engineering, where energy-efficient pipe systems are needed for fluid transport.
Examples & Applications
A river’s surface exhibits turbulent flow when it encounters rocks and bends.
In industrial piping systems, maintaining laminar flow can save energy and reduce costs.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When fluid swirls and twirls, energy in chaos unfurls.
Stories
Imagine a river flowing over rocks; the water dances chaotically, losing energy in the splashes and swirls.
Memory Tools
Remember 'TREM' for Turbulent flows: 'Turbulent, Reynolds number, Energy dissipation, Momentum and mass flux'.
Acronyms
Use 'TREM' to remember T for Turbulent, R for Reynolds number, E for Energy dissipation, and M for Momentum flux.
Flash Cards
Glossary
- Turbulent Flow
A flow regime characterized by chaotic property changes, including velocity.
- Reynolds Number
A dimensionless number representing the ratio of inertial forces to viscous forces in a flow.
- Fluid Balls
Conceptual model to visualize fluid elements moving within a flow.
- Momentum Flux
The transport of momentum per unit area in a flow.
- Mass Flux
The mass flow per unit area in a flow.
- Eddies
Small-scale turbulent structures that form within a turbulent flow.
Reference links
Supplementary resources to enhance your learning experience.
