17.4 - Velocity Components in Turbulent Flows
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Turbulent and Laminar Flows
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome, everyone! Today, we will discuss turbulent and laminar flows. Can anyone summarize the main difference between them?
Is it that laminar flows are smooth, while turbulent flows are chaotic?
Exactly! Laminar flows have ordered layers, almost like smooth slides, while turbulent flows display irregular behaviors, as if the flow is dancing wildly! This leads to noticeable changes in momentum and mass transport.
How do we visualize something so complex?
Great question! We can use the concept of 'virtual fluid balls.' Imagine these balls moving through the fluid. In turbulent areas, these balls can disintegrate and split into smaller parts.
What happens to these smaller balls?
Good observation! They can move at different velocities, impacting the overall mass and momentum flux. So, remember the visual of these virtual fluid balls - it’s crucial for understanding turbulence.
I see! That helps me understand how chaotic this flow can get!
Exactly! So, today we will analyze how these components interact, and how we categorize these flow conditions using Reynolds numbers.
Reynolds Number and Flow Categorization
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's dive into the Reynolds number. Does anyone know its significance?
It's a ratio of inertial force to viscous force, correct?
That's correct! When the Reynolds number is below 2300, we observe laminar flows. Can anyone tell me what happens beyond that?
Is it that it transitions to turbulent flow past 4000?
Perfect! The transition region between these ranges is unstable and crucial for understanding flow behaviors. It's where the system can rapidly change from smooth to chaotic.
So flow behaviors vary significantly based on the Reynolds number?
Exactly! Understanding these changes in terms of Reynolds numbers allows engineers to design effective transportation systems in industries.
Virtual Fluid Balls and Momentum Exchange
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's bring our focus back to our virtual fluid balls. As we discussed earlier, they disintegrate in turbulent zones. What effect does this have on momentum?
They can change their velocities and create momentum fluxes?
Absolutely! The interaction of these smaller balls impacts mass transport and creates fluctuations. It’s essential to understand that during turbulent flow, not just size matters, but the speed of these components too!
That’s fascinating! But how do we measure these fluctuations?
Great inquiry! We can use instruments such as acoustic Doppler meters to measure these fluctuations effectively. They provide detailed profiles of velocity components during turbulent flow.
So the data gathered reflects both average and fluctuating velocity components?
Exactly! By analyzing these components, we can design systems that account for possible fluctuations—ensuring reliable functionality.
Mass and Momentum Flux Calculations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s work through mass and momentum flux computations. How do we determine the additional mass flux in turbulent flow caused by fluctuation?
Is it based on density times the velocity?
Correct! The additional mass flux due to fluctuations in the x direction, for example, is given by the equation ρ * u'. Can anyone explain how this translates into momentum flux?
We would multiply the mass flux by the velocity, giving us momentum flux.
Good job! And these calculations are vital for characterizing flow behaviors in practical applications, particularly in pipe flow systems.
This shows how interconnected all these concepts are!
Exactly! That's what makes fluid mechanics both fascinating and complex. Always remember the interconnectedness of concepts in this field!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section elaborates on the distinctions between laminar and turbulent flows, explaining the role of velocity components and the dynamics of turbulent flow through concepts such as virtual fluid balls, disintegration, and the influence of Reynolds numbers.
Detailed
In this section, we explore the essential concepts surrounding velocity components in turbulent flows. Turbulent flows are characterized by chaotic and irregular fluctuations, impacting how momentum and mass are transported. By utilizing a conceptual tool known as 'virtual fluid balls,' we can visualize how particles in a turbulent flow can disintegrate and interact within the turbulence, corresponding to changes in their velocity. The analysis includes the significance of Reynolds numbers in determining flow behavior, wherein flows with Reynolds numbers below 2300 are laminar, while those exceeding 4000 exhibit turbulent characteristics. Understanding the distinction between these flow types is crucial in fluid mechanics, particularly for applications in pipe flow designs, where energy efficiency and effective transportation of liquids and gases are paramount.

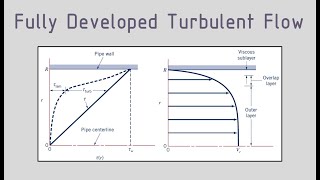

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Turbulent Flows
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now coming to the virtual fluid balls. As I said it that earlier we are looking to conceptualize the fluid mechanics considering there are series of the balls are moving from one place to another place. If I have different fluids, I can have a different color of the balls, different size of the balls, and different mass of the balls. So that is what we discussed earlier.
Detailed Explanation
In this introduction, the concept of 'virtual fluid balls' is introduced to help visualize fluid movement in turbulent flows. Turbulent flow can be thought of as many small particles (the balls) that represent the fluid molecules. Each ball can have different attributes, like size, color, and mass, representing different fluids or varying conditions within a fluid. This conceptual image helps to simplify our understanding of how fluids behave, particularly in complex turbulent conditions.
Examples & Analogies
Imagine a ball pit filled with balls of various colors and sizes. As you move through the pit, some balls collide, split apart, and group together. This resembles how fluid particles interact in a turbulent flow – they are constantly moving, reacting, and changing position relative to one another.
Disintegration and Interaction of Virtual Fluid Balls
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
But this part today I will emphasize that when you have a turbulent flow, mostly you can imagine is that this fluid balls are going to disintegrate or integrate depending upon the turbulence behavior.
Detailed Explanation
In turbulent flows, the virtual fluid balls can either break apart (disintegrate) or come together (integrate) based on the characteristics of the turbulence. When the flow is very turbulent, these balls break into smaller pieces, which can then move at varying velocities. This process creates complex interactions between the fluid elements, influencing concepts like mass transport and momentum transfer.
Examples & Analogies
Think of a blender mixing up fruits. When you turn it on, the fruits (that represent the fluid balls) are rapidly mixed, chopped, and combined into smaller particles. Similarly, in a turbulent flow, the interactions among fluid particles resemble the chaotic mixing of fruits in a blender.
The Role of Eddies in Turbulent Flow
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If you assume is that I do not have two balls I have 100 balls or more than 100 balls, then what will happen it that not only will be disintegrated and these disintegrated smaller balls can group them and create some vortex formula, which will be called eddies.
Detailed Explanation
When the number of virtual fluid balls increases, the disintegration process leads to the creation of eddies – swirling motions in the fluid. These eddies are essential in turbulent flows as they enhance mixing, increase momentum transfer, and contribute to energy dissipation. They represent both the chaotic behavior and organized structures that emerge within turbulent flows.
Examples & Analogies
Consider a whirlpool in water. As you pull the plug from a bathtub, the water spirals down, creating eddies. Each swirl represents how fluid particles clump and move together in turbulent flow, making the behavior of the flow complex and dynamic.
Measurement of Velocity Components
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now if you look it if I have a instrument to measure the velocity in the turbulent flow. Previous class we shown the instrument like acoustic Doppler velocity meters where you can measure the velocity. When you in a turbulent flow you measure the velocities.
Detailed Explanation
In turbulent flows, measuring velocity is crucial for understanding flow behavior. Instruments like acoustic Doppler velocity meters help measure the average velocity as well as fluctuations in velocity simultaneously. The measurement reveals two components: the average velocity and fluctuating components, which can directly relate to the turbulent behavior of the fluid.
Examples & Analogies
Think of measuring the speed of a runner. If you simply note their average speed over a race, you miss the moments when they sprint or slow down. Similarly, measuring both the average and fluctuating velocities in turbulent flows gives a fuller picture of how the fluid behaves.
Average and Fluctuating Velocity in Turbulent Flow
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
So these are the fluctuating velocity. Now we can ask me that how do you compute average velocity, the time average velocity. The time average velocity we compute like 0 to T into u and dt.
Detailed Explanation
In turbulent flow, the average velocity is calculated by integrating the velocity over time and then dividing by the duration. This helps in determining the general flow behavior despite the instantaneous fluctuations that occur in turbulent conditions. The fluctuating velocity components can add complexity but also provide insights into momentum and mass transfer in the flow.
Examples & Analogies
Think of checking the average temperature in a city over the year. Some days are hotter or colder than others, but calculating the average gives a better understanding of the climate over time despite daily fluctuations.
Key Concepts
-
Fluid Ball Concept: Visualizing turbulent flow using virtual fluid balls helps understand mass and momentum interactions.
-
Reynolds Number: Crucial for classifying flow types; below 2300 indicates laminar flow, while above 4000 signals turbulence.
-
Momentum Flux: Represents the momentum transferred in the flow, dependent on mass flux and velocity.
Examples & Applications
An example of turbulent flow is water flowing in a river, showing fluctuating eddies and chaotic patterns.
A practical application is designing pipeline systems that account for turbulent flow to enhance energy efficiency.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In laminar flow, smooth is the way, / Turbulent dances, chaos at play.
Stories
Imagine a river where at its calmest, fish swim smoothly. As a storm brews, the water roils—this chaos mirrors turbulent flow where "fish" become disjointed "virtual balls" racing in different paths.
Memory Tools
R.E.M. for Reynolds' Exquisite Measure: Remember - 'R' for Ratio, 'E' for Energy, 'M' for Momentum.
Acronyms
B.L.U.E. - Balls Lurch Under Energy
Visualize fluid particles swirling chaotically.
Flash Cards
Glossary
- Laminar Flow
A smooth, orderly flow regime where fluid particles move in parallel layers without disruption.
- Turbulent Flow
A chaotic flow regime characterized by irregular fluctuations, eddies, and mixing of fluid particles.
- Reynolds Number
A dimensionless number used to predict flow patterns in different fluid flow scenarios, calculated as the ratio of inertial forces to viscous forces.
- Virtual Fluid Balls
Conceptual representations of fluid particles used to visualize flow behavior, particularly in turbulent conditions.
- Mass Flux
The mass of a substance that passes through a unit area per unit time.
- Momentum Flux
The product of mass flux and velocity, representing the momentum transfer in a flow.
