3.1 - It is used for backfilling trenches, smaller constructions and less accessible locations
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Impact Roller
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start with the impact roller. It compacts soil using static pressure and the impact of a pentagonal roller design. Can anyone share how they think this mechanism aids in compaction?
Does it help break larger soil lumps?
Exactly! The higher impact energy breaks those soil lumps and provides a kneading action that improves compactness. Think of 'BITE' for Break soil lumps, Increase density, and Tighten particles.
Why is kneading important?
Kneading helps achieve a more uniform and stable compaction, which is crucial for construction stability. Let's remember it as the dough you knead for bread, making it denser and more pliable.
What are the conditions that affect its performance?
Great question! Soil type and moisture content play significant roles. Let’s summarize: Impact rollers apply pressure and impact to enhance soil compaction, leading to better construction outcomes.
Vibrating Drum
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s look at the vibrating drum. This equipment uses vibratory motion to level and smoothen the ruts. How do you think this differs from the impact roller?
Is it more about finishing than compacting?
Yes, very good! The vibrating drum is primarily used for finishing touches, creating a smooth surface after the initial compaction. Remember 'SURE': Smooth, Uniform, Reliable, and Effective finishing.
Can it also compact deeply?
Not as deep as an impact roller might. It's more about surface level compactness. Let’s summarize: Vibrating drums provide a finishing touch by leveling surfaces and making them smooth for construction.
Field Compaction Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Field compaction control is vital for ensuring effective soil compaction. It involves several key factors. Can anyone name a few?
Placement water content?
Correct! Placement water content, type of equipment, lift thickness, and the number of passes are all essential. Remember ‘WELP’: Water, Equipment, Lift thickness, and Passes. What happens if the water content isn't optimal?
The soil will not compact properly?
Exactly! Achieving the optimal moisture content increases compaction efficiency. To summarize, controlling these factors ensures effective soil compaction in the field.
Proctor’s Needle
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The Proctor's needle is another crucial tool. Can anyone explain what it measures?
Water content of soil in the field?
That’s right! It allows for rapid moisture determination. Picture it like a doctor's needle checking hydration! Can anyone tell me how calibration affects its use?
It needs to match the specific soil type?
Exactly! Calibration ensures accuracy when reading moisture content. Let's summarize: The Proctor's needle measures moisture for compaction efficiency, needing calibration for each soil type.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section details several compaction methods such as impact rollers, vibrating drums, and plate compactors, while highlighting factors affecting field compaction, including water content and equipment used.
Detailed
The section outlines key compaction techniques essential for effective construction practices. Equipment like the impact roller and vibrating drum contributes to compaction through different mechanisms, enhancing soil stability by kneading it or leveling surfaces. Additionally, an understanding of field compaction control is crucial; it factors in placement water content, equipment type, lift thickness, and number of passes to achieve desired compaction levels. The Proctor's needle is introduced as a tool for rapid water content determination in the field, essential for optimizing compaction efficiency.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

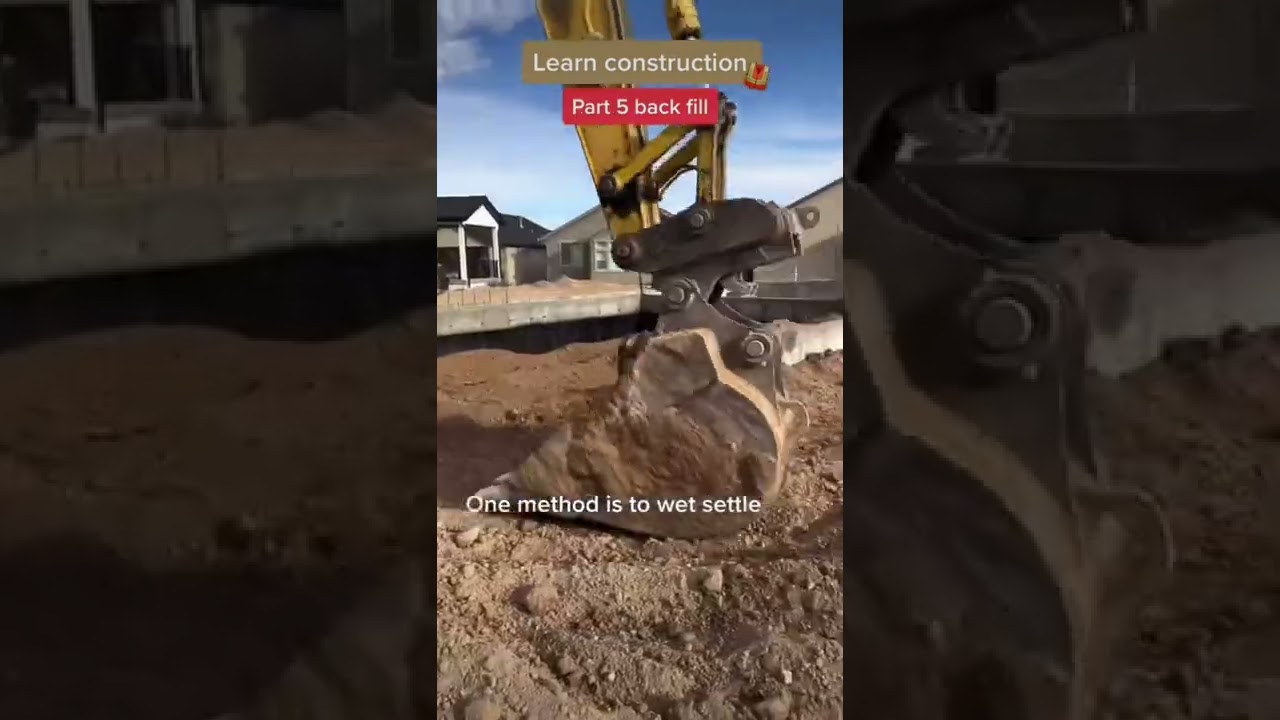

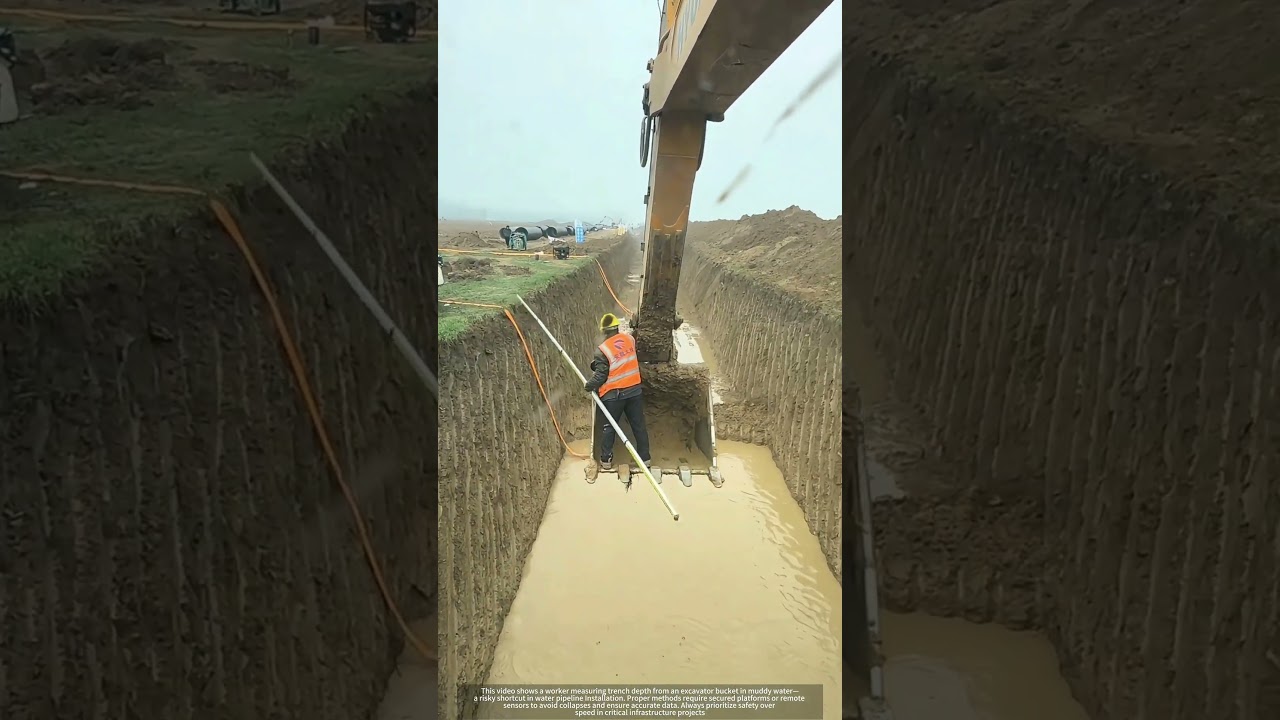

Usage in Backfilling Trenches
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
It is used for backfilling trenches.
Detailed Explanation
Backfilling trenches involves filling an excavated area with material (often soil) after work has been completed in the trench. This is commonly done for laying pipes, cables, or foundations. The compaction equipment helps ensure that the backfill is compacted properly, which is crucial to prevent future subsidence or settling.
Examples & Analogies
Imagine digging a trench to lay a water pipe. After the pipe is installed, you need to refill that trench with dirt. If you just throw the dirt back in without compacting it, the ground may settle later, creating bumps or holes. Using a compactor while backfilling ensures that the new ground is solid and stable, much like packing a suitcase tightly so that everything stays in place.
Application in Smaller Constructions
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
It is used for smaller constructions.
Detailed Explanation
In smaller construction projects, such as sidewalks, patios, or garden walls, proper compaction of the base material (like sand or gravel) is essential. It provides a strong foundation for the structure, ensuring that it remains level and durable over time. Compacting the material reduces the chances of cracking or shifting once the structure is in place.
Examples & Analogies
Think of building a small patio in your backyard. Before laying the stones, you need to make sure the sand base is compacted well. If you don’t, the stones may shift over time, just like if you start building a LEGO tower on a wobbly table—it will eventually topple over.
Importance in Less Accessible Locations
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
It is used for less accessible locations.
Detailed Explanation
When working in hard-to-reach areas, such as sloped terrain or tight urban spaces, using this type of compaction equipment is crucial. It can effectively compact soils in locations where larger machinery might not fit, ensuring structures are stable even in challenging environments.
Examples & Analogies
Imagine trying to pack down dirt to create a solid playground in a small corner of your yard surrounded by bushes. Using a compacting device that's suitable for tight spots is like using a small shovel instead of a big bulldozer—it's more efficient and gets the job done correctly, even when space is limited.
Key Concepts
-
Impact Roller: Uses static pressure and impacts for soil compaction.
-
Vibrating Drum: Primarily used for surface level smoothing and finishing.
-
Field Compaction Control: Essential factors include placement water content, equipment type, lift thickness, and number of passes.
-
Proctor's Needle: A rapid tool for measuring soil water content in the field.
Examples & Applications
Using an impact roller to efficiently compact clay-based soil in a trench.
Applying a vibrating drum to smooth out uneven patches on a road surface after initial compaction.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Impact rollers break down the soil, to make it strong and whole.
Stories
Once in a construction site, a giant impact roller came to fight the lumps of soil that wouldn’t behave. With each thud, the soil sighed in delight, kneading it until it was compact and right.
Memory Tools
Remember 'WELP' for compaction control: Water, Equipment, Lift thickness, Passes.
Acronyms
BITE
Break soil lumps
Increase density
Tighten particles.
Flash Cards
Glossary
- Compaction
The process of increasing soil density by reducing air pockets through applying pressure.
- Impact Roller
A type of roller that compacts soil by combining static pressure with impacts from its pentagonal shape.
- Vibrating Drum
A compaction device that uses vibratory motion for leveling and smoothing soil.
- Placement Water Content
The water content at which soil is compacted in the field.
- Proctor’s Needle
A tool used for the rapid determination of water content in soil.
