Introduction to Orthogonal Transformations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing orthogonal transformations. Remember, a transformation is orthogonal if its matrix A satisfies the condition AT A equals the identity matrix.
What does it mean for a matrix to satisfy that condition?
Great question! It means that when you multiply the transpose of the matrix by itself, you end up with the identity matrix. This property indicates that the transformation preserves both lengths and angles.
So, the vectors don’t change in size or direction?
Exactly! Hence the transformed vector maintains the same length, and the angle between any two vectors is preserved.
Could you give us an example of where this might be used?
Of course! Think about rotations in computer graphics or simulations. These operations often require maintaining the properties of the objects being manipulated.
Applications in Engineering
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss applications in civil engineering. Why do you think maintaining lengths and angles is essential?
It must be critical for structural integrity, right?
Absolutely! For instance, when aligning axes in structural designs, orthogonal transformations help ensure that everything fits together correctly without distortions.
What about computer graphics, how do they fit in here?
Orthogonal transformations, like rotations and reflections, are fundamental in computer graphics. They ensure the objects look correct on screen without distortion.
Does this also help with numerical stability in simulations?
Yes! Techniques like QR decomposition rely on orthogonal transformations to maintain stability in numerical computations.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Orthogonal transformations are defined by a matrix A that satisfies the condition AT A=I. These transformations are significant as they maintain vector lengths and angles, making them useful in various engineering applications such as computer graphics and structural design.
Detailed
Orthogonal Transformations
Orthogonal transformations are a vital aspect of linear transformations that are defined by matrices satisfying the condition AT A = I, where I is the identity matrix. This condition implies two key properties:
1. Preservation of Lengths: The length of transformed vectors remains unchanged, i.e., ∥T(x)∥ = ∥x∥.
2. Preservation of Angles: The angle between transformed vectors remains the same, as expressed by ⟨T(x), T(y)⟩ = ⟨x, y⟩.
Examples
Examples of orthogonal transformations include:
- Rotations: Used frequently in simulations for maintaining object orientation.
- Reflections: Important in symmetry analysis in various engineering contexts.
Relevance to Civil Engineering
Orthogonal transformations play a crucial role in civil engineering by facilitating the alignment of axes in structural designs, ensuring that designs in computer-aided design (CAD) maintain numerical stability, and are used in various simulations, such as QR decomposition for solving systems of equations effectively.

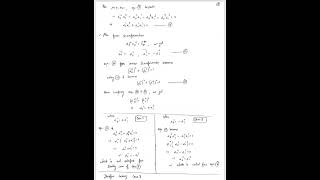

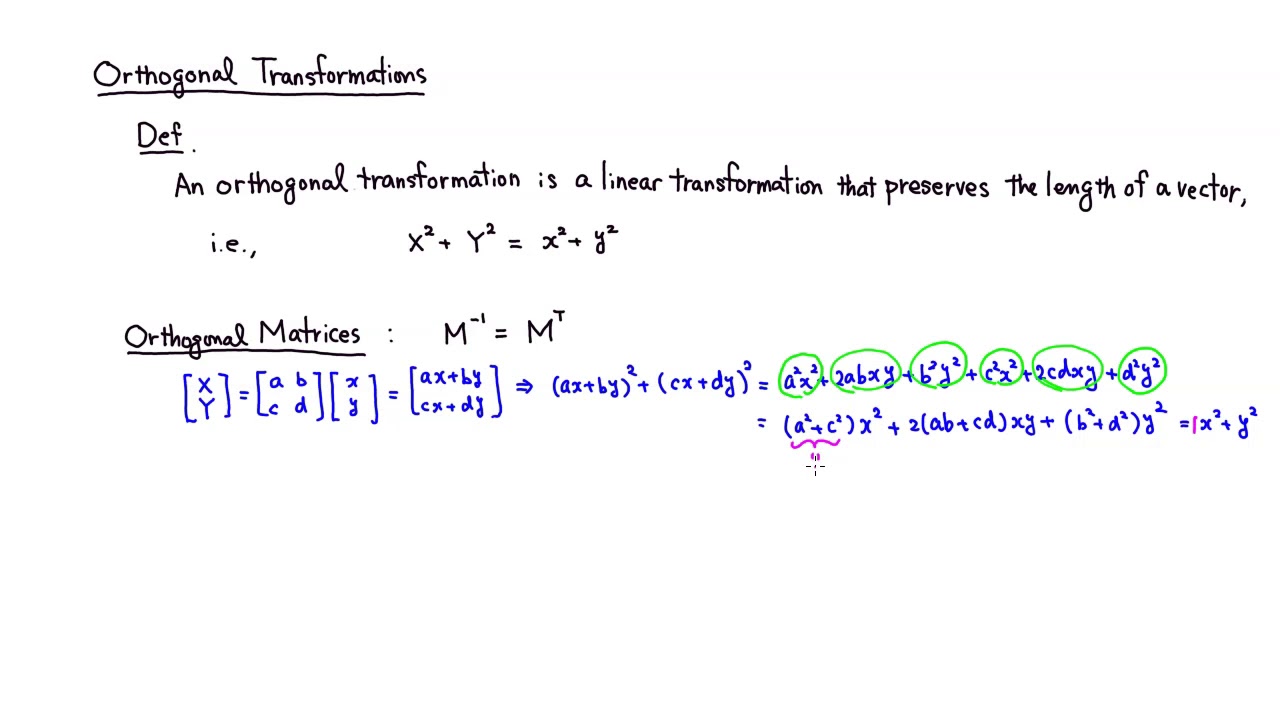

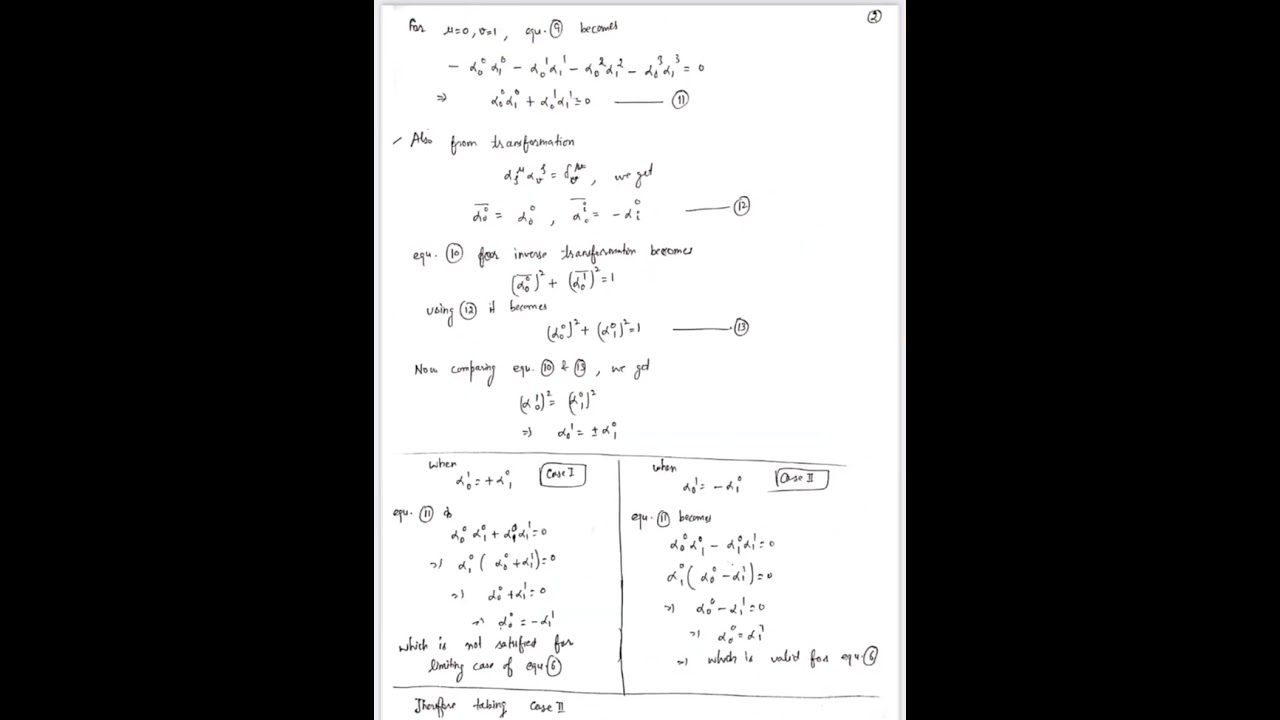

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Orthogonal Transformations
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A transformation T is orthogonal if its matrix A satisfies:
AT A = I ⇒ A−1 = AT
Detailed Explanation
An orthogonal transformation is defined by the relationship between the matrix A representing it. Specifically, if we take the transpose of A (denoted as AT) and multiply it by A, we should get the identity matrix I. This property indicates that the inverse of matrix A is actually equal to its transpose, which is a unique feature of orthogonal matrices.
Examples & Analogies
Think of an orthogonal transformation like spinning a basketball on your finger. The ball’s spin preserves its shape and size throughout, just like how an orthogonal transformation keeps the distances and angles between points unchanged.
Preservation of Lengths
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Orthogonal transformations preserve:
- Lengths: ∥T(x)∥ = ∥x∥
Detailed Explanation
One important aspect of orthogonal transformations is that they preserve the lengths of vectors. This means that when you apply an orthogonal transformation T to a vector x, the length of the resulting vector T(x) will be the same as the length of the original vector x. Mathematically, this property is expressed as ∥T(x)∥ = ∥x∥, where ∥x∥ represents the length (or norm) of vector x.
Examples & Analogies
Imagine measuring the length of a stick that you can rotate without changing its dimensions. No matter how you turn it, the stick remains the same length; this is similar to how orthogonal transformations maintain the size of vectors in space.
Preservation of Angles
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Orthogonal transformations preserve:
- Angles: ⟨T(x), T(y)⟩ = ⟨x, y⟩
Detailed Explanation
In addition to preserving lengths, orthogonal transformations also preserve the angles between vectors. If you have two vectors x and y, and you apply an orthogonal transformation T to both, the angle between the transformed vectors T(x) and T(y) will be the same as the angle between the original vectors. This property is represented mathematically as ⟨T(x), T(y)⟩ = ⟨x, y⟩, where ⟨x, y⟩ represents the angle between vectors x and y.
Examples & Analogies
Consider two paths that meet at a corner. If you were to rotate those paths without altering how they meet, the angle at which they intersect remains unchanged, similar to how angles are preserved under an orthogonal transformation.
Examples of Orthogonal Transformations
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Examples:
- Rotations (no distortion, used in simulations)
- Reflections (used in symmetry analysis)
Detailed Explanation
Orthogonal transformations can take on various forms, two of the most common being rotations and reflections. A rotation simply pivots a figure around a point without changing its shape or size, which exemplifies an orthogonal transformation at work. Similarly, a reflection, like flipping a shape over a mirror line, also maintains lengths and angles, thereby preserving the geometric properties.
Examples & Analogies
Think of a dance performance. When the dancers rotate around a central point or mirror their movements, they maintain the same form and appearance, showcasing how rotations and reflections—both orthogonal transformations—keep the integrity of the sequence intact.
Relevance to Civil Engineering
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Relevance to Civil Engineering:
- Used in aligning axes in structural design
- Important in computer graphics for CAD software
- Ensure numerical stability in simulations (QR decomposition)
Detailed Explanation
In the field of civil engineering, orthogonal transformations have practical applications, particularly in aligning structures and ensuring that designs are accurate. For instance, when creating computer-aided design (CAD) models, it’s crucial to perform transformations that don't distort measurements. Furthermore, in numerical simulations, techniques such as QR decomposition rely on orthogonal transformations to ensure calculations maintain stability and accuracy.
Examples & Analogies
Imagine an architect using CAD software, adjusting the layout of a building. By performing rotations and reflections without distorting the dimensions, they ensure that every corner fits accurately. This meticulousness is akin to the precautions engineers take when applying orthogonal transformations to ensure structures stand firm and correct.
Key Concepts
-
Orthogonal Transformations: Defined by the condition AT A = I, preserving both lengths and angles.
-
Identity Matrix: The benchmark matrix that reflects no change when applied in a transformation.
-
Applications: Critical in engineering and computer graphics for maintaining structural integrity and visual accuracy.
Examples & Applications
Examples of orthogonal transformations include:
Rotations: Used frequently in simulations for maintaining object orientation.
Reflections: Important in symmetry analysis in various engineering contexts.
Relevance to Civil Engineering
Orthogonal transformations play a crucial role in civil engineering by facilitating the alignment of axes in structural designs, ensuring that designs in computer-aided design (CAD) maintain numerical stability, and are used in various simulations, such as QR decomposition for solving systems of equations effectively.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When angles intact and lengths so pure, That's an orthogonal transformation for sure!
Stories
Imagine two friends dancing in a synchronized manner at a party. Despite their moves, they never bump into each other. This is how orthogonal transformations work; they keep the rhythm (angles) and distance (lengths) perfectly intact.
Memory Tools
OAT: Orthogonal means Angles and length remain True.
Acronyms
O for Orthogonal, A for Angle preserved, L for Length preserved.
Flash Cards
Glossary
- Orthogonal Transformation
A transformation defined by a matrix A satisfying AT A = I, preserving lengths and angles.
- Identity Matrix
A square matrix with ones on the diagonal and zeros elsewhere, represented as I.
- Preservation of Lengths
A property indicating that the length of a vector remains unchanged after transformation.
- Preservation of Angles
A property indicating that the angle between two vectors remains unchanged after transformation.
- QR Decomposition
A numerical method that uses orthogonal transformations to solve linear systems effectively.
