Introduction to Bitumen
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to explore what bitumen is and why it's so essential in road construction. Bitumen provides excellent adhesion and waterproofing, making it ideal for roads.
Can you tell us what bitumen is made from?
Great question! Bitumen can come from natural deposits or be derived from petroleum. It's often seen as a byproduct of crude oil refining.
So, what are the natural sources of bitumen?
Natural sources include places like asphalt lakes, tar sands, and even the Dead Sea. These materials have undergone geological processes for millions of years.
What processes do those natural sources go through to become bitumen?
Excellent! They go through decomposition of organic matter, anaerobic conditions, heat, and pressure to transform into hydrocarbons, followed by evaporation and oxidation.
Sounds complex, but I think I got it! What's next?
Now let's discuss how bitumen is produced from petroleum.
Production of Bitumen from Petroleum
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The production of bitumen starts with the crude oil distillation process. Who can recall the first step?
Is it preheating the crude oil?
Exactly! We heat the crude oil to about 400°C before it enters the distillation column.
What happens in the distillation column?
Good! In the column, lighter components like gasoline and diesel are separated based on their boiling points.
And what happens to the residue?
Great question! The heaviest part, called vacuum residue, is left after the first distillation, which becomes our feedstock for bitumen production.
Is there a further process for this residue?
Yes, indeed! It undergoes vacuum distillation to further separate lubricating oils from the heavy residue. This prepares it for creating bitumen.
Types of Bitumen
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's delve into the types of bitumen we can produce. Can anyone name a type of bitumen?
Uh, straight run bitumen?
Correct! Straight run bitumen is obtained directly from vacuum distillation and is commonly used in roads without modification.
What about oxidized bitumen?
Good! Oxidized bitumen is produced by blowing hot air through vacuum residue, enhancing its properties. It's commonly used in roofing.
Are there others?
Yes! We also have cutback bitumen, emulsions, and polymer modified bitumen, each with unique properties and uses.
This is a lot to remember, but I think I understand!
Remember, CRIME: Cutback, Residue, Oxidized, Modified, Emulsions!
Environmental and Quality Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
In production, we also need to consider the environment. What do you think we should be cautious about?
Maybe the emissions during production?
Exactly! Volatile organic compounds, or VOCs, are harmful and must be controlled.
What about waste?
Great point! Proper waste management of sludges and effluents is crucial as well.
How do we ensure the quality of bitumen?
Good question! Quality is checked through various tests, including penetration and softening point tests.
Got it! It's all about safety and quality!
Summary and Conclusion
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's wrap it up! What have we learned about bitumen today?
We learned that bitumen is crucial in construction, from natural deposits to extraction from crude oil.
And there are various types, each suited for different uses!
Don't forget about the environmental impacts and quality control!
Excellent! Remember, bitumen is essential for modern infrastructure, and knowing its properties helps us design better roads.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Bitumen, primarily a byproduct of crude oil refining, has origins in both natural deposits and processed petroleum. The section discusses both natural bitumen sources and the intricate processes involved in production, including distillation, air blowing, and various types of bitumen utilized in construction.
Detailed
Detailed Summary
Bitumen is a vital binder in road construction, known for its adhesive and waterproof characteristics, essential for flexible pavements. It has two primary origins: natural and petroleum-derived.
Origin of Bitumen
- Natural Bitumen: Found in deposits like asphalt lakes and tar sands, resulting from geological processes such as:
- Decomposition of organic matter.
- Anaerobic conditions that lead to organic-rich layers.
- Heat and pressure transforming these layers into hydrocarbons.
- Evaporation and oxidation, thickening the residue into bitumen.
- Notable sources include Pitch Lake (Trinidad), Alberta Oil Sands (Canada), and Dead Sea deposits.
- Petroleum-Derived Bitumen: Most commonly used in construction, it comes from the heaviest fraction left over after crude oil refining.
- The production process involves:
- Crude Oil Distillation: Preheating crude oil, separating lighter hydrocarbons through atmospheric distillation, and further processing heavier residue via vacuum distillation.
- Air rectification enhances properties through air blowing, yielding oxidized bitumen.
Types of Bitumen
Various types of bitumen are identified based on their production methods:
- Straight Run Bitumen: Directly from vacuum distillation, used in road construction.
- Oxidized Bitumen: Produced by air blowing, suitable for roofing and waterproofing.
- Cutback Bitumen: Blended with a volatile solvent for lower temperature fluidity.
- Bitumen Emulsions: Mixed with water for application in damp conditions.
- Polymer Modified Bitumen (PMB): Enhanced with polymers for better elasticity and durability.
Production Units & Quality Control
Bitumen production requires specialized equipment and rigorous adherence to environmental standards, including quality control testing through various parameters (penetration, softening point, ductility, etc.), ensuring its suitability in civil engineering.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Bitumen
Chapter 1 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Bitumen is a key binder used in road construction, particularly in flexible pavements. It is a black or dark brown non-crystalline viscous material derived from petroleum. Its strong adhesive and waterproofing characteristics make it an ideal material for surface and base layers of roadways. The origin and production of bitumen involve geological processes, refining of crude oil, and subsequent treatment to suit civil engineering applications. Understanding bitumen’s origin and production process is fundamental for its effective utilization in highway engineering.
Detailed Explanation
Bitumen is a vital material used in constructing roads, especially flexible pavements, which adapt to stresses from traffic. It originates from petroleum and is characterized by its thick, sticky nature. In addition to its use as a binder in roads, it also serves as a waterproofing agent, crucial for ensuring road durability. Producing and understanding bitumen involves geological formations and several stages of refining crude oil. This knowledge is essential for engineers to utilize it effectively in various applications in highway construction.
Examples & Analogies
Think of bitumen like the glue in a scrapbook. Just as glue holds together different pieces of paper securely, bitumen holds together the materials that make up a road. Understanding how this 'glue' is made—from the initial raw materials to the final product—helps ensure our roads are safe and long-lasting.
Origin of Bitumen
Chapter 2 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Bitumen originates from two main sources: natural deposits and petroleum refining.
Natural Bitumen
Natural bitumen, also known as asphalt, occurs in nature in deposits like asphalt lakes, rock asphalt, and tar sands. These are the result of natural geological processes over millions of years involving:
- Decomposition of Organic Matter: Organic materials from dead marine organisms are deposited in sedimentary basins.
- Anaerobic Conditions: Absence of oxygen prevents full decomposition, resulting in organic-rich layers.
- Heat and Pressure: Over geological time, these layers are subjected to intense heat and pressure, transforming the organic matter into hydrocarbons.
- Evaporation and Oxidation: In certain conditions, lighter fractions evaporate, and oxidation thickens the residue into bitumen.
Examples of natural bitumen sources:
- Pitch Lake, Trinidad
- Alberta Oil Sands, Canada
- Dead Sea Deposits
Natural bitumen is often mined and processed for commercial use, especially in areas with limited access to refined petroleum products.
Detailed Explanation
Natural bitumen is found in places like asphalt lakes and tar sands. Its origin involves a series of geological processes that take millions of years. It starts with the decomposition of ocean-dwelling organisms, which accumulate at the bottom of water bodies. Because there’s little oxygen, this organic matter doesn't completely decay. Over time, heat and pressure convert this organic material into hydrocarbons. Eventually, some lighter materials evaporate, leaving behind viscous bitumen. This natural asphalt is then mined and processed for various uses, particularly in parts of the world where conventional petroleum sources are scarce.
Examples & Analogies
Imagine you have a large pot of soup that you left on the stove for days. As it cooks, the ingredients slowly break down. If left long enough, the soup thickens as water evaporates. Similarly, natural bitumen forms through the slow cooking process of organic materials over geological time—turning into a thick substance ideal for construction.
Petroleum-Derived Bitumen
Chapter 3 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Most of the bitumen used in construction today is a byproduct of crude oil refining. Crude oil contains a wide range of hydrocarbons, from light gases to heavy residues. Bitumen is obtained from the heaviest fraction left after refining processes like fractional distillation.
Detailed Explanation
In modern construction, the majority of bitumen comes from refining crude oil rather than natural sources. Crude oil is a mixture that consists of many types of hydrocarbons with varying weights. After refining, which involves processes that separate these hydrocarbons based on boiling points, bitumen is left as the heaviest residue. This method allows for the efficient production of bitumen, tailored for specific construction needs as opposed to mining natural sources.
Examples & Analogies
Think of crude oil refining like sorting candy in a jar. You have a variety of candies, some small and light (like gasoline) and others large and dense (like bitumen). When you sort them, the big candies are what you’re left with after getting rid of the lighter ones. This is essentially how bitumen is produced from crude oil.
Production of Bitumen from Petroleum
Chapter 4 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The initial step in the production of bitumen is the fractional distillation of crude oil in a refinery. The process includes:
- Preheating of Crude Oil: Crude oil is first heated to around 400°C.
- Atmospheric Distillation: The heated crude enters a distillation column where lighter hydrocarbons (like gasoline, kerosene, diesel) are separated by their boiling points.
- Vacuum Distillation: The residue from atmospheric distillation, known as long residue, is further distilled under vacuum to avoid thermal cracking. This separates lubricating oils and leaves behind a heavy residue known as short residue or vacuum residue, which becomes feedstock for bitumen production.
Detailed Explanation
The bitumen production process begins with fractional distillation of crude oil. To start, crude oil is heated to a high temperature, allowing its various components to vaporize. During atmospheric distillation, the vapor rises through a column, and as it cools, different hydrocarbons condense at different levels based on their boiling points—lighter materials come out first (like gasoline), and heavier materials condense lower in the column. The remaining thick liquid, or long residue, is then further distilled in a vacuum process to avoid breaking down the hydrocarbons, thereby producing a heavy residue that is used to create bitumen.
Examples & Analogies
Imagine steeping a tea bag in hot water. As the tea brews, lighter flavors (like lemon) come out first, while the deeper, richer flavors (like dark tea) are left behind. Similarly, during distillation, the lighter hydrocarbons cooking off first while the denser bitumen remains at the bottom, ready for use.
Air Rectification or Oxidation
Chapter 5 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The vacuum residue may undergo air blowing to enhance specific properties of bitumen. In this process:
- Hot air (200–300°C) is blown through the residue.
- The oxygen in the air reacts with the hydrocarbons, increasing viscosity and softening point.
This process produces oxidized bitumen, which has higher softening points and is more suitable for industrial applications such as roofing and pipe coating.
Detailed Explanation
To improve the qualities of bitumen, a technique called air rectification or oxidation is employed. In this step, hot air is blown through the vacuum residue, allowing oxygen to react with the hydrocarbons within it. This reaction makes the bitumen thicker (higher viscosity) and raises its softening point, which is essential because higher performance materials are required for particular applications, such as roofing or coatings that endure extreme conditions.
Examples & Analogies
Consider how to make syrup thicker. When making a syrup, adding steam or heat allows it to thicken as it cooks. Here, blowing hot air into bitumen improves its texture and stability, much like heating syrup makes it richer and stickier.
Types of Bitumen Based on Production
Chapter 6 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Bitumen can be classified into five primary types based on its production methods:
- Straight Run Bitumen: Obtained directly from vacuum distillation and used in road construction without modification.
- Oxidized Bitumen: Produced by blowing air through the vacuum residue, offering improved thermal stability and hardness for applications such as roofing.
- Cutback Bitumen: Made by blending bitumen with a volatile solvent for easier application in cold weather.
- Bitumen Emulsions: Bitumen mixed with water can be applied in damp conditions.
- Polymer Modified Bitumen (PMB): Bitumen modified with polymers improves elasticity and is ideal for heavy traffic roads.
Detailed Explanation
Different types of bitumen serve different purposes in construction, classified mainly by how they are produced:
- Straight Run Bitumen is the simplest form, directly taken from refining without changes.
- Oxidized Bitumen is treated with air for greater durability, often utilized in roofing material.
- Cutback Bitumen is modified with solvents for easier application, especially in cooler temperatures.
- Bitumen Emulsions allow for use in wet conditions or lower temperatures.
- Polymer Modified Bitumen (PMB) is enhanced with polymers for better flexibility and performance on high-traffic routes. Each type is specifically engineered to fulfill certain functional needs in road construction.
Examples & Analogies
Think of bitumen grades as different kinds of glues. Just like you wouldn’t use the same glue for paper crafts as for heavy-duty woodworking, different types of bitumen are tailored to suit specific construction needs, ensuring the best performance for each application.
Industrial Bitumen Production Units
Chapter 7 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Industrial-scale bitumen production requires specialized equipment:
- Distillation Columns
- Vacuum Pumps
- Air Blowing Reactors
- Heat Exchangers
- Storage Tanks with Temperature Control
- Blending and Packaging Units
Detailed Explanation
Producing bitumen on an industrial scale requires sophisticated equipment and technology to ensure efficiency and quality. Key equipment includes distillation columns to separate hydrocarbons, vacuum pumps to maintain low pressure during distillation, reactors for air blowing, heat exchangers for managing temperature in processes, and well-controlled storage tanks. Furthermore, blending and packaging units are necessary for preparing the final product for distribution.
Examples & Analogies
Think of a restaurant kitchen. Each piece of equipment, from ovens to mixers, plays a role in creating a meal. In bitumen production, each piece of equipment has a specific function that contributes to producing high-quality bitumen for construction.
Environmental and Safety Considerations
Chapter 8 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Bitumen production must adhere to environmental norms:
- VOC Emissions: Volatile organic compounds released during production are harmful and require treatment systems.
- Waste Management: Residual sludges and effluents should be safely disposed of or recycled.
- Occupational Safety: Handling hot bitumen requires PPE, proper ventilation, and emergency protocols to prevent burns and respiratory issues.
Detailed Explanation
Safeguarding the environment and ensuring worker safety during bitumen production is crucial. Volatile organic compounds, which can be harmful, must be managed with appropriate treatment systems. Waste materials produced during the process need a plan for safe disposal or recycling. Additionally, working with hot bitumen poses risks, necessitating the use of personal protective equipment (PPE) and proper protocols to prevent injuries or health hazards.
Examples & Analogies
Think of production like a laboratory experiment. Just as chemists must follow safety protocols to avoid spills and accidents, bitumen producers need strict guidelines to protect workers and the environment from hazardous substances. Keeping everything safe ensures a healthy workplace and community.
Quality Control in Bitumen Production
Chapter 9 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
To ensure consistent quality, bitumen is tested and graded using various parameters:
- Penetration Test
- Softening Point Test
- Ductility Test
- Viscosity Test
- Flash and Fire Point Test
- Specific Gravity Test
These tests confirm the suitability of bitumen for different climatic and traffic conditions.
Detailed Explanation
Quality control in bitumen production is vital because different environments and usage conditions require specific characteristics. Tests such as the penetration test (measuring hardness), softening point test (determining temperature stability), and viscosity test (thickness), among others, ensure that the end product meets necessary standards for its intended application. Each test provides insight into how the bitumen will perform under specific conditions.
Examples & Analogies
Consider baking a cake: you need to check that the batter is the right consistency and the cake is fully baked. Similarly, testing and grading bitumen ensures it is 'just right' for use on roads, so they last under various conditions.
Conclusion on Bitumen
Chapter 10 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Bitumen, whether naturally occurring or petroleum-derived, plays a vital role in modern transportation infrastructure. Its origin and production processes significantly influence its performance, durability, and adaptability in road engineering. Understanding the chemical and physical transformation from crude oil to usable bituminous material is essential for engineers involved in road design and construction.
Detailed Explanation
In conclusion, bitumen is crucial for building roads today, with its foundations rooted in both natural occurrences and refined petroleum. The manufacturing processes determine how effective and resilient the finished product is on roads. For engineers, having a solid understanding of these transformations is necessary for successful road construction and maintenance.
Examples & Analogies
Just like a good recipe brings the best flavors together, understanding how bitumen is made—from its origins to the final product—helps engineers create roads that stand the test of time.
Key Concepts
-
Bitumen: Vital binder in road construction with adhesive properties.
-
Natural Bitumen: Found in geological deposits formed over millions of years.
-
Petroleum-Derived Bitumen: Byproduct of crude oil refining.
-
Crude Oil Distillation: Key step in isolating useful components for bitumen production.
-
Various Types: Including straight run, oxidized, cutback, emulsions, and modified bitumen.
Examples & Applications
Pitch Lake in Trinidad is a famous site of natural bitumen.
Polymer modified bitumen is ideal for roads with heavy traffic and extreme weather.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
To build a road that stands the test of time, bitumen is the best, it does not decline!
Stories
Imagine a giant oil refinery where crude is heated, and through its mighty pipes bitumen is treated!
Memory Tools
Remember B-O-C for types of bitumen: B for Bitumen (natural), O for Oxidized, and C for Cutback.
Acronyms

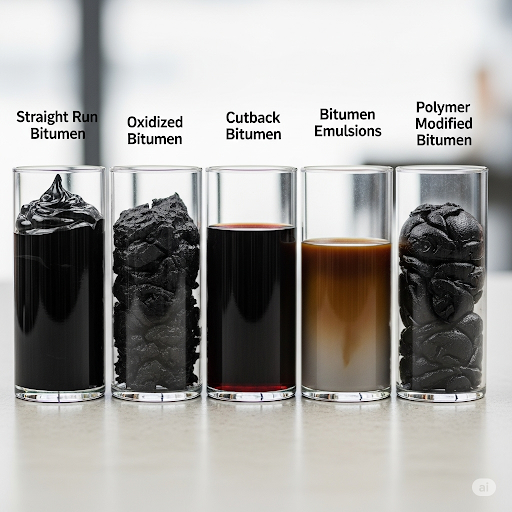

Use the acronym 'P-M-C-E' for remembering
Polymer Modified
Cutback
Emulsions
and Oxidized.
Flash Cards
Glossary
- Bitumen
A viscous petroleum product used as a binder in road construction due to its adhesive and waterproofing properties.

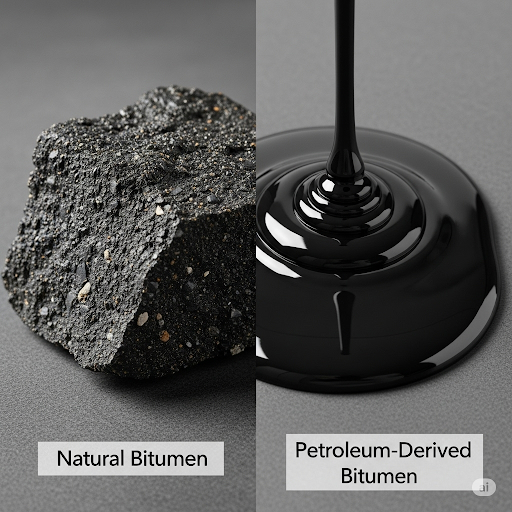

- Natural Bitumen
Naturally occurring deposits of bitumen originating from geological processes over millions of years.
- PetroleumDerived Bitumen
Bitumen that is a byproduct of the crude oil refining process.
- Crude Oil Distillation
The process of separating crude oil into its components through heating and boiling.
- Oxidized Bitumen
Bitumen that has undergone air blowing to enhance its properties.
- Cutback Bitumen
Bitumen blended with solvents to lower its viscosity for easier application.
- Bitumen Emulsions
A mixture of bitumen, water, and emulsifying agents for use in wet conditions.
- Polymer Modified Bitumen (PMB)
Bitumen that has been modified with polymers to improve its performance characteristics.
Reference links
Supplementary resources to enhance your learning experience.
