7.3.2 - Abrasion Test
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Purpose of the Abrasion Test
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will discuss the Abrasion Test. Can anyone tell me why evaluating the hardness of aggregates is crucial in pavement construction?
Is it because they need to handle a lot of wear and tear from vehicles?
Exactly! The hardness of aggregates affects their durability and the overall performance of pavement. The Abrasion Test measures this resistance to wear.
What are the methods used for this test?
Good question! We primarily use the Los Angeles Abrasion Test and the Deval Abrasion Test. Each has specific procedures and equipment.
What are the acceptable limits for wear?
For bituminous mixes, the acceptable weight loss is under 35%, while base courses should be below 40%. These limits ensure the aggregates can perform well under load.
Los Angeles vs. Deval Abrasion Tests
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s delve into the methods of the Abrasion Test. Who can describe the Los Angeles Abrasion Test?
I think it involves using a rotating drum with steel balls, right?
Correct! The aggregate sample is placed in a drum with an abrasive charge for a set number of revolutions. After rotating, we measure the weight loss. How about the Deval Abrasion Test?
Isn't that test similar, but with different equipment?
Yes, that's right! Although both aim to evaluate wear resistance, they utilize distinct methods and conditions. Both tests are essential to determine aggregate suitability.
Why do we have two different tests?
Different tests provide comprehensive data to ensure we have reliable aggregates for various applications based on specific conditions.
Practical Implications of Abrasion Test Results
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, considering the importance of test results, can anyone think of how they affect actual construction operations?
If aggregates don’t meet the limits, we might choose different ones for better durability?
Exactly! Choosing aggregates that meet the abrasion limits ensures longer-lasting roads. It prevents costly repairs and maintenance.
How often do we perform these tests?
Testing should happen regularly, especially when using new sources of aggregate or when there are changes in material supply to ensure compliance with specifications.
What happens if we ignore these tests?
Ignoring them may lead to road failures or unexpected maintenance issues, which could result in safety hazards and additional costs.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The Abrasion Test assesses aggregates' hardness and wear resistance through standardized methods such as the Los Angeles and Deval Abrasion Tests. These evaluations help ensure that the aggregates are suitable for use in pavement layers, with specific acceptable limits for different applications.
Detailed
Detailed Summary of the Abrasion Test
The Abrasion Test is a vital procedure used to gauge the hardness of aggregates used in pavement construction. The main objective is to measure the resistance of aggregates to wear under mechanical action. There are two primary standardized methods to perform this test:
- Los Angeles Abrasion Test (IS: 2386 Part IV) - This involves rotating a sample with an abrasive charge in a drum and measuring weight loss after a specified number of revolutions.
- Deval Abrasion Test (IS: 2386 Part V) - Similar to the Los Angeles test but uses different equipment and a specific procedure.
The results of these tests are critical for determining if the aggregates can perform adequately under traffic conditions. Acceptable limits are set based on the intended use:
- For bituminous mixes, the acceptable weight loss is less than 35%, while
- For base courses, it should be less than 40%.
These standards ensure that the structures built using these aggregates can endure the stresses during their service life.

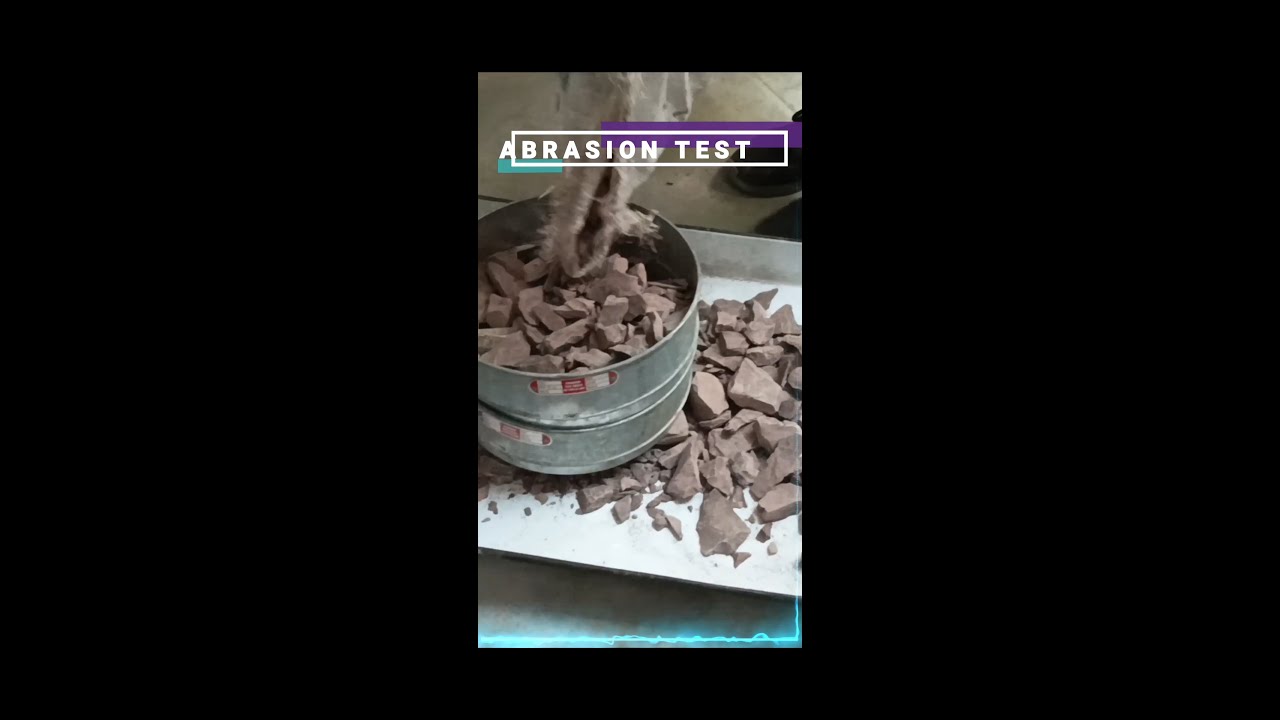

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of the Abrasion Test
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The purpose of the Abrasion Test is to assess the hardness of aggregates by measuring their resistance to wear.
Detailed Explanation
The Abrasion Test is essential for evaluating how well aggregates can withstand the forces of wear during their use in road construction. It determines how hard the aggregate is, which relates to its durability and performance when subjected to traffic loads and environmental conditions.
Examples & Analogies
Think of the Abrasion Test like testing the soles of shoes. Just as some shoes wear out quickly because they are made of soft material, aggregates can wear down under traffic if they are not hard enough. The test tells us if the aggregate will hold up over time, like ensuring your favorite shoes last through many walks.
Methods Used in the Abrasion Test
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Abrasion Test can be conducted using two primary methods: the Los Angeles Abrasion Test (IS: 2386 Part IV) and the Deval Abrasion Test (IS: 2386 Part V).
Detailed Explanation
There are two standard methods for conducting the Abrasion Test: the Los Angeles Abrasion Test and the Deval Abrasion Test. The Los Angeles method involves using an apparatus that rotates aggregates along with steel balls. This simulates the grinding and wearing action that aggregates face during use. The Deval method, on the other hand, uses a different setup but similarly tests for resistance to wear. Each method has specific standards and procedures to follow.
Examples & Analogies
Imagine you have two different machines at a gym. One is a treadmill (Los Angeles Test) and the other a stationary bike (Deval Test). Both help you measure your endurance but in different ways. Similarly, both tests measure how aggregates resist wear but using different methods.
Procedure of the Abrasion Test
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The procedure involves rotating the sample with an abrasive charge in a drum and measuring the weight loss after a fixed number of revolutions.
Detailed Explanation
In the Abrasion Test, a sample of aggregates is placed inside a drum along with steel balls (the abrasive charge). The drum is then rotated a specified number of times. After this rotation, the weight of the sample is measured again to see how much it has lost due to abrasion. This loss indicates how well the aggregates resist wear.
Examples & Analogies
Think about washing a dirty pot in a dishwasher. If you use a rough scrubbing pad (like steel balls), the pot might come out clean but may have tiny scratches as well. The abrasiveness of the pad and the time it spends scrubbing determine how much wear occurs. The same principle applies to the Abrasion Test; the weight loss after rotating the aggregate helps us understand its durability.
Acceptable Limits for Abrasion
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Acceptable limits for weight loss are set: for bituminous mixes, it should be less than 35%, and for base courses, it should be less than 40%.
Detailed Explanation
The results of the Abrasion Test are evaluated against specific acceptable limits. For materials used in bituminous mixes, a weight loss of less than 35% is acceptable. For base courses, which are also critical in pavement structure, the limit is set at less than 40%. These limits ensure that the aggregates selected will perform well under expected conditions.
Examples & Analogies
Consider a school test where passing grades are set at 70%. If you score below that, you might not be ready for the next level. Similarly, in construction, if aggregates wear down too much, they’re not suitable for long-lasting roads. The acceptable limits act as a safety net to ensure the aggregates chosen will perform their jobs effectively over time.
Key Concepts
-
Purpose of the Abrasion Test: To evaluate the hardness and wear resistance of aggregates.
-
Methods of the Test: Los Angeles and Deval Abrasion methods for measuring aggregate performance.
-
Acceptable limits: Specific weight loss percentages defined for bituminous and base layers.
Examples & Applications
An aggregate sample undergoes the Los Angeles Abrasion Test and shows a weight loss of 30%, indicating it is suitable for use in bituminous mixes.
A base layer aggregate loses 45% in the Deval Abrasion Test, suggesting it is not ideal for road construction due to excessive wear.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
If an aggregate's wear is too high, your pavement will surely cry. Check it well, day and night, keep your roads strong and bright.
Stories
Imagine a road made from weak aggregates that fail an abrasion test. Cars drive over, and soon the pavement crumbles, causing delays and repairs. But with strong aggregates passing the test, the road stands the test of time and traffic.
Memory Tools
Acronym A-B-R-A (Abrasion - Breaking - Resistance - Acceptable limits), to remember the focus points of the Abrasion Test.
Acronyms
LAD (Los Angeles Test, Abrasion Evaluation, Durability Check) - for remembering the key elements of the test.
Flash Cards
Glossary
- Abrasion Test
A test to measure the hardness and wear resistance of aggregates used in roadway construction.
- Los Angeles Abrasion Test
A method to evaluate abrasion resistance by rotating aggregates with an abrasive charge in a cylindrical drum.
- Deval Abrasion Test
A procedure similar to the Los Angeles test but typically runs under different conditions.
- Acceptable Limits
Predefined standards for weight loss in abrasion tests, ensuring that aggregates are suitable for specific applications.
