7.3.3. Impact Test
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we'll discuss the concept of toughness in aggregates. Toughness is the ability of a material to absorb energy and deform without breaking. Can anyone tell me why this is important for aggregates?
Isn't it because roads need to handle heavy traffic without cracking?
Exactly! Toughness helps ensure that aggregates can withstand sudden impacts from traffic loads. That’s why we perform the Impact Test.
What does the test measure exactly?
Great question! The Impact Test measures the Aggregate Impact Value, indicating how well the aggregate can resist such impacts.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let’s dive into how we actually conduct the Impact Test. First, can anyone recall what apparatus we need?
An impact testing machine and a cylindrical measure?
Correct! We also need a tamping rod. Now, once we have our sample in the cup of the machine, we drop the hammer 15 times. Who can tell me what happens next?
We weigh the fines that pass through the 2.36 mm sieve.
Right! After that, we calculate the Aggregate Impact Value. An AIV of less than 30% is acceptable for surface courses.
What if the impact value is higher?
If it’s higher, it means the aggregate is likely not tough enough for use in surface courses.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Why do you think performing the Impact Test is so essential for pavement construction?
It helps ensure the aggregates we use can handle the stresses from the vehicles.
Exactly! By ensuring we use aggregates with a proper toughness level, we reduce the risk of pavement failure.
So, if aggregates have a high impact value, they might lead to cracks or breaks in the road?
Absolutely! Proper testing helps civil engineers choose the right materials for lasting road infrastructure.
Overview
Short Summary
The Impact Test is conducted to assess the toughness of aggregates used in pavement construction, determining their resistance to impact loading.
Medium Summary
This section details the procedures and standards for the Impact Test on aggregates, emphasizing its purpose in evaluating toughness. The test requires specific apparatus, such as an impact testing machine, and outlines a step-by-step method to measure the aggregate impact value and its significance for surface courses.
Detailed Summary
Impact Test
The Impact Test is a crucial standardized testing method defined in IS: 2386 (Part IV) to gauge the toughness of aggregates. Toughness reflects an aggregate's ability to withstand sudden impacts, which is vital for ensuring the longevity and performance of pavement structures.
Purpose
This test specifically aims to determine the Aggregate Impact Value (AIV), a critical value for evaluating aggregates used in surface courses. Aggregates exhibiting a lower impact value indicate higher toughness, translating to better performance under traffic loads.
Apparatus
The test utilizes standard equipment, typically an impact testing machine, a cylindrical measure, and a tamping rod for sample preparation.
Procedure
- Place the aggregate sample in a cup of the impact testing machine.
- Drop a hammer from a predetermined height on the aggregate sample a total of 15 times.
- Collect and weigh the fines that pass through a 2.36 mm sieve.
- An AIV of less than 30% is deemed suitable for aggregates intended for surface courses.
The results of the Impact Test provide valuable insights into how well aggregates can resist the sudden loads experienced in cement and bituminous pavements. Understanding these properties is vital for civil engineers to design durable and resilient road infrastructure.
Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Purpose: To determine toughness of aggregates.
Detailed Explanation
The primary purpose of the Impact Test is to assess how tough the aggregates are. Toughness indicates how much energy an aggregate can absorb before it fails, which is crucial for the durability of pavement structures. A tough aggregate can withstand impacts and shocks without breaking, making it more suitable for high-traffic areas.
Examples & Analogies
Think of toughness like the ability of a basketball player to take hits during a game; a tough player keeps going without getting hurt easily, just as tough aggregates help pavement endure the stresses of heavy vehicles.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Standard: IS: 2386 (Part IV) – Aggregate Impact Value Test.
Detailed Explanation
The procedure for the Impact Test follows the Indian Standard IS: 2386 (Part IV). This standard outlines the method and apparatus required for effectively measuring the impact value of aggregates. Adhering to established standards ensures consistency and reliability in testing, facilitating comparisons across different studies and applications.
Examples & Analogies
Just as a recipe provides step-by-step instructions to ensure a cake turns out perfectly, the IS standard guides engineers through the testing process to achieve accurate results.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Apparatus: Impact testing machine, cylindrical measure, tamping rod.
Detailed Explanation

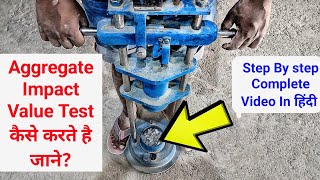

To perform the Impact Test, specific tools are necessary. The impact testing machine is designed to drop a hammer onto the aggregates from a standardized height, while the cylindrical measure and tamping rod help in collecting and preparing the aggregate sample for testing. The right equipment is essential to collect accurate and repeatable measurements.
Examples & Analogies
Imagine trying to take a clear photo without a camera; you need the proper tools to get the desired results. Similarly, using the right apparatus is crucial for successfully conducting the Impact Test.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Procedure: a. Sample is placed in a cup. b. Hammer is dropped 15 times from a specified height. c. Fines passing through 2.36 mm sieve are weighed.
Detailed Explanation
The procedure involves several steps: firstly, an aggregate sample is prepared and placed in a testing cup. A hammer is then dropped onto the aggregates 15 times from a predetermined height to simulate impact. After the test, any fine particles that pass through a 2.36 mm sieve are collected and weighed, and this weight will help determine the impact value of the aggregate. This process is vital to quantify how well the aggregate can resist fracture from sudden impacts.
Examples & Analogies
Think of this procedure like dropping a ball on different surfaces (like sand, concrete, or glass). You observe how much the ball bounces back or how the surface cracks—this is similar to how we assess an aggregate's response to impacts.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Result: Aggregate impact value <30% for surface courses.
Detailed Explanation
The outcome of the Impact Test provides a metric called the aggregate impact value, which reflects the toughness of the aggregate. An acceptable aggregate impact value is less than 30% for surface courses, indicating that the aggregate is sufficiently tough to withstand the stresses of traffic. If the value exceeds this limit, the aggregate may not be suitable for use in high-performance pavements.
Examples & Analogies
Much like a grade in school reflects how well a student performed, the aggregate impact value indicates whether the material is appropriate for construction projects based on its toughness.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Toughness:
The ability of aggregates to withstand stress without failing.
- Aggregate Impact Test:
A procedure to measure the toughness of aggregates, to ensure they can handle impact loads encountered in road construction.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
An aggregate sample with an AIV of 25% indicates its suitability for use in surface courses, while a sample showing 35% would require consideration for alternative materials.
Concrete pavement with aggregates that passed the Impact Test is less likely to suffer from premature cracking.
Memory aids
A contractor faced a dilemma when his road began to crack. He remembered the importance of impact tests, which would ensure the aggregates could endure the hard traffic ahead.
A.I.R.: AIV stands for Aggregate Impact Value – Assessing impacts reconciles durability!
