11.15 - Experimental Validation and Calibration
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Experimental Validation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into the importance of experimental validation in robotics. Can anyone tell me why this could be considered critical?
I think it’s to ensure our robot models work effectively in real-world scenarios.
Exactly! Experimental validation ensures our theoretical models are verified against actual performance. This prevents issues during operation. Can anyone think of a scenario where failing to validate could lead to problems?
In autonomous vehicles, for instance, if the model doesn’t match reality, it could cause accidents!
Great example! Ensuring accuracy in model predictions through validation is crucial for safety.
So, what methods can we use for system validation?
Good question! We can use techniques like Least Squares and Recursive Estimation. The sensors we'll need for these methods include encoders and IMUs.
Does every robot need calibration, or only some?
All robots, but it's crucial in complex applications like aerospace or medical robots where precision is critical.
To summarize, experimental validation and calibration are pivotal to ensuring our robotic systems operate effectively and safely in their intended environments.
System Identification Techniques
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s explore system identification. Can anyone explain what this involves?
It’s about estimating the parameters of the robot's dynamics, right?
Correct! We often use Least Squares Estimation for this purpose. How does it work?
Does it analyze data from experiments to find the best fit for parameters?
Exactly! It minimizes the difference between predicted and actual motion based on collected data. What kind of sensors do we require for accurate measurement?
I believe we need encoders for position, IMUs for orientation, and F/T sensors to measure forces?
You are spot on! All these sensors play a crucial role in gathering data for system identification.
What about Recursive Estimation? How does that differ from least squares?
Recursive Estimation continually updates parameter estimates as new data comes in, allowing for adaptive learning. Overall, both techniques are vital for ensuring accurate modeling.
To wrap up this session, understanding and implementing proper system identification techniques significantly contribute to robotic performance.
Model Calibration Importance
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's discuss model calibration. Why do you think it’s important?
Calibration adjusts the model parameters to fit the real data.
Exactly! By comparing model predictions to real sensor data, we adjust for variables like mass or inertia. Can someone provide an example of where calibration is critical?
Maybe in medical robots? They must be precise for safe operations!
Right! Inaccuracies could have serious implications. What methods could be employed during calibration?
Would we use feedback from the sensors to refine the model iteratively?
Exactly! This iterative process is essential to refine our models. It ensures accuracy across applications, particularly in fields like aerospace and robotic surgery.
In conclusion, robust model calibration is indispensable to the effective functioning of robotic systems in various applications.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section focuses on the critical processes of experimental validation and model calibration within robotic dynamics. It highlights the methods for system identification to estimate physical parameters and outlines the necessity of adjusting model parameters according to real sensor data for various robotic applications.
Detailed
Experimental Validation and Calibration
In robotics, ensuring that dynamic models accurately represent physical behavior is crucial. This section emphasizes two primary aspects: system identification and model calibration.
System Identification refers to techniques like Least Squares Estimation, Recursive Estimation, and Frequency Domain Analysis. These methods aim to estimate the physical parameters of robots, requiring sensors such as encoders, inertial measurement units (IMUs), and force/torque (F/T) sensors.
Model Calibration involves adjusting model parameters, including mass, center of mass, and inertia, by comparing model predictions with actual sensor data. This calibration is particularly vital in fields like aerospace, surgical robotics, and industrial automation where precision is paramount. Through experimental validation, robots can ensure that their dynamic models closely mimic their real-world counterparts, thereby enhancing safety and performance.

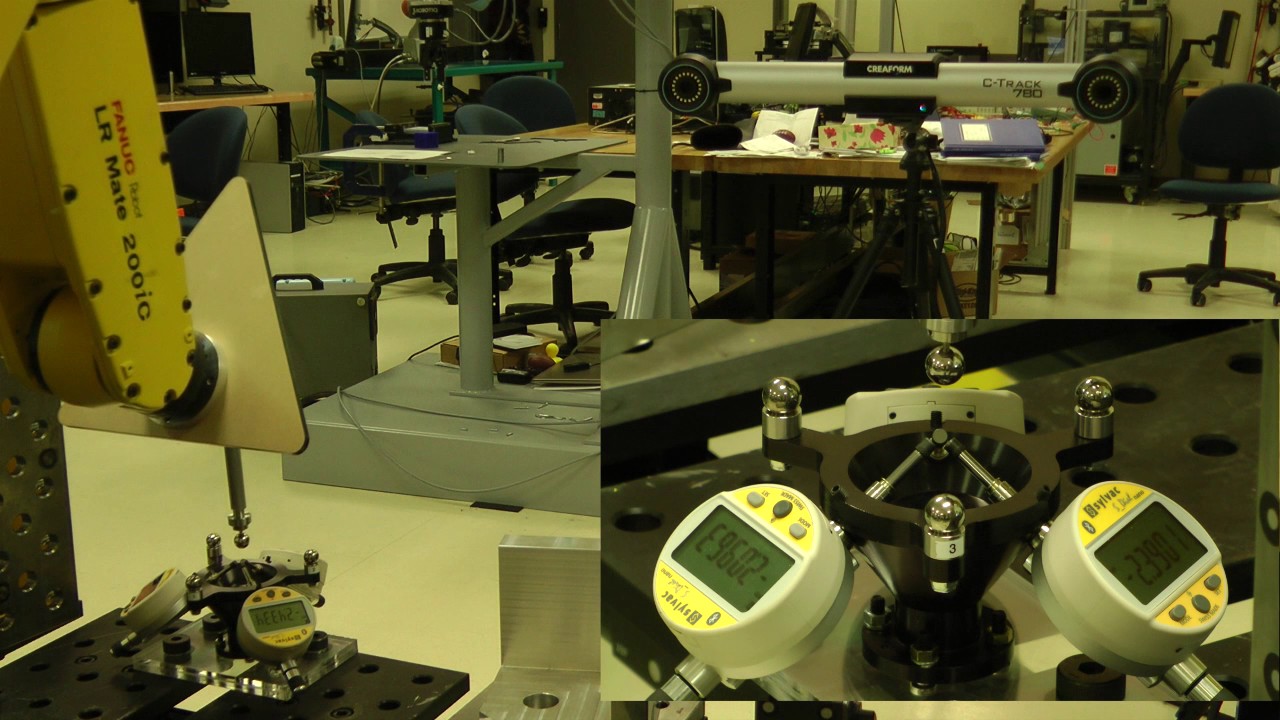

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
11.15.1 System Identification
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Techniques used to estimate physical parameters:
- Least Squares Estimation
- Recursive Estimation
- Frequency Domain Analysis
Sensors needed: encoders, IMUs, F/T sensors
Detailed Explanation
System identification is the process of using data to create a mathematical model that represents the physical parameters of a robotic system. This allows engineers to understand how a robot behaves by estimating factors such as mass, inertia, and other crucial aspects.
- Least Squares Estimation: This is a statistical method that minimizes the sum of the squares of the differences between observed and predicted values. It’s used to fit a model to data.
- Recursive Estimation: This method updates parameter estimates continuously as new data comes in, making it suitable for real-time applications where conditions might change.
- Frequency Domain Analysis: This technique analyzes how a system responds to different frequencies, allowing for the identification of dynamic properties across a range of inputs.
In system identification, the data collected through various sensors like encoders, Inertial Measurement Units (IMUs), and Force/Torque (F/T) sensors is essential as it provides the necessary feedback for accurate modeling.
Examples & Analogies
Consider a musician trying to tune a piano. To make sure each note sounds correct, they listen to the sound produced and compare it to a reference pitch. If the note is flat or sharp, they adjust the tension of the strings incrementally until it aligns perfectly with the reference note. Similarly, system identification techniques like least squares or recursive estimation help engineers refine and adjust the parameters of a robotic model until it matches the real-world behavior of the robot.
11.15.2 Model Calibration
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Adjusting model parameters (mass, center of mass, inertia) by comparing model predictions with real sensor data.
Calibration is crucial in:
- Aerospace and surgical robots
- Industrial manipulators
- Mobile platforms
Detailed Explanation
Model calibration ensures that the mathematical models accurately reflect the real-world behavior of the robot. This involves refining the model parameters like mass, center of mass, and inertia based on actual data collected from real-world operations.
- Comparing Predictions and Data: Engineers simulate the robot's behavior using the model and then compare these predictions against actual sensor readings from the robot during operation.
- Adjusting Parameters: When discrepancies arise between the model's predictions and the sensor data, adjustments are made to the model parameters to enhance accuracy.
This calibration process is particularly important in fields where precision is critical, such as aerospace and surgical robotics, where errors can lead to significant consequences.
Examples & Analogies
Think of a recipe for a cake. If you follow the recipe but find that your cake doesn’t rise as expected, you might adjust the amount of baking powder or change the oven temperature based on how previous cakes turned out. Similarly, in robot calibration, engineers tweak the parameters of their model based on real performance to ensure the robot operates correctly and efficiently.
Key Concepts
-
Experimental Validation: Verifying dynamic models against real-world performance.
-
System Identification: Estimating parameters using data-driven methods.
-
Model Calibration: Adjusting parameters for accuracy compared to sensor data.
-
Least Squares Estimation: Minimizing error to find optimal model parameters.
-
Recursive Estimation: Continuously updating parameters based on new data.
Examples & Applications
Using encoders to improve the accuracy of position estimates in robotic arms.
Adjusting the center of mass through calibration to enhance a robot's stability.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When the model you design doesn't work quite right, test it in the field to give it some light.
Stories
Once there was a robot named Calibratus who always checked its parts before every race. One day, it found it had been running inefficiently due to miscalibrated sensors. After a quick recalibration, it won the next race! This story reminds us that calibration is crucial.
Memory Tools
Remember 'SIMPLE' for System Identification: Sensors, Inputs, Measurements, Parameters, Least Squares, and Estimation.
Acronyms
I use 'CALIB' for Model Calibration
Compare
Adjust
Learn
Improve
Balance.
Flash Cards
Glossary
- Experimental Validation
The process of verifying that a robot’s dynamic model accurately reflects its behavior through real-world testing.
- System Identification
Techniques used to estimate the physical parameters of robotic systems based on collected data.
- Model Calibration
The process of adjusting a model’s parameters to match observed data closely.
- Least Squares Estimation
A statistical method for estimating the parameters of a model by minimizing the sum of the squares of the differences between observed and predicted values.
- Recursive Estimation
A method for continuously updating estimates of model parameters as new data becomes available.
