Introduction to Force Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will start discussing force control. Force control is important because it helps robots interact with their environment safely. Can anyone tell me why it might be necessary for a robot to control the force it exerts?
Isn’t it to prevent damaging objects or hurting humans during tasks?
Exactly! Force control helps keep actions gentle and ensures safety. An important concept here is hybrid control. Can someone explain what that means?
Hybrid control means the robot can manage its position in some directions while controlling force in others, right?
Correct! It provides the robot flexibility in how it interacts with its environment.
So, to remember the concept of force control, think of the acronym FOCUS: Force Organized for Control Under Safety.
To wrap up this session, force control helps robots interface with their environments without causing harm. Who can summarize the benefits of force control?
It prevents damage and allows precise interaction.
Understanding Impedance Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's talk about impedance control, which was introduced by Hogan in 1985. Can anyone explain what impedance control seeks to regulate?
It regulates the relationship between force and motion?
Right! Impedance control is about managing how much a robot will move in response to a force. The formula we use is F = M * x¨ + B * x˙ + K * x. What do the variables stand for?
M is the desired mass, B is damping, and K is stiffness.
Exactly! This control is vital in applications like rehabilitation robots, where you want to assist but still allow for human interaction. Can someone explain why compliance is essential in these scenarios?
Compliance helps to ensure patients are comfortable and reduces the risk of injury!
Great point! To help remember the key equation for impedance control, think of the acronym MBS: Mass, Damping, Stiffness. Each part helps describe how we want the system to behave.
In summary, impedance control ensures that robots can adjust their movements and forces to react safely in unpredictable environments.
Applications of Force and Impedance Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s now examine where we can see force and impedance control in action. Can anyone think of examples where these controls could be applied?
I think they’re used in rehabilitation robots!
Absolutely! Rehab robots often use impedance control to adapt to patient needs. What about other applications?
In collaborative robots, right? They need to interact with humans safely.
Exactly! We can think about the acronym HARM: Human-Interaction, Assistant Robots, and Machines, which can handle tasks requiring sensitivity and force control. Can anyone think of challenges in implementing force control?
I imagine feedback systems need to be very precise.
You’re spot on! With precise force feedback, robots can adjust their actions in real-time, making them safer and more effective.
To conclude our sessions, we’ve learned about force and impedance control, their equations, and applications in robotics. Who would like to summarize?
Force control keeps forces safe while impedance control manages relationships during interactions with focus on compliance.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section explains how force control and impedance control enable robots to manage position and force while interacting with their environment. Force control maintains designated force levels, while impedance control allows regulation of mechanical impedance, supporting compliance in tasks such as human-robot interaction and rehabilitation.
Detailed
Force and Impedance Control
Robots often need to interact safely and effectively with their environment, which necessitates the management of both position and force. This is a critical element in robotic design, ensuring that robots can perform tasks without causing damage or injury.
11.11.1 Force Control
Force control regulates the force applied by the robot to remain within specific bounds. This can involve various strategies:
- Hybrid Position/Force Control: This technique combines position control for certain directions while applying force control in others, allowing for flexibility in motion and interaction.
- Force Feedback: This uses sensors to monitor and adjust contact forces in real-time, helping maintain the desired interaction force during tasks involving physical contact.
11.11.2 Impedance Control
Introduced by Hogan in 1985, impedance control focuses on regulating the mechanical impedance, defined as the relationship between force and motion. The control equation can be expressed as:
F = M * x¨ + B * x˙ + K * x
Where:
- M: Desired mass
- B: Desired damping
- K: Desired stiffness
This approach fosters compliance, making impedance control particularly valuable in applications involving human-robot interaction, rehabilitation robotics, and other contact-intensive tasks. Its emphasis on responsiveness to external forces enhances safety and performance in complex operational environments.

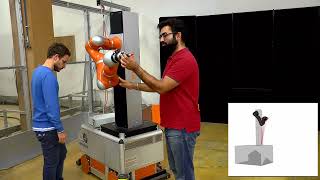

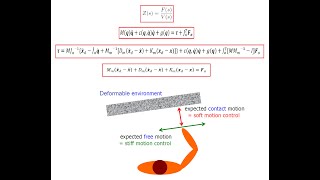

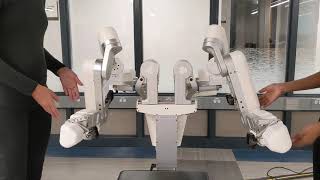

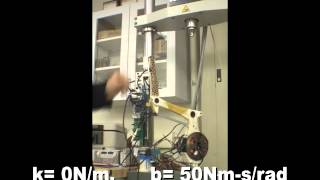

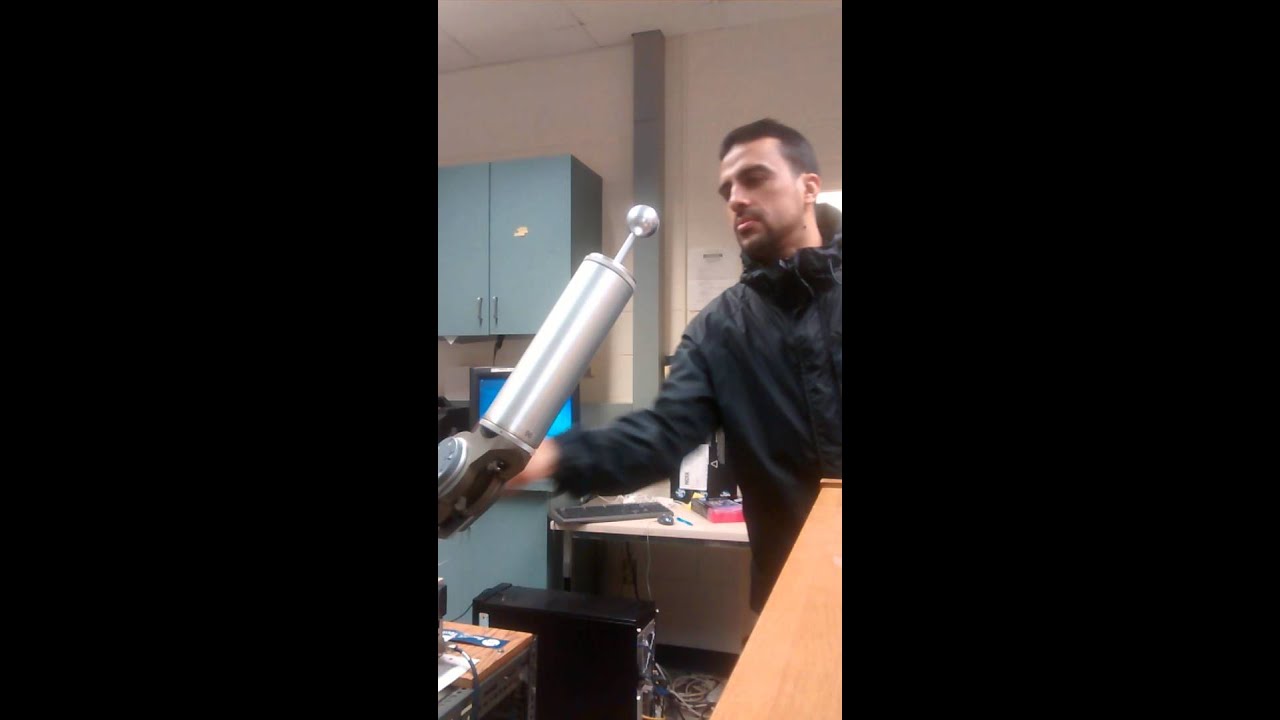

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Force Control
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Ensures that the force applied by the robot on the environment stays within desired bounds.
Detailed Explanation
Force control is a crucial aspect of robotics that ensures the robot does not exert too much force on its environment. This is important in applications where robots interact with delicate objects, as excessive force can cause damage. By managing the amount of force applied, robots can perform tasks more safely and effectively.
Examples & Analogies
Imagine a person carefully holding a soft fruit, like a ripe peach. If they grip it too tightly, they might crush it. Similarly, a robot using force control applies just the right amount of pressure to handle the peach without causing harm.
Hybrid Position/Force Control
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Hybrid Position/Force Control: Applies position control along some directions and force control along others.
Detailed Explanation
Hybrid position/force control is a strategy that combines both position and force control. In this approach, the robot moves to a desired position while also managing the force it exerts in different directions. For instance, when gripping an object, the robot might need to move to a specific position but also control the pressure applied to the object to avoid damaging it.
Examples & Analogies
Think about a person pushing a shopping cart. They need to guide it (position control) while also being careful not to push too hard against items in the cart (force control). This balance helps prevent accidents and ensures smooth operation.
The Role of Force Feedback
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Force Feedback: Uses force/torque sensors to regulate contact forces in real-time.
Detailed Explanation
Force feedback is an essential component in force control systems. It involves the use of sensors that detect the forces or torques acting on the robot. By continuously measuring these forces, the robot can adjust its actions in real-time to maintain the appropriate level of force during interaction with the environment.
Examples & Analogies
Consider a robot vacuum cleaner that encounters a barrier. Its force sensors detect when it hits something, allowing it to reverse or change direction to avoid damage, similar to how a person might step back when they bump into an object.
Introduction to Impedance Control
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Introduced by Hogan (1985), impedance control regulates the mechanical impedance (relationship between force and motion):
Detailed Explanation
Impedance control is an advanced technique designed to manage how a robot interacts with its environment. It focuses on the mechanical impedance, which is the relationship between the force a robot exerts and its resulting motion. By controlling parameters like mass, stiffness, and damping, robots can adapt their behavior depending on how they contact different surfaces or objects.
Examples & Analogies
Think of a trampoline. When you jump on it, the trampoline's material deforms and pushes back, regulating how high you bounce. Similar to how your body adapts when you land, impedance control helps robots adjust their forces based on interactions.
Understanding the Impedance Control Formula
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
F = M x¨ + B x˙ + K x
Detailed Explanation
This formula shows how impedance control works, where F represents the force exerted, M is the desired mass, B is the desired damping, and K is the desired stiffness. Each of these parameters allows the robot to behave differently in response to the forces it encounters. For instance, a robot with high stiffness will resist motion more than one with low stiffness.
Examples & Analogies
Imagine a child on a swing. If they push against the ground (force), the swing will either resist their push (high stiffness) or allow them to sway gently (low stiffness). This analogy helps illustrate how robots can be programmed to respond differently depending on their control settings.
Applications of Impedance Control
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
This control mode is compliant and widely used in human-robot interaction, rehabilitation robots, and contact-rich tasks.
Detailed Explanation
Impedance control is particularly useful in scenarios involving direct interaction between humans and robots or where delicate manipulation is required. Its compliance allows robots to adjust their force output based on feedback from their environment, making it ideal for rehabilitation robots that assist people in physical therapy or collaborative robots in factories.
Examples & Analogies
Consider how a personal trainer might guide someone through an exercise. The trainer adjusts their support based on the trainee's strength and comfort level, similar to how a robot with impedance control adapts its resistance based on how much force it feels from the object it is interacting with.
Key Concepts
-
Force Control: Regulates the force exerted by robots during interaction.
-
Impedance Control: Manages the mechanical properties of force and motion to allow safe interaction.
-
Hybrid Control: Combines different forms of control to enhance robotic interaction.
-
Compliance: Ensures robots adapt to external forces, facilitating safe human-robot collaboration.
Examples & Applications
A rehabilitation robot that adjusts its support based on the force applied by a patient, using impedance control to ensure the safety and comfort of the user.
A collaborative robot that applies force control while assembling components to prevent damaging delicate parts.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Force in check, we don’t wreck; Impedance flows, where motion goes.
Stories
Imagine a robot helping someone in rehab. As the person pushes against it, the robot senses the force and gently adjusts its support — that's how force control helps in Human-Robot interactions.
Memory Tools
Remember 'F.I.R.' for Force Interaction Regulation: Force Control, Impedance Control.
Acronyms
H.A.R.M. for Hybrid Assistant Robots for Motion, highlighting collaborative robots in tasks.
Flash Cards
Glossary
- Force Control
A method to ensure the robot applies force within desired bounds when interacting with its environment.
- Impedance Control
A control approach that regulates the mechanical impedance between force and motion in robotic interactions.
- Hybrid Control
A strategy that combines position control and force control in different directions of movement.
- Compliance
The ability of a robot to yield or adapt to external forces during interaction.
