11.13 - Dynamics in Legged and Wheeled Robots
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Legged Robot Dynamics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into legged robot dynamics. Can anyone tell me why the dynamics of legged robots, like bipeds and quadrupeds, are more complex than wheeled robots?
Maybe because they have to balance on legs and walk?
Exactly! One key concept is the **Zero Moment Point (ZMP)**, which helps us determine how the robot maintains stability when walking. Remember this acronym: ZMP is crucial for understanding balance.
What about the phases of walking? Do they matter?
Yes, great question! Walking dynamics are divided into the stance and swing phases. These phases create discontinuities at foot impacts that we have to account for in modeling. Does that make sense?
So the transition between phases is important for control?
Exactly, and control strategies need to adapt to these changes effectively. Can anyone think of a control method that might be used?
Nonlinear predictive control?
Yes! Well deduced! This method helps optimize trajectories throughout the phases. To recap, ZMP helps maintain balance, and we categorize walking into stance and swing phases.
Wheeled Robot Dynamics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's shift focus to wheeled robots. What is a defining characteristic of wheeled robots when it comes to their dynamics?
I think they have to deal with rolling constraints?
Right again! Wheeled robots are constrained by non-holonomic conditions. They cannot slip sideways, which simplifies some aspects of their motion. How do you think this would affect their control?
They probably have to think more about steering rather than just moving straight.
Good insight! Their steering dynamics are often modeled through **differential drive** or **Ackermann steering**. Why do you think terrain interaction is significant in this context?
Because uneven surfaces can affect stability and motion?
Exactly! Terrain factors like slopes and rough surfaces change the dynamics significantly. For control, we often use methods like **Lyapunov-based techniques**. Let's summarize: Wheeled robots focus on rolling constraints and terrain interaction, necessitating specific control methods.
Comparison and Applications
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's talk about real-world applications. Why might we choose legged robots over wheeled ones?
Perhaps for navigating uneven ground like rocks or stairs?
Absolutely! Legged robots can maneuver over terrains that wheeled robots struggle with. Can anyone name examples of legged robots?
Like Boston Dynamics' Spot?
Precisely! Now, what about wheeled robots? Where are they typically favored?
Maybe on roads or flat surfaces?
Correct! Wheeled robots are efficient on floors and roads, making them ideal for delivery or transportation. So, to wrap it up, the choice between legged and wheeled robots hinges on the terrain they need to navigate.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Legged and wheeled robots have distinct dynamic characteristics that dictate how they interact with their environment. Legged robots require modeling of multi-body limb systems and ground reaction forces, while wheeled robots must address non-holonomic constraints and terrain interactions. Understanding these dynamics is critical for implementing effective control techniques and achieving desired motion.
Detailed
Dynamics in Legged and Wheeled Robots
This section delves into the dynamics of legged and wheeled robots, highlighting the key differences in their modeling and control requirements. Legged robots, such as bipeds and quadrupeds, necessitate complex modeling to account for their multi-body limb systems, ground reaction forces, and the concept of Zero Moment Point (ZMP) stability, which is crucial for maintaining balance during movement.
In contrast, wheeled robots operate under non-holonomic constraints, meaning they cannot slide sideways; hence their dynamics are defined by rolling constraints. These robots also need to consider the distribution of mass and inertia, as well as interactions with various terrains, such as rough ground or slopes.
Control strategies differ significantly between the two types of robots. Legged robots often employ techniques such as whole-body inverse dynamics and trajectory optimization, while wheeled robots might utilize Lyapunov-based methods, along with differential drive or Ackermann steering kinematics.
By analyzing these dynamics, engineers can enhance the performance and reliability of both legs and wheel-based robotic systems.

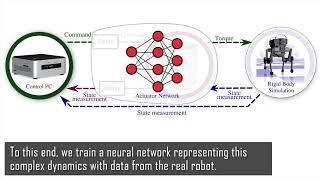

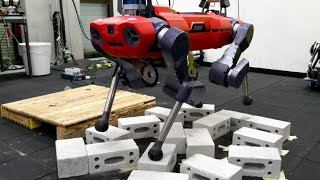

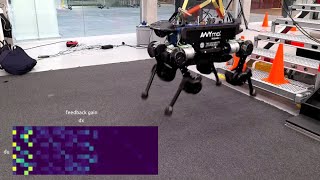

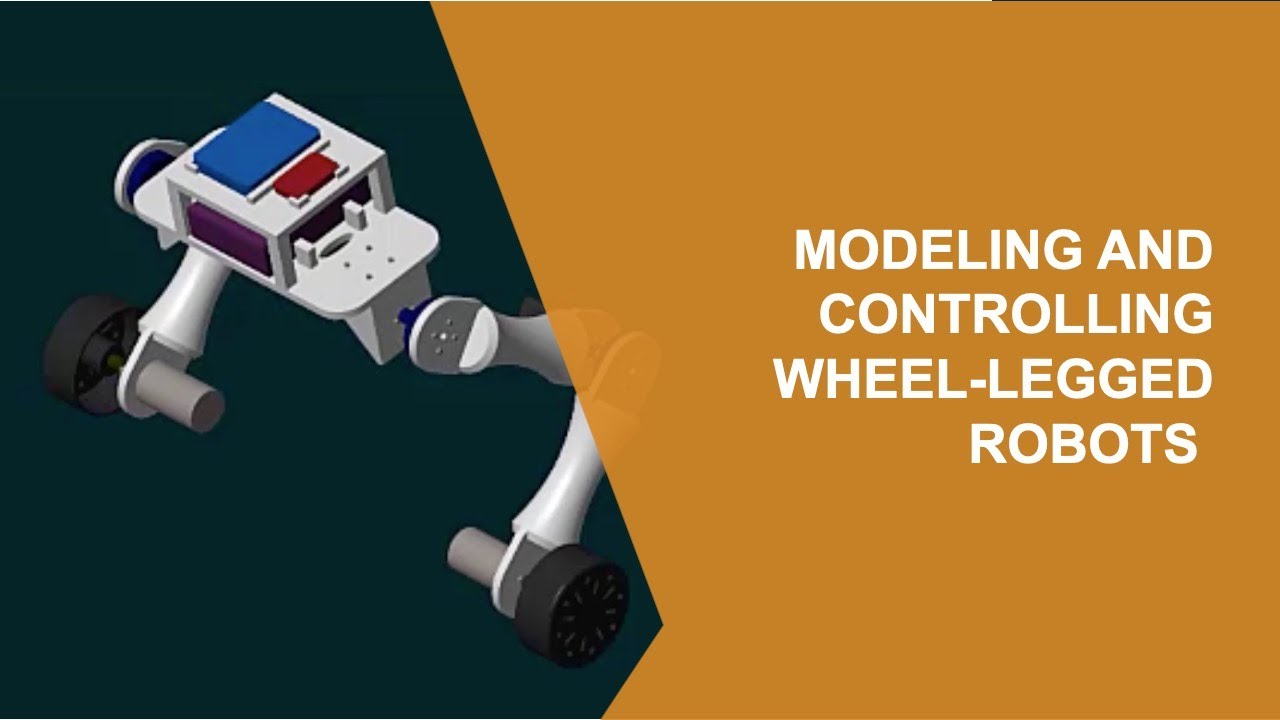

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Legged Robot Dynamics
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Legged robots (e.g., bipeds, quadrupeds) require complex modeling of:
• Multi-body limb systems
• Ground reaction forces
• ZMP (Zero Moment Point) stability
Walking Dynamics are phase-based: stance and swing phases with discontinuities at foot impacts.
Control requires:
• Whole-body inverse dynamics
• Trajectory optimization
• Nonlinear predictive control
Detailed Explanation
Legged robots, like those resembling humans or animals, have limbs that move in coordinated ways. To model their movement accurately, engineers consider several factors. These include 'multi-body limb systems,' which represent how each limb interacts with others, and 'ground reaction forces,' the forces exerted by the ground on the robot's feet when walking. Additionally, 'ZMP stability' refers to a specific point where the robot must remain balanced. When a legged robot moves, it goes through two main phases: 'stance' (when the foot is on the ground) and 'swing' (when the foot is in the air). Understanding these phases is crucial because there are sudden changes (discontinuities) when the foot lands or lifts off. To manage all this movement smoothly, control strategies involve whole-body inverse dynamics to calculate the forces needed at each joint, trajectory optimization to plan the robot's path efficiently, and nonlinear predictive control to adjust movements based on predictions of future states.
Examples & Analogies
Think of a person walking up a staircase. As they stand on one leg (the stance phase), that foot pushes against the steps. When they lift the other foot (the swing phase), they have to maintain their balance or risk falling. Like the person, legged robots need to manage their balance and movement carefully, ensuring they land on their feet without tipping over.
Wheeled Robot Dynamics
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Wheeled mobile robots must satisfy non-holonomic constraints (no side slip for standard wheels):
Dynamic equations include:
• Rolling constraints
• Mass and inertia distribution
• Terrain interaction models (e.g., rough ground, slopes)
Control often uses:
• Lyapunov-based methods
• Differential drive or Ackermann steering kinematics + dynamics
Detailed Explanation
Wheeled robots, such as cars and robotic delivery devices, have unique dynamics because they are bound by 'non-holonomic constraints.' This means they can only move forward or backward and cannot slide sideways like they might on ice. To accurately represent their motion, engineers create dynamic equations that consider several key aspects: 'rolling constraints' relate to how wheels can roll without slipping, while 'mass and inertia distribution' helps understand how weight affects movement. Additionally, 'terrain interaction models' account for how the robot behaves on different surfaces, like rough roads or slopes. For controlling these robots, methods leveraging Lyapunov's stability theory ensure safe and efficient movement, while techniques like differential drive allow for precise steering and turning.
Examples & Analogies
Imagine riding a bicycle. You can't easily slide sideways; you must balance and steer. Just like a cyclist must lean into turns and pedal up hills, wheeled robots have to adapt their movements to the surface they're on. They rely on carefully crafted controls to ensure they move smoothly and stay on track without slipping.
Key Concepts
-
Legged Robot Dynamics: Involves modeling multi-body limbs and ensuring stability.
-
Wheeled Robot Dynamics: Defined by rolling constraints and terrain interactions.
-
Zero Moment Point: A critical concept for balance in legged robot movement.
-
Non-holonomic Constraints: Important for modeling motion in wheeled robots.
Examples & Applications
Example of a bipedal robot navigating uneven terrain while analyzing its Zero Moment Point.
Example of a differential drive wheeled robot navigating a parking lot, needing to adhere to rolling constraints.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
If feet are swift and ZMP stays tight, legged bots will walk with all their might.
Stories
Imagine a biped exploring a rocky landscape. It carefully checks its Zero Moment Point to avoid tumbling over, showing the importance of balance while walking.
Memory Tools
L-W-C: Legged with Wheels Control - Remember the unique controls for each robot type.
Acronyms
ZMP
**Z**ero **M**oment **P**oint - A catchy way to remember balance concepts in walking robots.
Flash Cards
Glossary
- Legged Robots
Robots that use limbs to walk, characterized by complex dynamics due to multiple legs.
- Wheeled Robots
Robots that move using wheels, defined by non-holonomic constraints.
- Zero Moment Point (ZMP)
A point where the sum of moments equals zero, crucial for maintaining balance in legged robots.
- Nonholonomic Constraints
Constraints in motion that prevent certain movements, such as slipping sideways.
- Trajectory Optimization
The process of improving the path of a robot to achieve desired motion characteristics.
- Rolling Constraints
Requirements that dictate how wheels must interact with surfaces without slipping.
- Lyapunovbased Control
A type of control strategy that utilizes Lyapunov functions to ensure system stability.
