11.3 - Lagrangian Formulation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Basics of Lagrangian Mechanics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we'll explore the Lagrangian formulation in robotics. The Lagrangian, represented as L, is crucial because it helps us understand the dynamics of systems by focusing on energy. Can anyone tell me what the Lagrangian is composed of?
It's the difference between kinetic energy and potential energy.
Exactly! So, we define it as L = T - V, where T is the total kinetic energy and V is the total potential energy. Why do you think this formulation might be useful compared to just using forces?
It seems like it could simplify calculations by using energy instead of directly calculating forces.
Right, and what we derive from this setup is the Euler-Lagrange Equation. Let's think about what that equation tells us. Can anyone share how it looks?
d/dt(∂L/∂q˙ᵢ) - ∂L/∂qᵢ = τᵢ.
Perfect! This equation connects generalized coordinates and velocities to the forces acting on the system. It’s foundational for deriving the equations of motion in robotics.
Application of Lagrangian Formulation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss how we apply this formulation for robotic systems, especially in multi-degree of freedom manipulators. When dealing with an n-DOF manipulator, how can we express the energies?
We can express kinetic and potential energies in terms of the joint coordinates and velocities.
That's correct! This is crucial because it leads to a set of coupled nonlinear second-order differential equations when the Euler-Lagrange equation is applied to each degree of freedom. Why do you think we face non-linearity in these equations?
Because the movement of one joint can affect the others due to how they are interconnected.
Exactly, the dynamics in a robotic manipulator can be quite complex. This complexity exemplifies why Lagrangian mechanics is preferred for systematically deriving these equations.
Lagrangian Dynamics vs. Newton-Euler Dynamics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
As we engage with Lagrangian dynamics, let’s compare it with the Newton-Euler approach we've previously discussed. What are some notable differences?
The Lagrangian formulation focuses on energy rather than forces, which makes it sometimes easier for complex systems.
And the Lagrangian method can handle constraints better through generalized coordinates.
Exactly! Understanding these differences aids in deciding which method to use based on the problem at hand, especially when it comes to real-time applications in robotics.
So, both methods have their strengths based on the system we're analyzing?
Absolutely! The selection between these methods often depends on the complexity and specific requirements of the robotic system.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, the Lagrangian formulation is introduced as a method for analyzing the dynamics of robotic systems by utilizing the differences between kinetic and potential energies. The principle of the Euler-Lagrange equation is emphasized in deriving motion dynamics for n-degree-of-freedom systems.
Detailed
Lagrangian Formulation in Robotics
The Lagrangian formulation provides a powerful method for analyzing the dynamics of robots by relating kinetic and potential energy. In this approach, the Lagrangian (L) is defined as the difference between kinetic energy (T) and potential energy (V):
L = T - V
Where:
- T represents the total kinetic energy of the system
- V represents the total potential energy
The Euler-Lagrange Equation is fundamental in determining the equations of motion for mechanical systems:
d/dt(∂L/∂q˙ᵢ) - ∂L/∂qᵢ = τᵢ
This equation incorporates:
- qᵢ: Generalized coordinates (such as joint angles or positions)
- q˙ᵢ: Generalized velocities
- τᵢ: Generalized forces or torques acting on the system
In the context of robot dynamics, for an n-degree-of-freedom manipulator, the kinetic and potential energies are expressed in terms of joint coordinates, velocities, and link characteristics. By applying the Euler-Lagrange equation across all degrees of freedom, a set of coupled non-linear second-order differential equations can be obtained, defining the robot's dynamics. Thus, the Lagrangian formulation serves as a fundamental tool for modeling and controlling robotic motion.

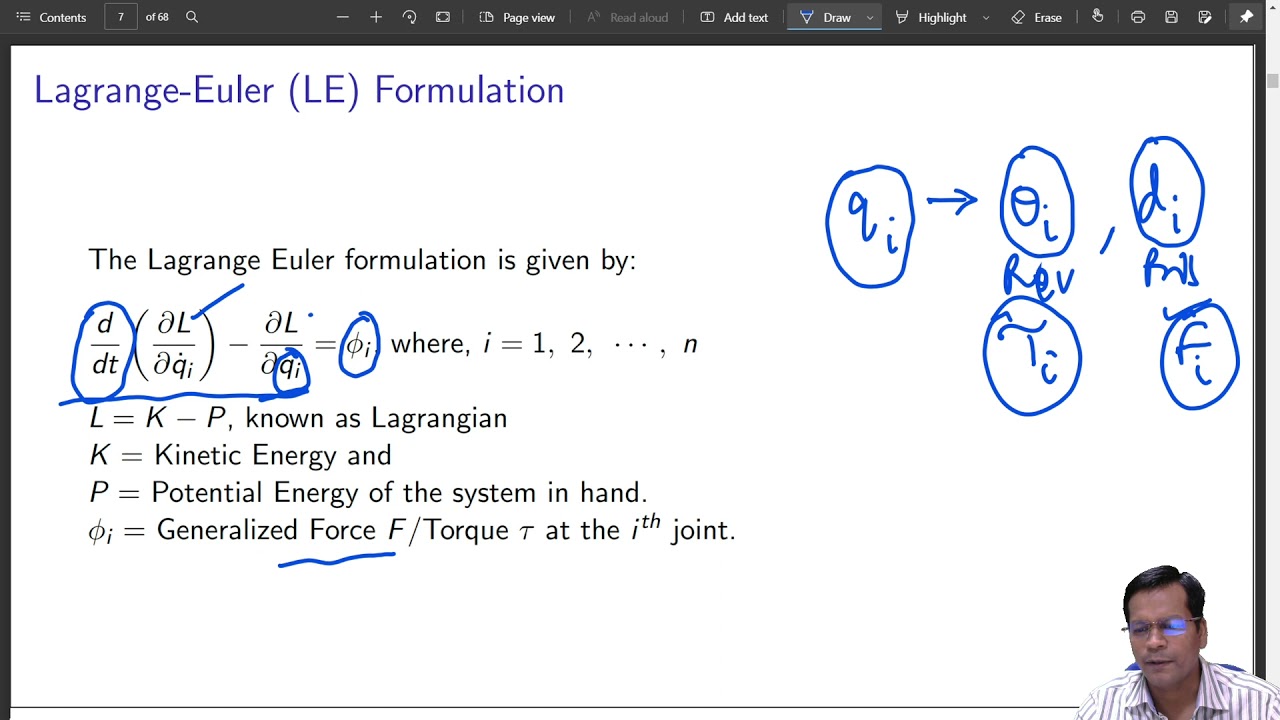

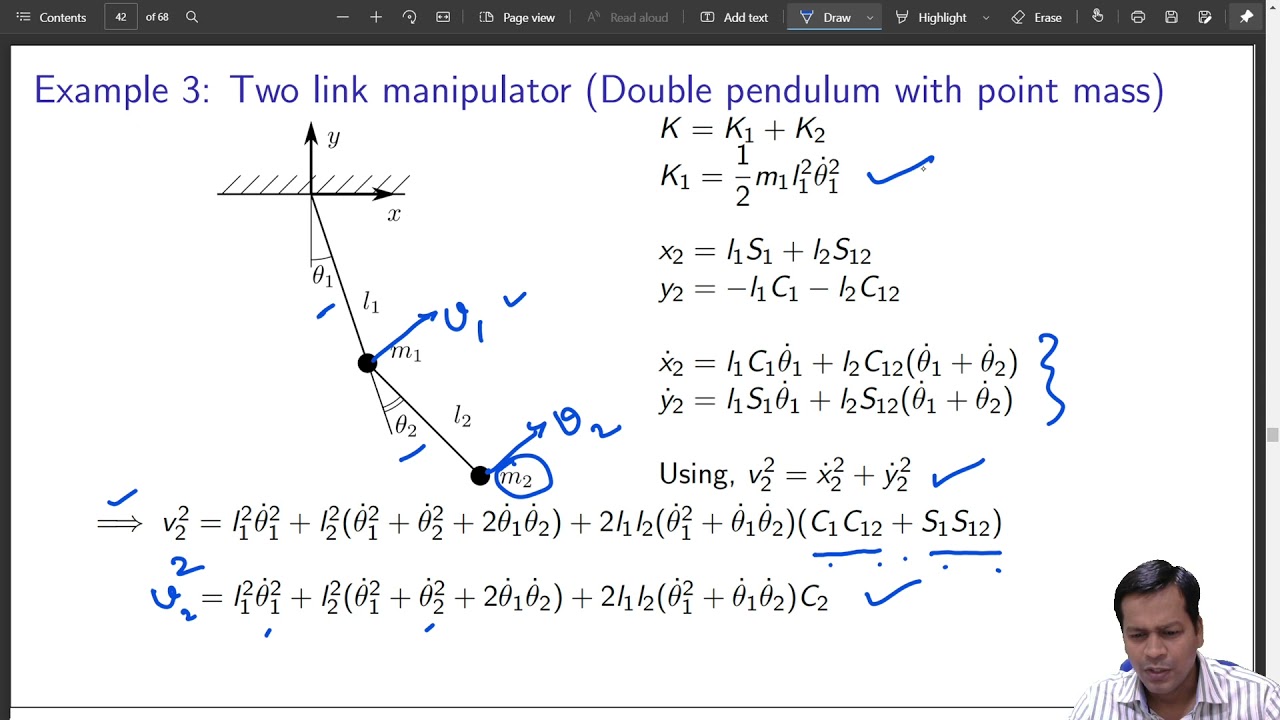

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Lagrangian Definition
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Lagrangian (L) is defined as the difference between kinetic and potential energy:
L=T − V
Where:
- T: Total kinetic energy
- V: Total potential energy
Detailed Explanation
The Lagrangian formulation is a powerful method in classical mechanics for analyzing the motion of a system. At its core, the Lagrangian (L) is calculated as the difference between the kinetic energy (T) and the potential energy (V) of the system. This approach allows us to apply variations in energy to derive the equations of motion for dynamic systems. The kinetic energy represents the energy due to motion, while potential energy reflects energy stored due to position.
Examples & Analogies
Imagine a roller coaster. The cars have kinetic energy when they are moving fast at the bottom of a hill and potential energy when they are at the top of a hill, poised to drop. The Lagrangian captures the balance of these energies to analyze how the roller coaster moves throughout the track.
Euler-Lagrange Equation
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Euler-Lagrange Equation is used to derive dynamic equations:
d/dt (∂L/∂q˙) - ∂L/∂q_i = τ
Where:
- q_i: Generalized coordinate (joint angle, position, etc.)
- q˙: Generalized velocity
- τ: Generalized force or torque
Detailed Explanation
The Euler-Lagrange Equation is fundamental in deriving the equations that govern the motion of a system. It relates changes in the Lagrangian to the forces acting on the system. The equation has terms for the derivative of Lagrangian with respect to generalized velocities (q˙) and coordinates (q), equating that to the generalized torque (τ). This means it allows us to relate how energy changes in a system to the forces acting on it, thereby capturing the dynamics succinctly.
Examples & Analogies
Think of a seesaw at a playground. The balance point (pivot) represents the generalized coordinate, and how fast it moves up or down is the generalized velocity. The forces acting on the seesaw, like kids pushing down on one end, can be analyzed using the Euler-Lagrange Equation to predict how it will move.
Application to Robotics
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
For an n-DOF manipulator, we write the total kinetic and potential energies as functions of joint coordinates, velocities, and link properties. Applying the Euler-Lagrange equation to each DOF gives us a set of n coupled nonlinear second-order differential equations.
Detailed Explanation
In robotics, especially involving manipulators with multiple degrees of freedom (n-DOF), the Lagrangian formulation becomes crucial for modeling dynamics. Each joint contributes to the total kinetic and potential energy based on its position and movements. By applying the Euler-Lagrange Equation for every joint, we derive complex equations that describe the motion of the entire manipulator, capturing the interdependent behavior of its parts through a set of coupled nonlinear differential equations.
Examples & Analogies
Imagine a robotic arm, akin to a human arm with joints at the shoulder, elbow, and wrist. Each joint's position and movement influences the arm's ability to grasp objects. The Lagrangian formulation helps model how changes in one joint affect the arm's overall motion, much like how moving your elbow affects your wrist when reaching out to grab something.
Key Concepts
-
Lagrangian formulation: A method of deriving equations of motion using energy differences.
-
Euler-Lagrange equation: Fundamental equation for dynamic analysis in robotics.
-
Coupled nonlinear equations: Resultant equations from applying Lagrangian mechanics to multi-DOF systems.
Examples & Applications
In a robotic arm with two joints, the kinetic and potential energies can be expressed in terms of the angles and velocities of the joints to derive motion equations.
Consider a pendulum; using Lagrangian mechanics allows us to derive its motion equations by defining kinetic and potential energies in terms of the pendulum's angle.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In Lagrangian form we see, energy's the key to the mystery.
Stories
Imagine a robot that needs to decide its next move. It considers how fast it can go and where it is in the given space. By balancing its energy, it understands how to move forward, keeping both speed and stability.
Memory Tools
To remember the Lagrangian: T - V = L - Think: Time T, Value V, Life L!
Acronyms
Recall Lagrangian dynamics with **LEAD**
= Energy difference
= Apply Euler-Lagrange
= Derive equations.
Flash Cards
Glossary
- Lagrangian
A function that represents the difference between kinetic and potential energy in a system.
- Kinetic Energy
The energy that an object possesses due to its motion.
- Potential Energy
The energy stored in an object due to its position in a force field, such as gravity.
- EulerLagrange Equation
A fundamental equation used for deriving the equations of motion in a dynamical system based on the Lagrangian.
- Generalized Coordinates
Parameters that define the configuration of a system in terms of its degrees of freedom.
- Generalized Forces
Forces associated with the generalized coordinates, often depicted as torques in robotic systems.
