1.11 - DIPOLE IN A UNIFORM EXTERNAL FIELD

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Basic Concepts of a Dipole in Electric Field

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will discuss how a dipole interacts with a uniform electric field. Can anyone remind me what a dipole is?

Student 1
Student 1

A dipole is a pair of equal and opposite charges separated by a distance.

Teacher
Teacher

Exactly! The dipole moment p is crucial for understanding its orientation in the field. What happens when a dipole is placed in a uniform electric field?

Student 2
Student 2

The dipole will experience some forces due to the field.

Teacher
Teacher

Right, but in a uniform field, these forces cancel out. So, we focus on the torque. Torque τ on a dipole is given by the formula τ = p × E. Does anyone remember what torque does to the dipole?

Student 3
Student 3

It helps align the dipole with the field!

Teacher
Teacher

Great! This alignment reduces potential energy. So, how might a dipole behave in a non-uniform field?

Student 4
Student 4

It would experience a net force towards the region of higher field strength.

Teacher
Teacher

Exactly! That's a key point. If the electric field isn't uniform, there's a resultant force acting on the dipole.

Teacher
Teacher

In summary, in a uniform electric field, the dipole will rotate to align with the field effectively.

Induced Dipole Moments

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we've grasped the behavior of a dipole, let’s look at a practical example. Has anyone seen how a charged comb attracts small pieces of paper?

Student 1
Student 1

Yes, I have! But the paper isn’t charged!

Teacher
Teacher

Exactly! The charged comb polarizes the paper by inducing a dipole moment. Let's understand this better. How does such polarization occur?

Student 2
Student 2

The electric field from the comb pushes the positive charges away from the negative, creating a dipole.

Teacher
Teacher

Correct! The induced dipole moment aligns with the field but still experiences a net force, hence moving towards the comb.

Student 3
Student 3

So, the key concept here is that a neutral object can behave as if it has a charge due to induction?

Teacher
Teacher

Right! This phenomenon explains many real-life interactions where charged objects influence neutral ones.

Torque and Alignment in Electric Fields

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Returning to torque, why do we care about how much torque a dipole experiences?

Student 1
Student 1

It helps to determine how quickly a dipole will align with the electric field.

Teacher
Teacher

Exactly! The torque, given by τ = pE sin(θ), indicates the energy dynamics of the system. Can someone explain how this relates to energy?

Student 2
Student 2

As the dipole aligns, it minimizes its potential energy in the field.

Teacher
Teacher

Correct! So aligning in the field lowers energy, while not aligned has higher potential energy. Can you relate this to stability?

Student 3
Student 3

Positions where it is aligned with the field are more stable than those where it’s not.

Teacher
Teacher

Excellent! Remembering how potential energy relates to stability helps conceptualize why dipoles behave as they do in electric fields.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the behavior of a permanent dipole in a uniform external electric field, focusing on torque, forces, and induced dipole moments.

Standard

The section elaborates on how a dipole interacts with a uniform electric field, outlining the concepts of torque experienced by the dipole, how it aligns with the field, and the implications of field uniformity versus non-uniformity on forces acting on the dipole.

Detailed

In this section, we examine the dynamics of a permanent dipole moment p placed in a uniform external electric field E. Although the net force on the dipole is zero in a uniform field since E is constant, the charges experience equal and opposite forces leading to a torque that tends to align the dipole with the field. The torque

\[ \tau = p \times E \]

is pivotal as it helps the dipole rotate until it is aligned with E, thus minimizing its potential energy in the field. In cases where the electric field is not uniform, the net force on the dipole is non-zero and directed towards regions of stronger field intensity. The section ties in real-life applications, such as how charged objects influence uncharged materials by inducing dipole moments, thus explaining observable phenomena in electrostatic interactions.

Youtube Videos

Dipole in a Uniform External Field - Electric Charges and Fields | Class 12 Physics Chapter 1 | CBSE
Dipole in a Uniform External Field - Electric Charges and Fields | Class 12 Physics Chapter 1 | CBSE
Electric Charges and Fields One Shot with Live Experiment ⚡⚡| Class 12th Physics NCERT by Ashu Sir
Electric Charges and Fields One Shot with Live Experiment ⚡⚡| Class 12th Physics NCERT by Ashu Sir
CBSE Class 12 | Physics | Electric Charges and Fields | Electric Dipole | NCERT Ch 1 | Ashu Sir
CBSE Class 12 | Physics | Electric Charges and Fields | Electric Dipole | NCERT Ch 1 | Ashu Sir

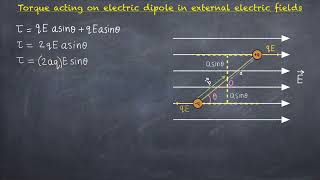

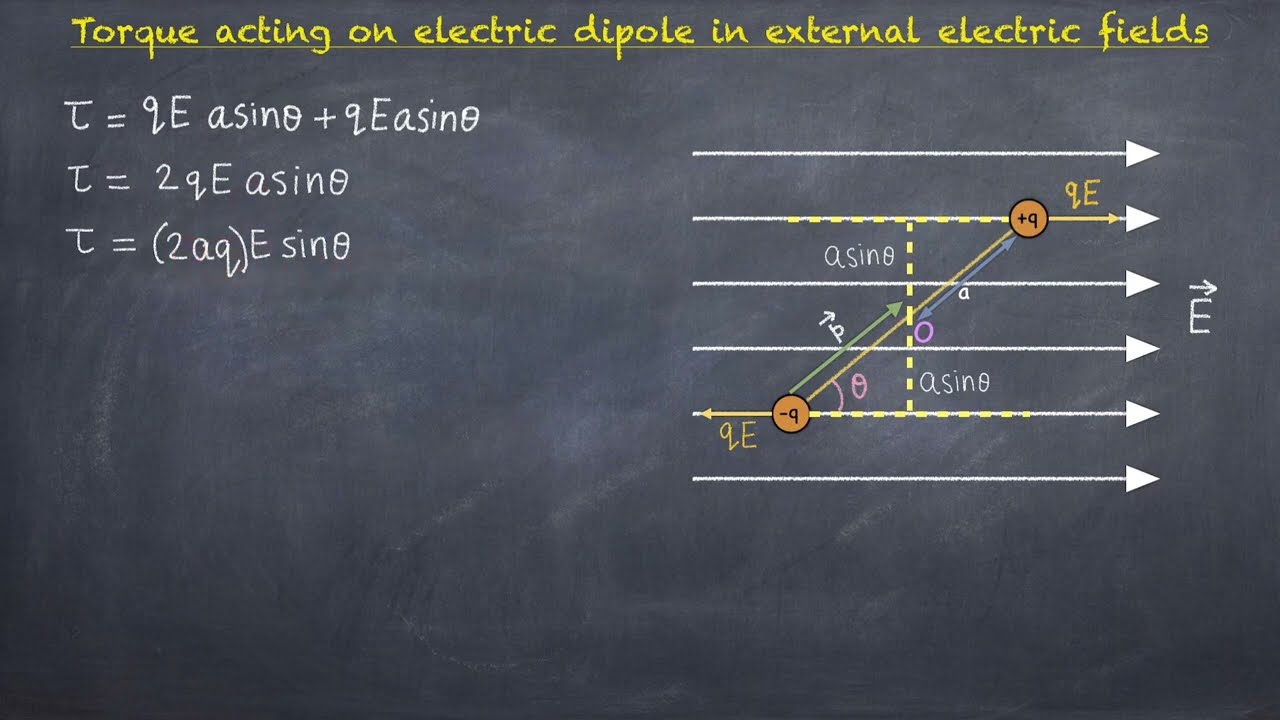

Torque Acting on a Dipole in a Uniform Electric Field |Class 12 Physics Chapter 1 Derivations
Torque Acting on a Dipole in a Uniform Electric Field |Class 12 Physics Chapter 1 Derivations
Electric Charges & Fields Full Marathon | Class 12 Physics | CBSE 2024 | Shimon Sir
Electric Charges & Fields Full Marathon | Class 12 Physics | CBSE 2024 | Shimon Sir
ELECTRIC CHARGES & FIELDS in 45 Minutes | Physics Chapter 1 | Full Chapter Revision | Class 12th
ELECTRIC CHARGES & FIELDS in 45 Minutes | Physics Chapter 1 | Full Chapter Revision | Class 12th
Electric Charges and Fields Class 12 Physics | NCERT Chapter 1 | CBSE NEET JEE | One Shot |हिंदी में
Electric Charges and Fields Class 12 Physics | NCERT Chapter 1 | CBSE NEET JEE | One Shot |हिंदी में
Electric Dipole - Electric Charges and Fields | Class 12 Physics Chapter 1 | CBSE 2024-25
Electric Dipole - Electric Charges and Fields | Class 12 Physics Chapter 1 | CBSE 2024-25
Electric Charges and Fields 10 | Torque on an Electric dipole Placed in a Uniform Electric Field II
Electric Charges and Fields 10 | Torque on an Electric dipole Placed in a Uniform Electric Field II
Electric Charges and Field | Class 12 Physics | Complete NCERT Chapter 1 | Anupam Sir @VedantuMath
Electric Charges and Field | Class 12 Physics | Complete NCERT Chapter 1 | Anupam Sir @VedantuMath

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Torque on a Dipole in a Uniform Field

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider a permanent dipole of dipole moment p in a uniform external field E, as shown in Fig. 1.19. (By permanent dipole, we mean that p exists irrespective of E; it has not been induced by E.) There is a force qE on q and a force –qE on –q. The net force on the dipole is zero, since E is uniform. However, the charges are separated, so the forces act at different points, resulting in a torque on the dipole. When the net force is zero, the torque (couple) is independent of the origin. Its magnitude equals the magnitude of each force multiplied by the arm of the couple (perpendicular distance between the two antiparallel forces).

Detailed Explanation

A dipole consists of two equal and opposite charges separated by a small distance. When placed in a uniform electric field, each charge experiences a force, creating a couple. Although the total force on the dipole is zero in a uniform field (as the forces on the two charges cancel each other), a torque is produced. The torque tends to align the dipole with the field direction. The magnitude of the torque is given by the expression τ = p × E, where p is the dipole moment and E is the electric field vector. This means that the force on each charge leads to a rotational effect that tries to align the dipole with the field.

Examples & Analogies

Imagine a toy airplane with a propeller. When you place it in the wind (electric field), the wind pushes against the propeller (the charges in the dipole), but because the push is uneven on the front and back, it causes the airplane to twist and turn towards the direction of the wind. Similarly, the charges in a dipole feel forces that cause the dipole to rotate until it aligns with the electric field.

Effects of Non-Uniform Electric Fields

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

What happens if the field is not uniform? In that case, the net force will evidently be non-zero. In addition, there will, in general, be a torque on the system as before. The general case is involved, so let us consider the simpler situations when p is parallel to E or antiparallel to E. In either case, the net torque is zero, but there is a net force on the dipole if E is not uniform.

Detailed Explanation

In a non-uniform electric field, the force on the charges of the dipole will not be equal even if the dipole orientation is aligned with the field. This difference in forces leads to a resultant net force acting on the entire dipole, pulling it in the direction of the stronger part of the field. Hence, the dipole not only experiences torque but also may move in the direction of stronger electric field regions, causing a net displacement.

Examples & Analogies

Think of a leaf caught on a windy day. If the wind blows gently across the leaf, it might sway back and forth without moving much. However, if a gust of wind hits it from one side, the leaf will catch the wind and be pushed along the path of that stronger wind. Just as the leaf moves in variable wind, a dipole in a non-uniform electric field moves toward the area of stronger force.

Induced Polarization in Matter

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

This brings us to a common observation in frictional electricity. A comb run through dry hair attracts pieces of paper. The comb, as we know, acquires charge through friction. But the paper is not charged. What then explains the attractive force? Taking the clue from the preceding discussion, the charged comb ‘polarizes’ the piece of paper, i.e., induces a net dipole moment in the direction of the field.

Detailed Explanation

When a charged object like a comb comes near a neutral object like a piece of paper, it creates an electric field around it. This field affects the distribution of charges within the neutral object, causing the closest charges to the comb to either repel or attract. As a result, the paper temporarily develops its own dipole, with a positive side that is closer to the comb and a negative side further away. This induced dipole causes the paper to be attracted to the charged comb, illustrating how electric charge can influence neutral objects.

Examples & Analogies

Imagine drawing a crowd of people toward you by holding a sign that some people are drawn to. In this instance, your sign is the charged comb, and the spectators are like the pieces of paper. Although they're not directly ‘charged’, your appeal (or the electric field) influences their arrangement, causing them to move closer to you (or the comb). Just as they reorganize and cluster around what draws their attention, charges within neutral materials rearrange to create a dipole when influenced by nearby electric fields.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Torque on a dipole is produced by the external electric field.

  • A dipole aligned with an electric field minimizes its potential energy.

  • Induced dipoles are formed in neutral objects by external electric fields.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • When a dipole is in a uniform electric field, it will rotate until aligned with the field.

  • A charged comb can induce a dipole moment in a neutral object, causing attraction.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When charges align, potential drops low, in uniform fields, watch the dipole go.

📖 Fascinating Stories

  • Imagine a small compass in a windstorm, getting tugged in different directions—that’s a dipole in a field.

🧠 Other Memory Gems

  • D.A.T. - Dipole Aligns Torque, remember that a dipole aligns with the field because of the torque it experiences.

🎯 Super Acronyms

DIP - Dipoles Induce Polarization in nearby neutral objects.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Dipole

    Definition:

    A pair of equal and opposite charges separated by a distance.

  • Term: Dipole Moment

    Definition:

    A vector quantity that measures the separation of positive and negative charges in a dipole.

  • Term: Torque

    Definition:

    A measure of the force that causes an object to rotate around an axis.

  • Term: Polarization

    Definition:

    The process of inducing a dipole moment in a neutral object by an external electric field.

  • Term: Electric Field

    Definition:

    A region around charged objects where they can exert forces on other charges.
